What is Side Scan Sonar?

Side scan sonar is a form of active sonar designed to image the seafloor and detect underwater objects by emitting sound waves at angles perpendicular to a transducer-equipped towfish or hull-mounted system. As the sound pulses travel through the water, they reflect off the seabed and objects, with the strength and timing of the returned signals used to generate detailed sonar images. Unlike downward-facing sonar systems focused mainly on depth sounding, side scan sonar offers a wide, fan-shaped coverage that captures horizontal imagery, enabling a broader view of the underwater environment.

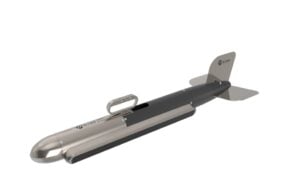

Side scan sonar, SS900, from Hydro-Tech.

The technology behind side scan sonar transducers is critical to achieving high-resolution images. Specialized side scan transducers optimize signal clarity and coverage, making them indispensable for a range of applications from hydrographic surveys to military reconnaissance.

Types of Side Scan Sonar Systems

Different types of side scan sonar systems cater to varying operational needs, with distinctions based on frequency, deployment methods, and imaging capability:

• Hull-mounted side scan sonar: Installed directly on vessels, ideal for large-scale surveys requiring consistent coverage.
• Towfish side scan sonar: Towed behind a vessel at variable depths to achieve better proximity to the seabed, enhancing image resolution.
• Autonomous and remotely operated vehicle (AUV/ROV) mounted sonar: Integrated into underwater drones for precise, autonomous surveying in challenging or inaccessible areas.
• High-frequency side scan sonar: Provides superior image detail at the cost of reduced range, used where fine resolution is paramount, such as archaeological investigations.
• Low-frequency side scan sonar: Offers extensive coverage at the expense of image resolution, suited for broad area searches and initial seabed mapping.

These side scan sonar devices differ in terms of operational frequency, platform integration, and imaging characteristics, allowing users to choose systems that best match their mission profiles.

Applications of Side Scan Sonar Technology

Side scan sonar has broad application across multiple industries. Each of the following applications highlights its significance in enhancing underwater visibility and safety.

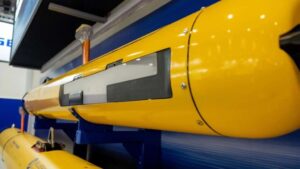

Side imaging sonar, Solstice MAS, from Wavefront.

Military & Defense Applications

Military sonar systems leverage side scan technology for mine detection, submarine tracking, and seabed mapping for strategic operations. Precision side scan sonar transducers and arrays enable naval forces to identify threats quickly and safely, even in complex underwater environments. High-definition side scan sonar images play a critical role in tactical decision-making and mission success.

Hydrographic Surveying & Seabed Mapping

Hydrographic agencies use side scan sonar systems extensively to chart the ocean floor, identify navigational hazards, and support safe maritime navigation. Side scan sonar data informs the creation of accurate nautical charts, ensuring that ports, shipping lanes, and coastal infrastructures are well-understood and maintained.

Underwater Archaeology

Side scan sonar equipment provides archaeologists with a non-invasive method to locate and document submerged historical artifacts and shipwrecks. The ability to capture high-resolution images of archaeological sites without disturbing the seabed makes side scan sonar an indispensable tool in marine heritage preservation.

Environmental Monitoring & Research

Marine scientists deploy side scan sonar devices to study underwater ecosystems, sediment transport patterns, and coral reef structures. Detailed side scan sonar images support environmental impact assessments and conservation efforts by providing clear insights into underwater habitats without causing physical disruption.

Search & Recovery Operations

During search and recovery missions, side scan sonar systems enable fast localization of sunken vessels, aircraft wreckage, and other underwater targets. Emergency response teams rely on side scan sonar technology to streamline recovery efforts, significantly improving mission outcomes through accurate underwater mapping.

Pipeline & Cable Inspection

Infrastructure inspections benefit from the use of side scan sonar transducers that can detect damage, displacement, or burial of undersea pipelines and communication cables. Detailed sonar imaging allows engineers to plan maintenance or repairs efficiently, minimizing service disruptions and environmental impact.

Choosing the Right Side Scan Sonar System

Selecting the appropriate side scan sonar system involves evaluating mission requirements, desired image resolution, operating depths, and platform capabilities. For instance, hull-mounted systems may suit continuous maritime surveys, while AUV-mounted side scan sonar devices offer flexibility for deepwater exploration. The choice of sonar array and external transducer types also affects imaging quality, range, and operational reliability.

Advances in side scan sonar technology, including digital signal processing and synthetic aperture sonar (SAS) developments, continue to push the boundaries of image clarity, coverage, and usability across all applications.
