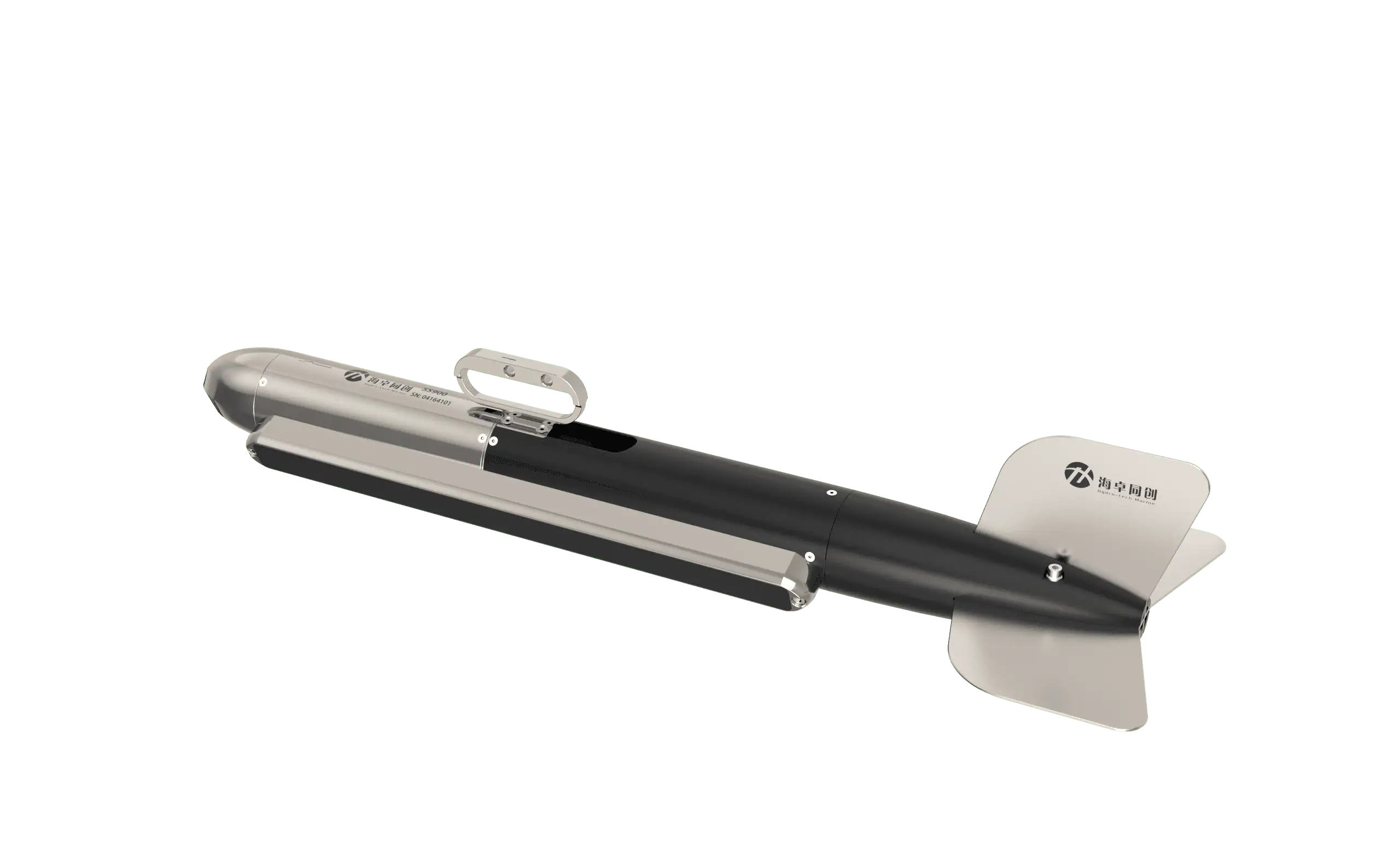

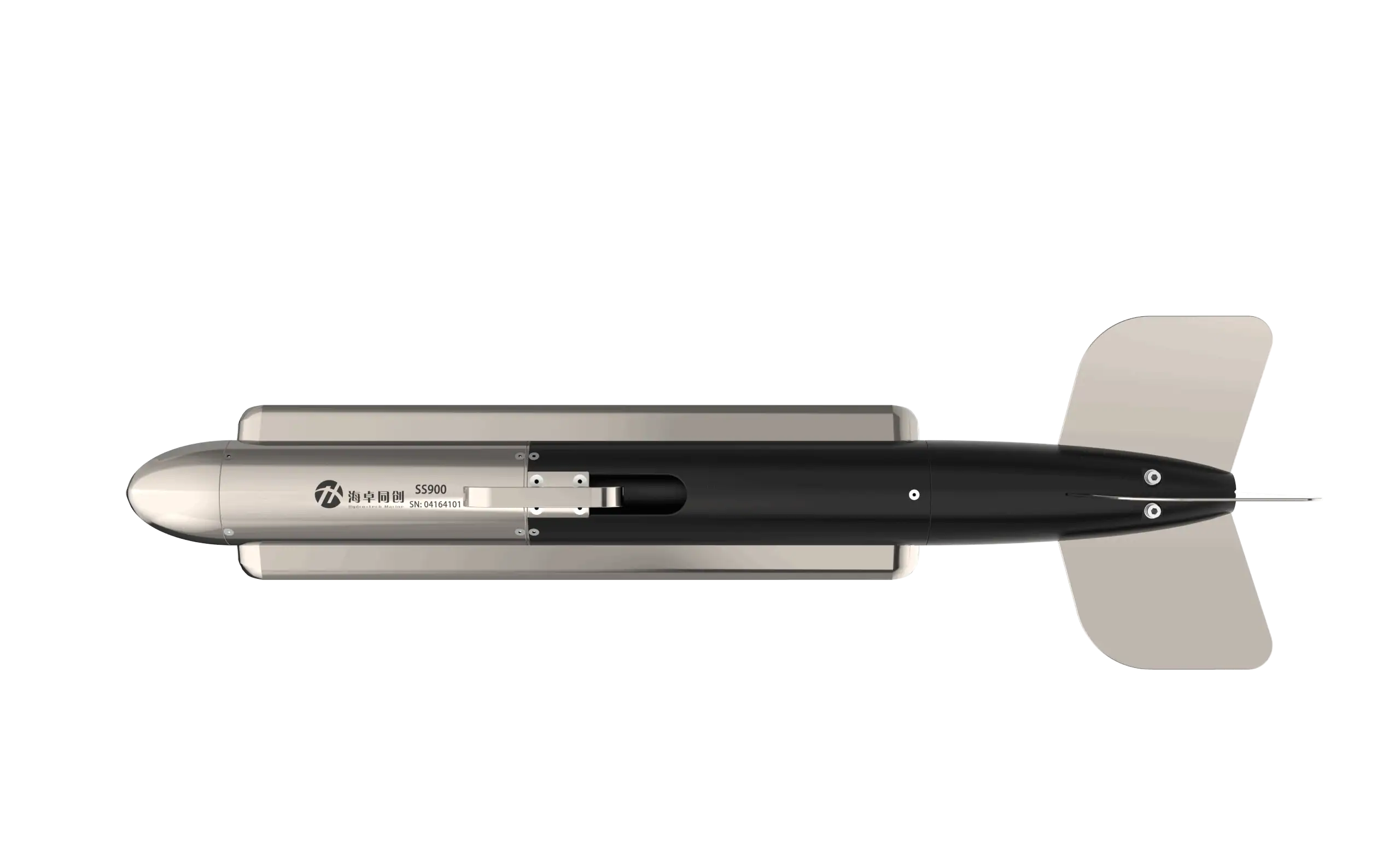

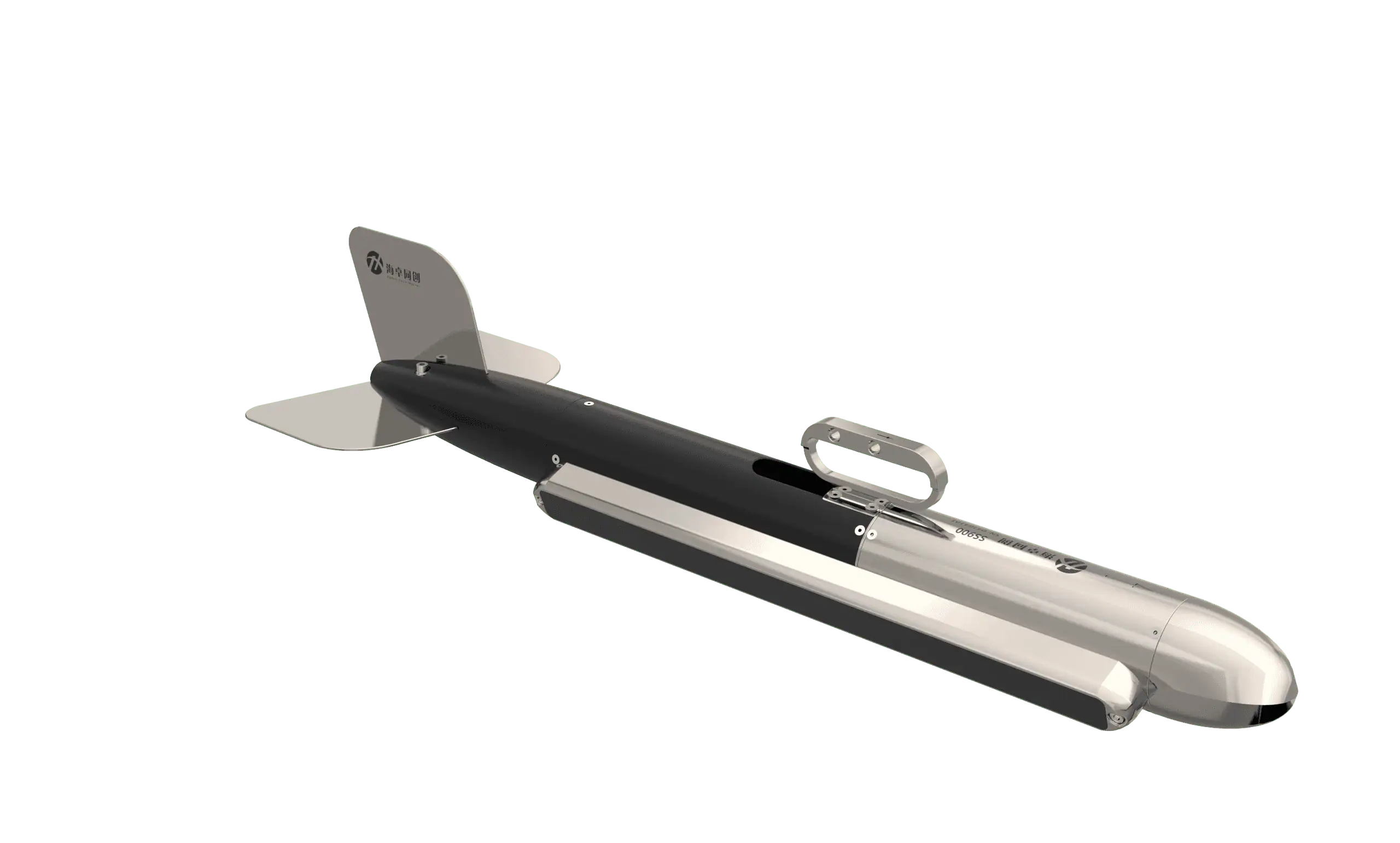

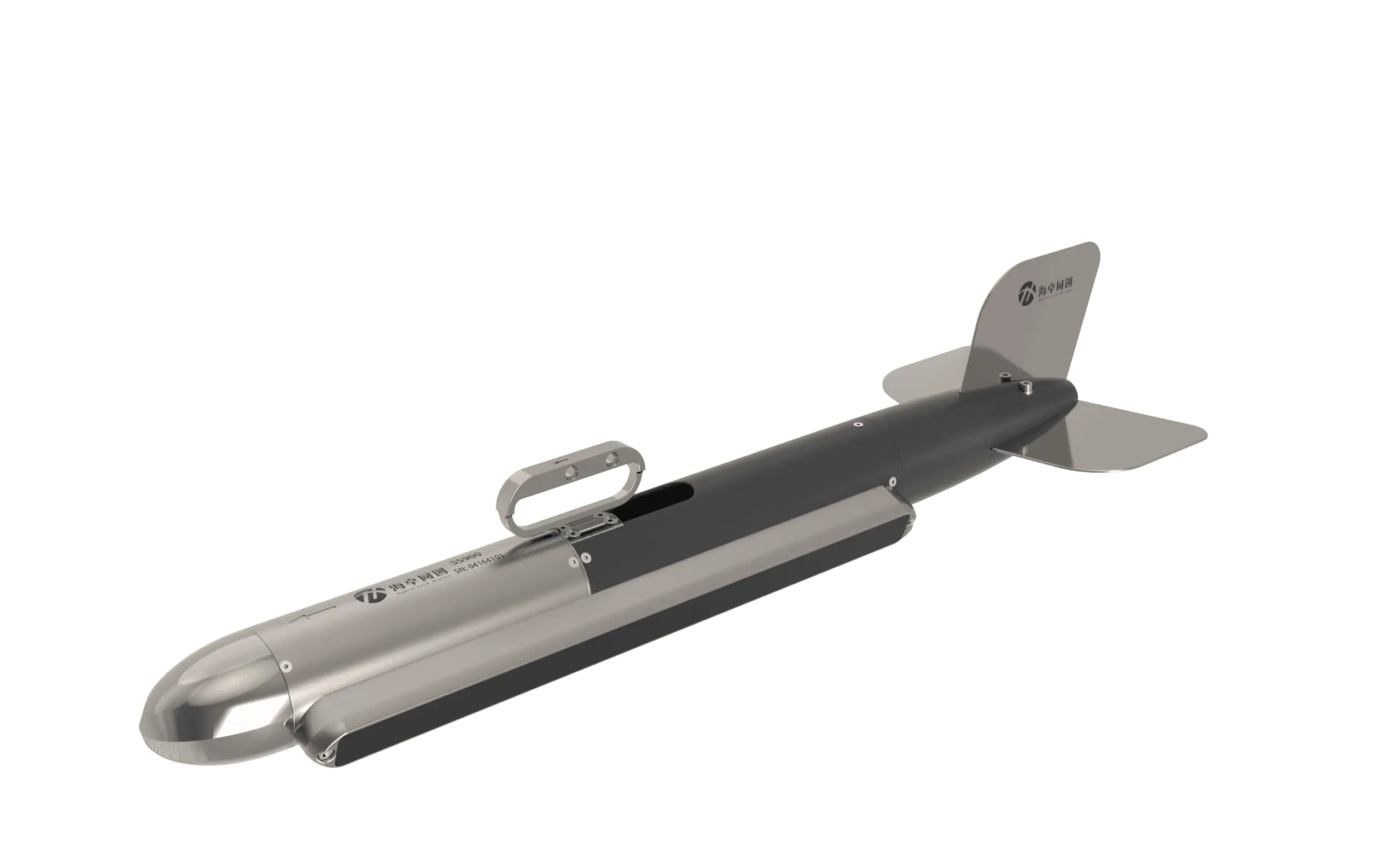

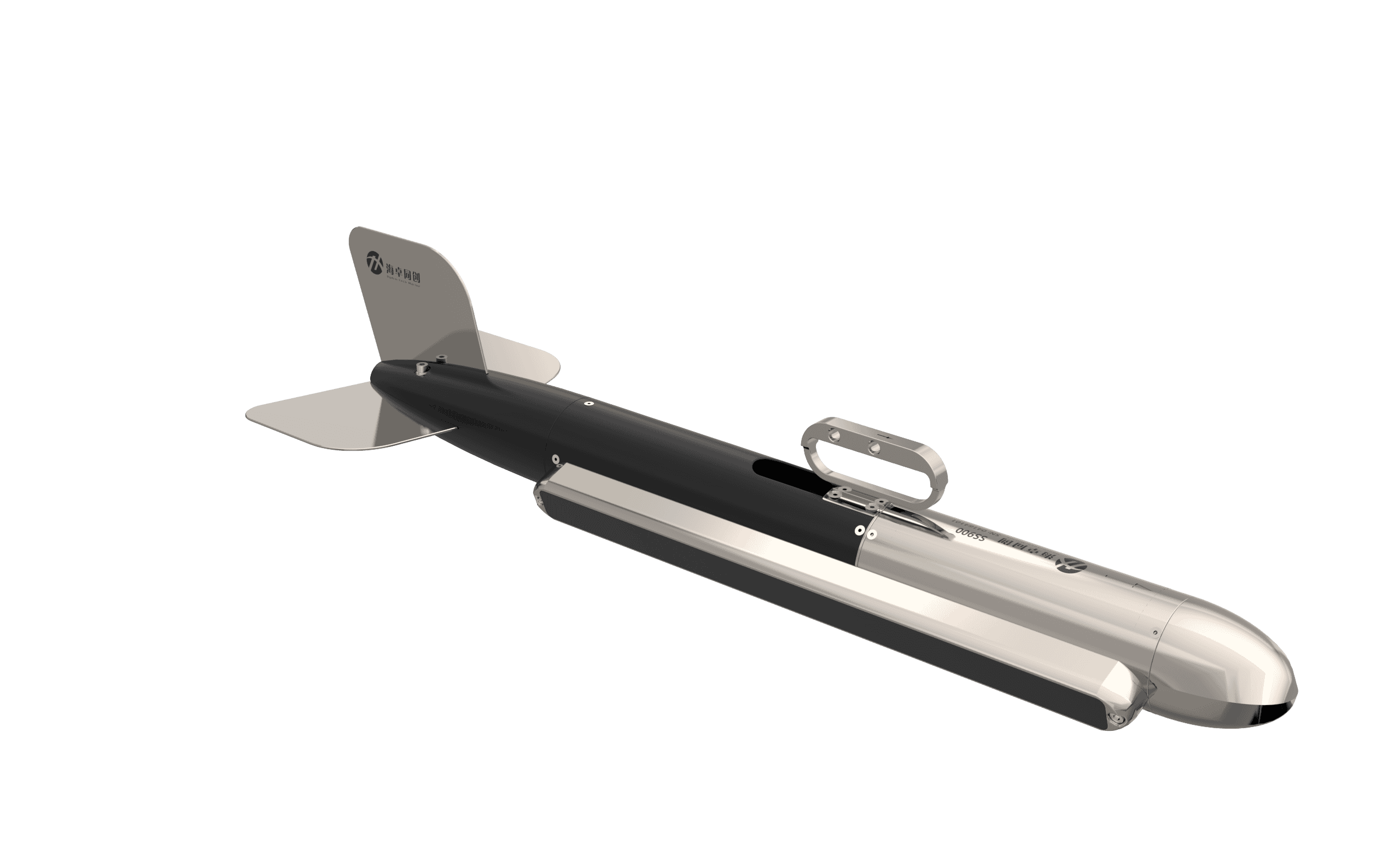

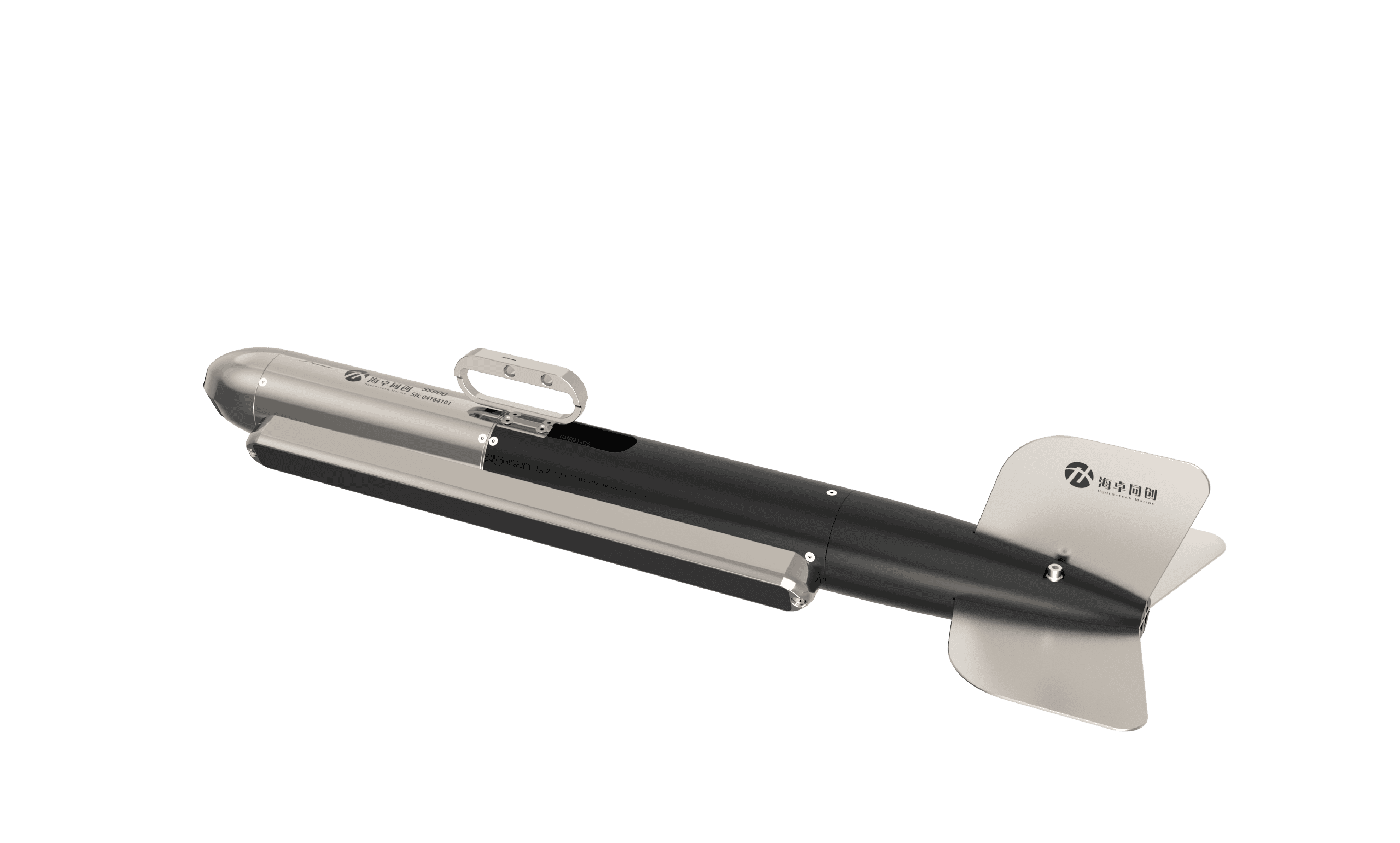

SS900 Small Side Scan Sonar
SS900 is a towfish side scan sonar specifically designed for emergency and rescue application. With the leading self-adaption wave adjustment technology combining broadband signal processing and image equalization technology, SS900 can clearly scan various underwater small targets and complex structures. So it had been widely used in rescue teams.
Specifications:
| Dimension | 76cm x 23.5cm x 14.6cm |
| Weight | 2.7kg |
| Power Supply | DC 20V - 30V |
| Frequency | 900kHz |
| Across Track Resolution | 1cm |
| Along Track Resolution | 0.07m@20m, 0.17m@50m, 0.26m@75m |
| Vertical Beam Width | 50° |
| Parallel Beam Width | 0.2° |
| Max. Working Depth | 300m |
| Max. Slope Range | 75m |
