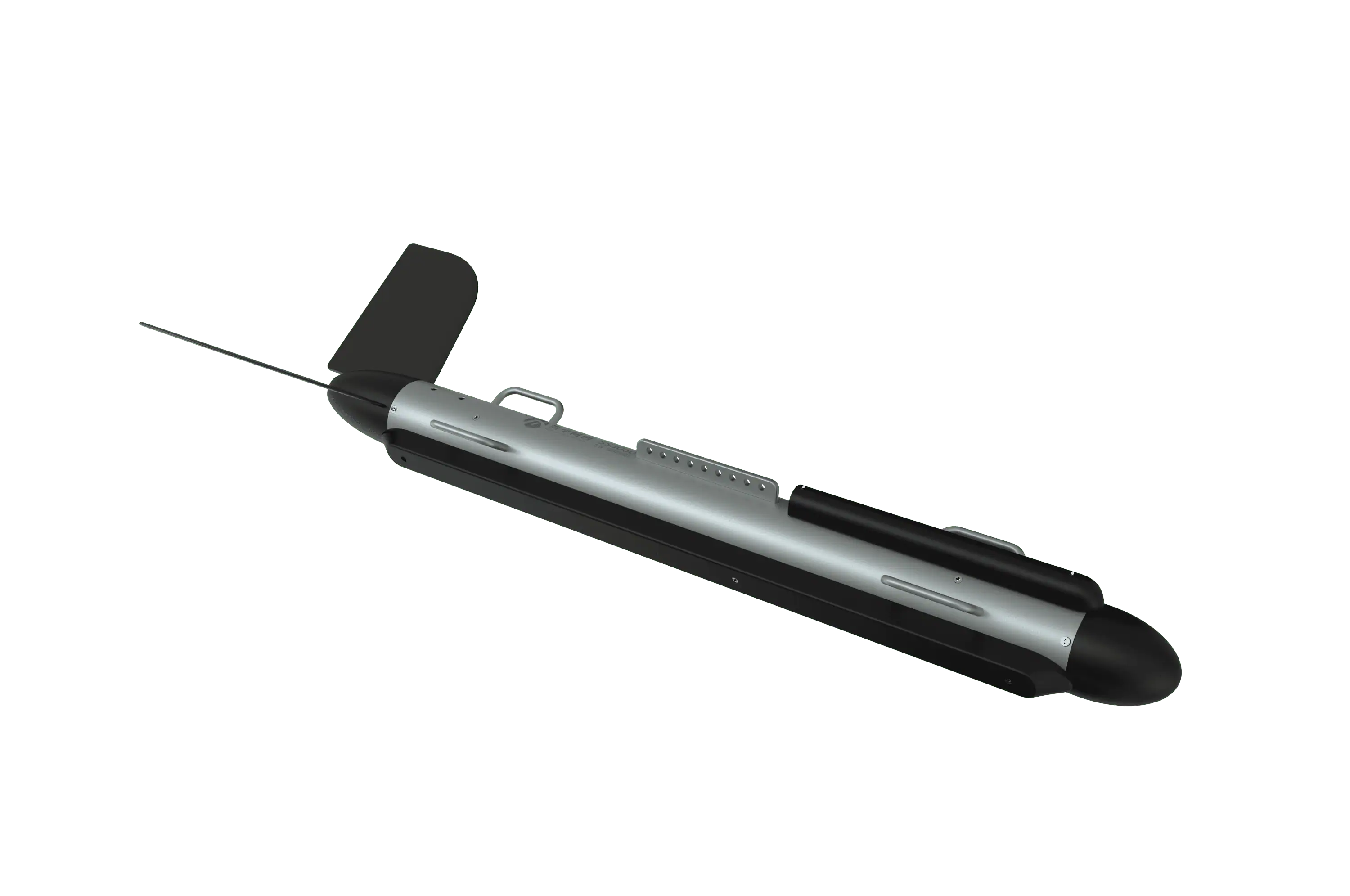

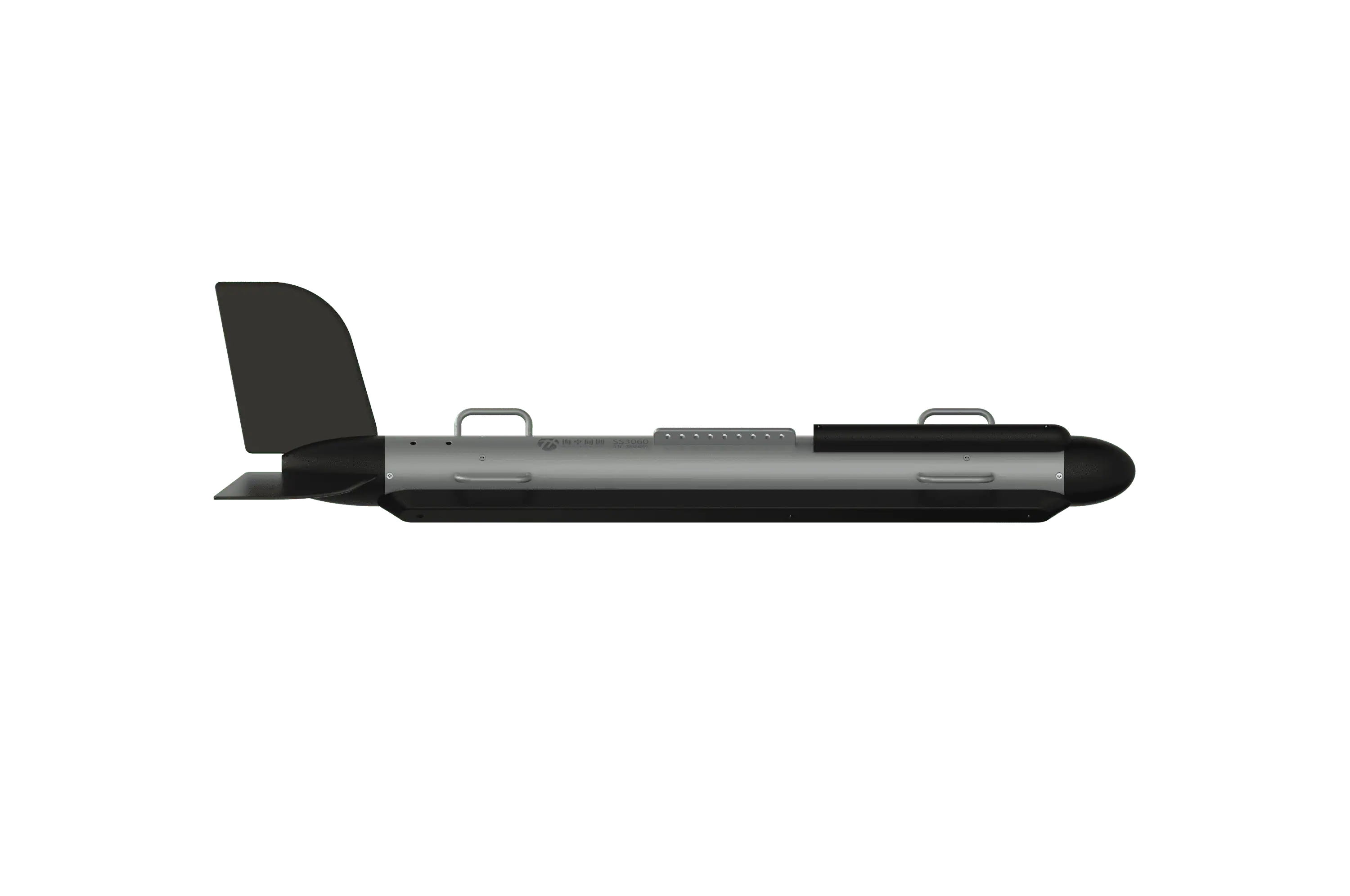

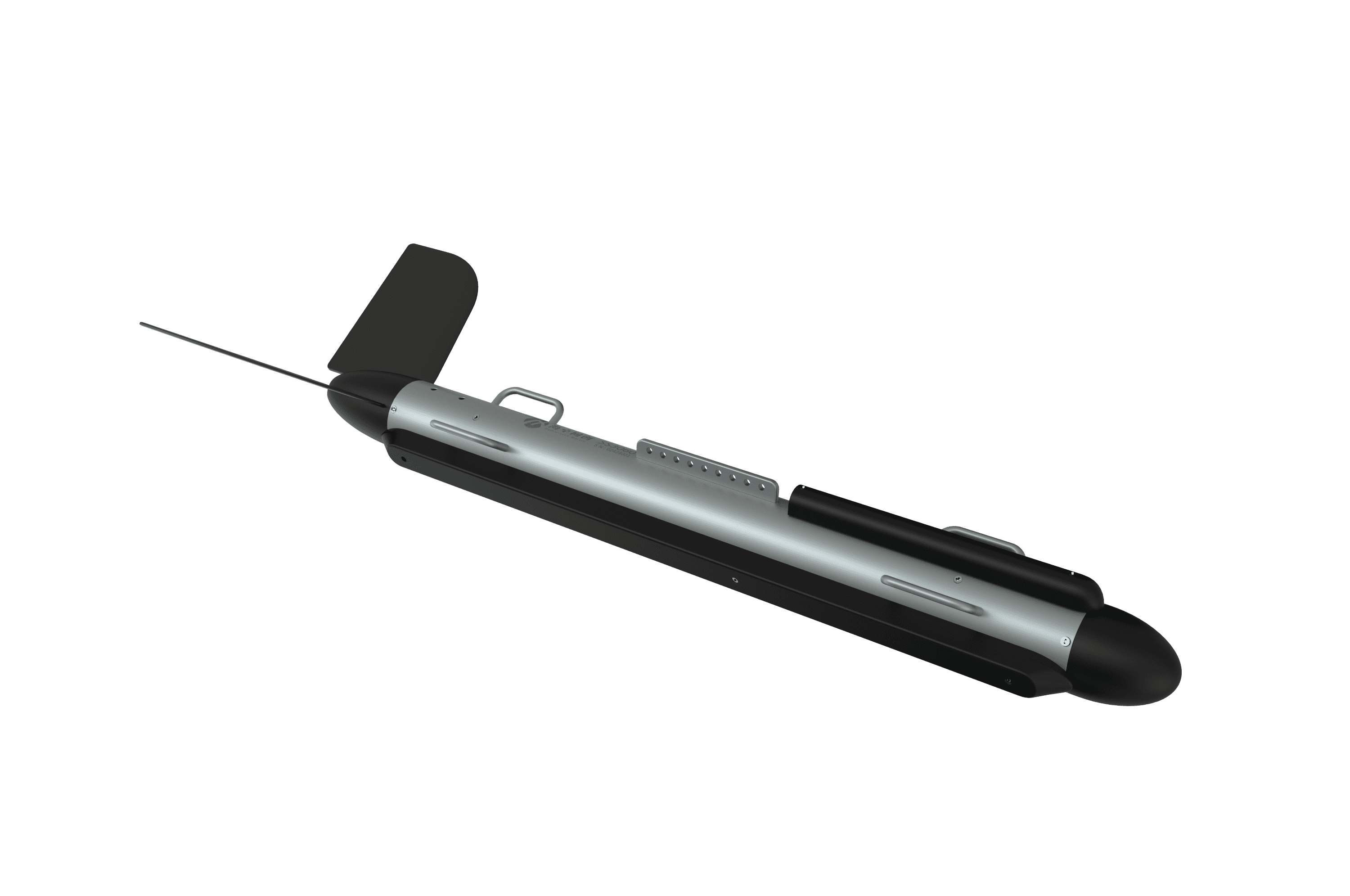

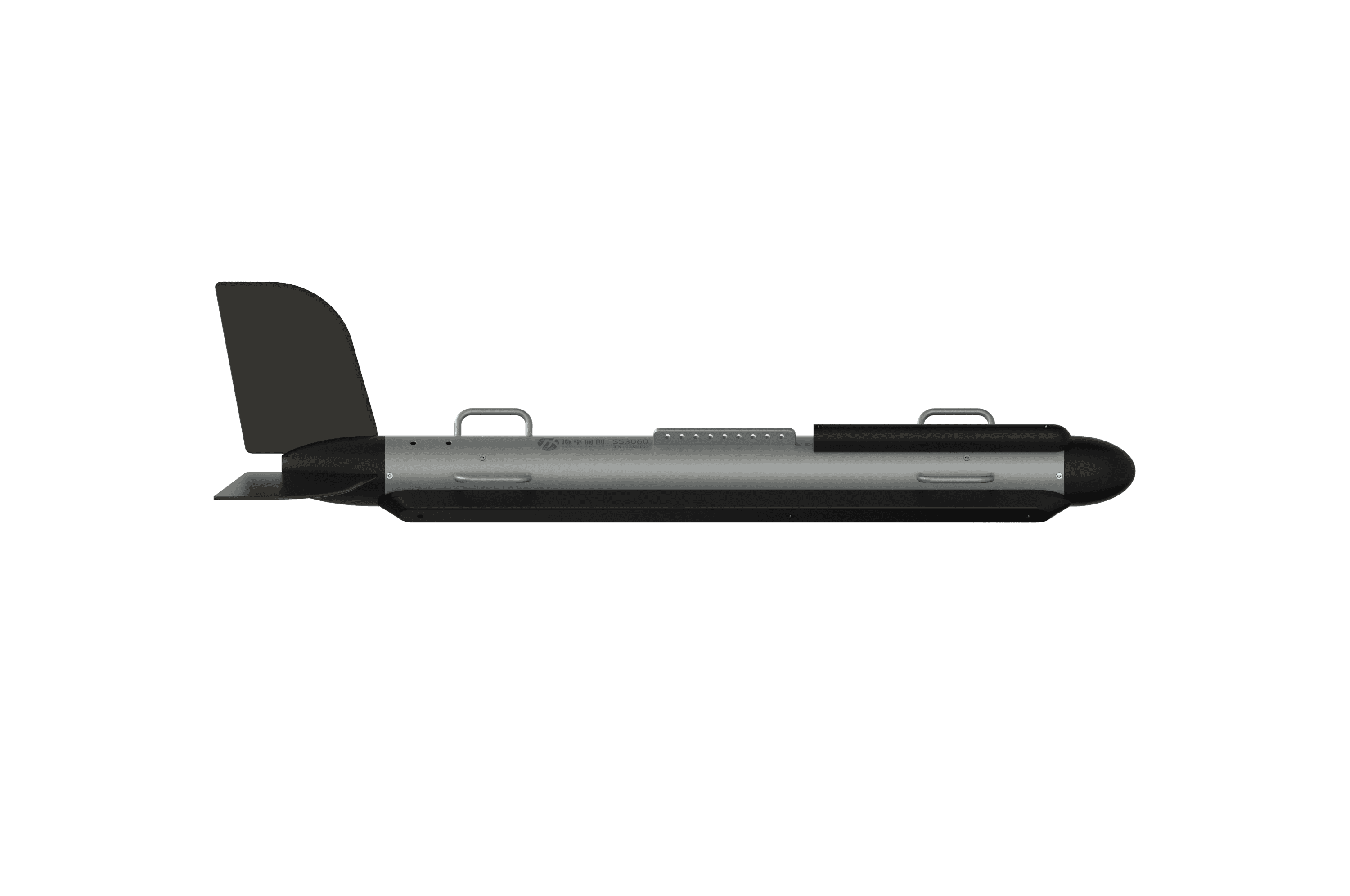

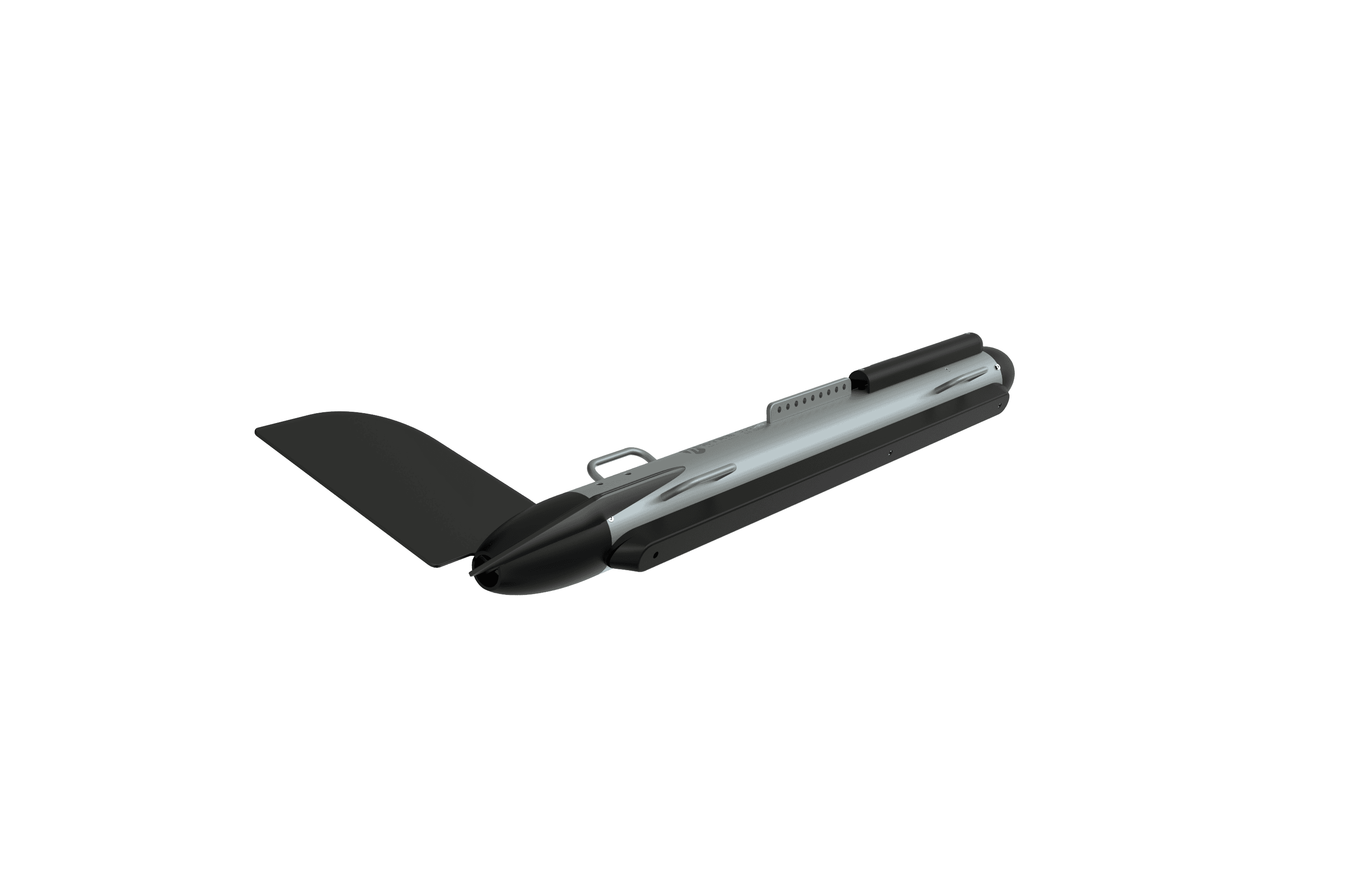

SS3060/SS4090 Dual Frequency Side Scan Sonar
SS3060 and SS4090 is a dual-band broadband high-definition side-scan sonar designed for general survey requirement. The system adopts a number of innovative technologies including broadband signal processing, variable aperture, image equalization, 4K HD display technology to fulfill customer requirements on wide scanning range and high definition. The system is widely applied in shallow water operations such as underwater engineering inspection, pipeline investigation, fire emergency search and rescue, underwater archaeological survey, marine pasture investigation and environmental protection hidden pipe inspection etc.
Specifications:
| Towfish Size | Φ100mm x 1200mm |
| Towfish Weight | 25kg (In the air) / 12kg (In water) |
| Power Supply | DC 20V - 36V / AC 110V - 240V |
| Frequency | 300kHz / 600kHz (SS3060) 400kHz / 900kHz (SS4090) |
| Signal Bandwidth | 60kHz |
| Vertical Beam Width | 50° |
| Parallel Beam Width | 0.28°@300kHz / 0.26°@600kHz 0.21°@400kHz / 0.2°@900kHz |
| Max. Working Depth | 300m |
| Across Track Resolution | 2.5cm@300kHz / 1.25cm@600kHz 1.25cm @400kHz / 1cm @900kHz |
| Along Track Resolution | 300kHz: 0.24m@50m;0.49m@ 100m; 0.73m@150m 600kHz: 0.09m@20m; 0.23m@50m; 0.34m@75m 400kHz: 0.18m@50m; 0.27m@ 75m; 0.37m@100m 900kHz: 0.07m@20m; 0.17m@50m; 0.26m@75m |
