Omni-Directional Antennas for UAVs
Omni-directional antennas are designed to transmit and receive signals uniformly in all directions, enabling comprehensive coverage without the need for constant orientation adjustments. In unmanned and autonomous applications, omni-directional antennas play a key role in maintaining constant communication between vehicles and control centers, ensuring seamless data exchange for navigation, monitoring, and remote operation tasks, thereby enhancing operational efficiency and safety in diverse environments.
Omni-directional antennas, also known as omni antennas, are designed to transmit or receive signals with equal strength in all directions. The design is in contrast to directional antennas, which provide maximal signal strength in a specific direction.

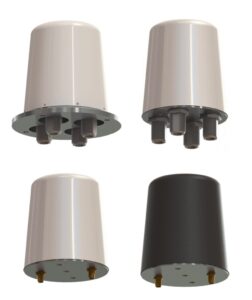

Omni-directional MIMO:MANET Antennas by Southwest Antennas
Omni-directional antennas are used for a wide variety of UAV (unmanned aerial vehicle) and unmanned systems applications. They may be used as part of the communications system between a drone or robotic vehicle and its ground control station (GCS), transmitting and receiving command and control data, telemetry, or payload and sensor data such as streaming video.
Omnidirectional RF, LTE, 4G, 5G and SATCOM antennas may all be found in drone communications links. Antennas used to receive GPS and GNSS satellite signals may also be omnidirectional.
Applications
Due to their ability to transmit and receive equally in all directions, omnidirectional antennas may be useful in situations where a drone or vehicle is constantly changing direction and orientation with respect to the GCS and lacks the ability to track and reorient a directional antenna. They are also useful in point-to-multipoint situations, such as when a GCS needs to communicate with a swarm of drones over a wide area.
Range & Signal Strength

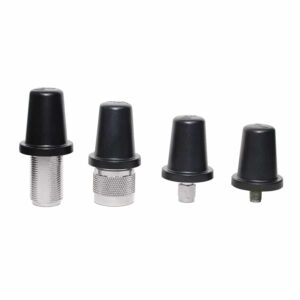

08-ANT-0956 Micro Omni Antennas by MP Antenna
While omnidirectional antennas provide coverage in all directions without the need for pointing and tracking mechanisms, and are thus relatively simple and cost effective, this comes at the expense of range and signal strength. They are also more susceptible to noise and interference, due to receiving signals from all directions.
Design

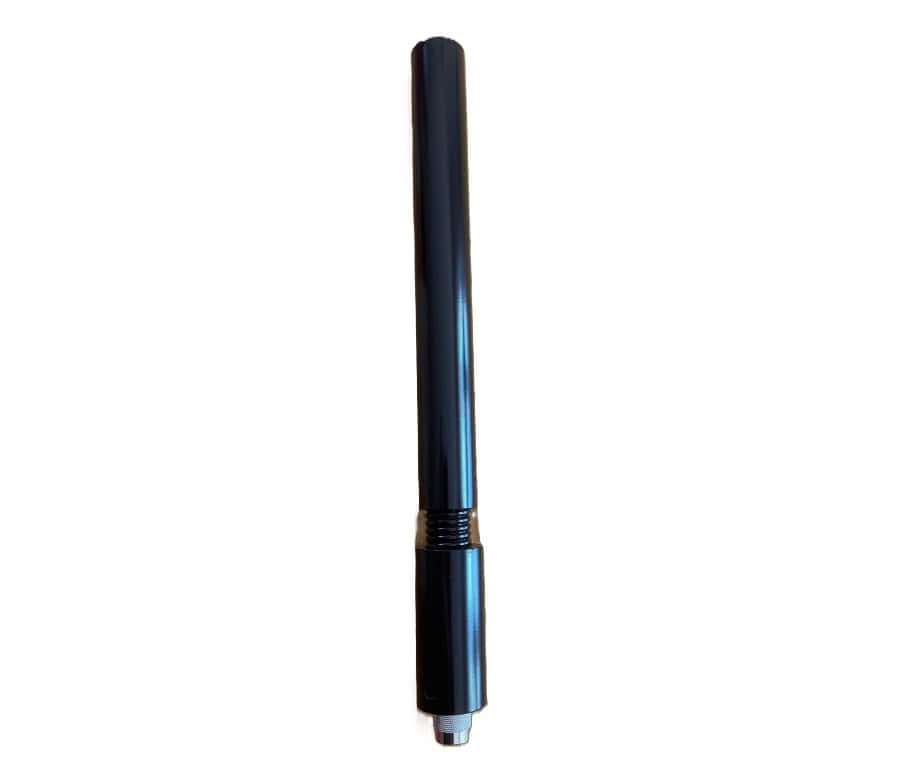

Drone omnidirectional antennas may be ruggedized in order to withstand harsh airborne conditions as well as those experienced during takeoff and landing. They may be designed with ingress protection and robust sealing against water and dust, and antennas for marine environments may feature enhanced saltwater corrosion protection. They may also be designed to withstand impact, shock and vibration, with protective enclosures, shock-absorbing structures, and springs to withstand snagging.
