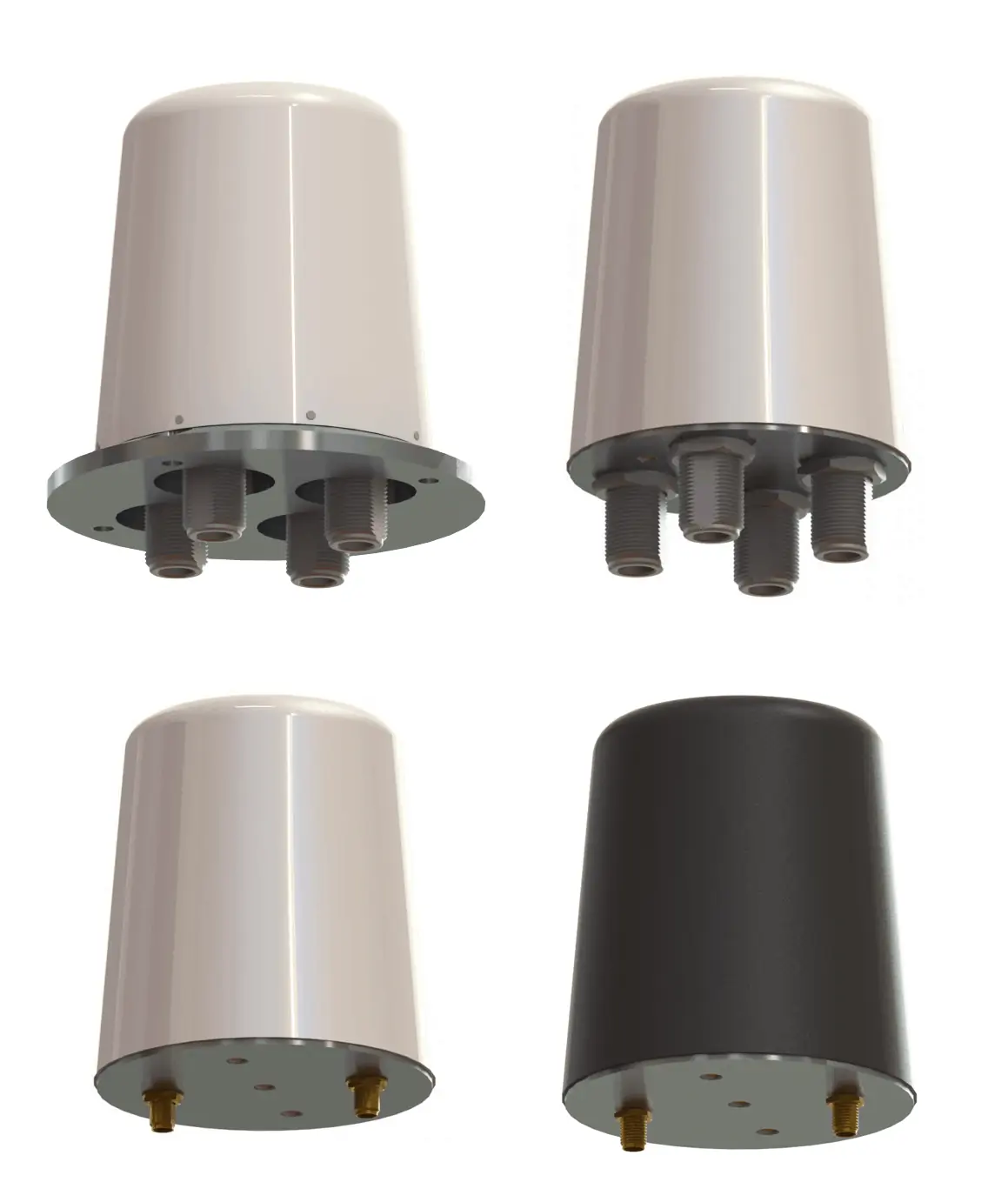

Omni-directional MIMO/MANET Antennas
These omni-directional antennas have been designed specifically for use with multi-port 2x2 and 4x4 MIMO / MANET radio systems, and are ideal for unmanned and autonomous ground vehicles and ground control stations, fixed-site infrastructure, and larger UAV systems.
The antenna range features options for 2.1 - 2.5 GHz and 4.4 - 5.0 GHz. Slant left and slant right polarization improves diversity and performance in high multipath environments, and a variety of mounting options provides operational flexibility.
| Part # | Min Freq | Max Freq | Maximum Gain (dBi) | Connector Type | Polarization | Special Features |
| 1055-267 | 2100 | 2500 | 2.9 | 2x Type-N(f) | 45° Slant Left/Right | |
| 1055-274 | 2100 | 2500 | 3.0 | 4x Type-N(f) | 45° Slant Left/Right | |
| 1055-278 | 2100 | 2500 | 2.9 | 2x SMA(f) | 45° Slant Left/Right | |
| 1055-301 | 2100 | 2500 | 2.9 | 2x Type-N(m) | 45° Slant Left/Right | Magnetic base and integrated RF cable |
| 1055-302 | 2100 | 2500 | 3.0 | 4x Type-N(m) | 45° Slant Left/Right | Magnetic base and integrated RF cable |
| 1055-321 | 2100 | 2500 | 2.9 | 2x Type-N(f) | 45° Slant Left/Right | |
| 1055-325 | 4400 | 5000 | 2.6 | 4x Type-N(f) | 45° Slant Left/Right | |
| 1055-326 | 4400 | 5000 | 2.6 | 2x Type-N(f) | 45° Slant Left/Right | |
| 1055-347 | 4400 | 5000 | 2.9 | 2x Type-N(m) | 45° Slant Left/Right | Magnetic base and integrated RF cable |
| 1055-348 | 2100 | 2500 | 2.9 | 2x SMA(f) | 45° Slant Left/Right | |
| 1055-361 | 4400 | 5000 | 2.9 | 2x TNC(m) | 45° Slant Left/Right | Magnetic base and integrated RF cable |
| 1055-362 | 4400 | 5000 | 3.0 | 2x TNC(m) | 45° Slant Left/Right | Magnetic base and integrated RF cable |
| 1055-365 | 2100 | 2500 | 3.0 | 2x TNC(m) | 45° Slant Left/Right | Magnetic base and integrated RF cable |
| 1055-369 | 4400 | 5000 | 2.6 | 2x SMA(f) | 45° Slant Left/Right | |
| 1055-371 | 2100 | 2500 | 2.9 | 2x TNC(m) | 45° Slant Left/Right | Magnetic base and integrated RF cable |
| 1055-377 | 2100 | 2500 | 3.9 | 2x Type-N(f) | 45° Slant Left/Right | Flange for aircraft mounting |
| 1055-378 | 4400 | 5000 | 5.3 | 2x Type-N(f) | 45° Slant Left/Right | Flange for aircraft mounting |
| 1055-394 | 4400 | 5000 | 2.6 | 2x SMA(f) | 45° Slant Left/Right |
