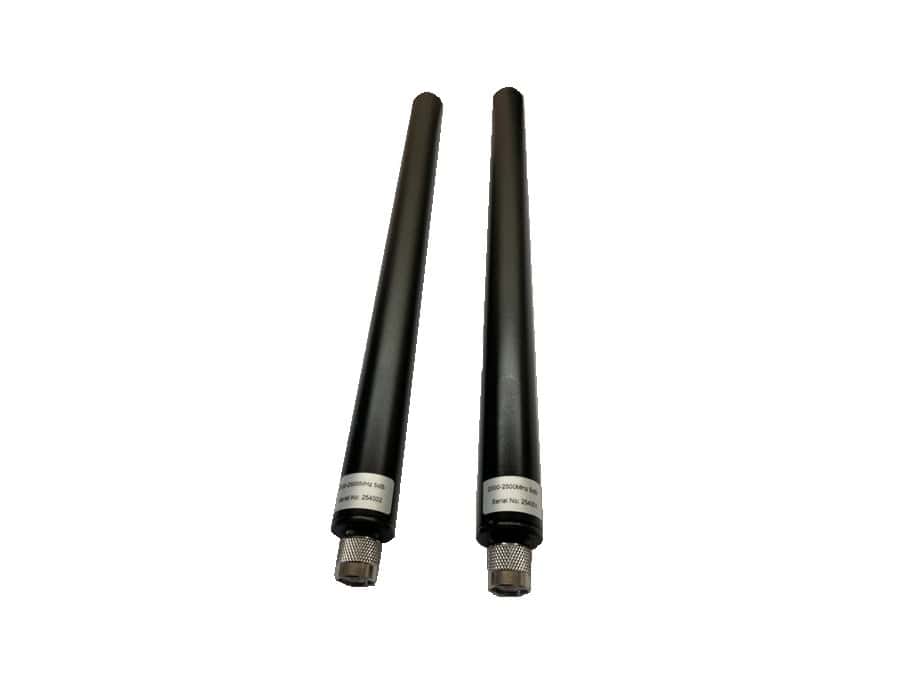

Rigid Omnidirectional Antennas
Apella Solutions' range of standard omnidirectional antennas is ideal for UAVs and unmanned systems operating in challenging multipath environments, featuring a rugged build and constructed from machined aluminium with a tubular glass fiber cover.
Available in L, S and C bands, the lightweight antennas can be provided with TNC or N-type connectors.
Specifications:
| L-Band | S-Band | C-Band | |
| Dimensions: | 220 x 22 mm plus connector | 125 x 20 mm plus connector | 90 x 20 mm plus connector |
| Weight: | ~90g | ~70g | ~40g |
| Frequency Range: | 1200 – 1700 MHz | 1980 – 2700 MHz | 4400 – 5000 MHz |
| Gain: | 5 dBi nominal | ||
| VSWR: | 1.2:1 across the band | <1.2:1 across the band | <1.5:1 across the band |
| RF Power Handling: | 25W | ||
| Connector: | N Type Male, TNC Male or Female | ||
| Polarization: | Linear Vertical | ||
