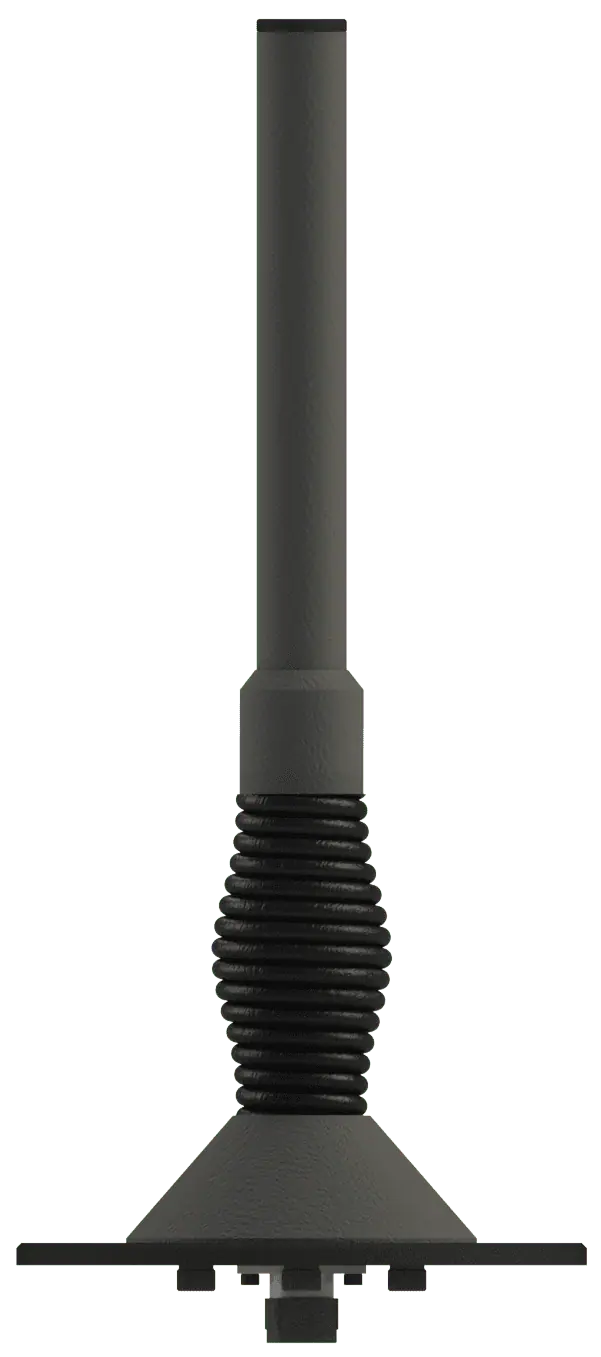

Vehicle Mount Omni Antennas
Southwest Antennas' range of vehicle mount omni antennas is ideal for UGVs (unmanned ground vehicles) and ground robotics, providing a standard Type-N (f) RF connector and featuring the ability to be secured to 6-hole NATO or standard 4-hole USA vehicle mounting brackets. With options for L, S and C bands, these antennas provide 360-degree azimuth coverage and are compatible with most leading tactical radio systems.
The rugged antennas are IP67-rated, and have been designed with heavy-duty spring bases that allow them to survive snags and significant impacts. They have also been rigorously tested with multiple collisions at 30 mph to ensure optimum longevity and performance.
Specifications:
| 1073-003 | 1073-001 | 1073-002 | 1073-004 | |
| Band | L-band | S-Band | C-Band | L & S-Band |
| Base Diameter | 5.51” | 5.51” | 5.51” | 5.51” |
| Height | 26.47” | 20.26” | 14.21” | 12.75” |
| Weight | 3.50 lbs | 3.25 lbs | 3.15 lbs | 3.22 lbs |
| Frequency Range | 1.35 - 1.45 GHz | 2.2 – 2.5 GHz | 4.4 – 5.0 GHz | 1.35 - 2.5 GHz |
| Max Gain | 5.2 dBi | 5.6 dBi | 5.9 dBi | 2.6 dBi |
| Polarization | Vertical | Vertical | Vertical | Vertical |
| Max VSWR | 2:1 | 2:1 | 2:1 | 2:1 |
