Omni-Directional Antennas

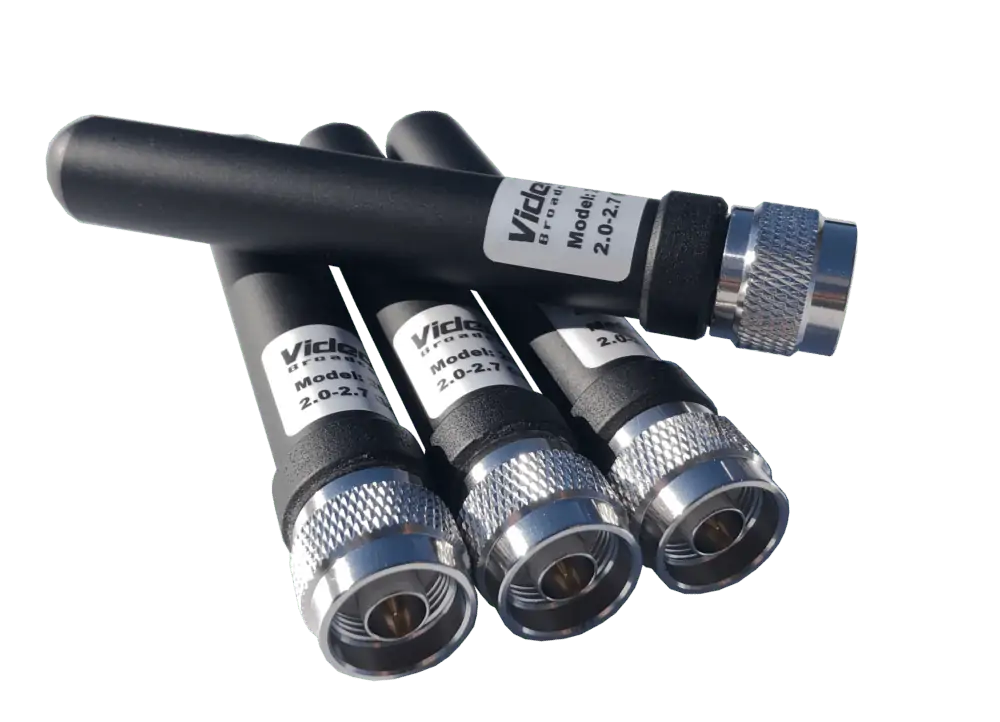

Our vertical omni-antennas are ideal for mesh radio transceivers and mobile cellular/LTE stations. Available in frequency bands from 1.2GHz up to 7.5GHz, they can be equipped with N-Type, TNC, SMA or DIN 4.3/10 connectors.

Dimensions (L x D) 100 x 18 mm
Weight 80 g
Frequency Bands 1.2-1.4 GHz
1.3-1.5 GHz
1.4-1.6 GHz
2.0-2.7 GHz
2.7-2.9 GHz
3.0-3.7 GHz
4.4-5.9 GHz
6.0-7.5 GHz
Gain +3 dBi
Polarization Vertical
VSWR < 1.3:1
Input Impedance 50 ohms
