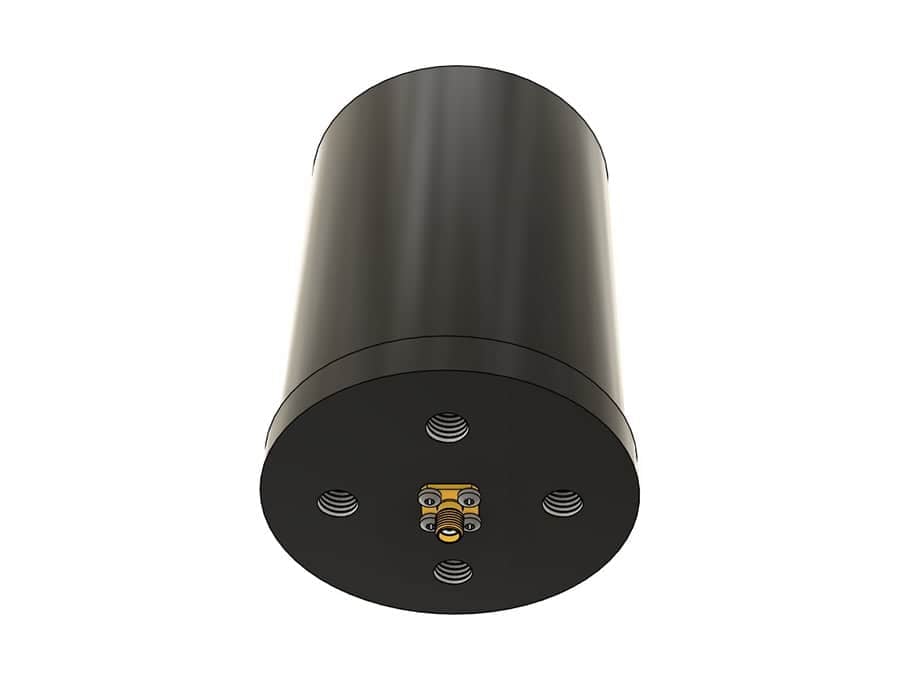

UAV Omnidirectional Antennas
Apella Solutions' range of low-profile omnidirectional antennas is designed for unmanned and autonomous vehicles, featuring a Right Hand Circular (RHC) polarization that allows reception of both horizontal MIMO and vertical polarised transmissions.
The rugged antennas are IP67-rated for reliable operation in harsh environmental conditions, and are available in L, S and C band designs.
Specifications:
| L-Band | S-Band | C-Band | |
| Dimensions: | 100 x 82 mm | 100 x 82 mm | 82 x 62 mm |
| Weight: | ~300g | ~300g | ~250g |
| Frequency Range: | 1200 – 1700 MHz | 2000 – 2500 MHz | 4400 – 5000 MHz 5000 – 5500 MHz 5500 – 6000 MHz |
| Azimuth: | 360o | ||
| Elevation: | 360o | ||
| Gain: | 6 dBi peak | ||
| VSWR: | 1.5:1 across the band | ||
| RF Power Handling: | 20W | ||
| Connector: | SMA female/other options | ||
| Polarization: | RHC (LHC option) | ||
