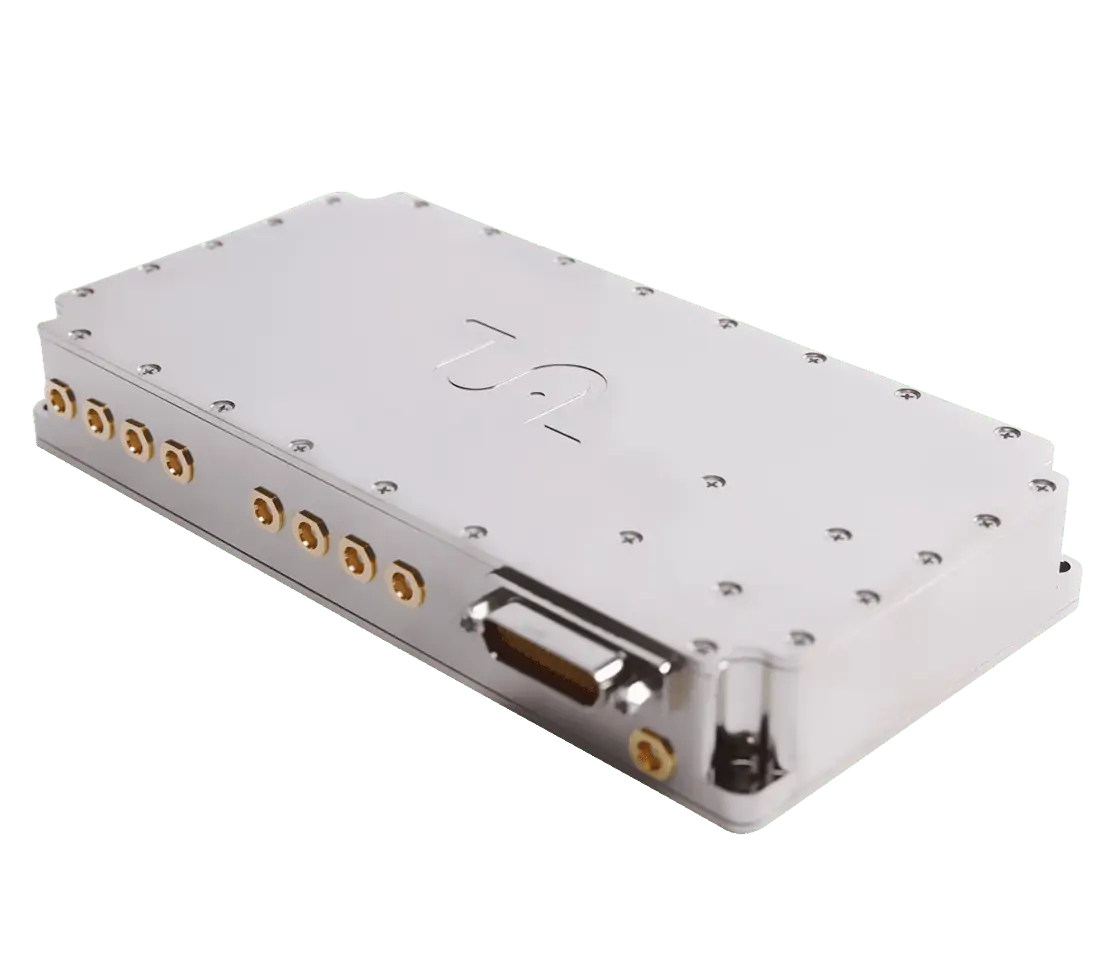

TUALAJ 8100 GNSS CRPA Anti-Jam System
The TUALAJ 8100 is an 8-antenna CRPA (controlled reception pattern antenna) unit that provides assured GNSS signals for UAVs and unmanned systems even in the presence of multiple jamming sources.
Supporting simultaneous GPS L1, GALILEO E1, BEIDOU B1C and SBAS, the compact and lightweight system features state-of-the-art digital beamforming algorithms that enable omnidirectional 40 dB wideband jamming suppression. The module can be provided with a variety of antennas and physical solutions for suppression performance such as elevation masking.
| Antenna Array | 8 Array CRPA Antenna |
| Simultaneous Independent Nulling | 7 |
| Simultaneous Active Bands | GPS L1 GALILEO E1 BEIDOU B1C SBASS |
| Nominal Wideband Suppression | >50 dB |
| Data Interfaces | Serial |
| Bandwidth | Up to 30 Mhz (depends to selected band option) |
| Connectors | 9x MCX Female, Micro-D 25-pin Socket |
| Internal GNSS Tracking Sensitivity | -164 dBm |
