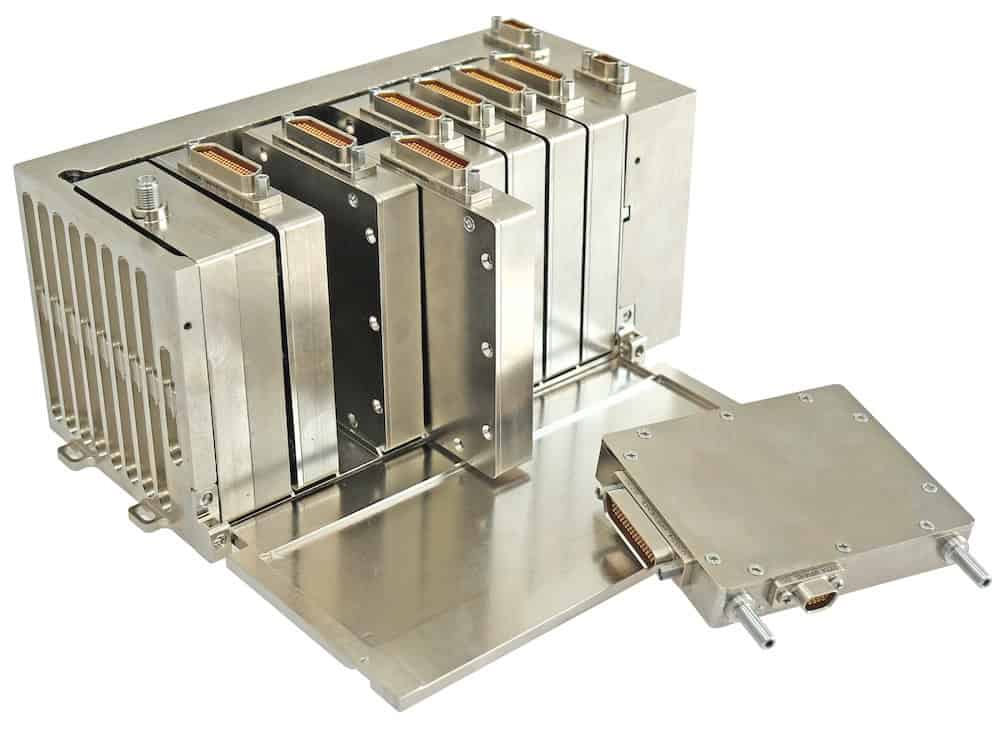

The Stackable Data Acquisition and Telemetry Suite from TUALCOM delivers a scalable, compact solution for capturing, processing, and transmitting sensor data in mission-critical unmanned systems. Each module shares a uniform mechanical profile and may be deployed individually or vertically integrated to match evolving signal acquisition needs. Configurations include ICP, differential, temperature, and mixed-signal modules, with tailored digital interfaces supporting RS-485, RS-232, Ethernet, and TTL protocols.
Designed for flight test instrumentation, munitions development, and autonomous vehicle integration, the suite supports IRIG 106 compliance, AES-256 data protection, and adjustable filtering. Onboard 32 GB storage and MIL-STD-704F power compatibility ensure robust operation in aerospace and defense environments. Engineers benefit from low-SWaP characteristics and seamless reconfigurability across both manned and unmanned platforms.
| Channels | Resolution | Sample Rate | |
| ICP Stack | 16 x ICP / IEPE | 16-bit | 200 kHz |
| PRS Stack | 16 x Differential, (8 with excitation) | 16-bit | 200 kHz |
| TMP Stack | 16 x PT100 / TC | 16-bit | 50 Hz |
| MIX Stack | 4 x PT100/TC, 3 x ICP, 2 x Differential ADC, 3 x Voltage Input | 16-bit | 50 Hz (PT100/TC), 200 kHz (others) |
| Power Consumption (Nominal) |
Operating Voltage | Dimensions (cm) | Weight (g) | |
| MAS Stack | 4.3 W | +16 to +35 VDC | 7.5 x 6.0 x 1.3 | 96 |
| TX Stack (5 W) | 22 W | +24 to +32 VDC | 7.5 x 6.0 x 2.15 | 169 |
| TX Stack (10 W) | 30 W | +24 to +32 VDC | 7.5 x 6.0 x 2.15 | 169 |
| PWR Stack | 0.55 W + load | +24 to +32 VDC | 7.5 x 6.0 x 1.3 | 150–200 |
| ICP Stack | 1.68 W | +18 to +35 VDC | 7.5 x 6.0 x 1.3 | 95 |
| PRS Stack | 1.45 W | +12 to +35 VDC | 7.5 x 6.0 x 1.3 | 94 |
| TMP Stack | 1.44 W | +12 to +35 VDC | 7.5 x 6.0 x 1.3 | 93 |
| MIX Stack | 1.44 W | +18 to +35 VDC | 7.5 x 6.0 x 1.3 | 95 |
