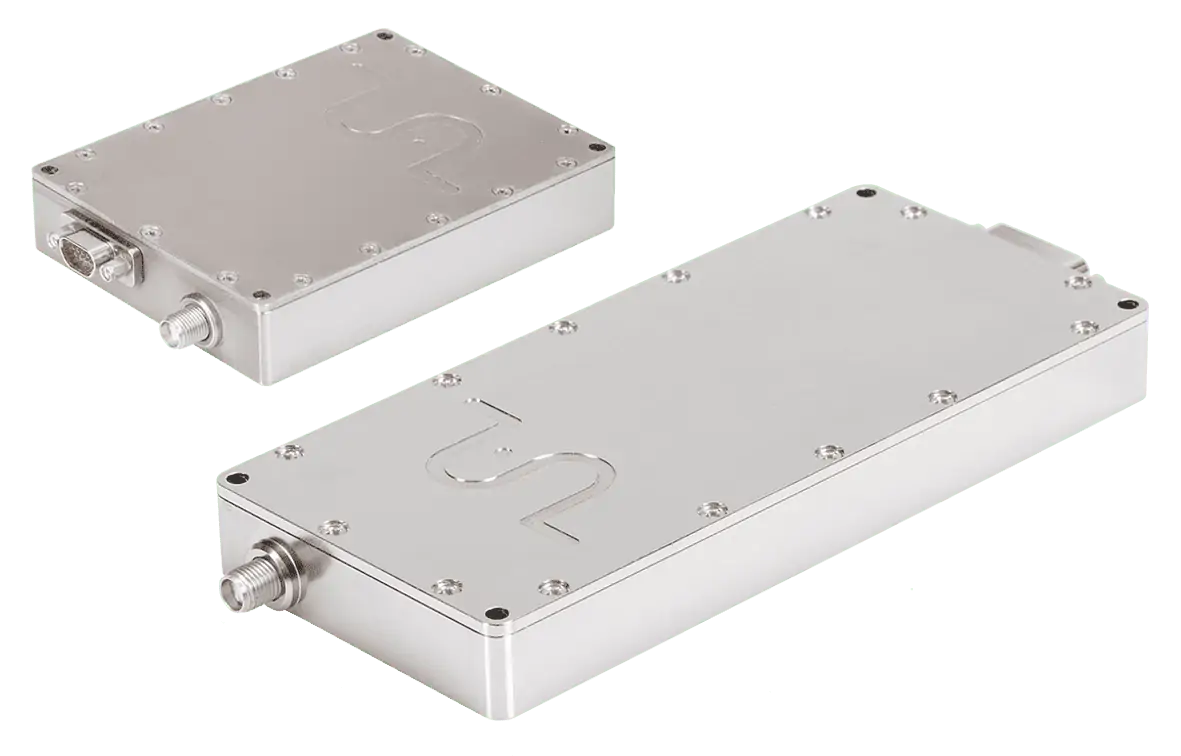

S Band TDMA MESH (ADHOC) Data Link is a compact data link based on TDMA communication, algorithm, enabling the use of both point-point and point-multipoint communication.
The system can be used for applications where communication network is established. Compact size and low power consumption allows terminals to be used in many platforms including mini, midi and tactical UAVs.
The system incorporates SDR modem in which advanced modulation techniques are used for improved performance and spectrum utilization. AES-256 encryption and spread spectrum techniques like FHSS or DSS are also offered as an option.
The system has relay capability for establishing mesh networks. Data rate can be adjusted up to 10 Mbps manually or automatically depending on the nature of the application.,
TDM data links can form ad-hoc networks. Each participant can automatically join, rejoin or leave network. Time slot reallocation can be made in order to provide high bandwidth for a specific participant.
| Dimensions (cm) | TDMS 2W: 7.1 × 6 × 1.4 / TDMS 10W: 13.2 × 6 × 1.5 / TDMS 20W: 13.2 × 6 × 1.5 |
| Weight (g) | TDMS 2W: 100 / TDMS 10W: 210 TDMS 20W: 215 |
| Power Consumption | TDMS 2W: 10W / TDMS 10W: 30W / TDMS 20 : 35W |
| Data Interfaces | Ethernet, RS 422/485, RS 232 |
| Operating Voltage | 28 V (24 - 32 V) |
| Operating Temperature | '-40 C to +85 C |
| Environmental Condition | MIL-STD-810G |
| EMI / EMC | MIL-STD-461F |
| Frequency Range | S Band |
| Connectors | SMA |
| Max RF Output Power | 2W / 10W / 20W |
| Data Rate | Up to 10 Mbps |
| Modulation Mode | CPFSK / PSK |
| Sensitivity | -93 dB (10 Mbps) |
| Data Encryption | AES 256 (Optional) |
| FEC | Reed Solomon (RS) and Convolutional, LDPC |
| ECCM | FHSS / DSSS |
