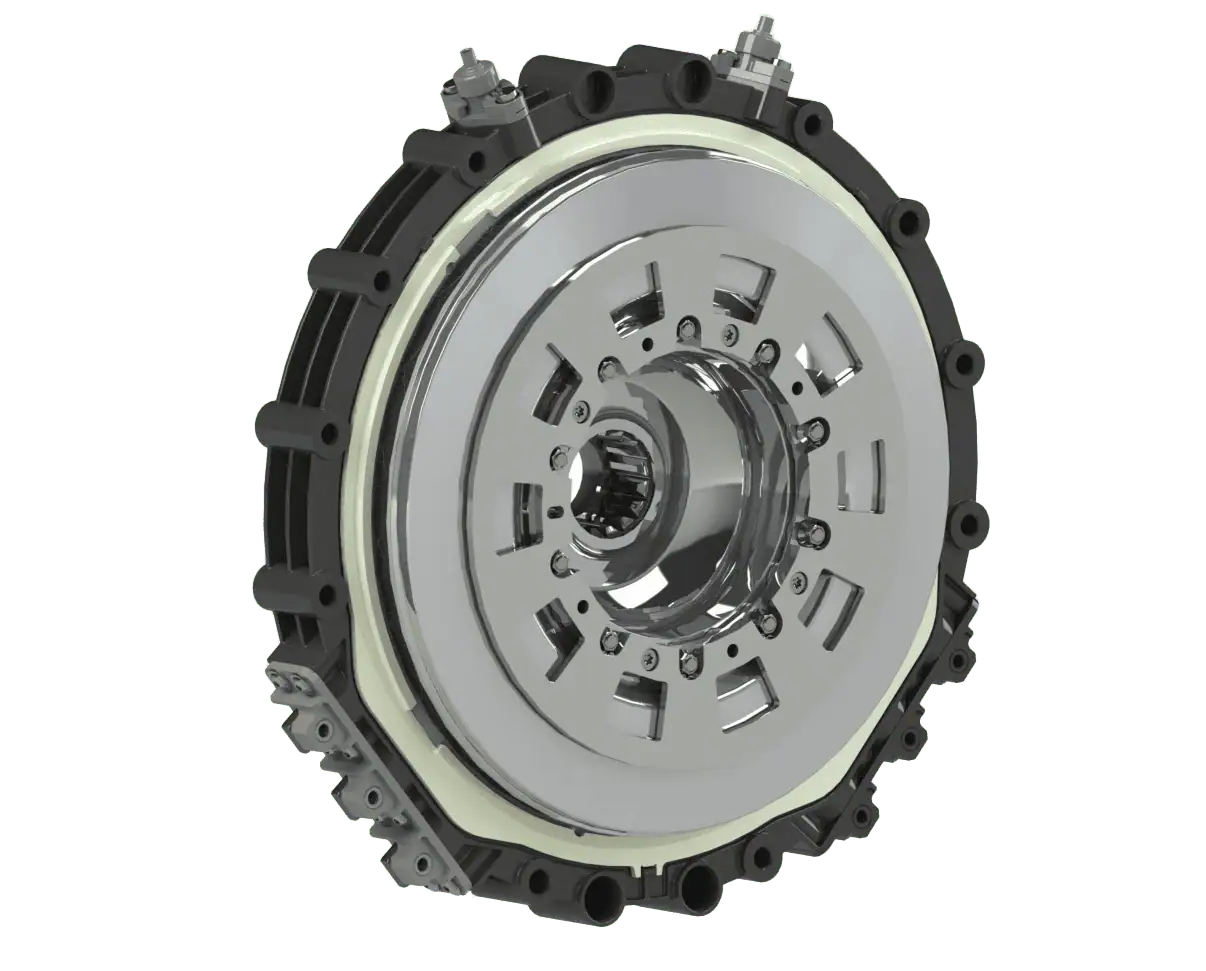

The D250 series of axial flux motors is designed for next-generation UAV, eVTOL and UAM applications, and is ideal for either low-speed, low-power or high-speed, high-power use cases. Featuring yokeless technology and a segmented magnet architecture, the motors offer industry-leading size and weight within their performance class.
The motors can be coupled with a reduction stage to achieve required torque propeller speeds, or directly matched to propeller speeds, thus removing the need for the reduction stage for lower-power requirements. They can also be stacked to deliver increased torque and power, as well as to provide further redundancy.
The D250 features best in class peak specific torque of ~16Nm/kg, within the compact design that weighs only ~13kg and measuring ∅370mm x 125mm, enabling architectures with challenging packaging requirements.
D250 1x3 Specification| Peak Torque (30s): | 230Nm (169lb-ft) |
| Peak Power (30s): | 230kW @ 9,500rpm (312hp) |
| Continuous torque: | 208Nm |
| Continuous power: | 207kW @ 9500rpm (281hp) |
| Max speed: | 10,000rpm |
| Mass: | ~13kg (~29lbs) |
| Size: | ∅370mm x 125mm (∅14.5″ x 5) |
| Cooling medium: | Dielectric Oil |
| Cooling fluid volume: | 0.5l (17.6ft.oz) |
| Intended altitude: | Up to 15.240mt (Up to 50,000ft) |
| Peak Torque (30 seconds): | 222 Nm |
| Peak Power (30 seconds): | 223 kW @ 9600 rpm |
| Maximum Cruise Torque (continuous): | 202 Nm |
| Maximum Cruise Power (continuous): | 203 kW @ 9600 rpm |
| Max Speed: | 10,000 rpm |
| Mass (without covers): | 8.3 kg |
| Size (without covers): | 315 mm (D) x 126 mm (L) |
