C Series Motors
C Series motors are optimized for electric fixed-wing and VTOL UAV cruise operations, offering a reliable alternative to traditional 30CC to 150CC combustion engines. They incorporate an Intelligent Propeller Control (IPC) function that, when used with compatible HOBBYWING IPC ESCs, allows precise propeller positioning to reduce ground contact risk and improve equipment protection.
The motors also include a detachable propeller adapter base with integrated anti-slip, anti-rotation, and interlocking features, providing secure installation and improved operational reliability.
Specifications:
| Model | Recommended Battery | KV Options | Max Thrust | Weight (with wires) | Recommended Propeller | Takeoff weight of Single motor |
| C10050 | LiPo-24S | 90KV | 41 kg | 2434 g | 30 inch | 65-70kg |
| C10040 | LiPo-24S | 90KV | 39 kg | 2044 g | 28/29 inch | 60-65kg |
| C10030 | LiPo-24S | 90KV | 36.8 kg | 1672 g | 27/28 inch | 55-60kg |

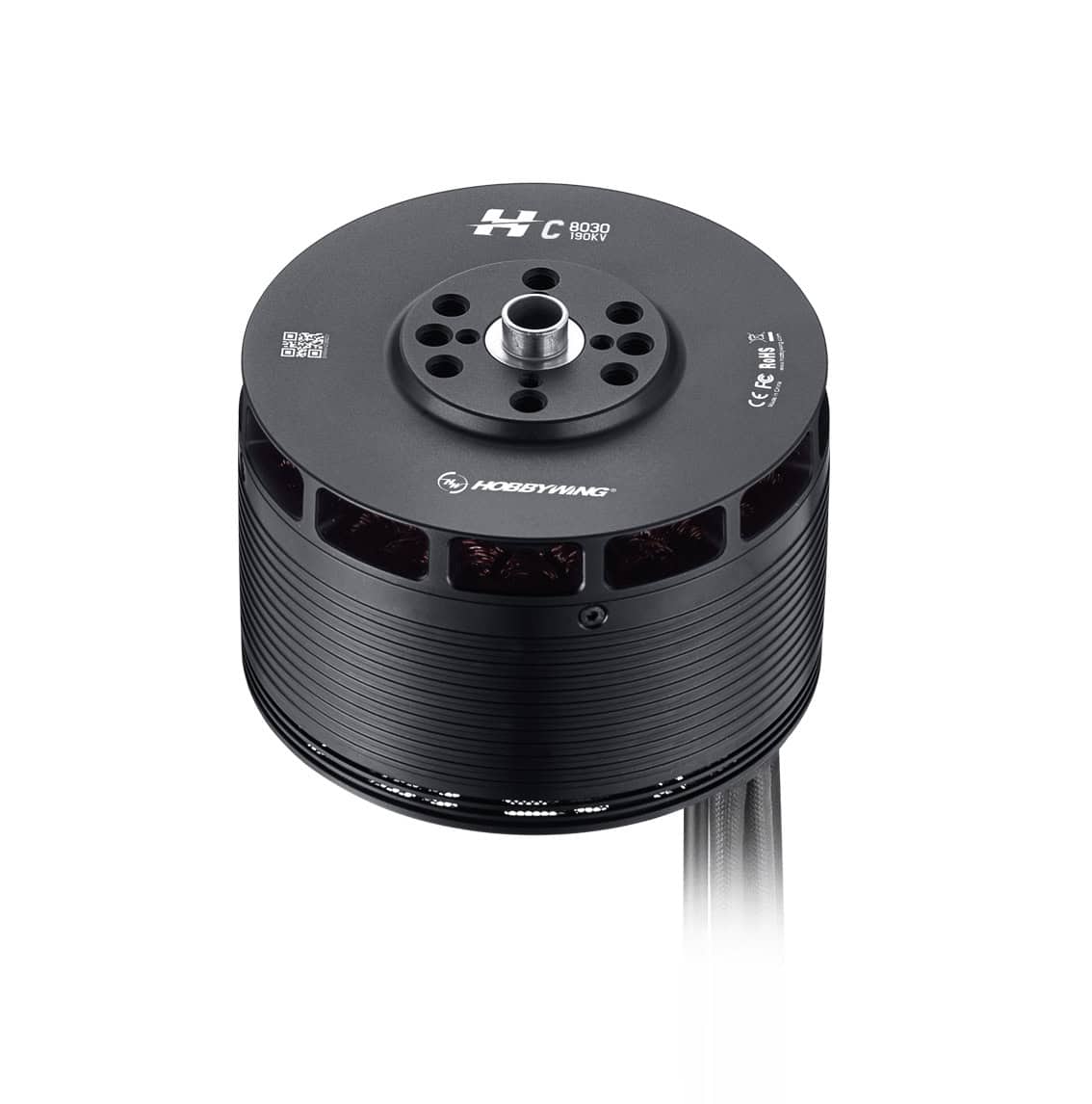

| C8030 | LiPo-12S | 160KV / 190KV | 30.4 kg / 24.7 kg | 1115 g / 1126 g | 24/25/26/27 inch | 45-55kg |

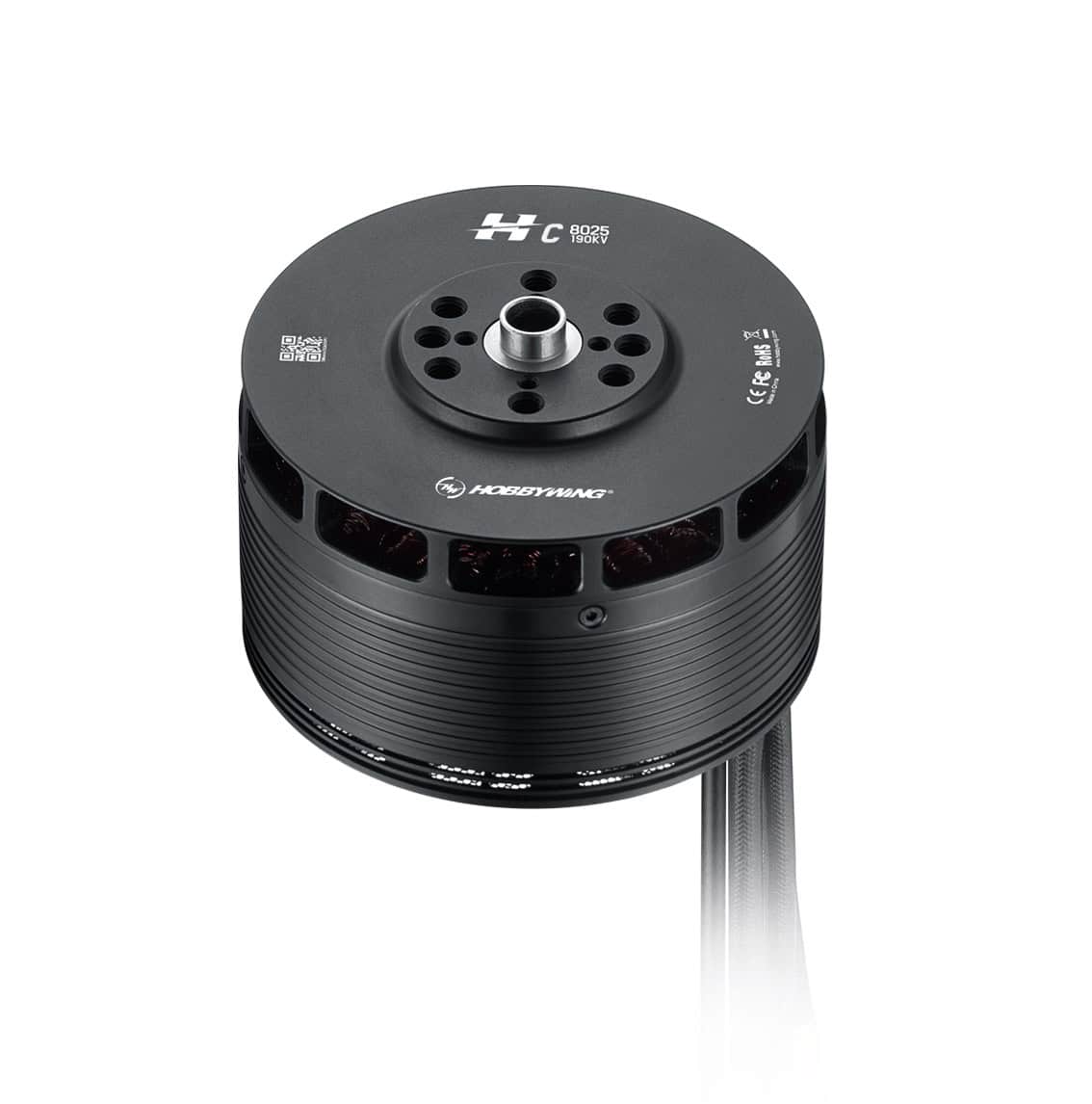

| C8025 | LiPo-12S | 160KV / 190KV | 24.8 kg / 21.3 kg | 966 g / 969 g | 23/24/25/26 inch | 40-45kg |

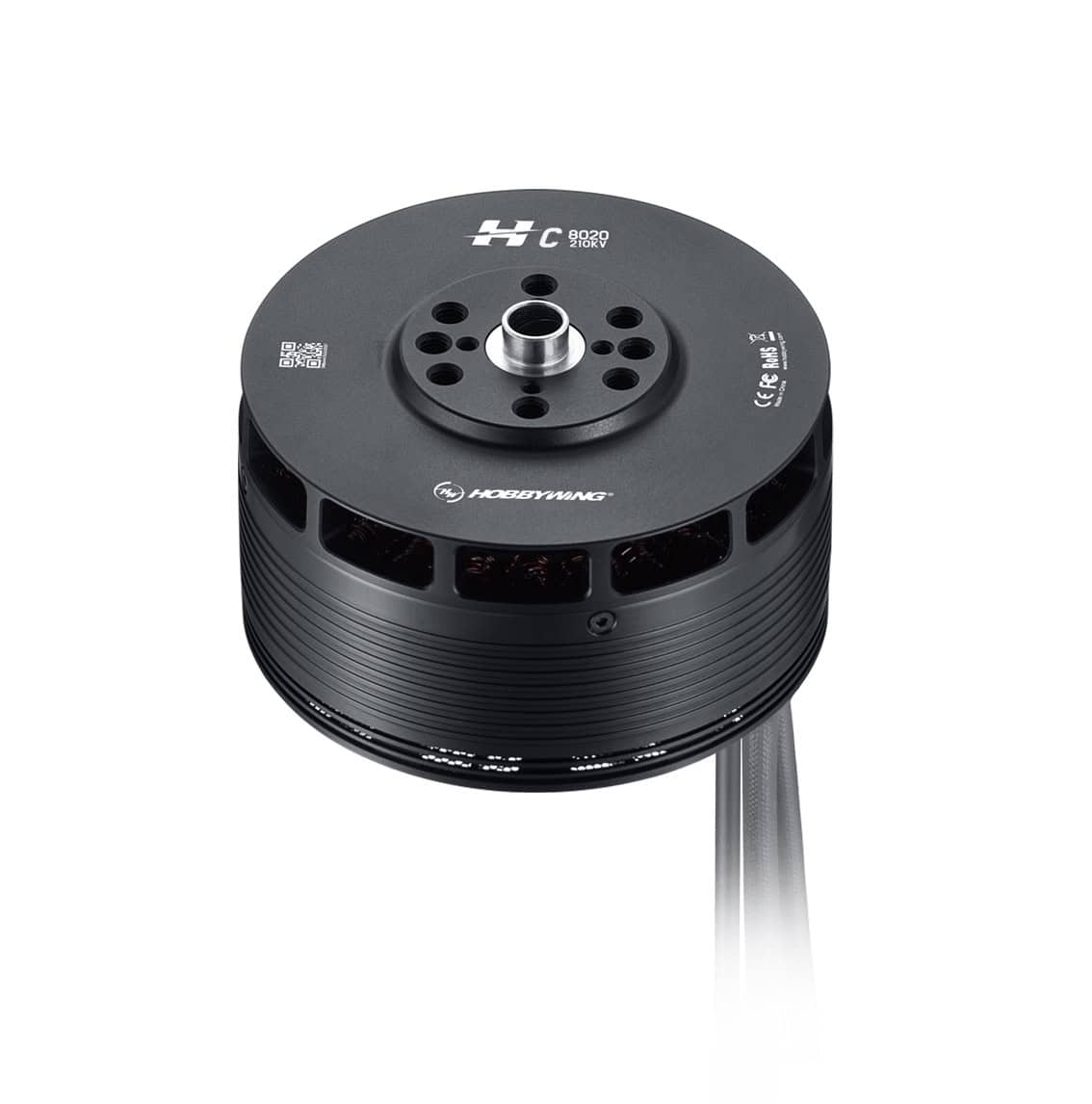

| C8020 | LiPo-12S | 180KV / 210KV | 22.6 kg / 22.0 kg | 834 g / 838 g | 22/23/24/25/25 inch | 35-40kg |

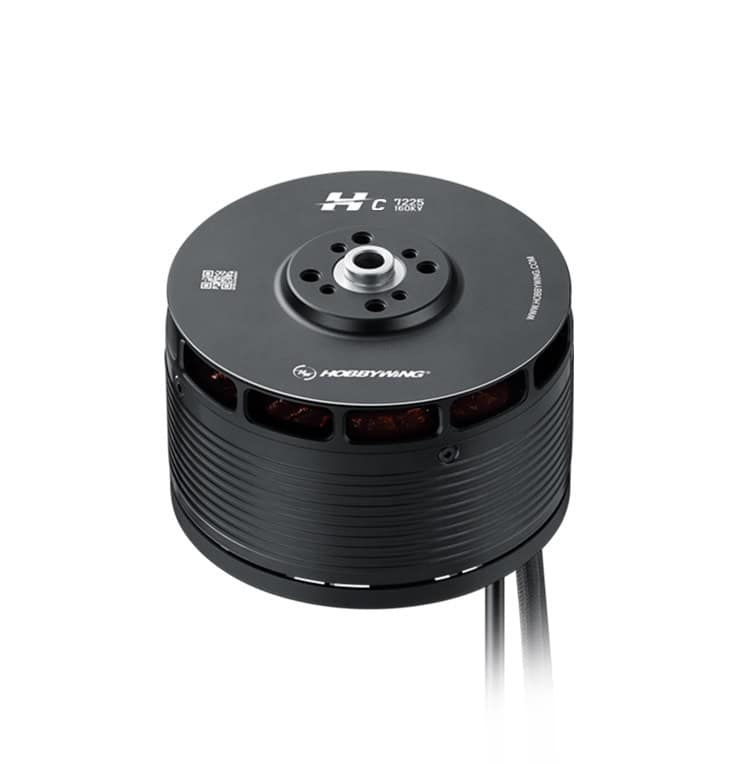

| C7225 | LiPo-12S | 160KV / 190KV | 21.7 kg / 19.7 kg | 755 g | 22/24 inch | 30-35kg |

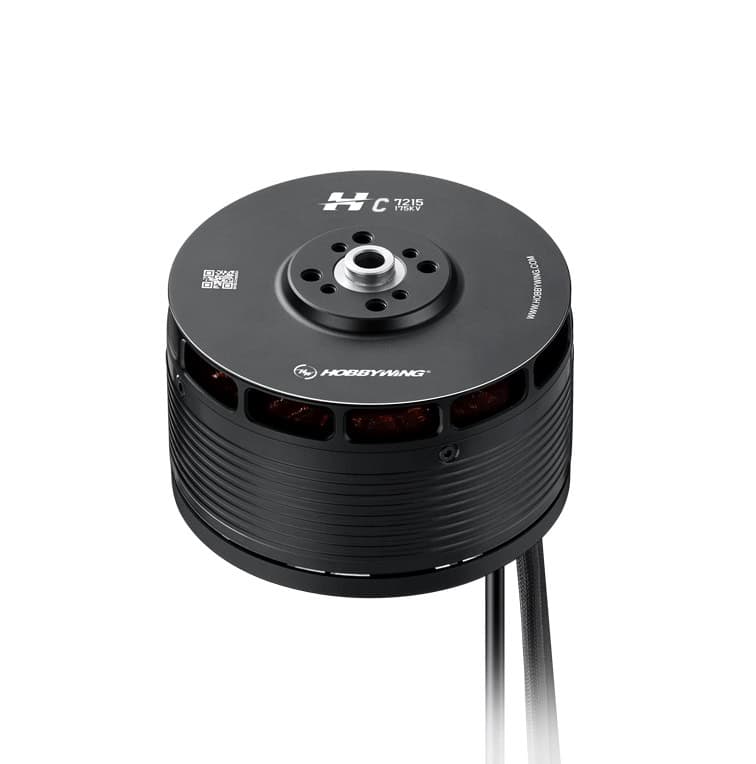

| C7215 | LiPo-12S | 200KV | 16.0 kg | 555 g | 19/20/21 inch | 25-30kg |
| C6225 | LiPo-12S | 200KV | 14.8 kg | 530 g | 20/21 inch | 20-25kg |
| C6220 | LiPo-12S | 220KV | 14 kg | 460 g | 19 inch | 15-20kg |
