MAD Components' brushless drone motor solutions are designed to withstand the rigors of demanding commercial and industrial applications. The broad product range provides options to suit virtually any requirements for specific Kv, thrust and takeoff weight, and unenclosed and IP-rated water-resistant models are available.
Product lines include:
28/35/40 Series – robust drone motors designed for small- to medium-sized industrial drone platforms
- Kv from 320 to 740
- Max power from 170 to 920W
- Quadcopter takeoff weights from 1.6 to 6.8 kg
- Hexacopter takeoff weights from 2.5 to 10.2 kg
- Octocopter takeoff weights from 3.3 to 13.6 kg

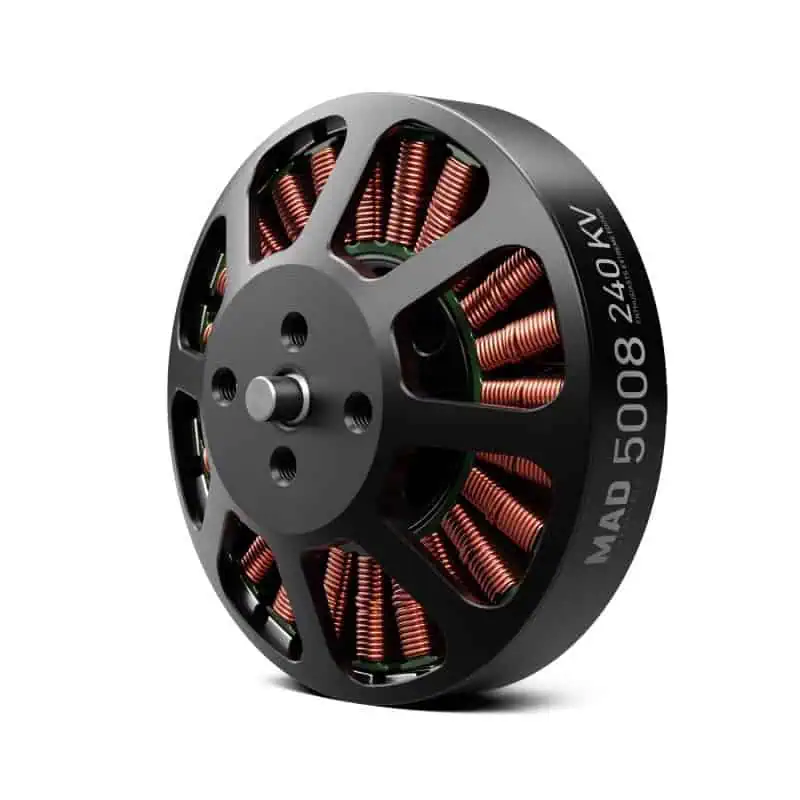

50XX Series – high-efficiency motors for long-range applications such as inspection & survey
- Kv from 150 to 440
- Max power from 429 to 2529W
- Quadcopter takeoff weights from 3 to 12 kg
- Hexacopter takeoff weights from 4.5 to 18 kg
- Octocopter takeoff weights from 7.2 to 24 kg

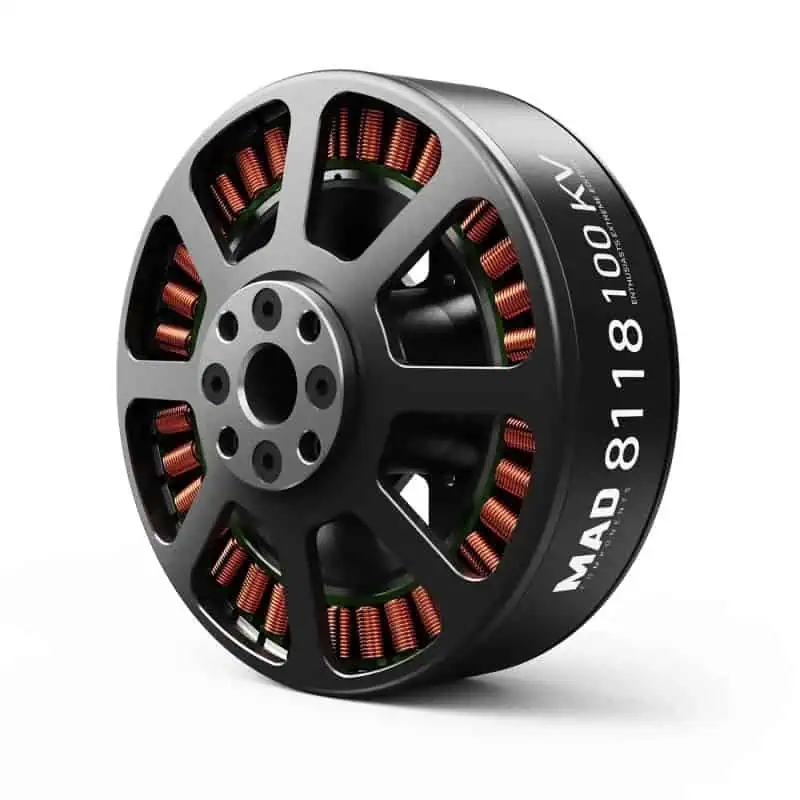

80XX Series – rugged motors for challenging industrial and agricultural applications, with silvered options for sunlight-exposed platforms
- 80 to 120 & customisable Kv options
- Max power from 1822 to 3870W
- Quadcopter takeoff weights from 15 to 22.4 kg
- Hexacopter takeoff weights from 22 to 33.6 kg
- Octocopter takeoff weights from 29 to 44.4 kg
Antimatter Series – specially designed series for maximum efficiency with 21-24 inch propellers
- Kv from 130 to 400
- Max power from 930 to 3429W
- Quadcopter takeoff weights from 7 to 15 kg
- Hexacopter takeoff weights from 10.5 to 22.5 kg
- Octocopter takeoff weights from 14 to 30 kg

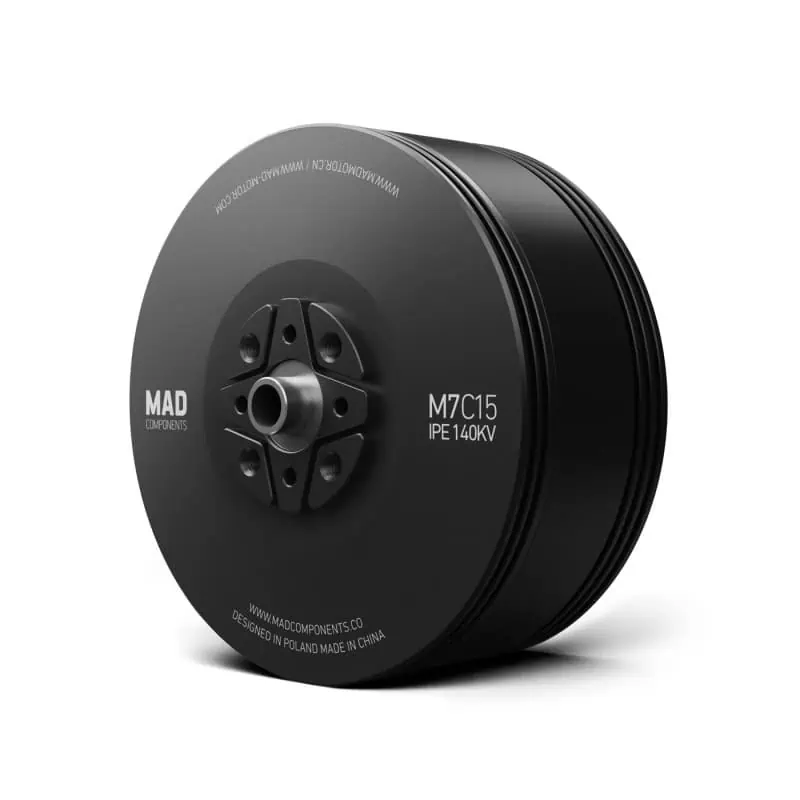

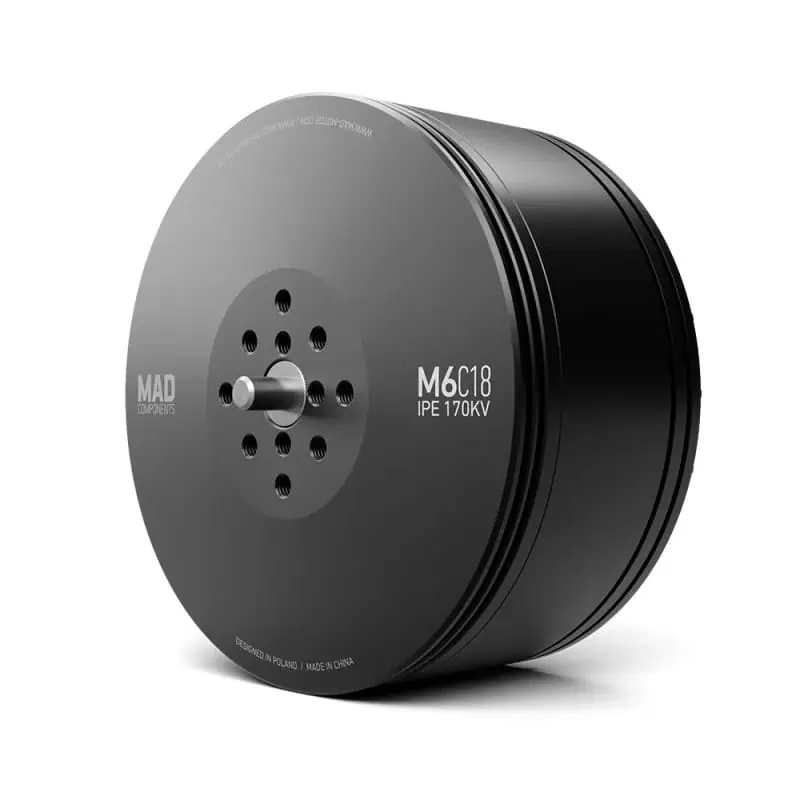

M Series – motors for large multirotors, heavy-lift platforms and UAM/eVTOL
- 9 to 260 & customisable Kv options
- Max power from 857W to 55.6kW
- Quadcopter takeoff weights from 8 to 360 kg
- Hexacopter takeoff weights from 12 to 540 kg
- Octocopter takeoff weights from 16 to 720 kg
