SAGLAMTEK

SAGLAMTEK is an innovative developer of advanced RF, antenna and electronics solutions for UAVs and autonomous platforms. Proven in a wide variety of demanding commercial and defense environments, the company’s product portfolio empowers mission-critical drones and robotic vehicles with high-precision and ultra-reliable performance.

With 15 industry years of experience and more than 1,000 products deployed in over 10 countries, SAGLAMTEK serves platform manufacturers, systems integrators and operators both domestically and abroad.

GNSS Anti-Jamming Solutions

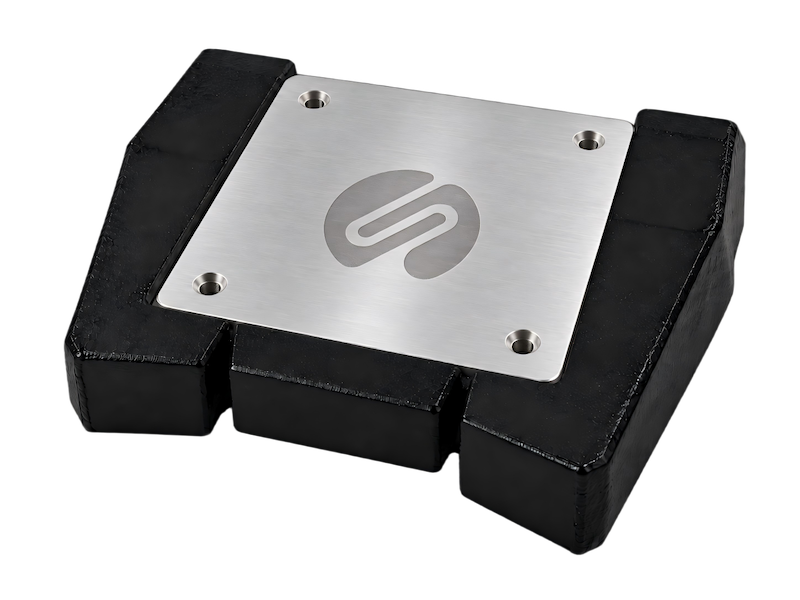

SAGLAMTEK’s GNSS anti-jamming solutions are designed to help UAVs and other autonomous platforms maintain reliable PNT (positioning, navigation and timing) in the presence of jamming, spoofing and multipath interference. The range includes compact CRPA systems, integrated receiver-antenna solutions, passive shielding and GNSS repeaters for enclosed facilities.

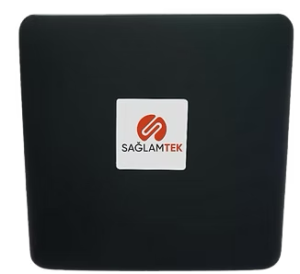

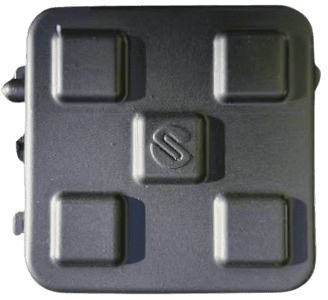

BORAJ-SLIM4 Dual-Band GNSS CRPA System

Low-profile dual-band anti-jamming system for UAV navigation

BORAJ-SLIM4 combines a four-element antenna array with dual-band GNSS protection and anti-spoofing capabilities. Featuring a low-profile IP67-rated design, it is Pixhawk-compatible and supports NMEA 0183 communications through a customizable Micro-D interface, simplifying integration into UAV flight-control and navigation systems.

Telemetry & Data Link Systems

SAGLAMTEK offers a range of configurable data link solutions for UAVs and unmanned systems, with communication ranges from 10 km to more than 150 km. Depending on the system, available capabilities include FHSS, mesh networking, 2×2 MIMO and data rates of up to 100 Mbps, with configurable frequencies from 500 MHz to 6 GHz and RF output power options from 1 W to 20 W.

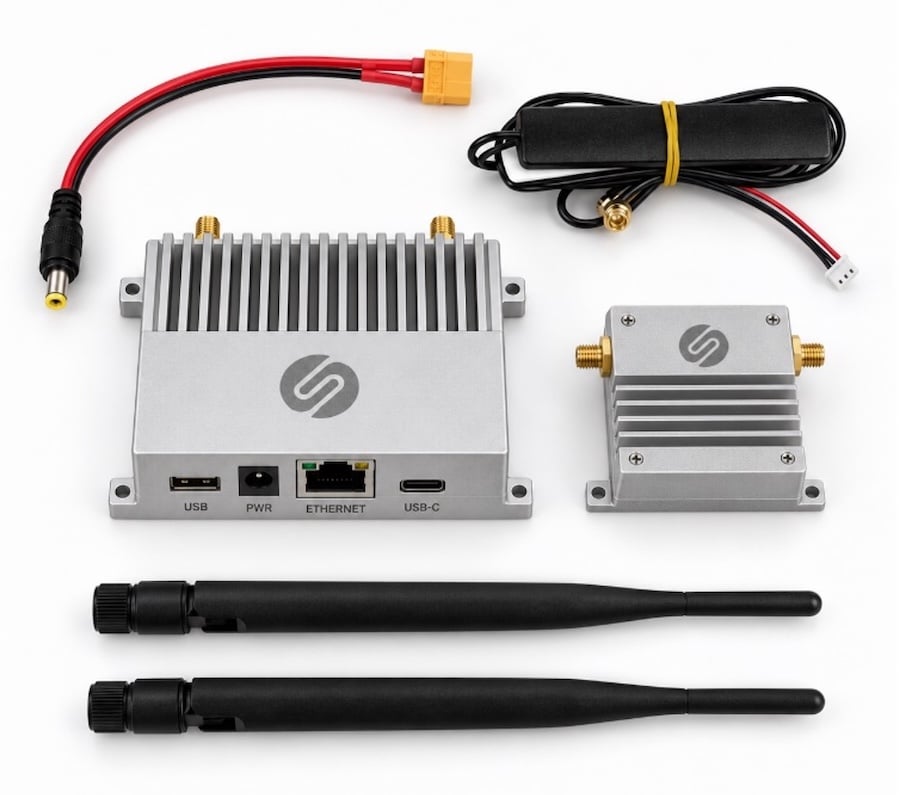

AIRLink Telemetry

Compact encrypted telemetry data link for UAVs & airborne platforms

AIRLink Telemetry is a lightweight broadband communications system for secure data transmission between airborne platforms and ground stations. Using 2×2 MIMO technology and AES-256 encryption, the system provides a private IP data channel with data rates of up to 25 Mbps and latency below 100 ms.

Operating over a direct line-of-sight range of up to 20 km, AIRLink supports Ethernet communications and is available with a range of frequency, power output and antenna options to suit different platform and mission requirements. The compact air module weighs just 50 g, making the system particularly suited to UAVs and other SWaP-constrained airborne applications.

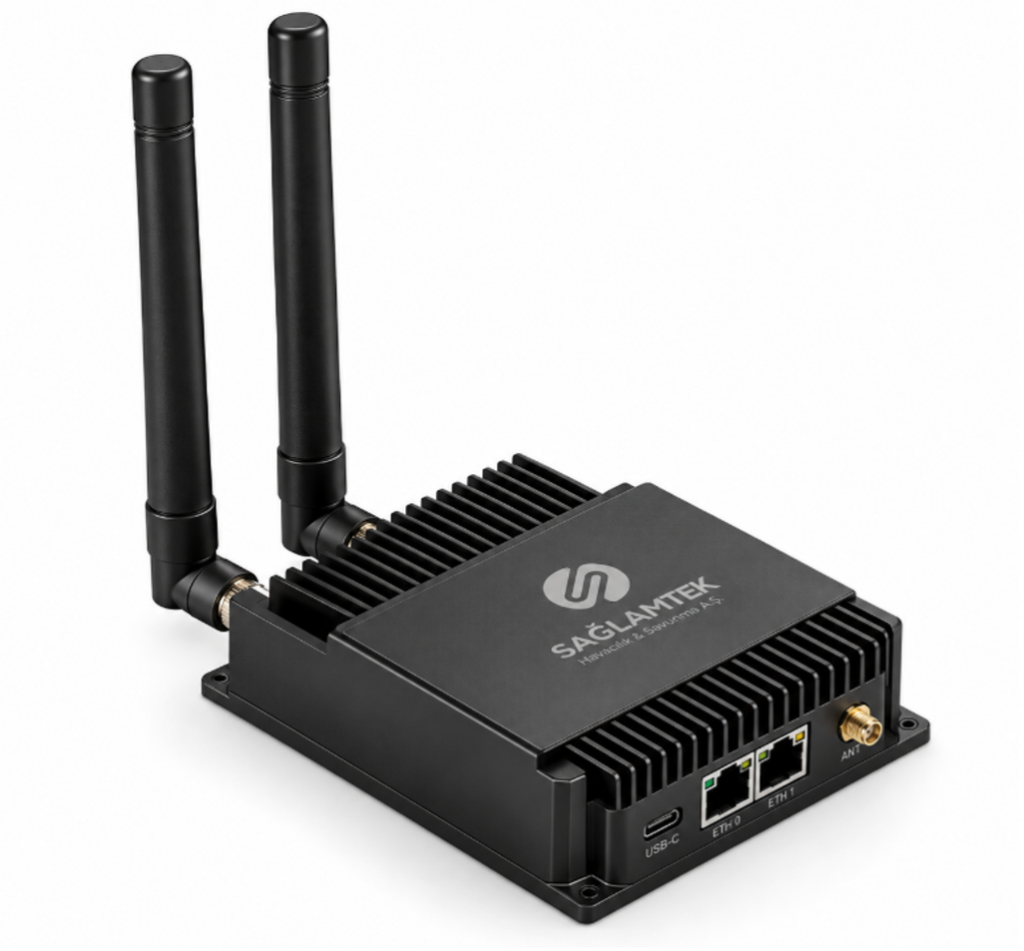

BORLINK-0821 UAV IP Video & Data Link

Long-range broadband communications for drones & unmanned systems

BORLINK-0821 is a compact airborne broadband radio designed to transmit real-time IP video, telemetry and mission data between airborne or mobile nodes and a ground station. The OFDM system provides transparent Ethernet forwarding and carries HD IP video, Ethernet traffic and serial data through a single solution.

Available in 800 MHz, 1.4 GHz and 2.4 GHz variants, supports one-to-one and one-to-many network configurations and offers air-to-ground line-of-sight ranges of 20 to 50 km with maximum data rates of 30 Mbps.

Antenna Solutions

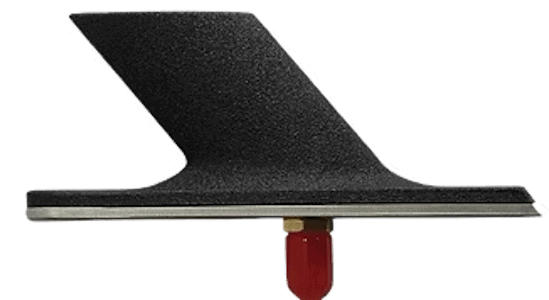

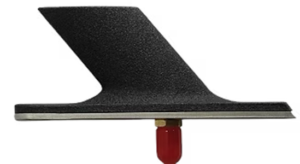

S-Band Telemetry Antenna

Lightweight high-gain antenna for UAV telemetry and data links

The S-Band Telemetry Antenna is a high-gain RF solution with a null-reduced radiation pattern for UAV telemetry and data-link applications. Operating from 2.09 to 2.72 GHz, it provides 3 dBi of gain and has been tested against a range of MIL-STD-810F environmental conditions.

IFF Antenna

Compact omnidirectional antenna for UAV identification systems

The IFF Antenna supports secure friend-or-foe identification over 960 to 1215 MHz, with an omnidirectional radiation pattern that provides coverage throughout the full frequency range. The rugged unit weighs less than 50 g, and is hardened against extremes of temperature, shock and vibration.

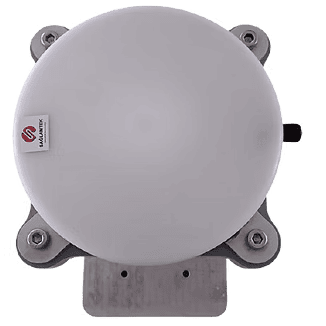

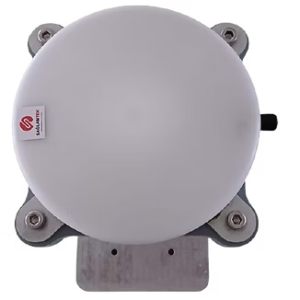

GNSS Active Antenna

Dual-band active antenna for reliable autonomous navigation

The GNSS Active Antenna amplifies weak satellite signals to provide enhanced positioning accuracy in challenging operating environments. It covers frequency ranges of 1565 to 1607 MHz and 1217 to 1260 MHz, offering 3 dBic antenna gain and 40 – 45 dB of low-noise amplifier gain.

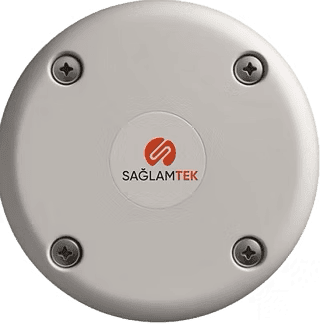

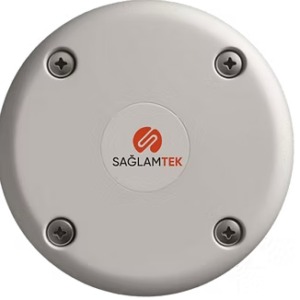

GNSS Active Antenna-2

Low-profile active GNSS antenna for UAVs and robotics

GNSS Active Antenna-2 provides the same dual-band frequency coverage and integrated low-noise amplification in a smaller, lighter enclosure, measuring just 89 x 25 mm in height and weighing less than 290 g.

Radar Altimeters

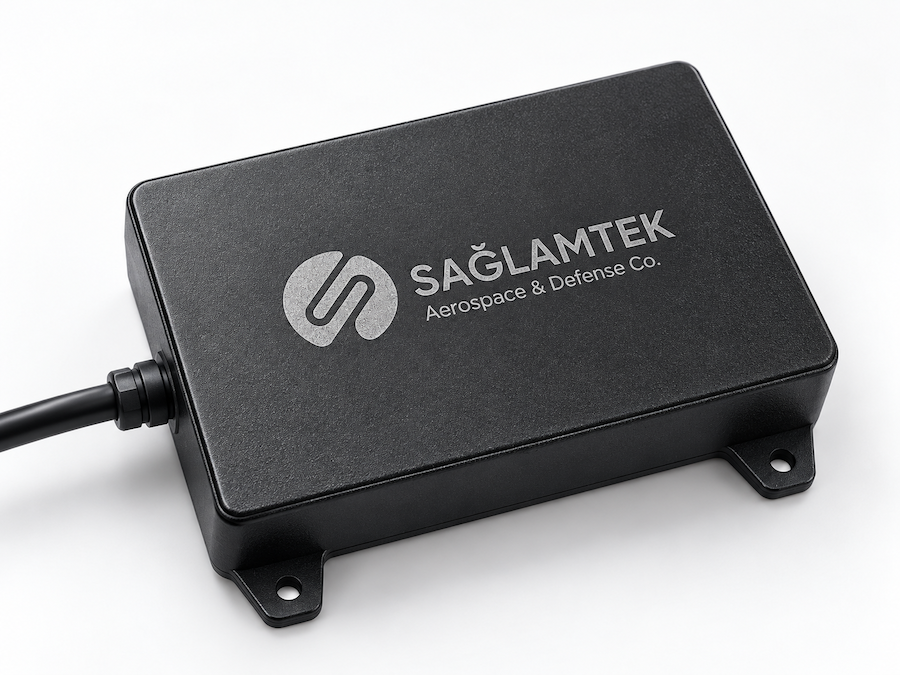

BORADAR-50 Radar Altimeter

Compact radar altimeter for short-range UAV and robotic applications

BORADAR-50 is designed for reliable low-altitude measurement in compact unmanned and robotic platforms. It supports stable altitude awareness and proximity measurement for applications requiring short-range performance.

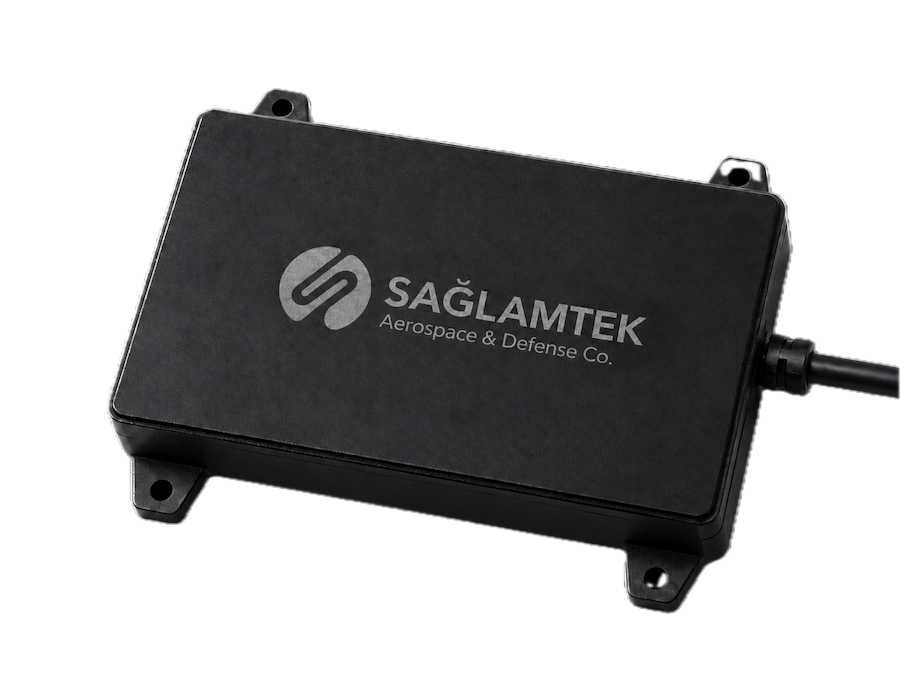

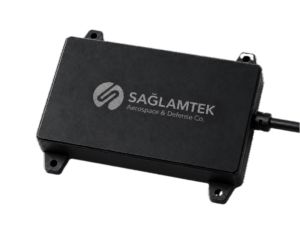

BORADAR-100 Radar Altimeter

Radar altimeter for low-altitude UAV and autonomous platform operations.

BORADAR-100 provides reliable altitude and distance measurement for UAVs and other autonomous systems. It is suitable for terrain-following, controlled approach and low-altitude operation in demanding field environments.

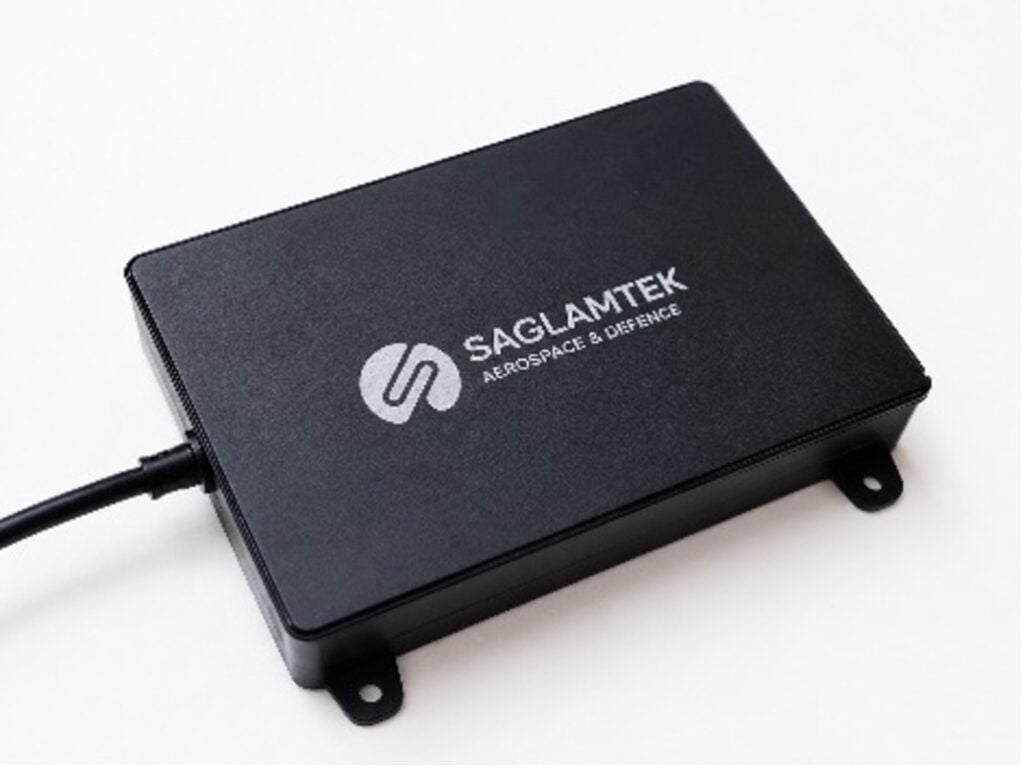

BORADAR-200 Radar Altimeter

Compact 24 GHz millimeter-wave radar altimeter for UAVs

BORADAR-200 is a downward-facing millimeter-wave FMCW radar that has been specifically designed for low-altitude UAV applications, measuring the relative height between the aircraft and the terrain in real time. Operating in the 24 GHz ISM band, it provides a measurement range of 0.1 to 200 m and offers stable altitude control and terrain following.

Designed for operation in rain, snow, fog, smoke and dust, BORADAR-200 is ideal for mapping and surveying, logistics and delivery, firefighting, rescue operations and infrastructure inspection. It can also be adapted for unmanned surface vessels and other robotic systems requiring reliable radar-based distance measurement.

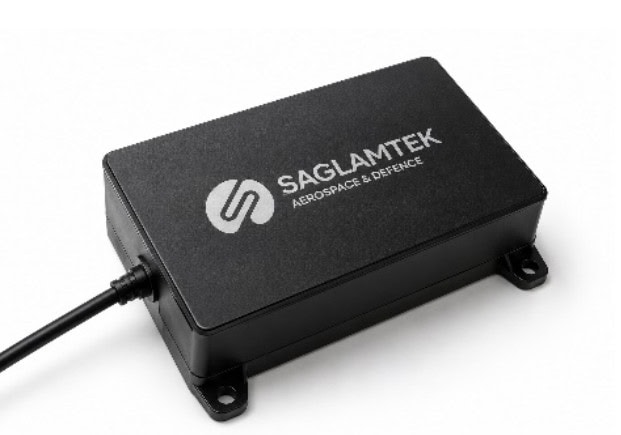

BORADAR-Y Radar Altimeter

Long-range radar altimeter for advanced aerial and autonomous systems

BORADAR-Y extends radar altitude measurement capability up to 1.5 km for platforms requiring longer-range performance. It is suitable for advanced UAV and autonomous platform applications where reliable altitude awareness is critical.

Motor Control Electronics

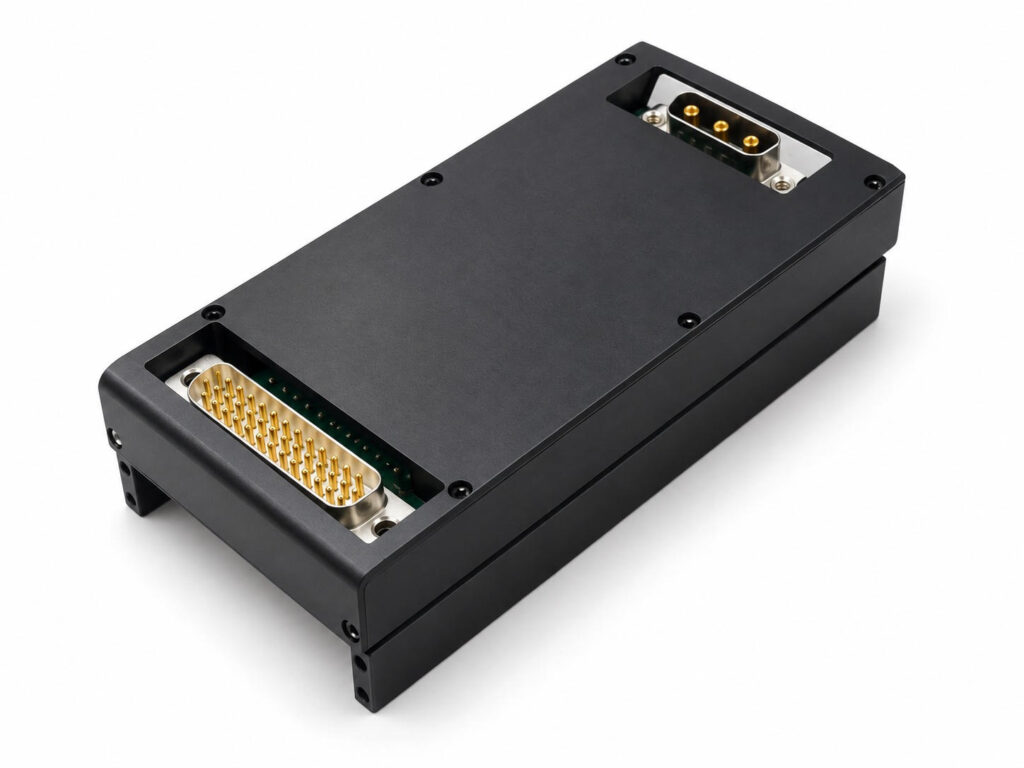

SGT-FDMSCK-YKD-AA FOC Motor Driver

Rugged BLDC and DC servo drive for UAVs, UGVs and robotics

The SGT-FDMSCK-YKD-AA is an FOC-based driver for BLDC motors and DC servos. It provides torque, speed and position control, with support for encoder, Hall-effect and sensorless back-EMF feedback. Operating from an 18 to 36 VDC input, the driver delivers 12 A continuously and 24 A peak. Its PWM frequency can be configured from 16 to 24 kHz for a low acoustic signature.

The driver incorporates overcurrent, stall, overvoltage, undervoltage and thermal protection, providing a safe-stop response if the encoder connection is lost. Optional CAN bus and RS-422 communications enable integration with a range of control architectures.

Counter-UAS Detection

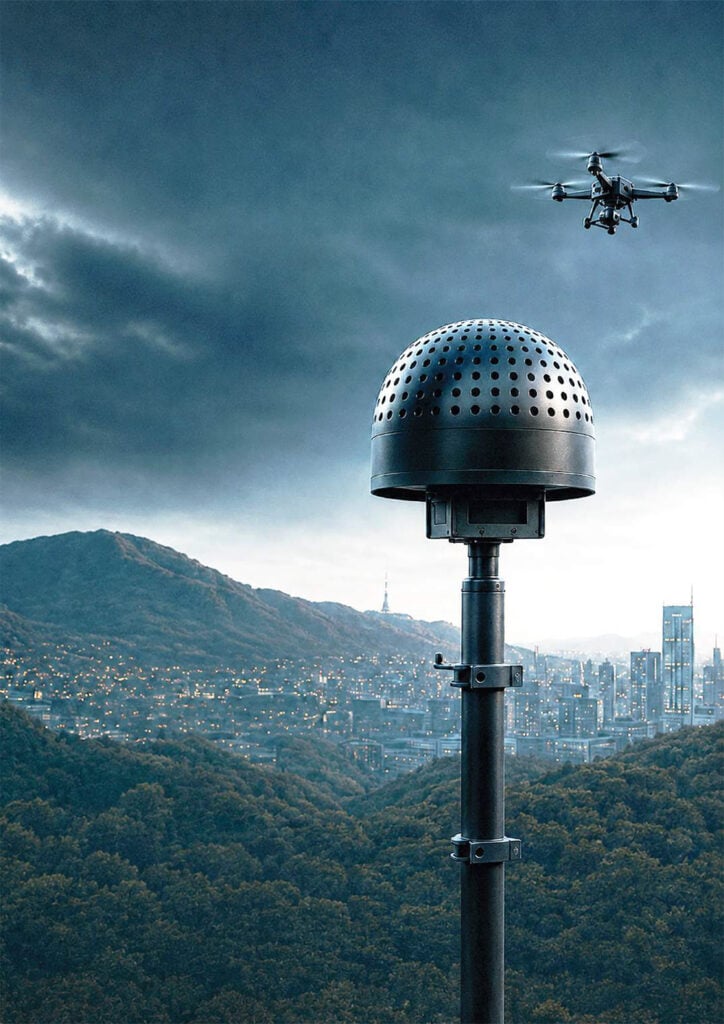

ADTS Acoustic Drone Detection System

Passive detection and classification system for drone-based threats

ADTS is a passive acoustic system that uses artificial intelligence to detect and identify UAVs from the characteristic frequencies produced by their motors and propellers. Offering 360-degree protection, the system is optimized for urban areas where radar and optical systems are insufficient.

By using the diffraction properties of sound, ADTS can monitor drones approaching from behind buildings, through narrow streets and across other areas that can create blind spots for other technologies. Multiple devices can form a wired or wireless mesh network and transmit acoustic data to a central command system. The plug-and-play system supports tracking through a tablet or computer and is available in fixed and mobile versions.
