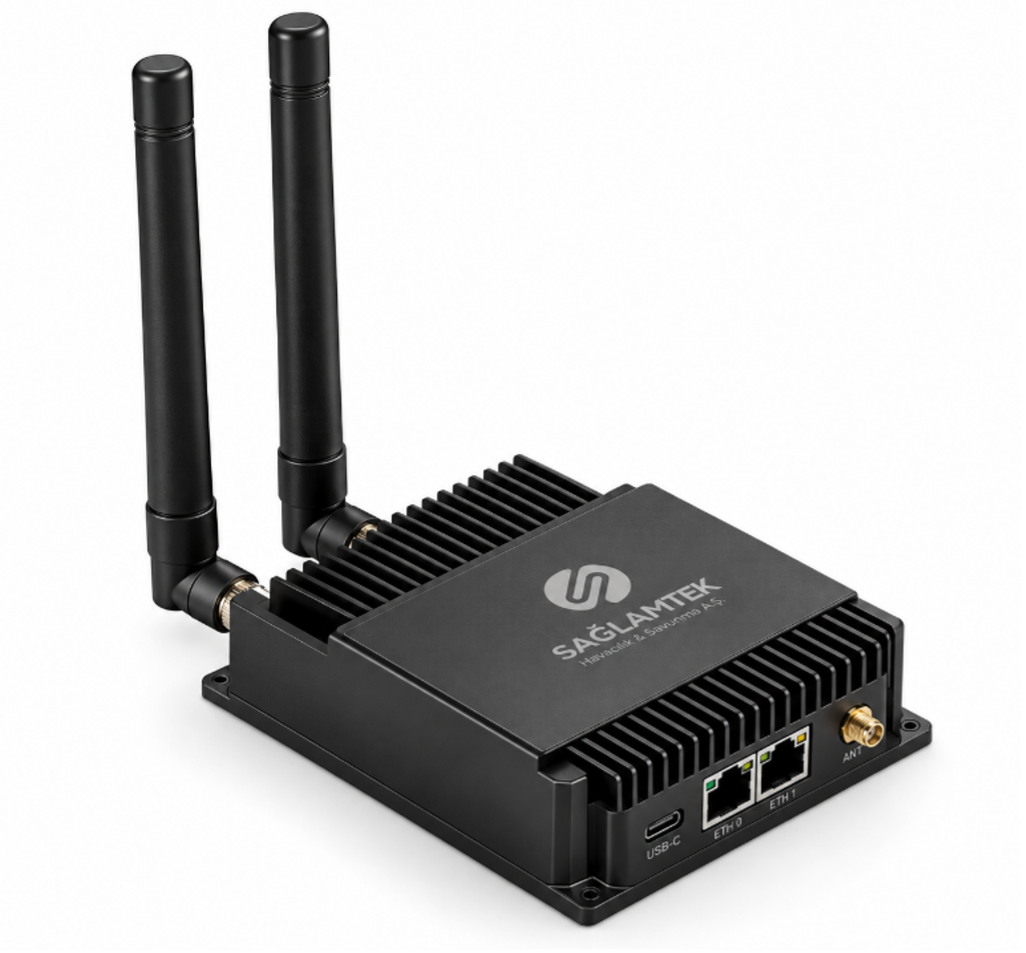

BORLINK-0821 is a compact airborne broadband radio for real-time IP video, telemetry and mission-data transport between an airborne or mobile node and a ground station. Its mobile OFDM waveform and transparent Ethernet forwarding carry HD IP video, Ethernet traffic and serial data through a single radio, with variants available for 800 MHz, 1.4 GHz and 2.4 GHz frequency plans.
The radio provides air-to-ground line-of-sight ranges of 20 to 50 km and a maximum data rate of 30 Mbps. It can be deployed in one-to-one and one-to-many networks, as well as architectures using an intermediate airborne node as a mobile relay. ZUC, SNOW3G and AES encryption options are available for mission networks.
Two Ethernet ports and three serial channels accommodate cameras, mission computers, telemetry devices and other payload equipment.
Specifications:
| Dimensions | 103.5 x 61.5 x 22 mm |
| Weight | 142 g |
| Power consumption | <12 W |
| Operating frequencies | 800 MHz; 1.4 GHz; 2.4 GHz |
| Channel bandwidths | 1.4, 3, 5, 10 or 20 MHz |
| RF architecture | 1T2R |
| RF output power | 33 dBm |
| Air-to-ground range | 20-50 km LOS |
| Maximum data rate | 30 Mbps |
| Network modes | One-to-one; one-to-many |
| Encryption options | ZUC; SNOW3G; AES |
| Supply voltage | 12 VDC |
| Ethernet interfaces | 2 x RJ45 |
| Serial interfaces | 3 x serial, TTL/RS-232 variant |
| RF antenna interfaces | 2 |
