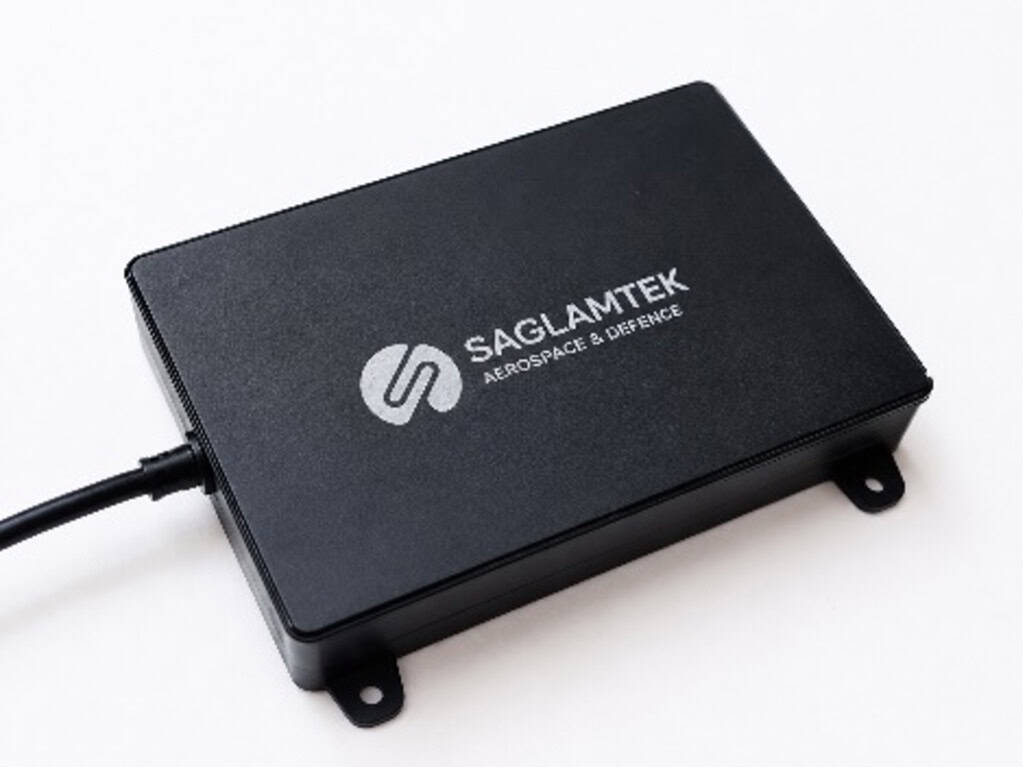

BORADAR-200 is a downward-facing 24 GHz FMCW radar altimeter that measures the relative height between an aircraft and the terrain in real time. Ideal for UAVs, it provides a range of 0.1 to 200 m and enables stable low-level flight and terrain-following.
The radar is designed for operation in rain, snow, fog, smoke and dust, providing reliable altitude awareness for a wide range of mission-critical applications including mapping and surveying, logistics, firefighting, rescue missions and infrastructure inspection.
The IP66-rated unit offers UART TTL and CAN interfaces for simplified connection to flight-control and mission systems, and the radar can also be adapted for unmanned surface vessels and robotic platforms requiring radar-based distance measurement.
Specifications:
| Dimensions | 75 x 138 x 21 mm |
| Weight | 95 g, including connecting cable |
| Power consumption | ≤2 W at 12 VDC and 25°C |
| Operating frequency | 24 GHz ISM band |
| Modulation | FMCW |
| Update rate | 42 Hz |
| Range | 0.1-200 m over grass |
| Ranging accuracy | ±0.1 m at 0.5-30 m; ±1 m at 30-100 m; ±2 m at 100-200 m |
| Range resolution | 0.75 m at 0.5-30 m; 1.5 m at 30-100 m; 2 m at 100-200 m |
| Trackable targets | 1 |
| TX beamwidth | 28° azimuth; 18° elevation, -6 dB |
| RX beamwidth | 27° azimuth; 17° elevation, -6 dB |
| Operating voltage | 5-20 VDC; 12 VDC typical |
| Operating current | ≤90 mA at 12 VDC and 25°C |
| Interfaces | UART TTL; CAN, up to 500 kbit/s |
