ROV Domes for Subsea Imaging & Underwater Cameras

ROV domes serve as protective barriers for underwater cameras and sensors, preserving image fidelity while withstanding the high pressures of deep-sea environments. Their hemispherical or semi-hemispherical shape is engineered to minimize optical distortion and scattering, delivering high transmission across visible and infrared wavelengths.

These domes are often integrated into the front housing of underwater cameras, sensor modules, and other imaging payloads mounted on ROVs and UUVs. Designed for clarity and strength, they play a pivotal role in missions where visual clarity and equipment durability are paramount.

Table of contents:

• Materials Used in Underwater Optical Domes
• Design Characteristics of ROV Domes
• Applications of Underwater Domes in ROVs and UUVs
• Integration with Subsea Imaging Systems
• Overview of ROV Domes

Materials Used in Underwater Optical Domes

The material composition of ROV domes directly influences their optical performance and depth capabilities. Different materials are selected based on application-specific requirements such as pressure resistance, spectral transmission, and resistance to abrasion or chemical exposure.

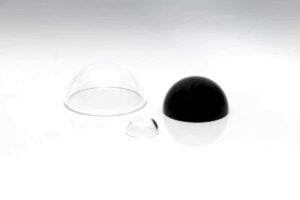

ROV Domes by Knight Optical

• Acrylic: Lightweight and cost-effective, acrylic domes are widely used in shallow to medium-depth applications. They offer good visible light transmission and ease of machining, but are more susceptible to scratching than harder materials.
• Borosilicate glass: Known for its thermal resistance and durability, borosilicate provides excellent clarity and is suitable for moderate depths.
• Fused silica and quartz: These materials offer superior UV and visible light transmission with minimal absorption. Their strength and thermal stability make them ideal for scientific imaging in harsh subsea environments.
• Sapphire domes: Highly durable and scratch-resistant, sapphire is ideal for deep sea imaging and high-pressure environments. It offers excellent optical properties and is suitable for both visible and infrared imaging.
• Spinel and ALON (aluminum oxynitride): Advanced ceramic materials like spinel and ALON provide transparency in the visible and mid-infrared range with exceptional hardness and impact resistance. These are used in specialized military and industrial applications.
• Germanium and zinc sulfide: These infrared-transmitting materials are used in domes designed for thermal imaging and other IR-specific sensors.

Design Characteristics of ROV Domes

Most ROV domes are designed with a hemispherical or semi-hemispherical geometry to reduce optical distortion caused by the curvature of the window. This design also equalizes pressure distribution, enhancing structural integrity under extreme depths.

Precision manufacturing ensures that the dome surface remains optically smooth, minimizing scattering and refraction. Anti-reflective and hydrophobic coatings can be applied to further enhance image clarity and reduce biofouling during extended underwater operations.

Pressure-rated dome cameras and imaging modules often incorporate these windows as integral components of their housings. Optical glass domes may be tested and certified for use at specific depth ratings to ensure safety and performance in subsea applications.

Applications of Underwater Domes in ROVs and UUVs

ROV domes are essential across a wide array of subsea missions. They are commonly used in:

• Deep sea imaging: High-resolution visual mapping of seabeds, shipwrecks, and marine ecosystems often relies on underwater dome lenses that enable distortion-free imaging at significant depths.

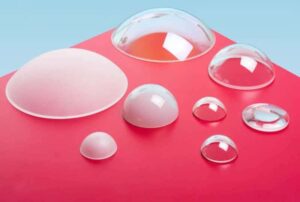

  Sapphire Domes for ROVs by Meller Optics

• Subsea infrastructure inspection: Oil and gas operations, subsea pipelines, and offshore wind installations use dome camera systems on ROVs to monitor and maintain underwater assets.
• Scientific research: Marine biologists and oceanographers deploy ROVs equipped with dome-protected subsea cameras to study wildlife behavior and environmental conditions.
• Military and defense: Surveillance, mine detection, and reconnaissance missions leverage pressure-rated domes in combination with optical and thermal sensors.
• Aquaculture monitoring: Underwater dome lenses help provide continuous video feedback for fish farms, supporting health assessments and feeding management.

Each of these applications demands domes with specific optical and mechanical properties. Selecting the right material and design ensures reliable data capture in the most challenging underwater environments.

Integration with Subsea Imaging Systems

ROV domes are often supplied as standalone components or integrated into dome camera assemblies, tailored for compatibility with specific camera models and imaging systems. These assemblies may include adjustable mounts, pressure compensation features, and sealing elements to maintain performance over time.

Camera domes used in subsea imaging systems are typically evaluated not only for optical transmission but also for their ability to withstand thermal cycling, mechanical impact, and long-term submersion. The goal is to deliver consistent high transmission with minimal absorption or degradation throughout the mission lifecycle.

Overview of ROV Domes

ROV domes are critical components for maintaining visual performance and equipment integrity during subsea operations. Whether supporting scientific exploration or industrial inspection, these optical windows combine advanced material science with precision design to meet the demands of high-pressure marine environments. With a range of materials such as acrylic, sapphire, and fused silica available, ROV domes can be tailored to specific mission profiles, delivering clarity, durability, and resilience where it’s needed most.
