Optical Windows, Lenses, and Domes for Unmanned Systems
High-performance optical components are essential for delivering clear and accurate imaging in unmanned systems. From drones to underwater vehicles, the right choice of optical windows, lenses, and domes ensures that imaging payloads remain protected while capturing high-resolution data. These components are designed to perform reliably in challenging environments—extreme temperatures, pressure changes, and physical impact—making material selection a crucial step in system integration.
Overview
Optical Windows, Lenses, and Domes for Unmanned Systems
By
Staff Writer Last updated: April 10th, 2025
Unmanned systems such as UAVs, UGVs, USVs, and ROVs rely on precise imaging technologies to carry out a wide range of tasks, from surveying and surveillance to inspection and mapping. Central to these capabilities are optical windows, lenses, and domes—components that protect delicate sensors and optics while enabling optimal image transmission across various spectral bands.
Material properties directly affect the performance and suitability of optical components in unmanned environments. Below is an overview of commonly used materials and how they contribute to imaging effectiveness:

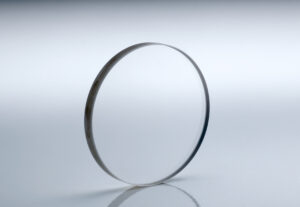

Sapphire windows
Sapphire windows are widely recognized for their strength, scratch resistance, and ability to transmit light across a broad spectrum. These properties make sapphire an excellent choice for UAVs and ROVs operating in abrasive or high-pressure environments. Sapphire optics can withstand impacts, high-speed airflow, and temperature variations, but they are typically more costly than other materials.
Germanium windows

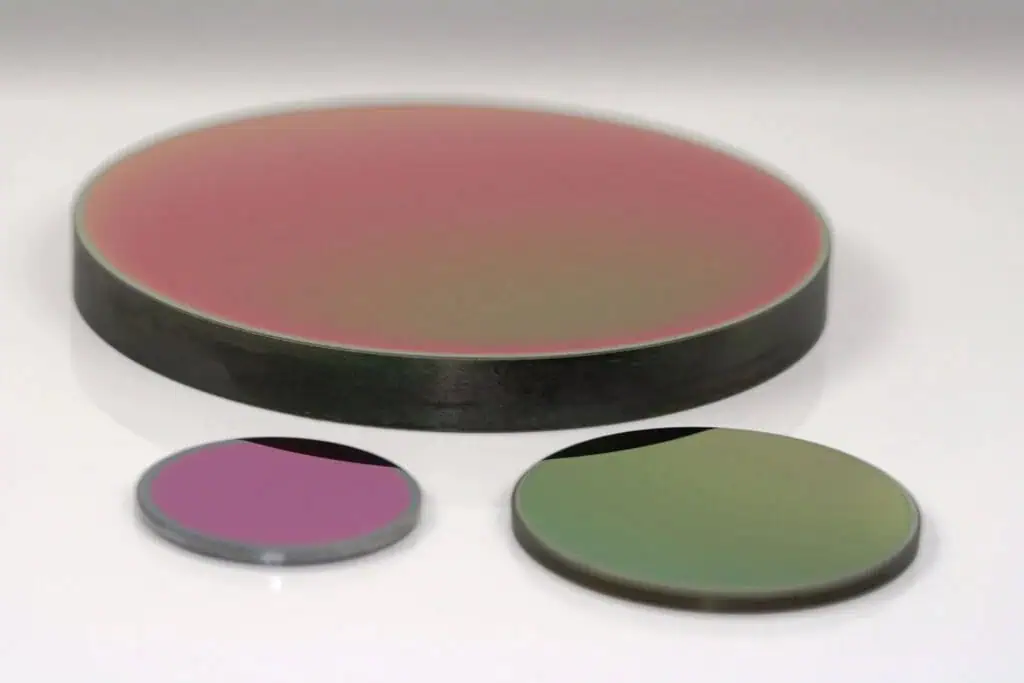

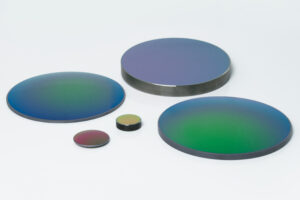

Germanium Windows by Knight Optical
Used primarily for infrared imaging, germanium windows are ideal for thermal cameras on drones and robotic platforms. They provide excellent transmission in the mid-wave infrared (MWIR) and long-wave infrared (LWIR) bands, making them suitable for night-time operations or heat-based inspections. While germanium optics offer superb IR performance, they are dense and may not be suitable for weight-sensitive platforms.
Quartz windows (fused silica)
Quartz windows, particularly those made from fused silica, are favored for their thermal stability and wide spectral range, covering ultraviolet, visible, and some infrared wavelengths. These properties are useful for multispectral imaging and precision applications where clarity and consistency are key. Quartz is more prone to scratching compared to sapphire but is more cost-effective.
Optical glass windows
Offering a good balance between cost, weight, and optical clarity, glass windows are a popular choice for drones and ground-based unmanned systems. They support a wide range of imaging tasks where extreme environmental resistance isn’t critical. Various formulations are available, each optimized for specific wavelengths and performance characteristics.
Understanding Optical Component Types
Unmanned imaging systems make use of multiple optical components, each serving a specific function within the imaging payload:
Optical windows are flat plates used to shield internal components from dust, moisture, and debris while allowing unimpeded light transmission. They are essential for maintaining image quality and protecting lenses and sensors.

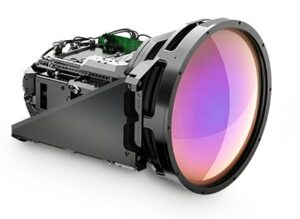

Lenses shape and focus incoming light to form a clear image on the sensor. Imaging lenses are available in various materials to match the desired spectral performance, such as MWIR or SWIR lenses.

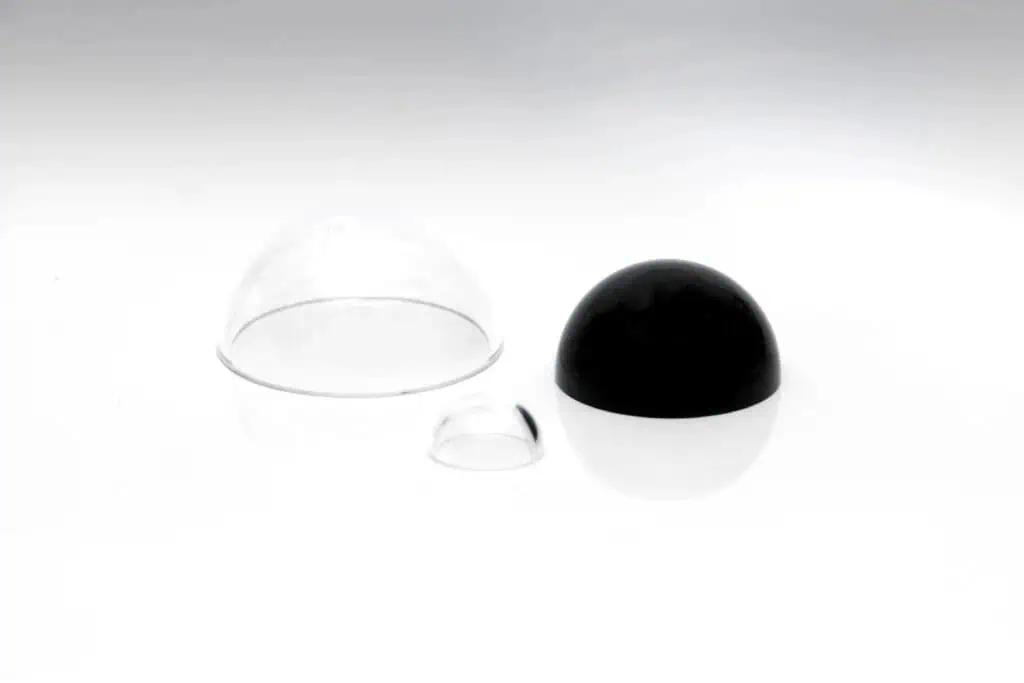

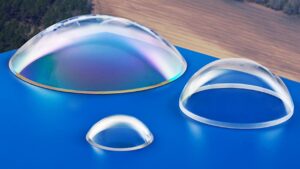

Optical domes are spherical or hemispherical enclosures designed to protect pan-tilt or omnidirectional camera systems. These domes enable full field-of-view coverage and are often found on drones and ROVs where visibility and aerodynamic or hydrodynamic flow are essential. Materials such as fused quartz, sapphire, and high-performance polymers are commonly used.

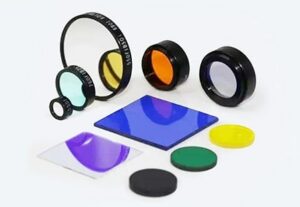

Filters allow only specific wavelengths to pass through, enhancing contrast or removing noise from the captured image. Infrared filters are used for thermal imaging, while bandpass and notch filters are used in multispectral cameras.

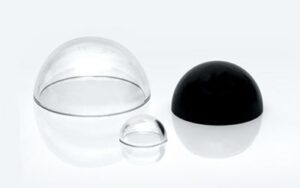

Optical Domes by Knight Optical
Application Examples in Unmanned Systems
The need for reliable, high-clarity optical components extends across multiple unmanned platforms and environments:
Aerial surveillance and mapping (UAVs)
Drones equipped with cameras for geospatial mapping or infrastructure inspection benefit from fused silica or sapphire windows that ensure high optical transmission and environmental resistance. These materials support multispectral and hyperspectral imaging systems used for agriculture, construction, and environmental monitoring.
Thermal imaging (UAVs, UGVs, ROVs)
Infrared-capable drones and robotic platforms often use germanium or silicon optics. Germanium windows and lenses provide superior IR transmission for MWIR and LWIR bands, while silicon is used for lightweight LWIR applications. Germanium optics are widely used in fault detection, search and rescue, and pipeline inspection.
Subsea exploration and inspection (ROVs and AUVs)
ROVs and autonomous underwater vehicles require robust dome windows that can withstand high pressure and saltwater corrosion. Sapphire domes and fused quartz domes offer excellent resistance to harsh underwater conditions while maintaining optical clarity for sonar, camera, and laser systems.
Land-based autonomous systems (UGVs)
Unmanned ground vehicles benefit from optical glass or sapphire windows depending on terrain and environmental exposure. These systems often integrate imaging lenses and filters tailored for low-light or IR-enhanced navigation.
Considerations for Material Selection
Choosing the right optical component for your unmanned system depends on various factors:

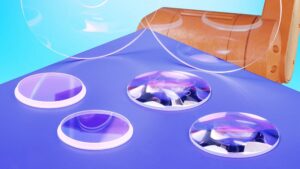

Sapphire Windows by Meller Optics
Spectral requirements – what wavelengths does the sensor operate in (UV, visible, IR)?
Environmental exposure – will the system face impact, vibration, chemicals, or high pressure?
Weight and size constraints – particularly important for aerial and mobile systems
Budget and lifecycle – cost vs. durability trade-offs, especially in high-risk or disposable systems
Working with manufacturers that offer custom optical windows and domes ensures that your imaging payload is optimized for its specific application. Whether you need a high-durability sapphire lens or a lightweight polymer window, custom engineering can improve optical performance and extend system longevity.
High Quality Optics Means High Performance
As imaging technology becomes more integrated into unmanned platforms, the importance of high-quality optical windows, lenses, and domes continues to grow. From sapphire optics for rugged drones to germanium domes for thermal marine systems, these components provide critical protection and clarity. Selecting the right material and optical design ensures maximum performance from your imaging system—whether it’s navigating a dense forest canopy or exploring the ocean floor.

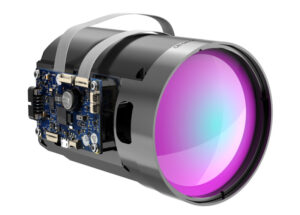

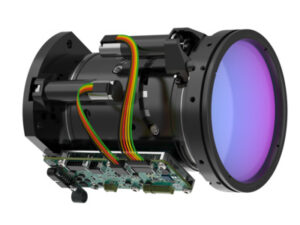

Lightweight MWIR zoom lens for compact UAV gimbals
Lightweight MWIR zoom lens for compact UAV gimbals
...ficient folded optical design, the system measures just 107mm x 101.5mm x 96mm (with detector) and... ...(127mm) gimbal systems on UAVs and other airborne platforms. Built to match the latest 15μm pitch...

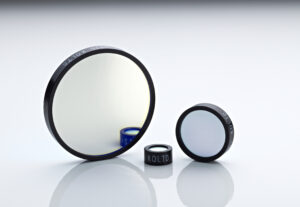

Interference Bandpass, Dichroic, ND, Fluorescence Filters, IR Cut
Interference Bandpass, Dichroic, ND, Fluorescence Filters, IR Cut
Knight Optical's product catalogue includes an extensive range of optical filters, available to... Knight Optical can also provide custom optical filters to meet our customer's requirements. This...

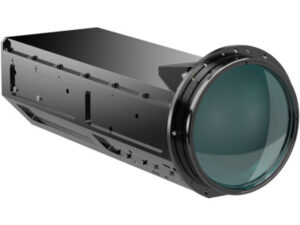

MKS-Ophir introduces the Ophir® FoldIR 25-275mm MWIR zoom lens, delivering compact, long-range imaging capabilities for drone and small gimbal applications
