Germanium Windows and Lenses: Advanced Infrared Optics for Unmanned Systems

Germanium (Ge) is a crystalline semiconductor material that is opaque in the visible spectrum but highly transparent in the infrared range, specifically between 2 µm and 14 µm. This spectral window encompasses both the mid-wave infrared (MWIR) and long-wave infrared (LWIR) bands, which are essential for thermal imaging technologies employed in unmanned systems.

What makes germanium particularly suitable for these roles is its high refractive index (approximately 4.0), excellent resistance to thermal shock, and compatibility with protective coatings such as diamond-like carbon (DLC) or anti-reflective (AR) layers. These qualities ensure both optical precision and durability in environments characterized by temperature extremes, physical abrasion, or particulate interference.

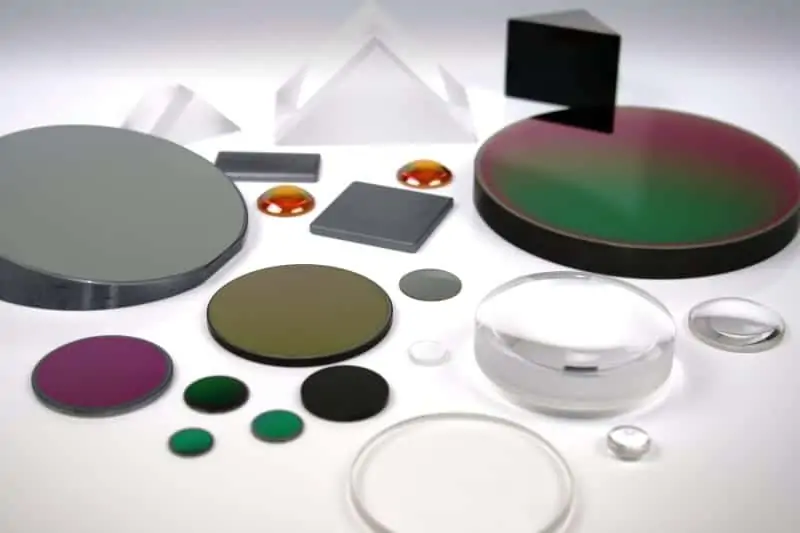

How Germanium Optics Compare to Quartz and Sapphire

While germanium is the material of choice for thermal imaging and other infrared-dependent applications, quartz and sapphire also have essential roles in unmanned systems, albeit in different spectral regions.

Quartz optical components

Quartz (fused silica) is known for its excellent transmission from ultraviolet (UV) to near-infrared (NIR) wavelengths, approximately 0.18 µm to 3.5 µm. It is highly resistant to thermal shock and chemical corrosion, making it ideal for high-temperature environments and laser applications. However, quartz is ineffective in the LWIR range where germanium excels.

Sapphire optical components

Sapphire (crystalline aluminum oxide), meanwhile, is valued for its extreme hardness (Mohs 9) and good optical transmission from UV through about 5.5 µm. While it doesn’t match germanium’s performance in the LWIR, it offers superior durability in applications where mechanical strength and chemical resistance are paramount.

Types of Germanium Optics Used in Unmanned Systems/Drones

Germanium optics are deployed in a variety of configurations within unmanned systems, each tailored to specific performance and environmental demands:

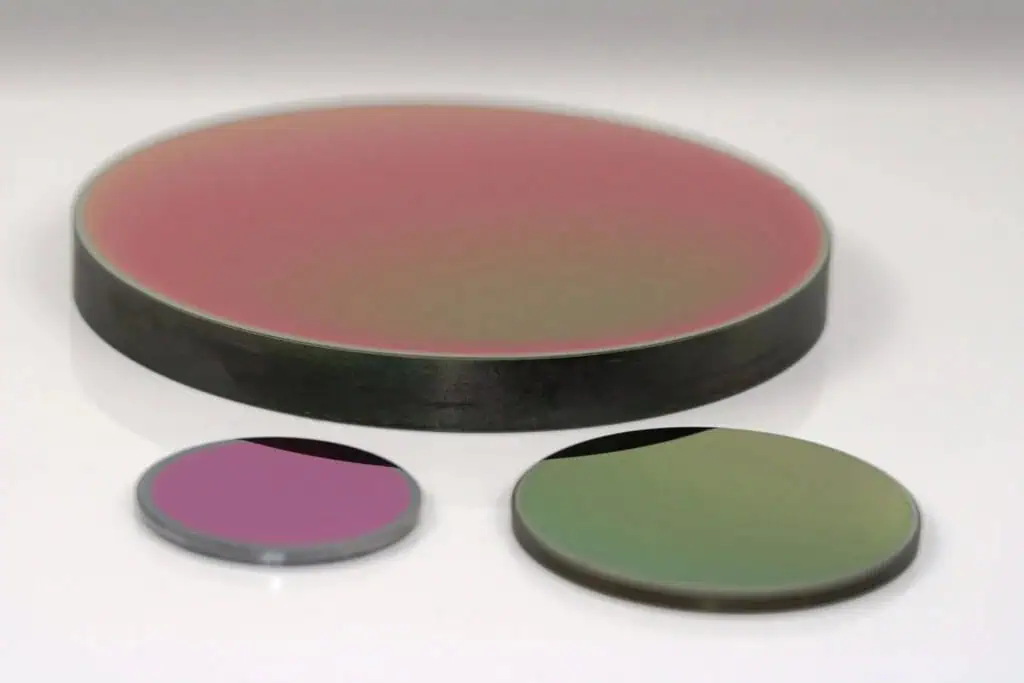

• Germanium windows protect internal optics and sensors from dust, moisture, and debris while maintaining high infrared transparency. They are especially common in external housings for FLIR cameras and other thermal vision systems.
• Germanium lenses are used to focus IR radiation for thermal imaging and spectrometry. These lenses can be designed for specific focal lengths or fields of view and are often treated with anti-reflective or protective coatings.
• Germanium domes are used in high-speed or aerial systems, such as missile seekers or drone-mounted gimbals, where aerodynamic shaping is necessary. They offer uniform optical transmission across a wide field of regard.
• Coated vs. uncoated optics: Coated germanium optics, particularly with DLC or AR coatings, offer enhanced durability and performance in dusty, wet, or chemically aggressive conditions. Uncoated optics are preferred in laboratory or sheltered environments where absolute transmission is the priority.

Applications of Germanium Optics in Unmanned Systems

Germanium optics are integral to a wide array of unmanned systems, enabling advanced infrared capabilities across various applications.

Thermal Imaging Systems

Germanium lenses and windows are crucial components in thermal cameras used by drones for applications such as search and rescue, firefighting, and surveillance. Their ability to transmit LWIR wavelengths allows for the detection of heat signatures in low-visibility conditions.

Spectroscopy

In unmanned systems conducting environmental monitoring or industrial inspections, germanium optics facilitate infrared spectroscopy to analyze material compositions, detect gas leaks, or monitor chemical processes.

Military and Defense

Germanium domes and lenses are employed in targeting systems, night vision devices, and missile guidance systems on UAVs, providing high-resolution thermal imaging critical for mission success.

Aerospace Applications

Satellites and high-altitude drones utilize germanium optics for Earth observation and atmospheric studies, benefiting from their durability and infrared transparency in harsh space environments.

Industrial Inspections

Drones equipped with germanium-based thermal cameras inspect infrastructure like power lines, pipelines, and solar panels, identifying faults or inefficiencies through thermal anomalies.

Autonomous Vehicles

Ground-based unmanned systems use germanium optics in LIDAR and thermal imaging systems for navigation, obstacle detection, and environmental awareness, especially in low-light or adverse weather conditions.

Selection and Design Considerations

Choosing the right optical material for unmanned systems involves understanding trade-offs in spectral performance, mechanical resilience, and environmental stability:

• Spectral range: LWIR applications (8–14 µm) require germanium, while UV and NIR tasks may favor quartz or sapphire.
• Durability: Coated germanium offers strong environmental resistance, while sapphire excels in abrasion resistance and mechanical strength.
• Weight and density: Germanium is relatively dense, which may be a factor in UAV payload design.
• Thermal sensitivity: Germanium’s refractive index varies significantly with temperature. This must be compensated for in systems exposed to wide thermal fluctuations.
• Cost and availability: Germanium is more expensive than quartz or sapphire but delivers superior performance in critical infrared applications, often justifying the investment.

Germanium Optics – Future Applications

As unmanned systems continue to evolve in the direction of greater autonomy, miniaturization, and onboard intelligence, germanium optics are set to play a pivotal role in shaping next-generation capabilities.

Hyperspectral thermal imaging is on the horizon, with germanium optics forming the backbone of multi-band infrared cameras. These advanced systems will allow unmanned vehicles to detect and analyze specific materials or thermal anomalies across a broader range of wavelengths, providing actionable data for applications such as infrastructure monitoring and defense intelligence.

As production costs decrease and manufacturing processes become more efficient, germanium optics are poised for broader commercial adoption. Their integration into industrial drones will support energy audits, infrastructure inspections, environmental compliance checks, and even wildlife monitoring, opening new markets and opportunities for enhanced data collection in both urban and remote environments.
