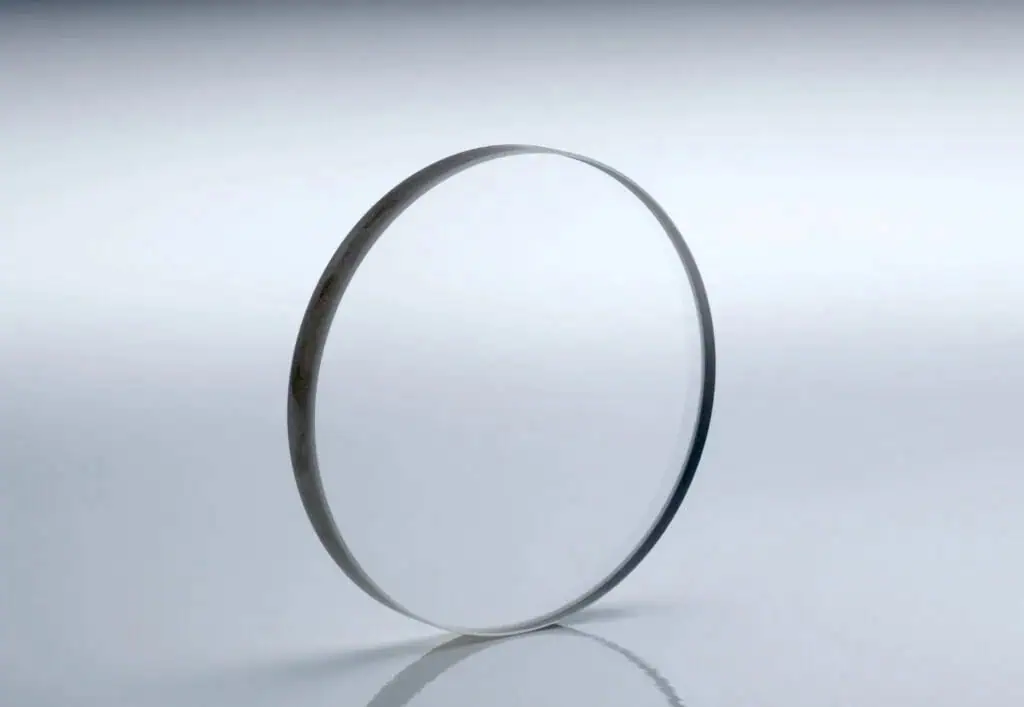

High-Precision Sapphire Windows

Sapphire windows are optical components manufactured from synthetic sapphire, a single-crystal form of aluminum oxide (Al₂O₃). Their extraordinary hardness, measured at 9 on the Mohs scale, offers exceptional resistance to scratches, making them ideal for use in abrasive environments. Additionally, sapphire maintains high optical transmission from the deep ultraviolet (~150 nm) to the mid-infrared (~5.5 µm), making it suitable for a diverse range of imaging and sensing applications.

The material’s superior thermal stability enables it to withstand temperatures exceeding 1000°C, while its chemical inertness makes it resistant to most acids, alkalis, and corrosive agents. These qualities enable sapphire windows to perform reliably in harsh conditions where other optical materials would fail.

Comparing Sapphire to Other Optical Materials

When selecting an optical window material, it’s vital to consider specific application demands:

• Sapphire offers unmatched durability and broad-spectrum transmission, excelling in scenarios requiring both optical clarity and environmental resilience.
• Quartz (fused silica) is known for its excellent transmission in the UV range and lower cost, but it lacks the mechanical strength and chemical resistance of sapphire.
• Germanium is ideal for long-wave infrared applications (2–16 µm) but is brittle and opaque to visible light, making it unsuitable for multispectral use or rugged conditions.

Each material has strengths, but sapphire is often the superior choice when durability, broad spectral performance, and environmental resistance are required.

Types of Sapphire Windows

Sapphire windows come in many forms to meet a wide range of technical needs:

• Round windows are commonly used in optical assemblies due to their symmetrical shape and ease of sealing.
• Rectangular and square windows are often chosen for systems requiring wide aspect ratios or customized housing.
• T-step windows include flange-like edges that enhance mounting and sealing performance in vacuum systems and pressure vessels.
• Wedge windows reduce internal reflections and beam deviation in optical paths, improving performance in laser and imaging systems.

Custom dimensions enable applications in micro-optics (e.g., 0.3 mm diameters for biomedical tools) to large-format windows (>300 mm) for aerospace and defense sensors.

Customizations may also include specific crystal orientations and surface coatings tailored to transmission, durability, and environmental resistance.

Sapphire ROV Domes

Sapphire domes used in remotely operated vehicles (ROVs) offer superior protection for cameras and sensors operating in deep-sea and harsh subsea environments. These domes provide exceptional optical clarity across visible and infrared wavelengths while withstanding immense pressure, saltwater corrosion, and physical abrasion. Their hemispherical shape minimizes optical distortion and turbulence effects, ensuring accurate imaging and data collection for applications such as underwater inspection, exploration, and defense surveillance. Sapphire’s mechanical strength and long-term durability make it the material of choice for high-performance ROV optical housings.

Applications of Sapphire Windows

Spectroscopy

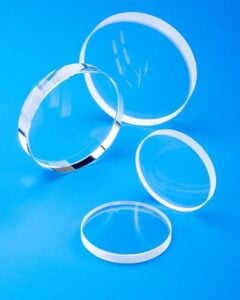

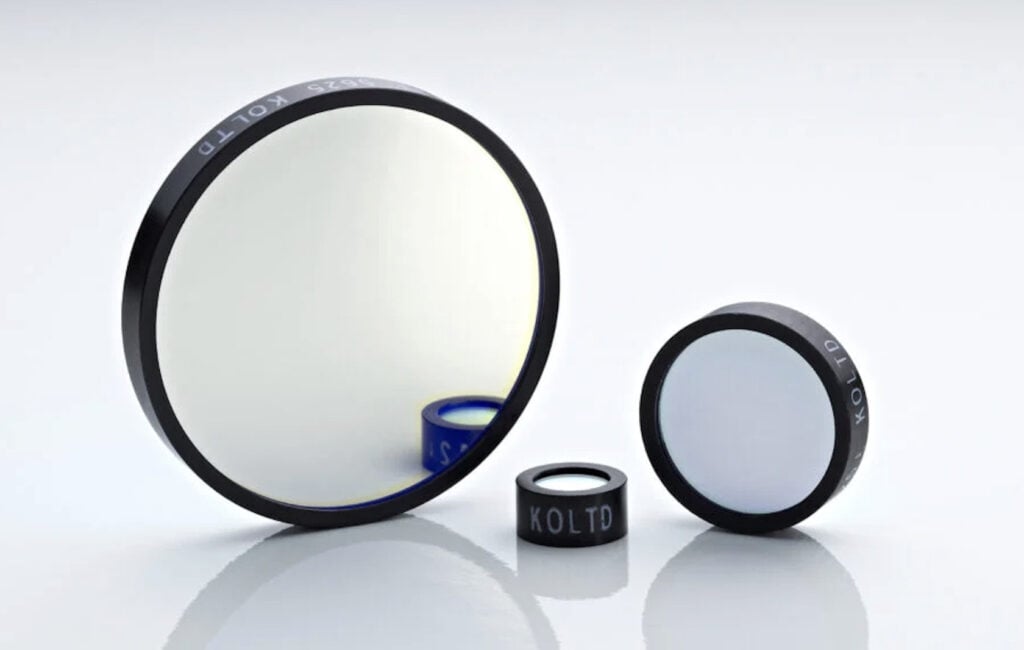

Sapphire Optical Windows by Meller Optics.

In UAVs, unmanned ground vehicles (UGVs), and marine drones, ruggedized optical windows are essential for protecting onboard spectrometers used for environmental monitoring, hazardous material detection, or agricultural analysis. UAV-mounted hyperspectral or UV-Vis spectrometers rely on sapphire windows to safeguard sensitive optics while ensuring high transmission quality across relevant wavelengths.

Infrared imaging

For thermal imaging and IR sensing, sapphire provides high transmittance in the mid-IR range while resisting thermal shock and surface wear. It is a preferred material for protective optics in uncooled infrared cameras, thermal imaging riflescopes, and airborne surveillance sensors. Unlike germanium, which can be fragile and temperature-sensitive, sapphire maintains optical clarity even under severe temperature fluctuations and mechanical stress.

Aerospace and defense

Sapphire windows are extensively deployed in high-performance aerospace and defense systems. They serve as protective windows in missile guidance systems, UAV payloads, satellite sensors, and optical surveillance domes. Sapphire’s resistance to high-altitude pressure changes, extreme temperatures, and ballistic impact makes it the material of choice for optical systems in reconnaissance equipment, defense drones, and satellite instruments. Hermetically sealed sapphire windows also protect sensitive imaging electronics from vacuum and space radiation.

Environmental monitoring

Sapphire windows are critical components in environmental monitoring systems deployed on unmanned aerial, surface, and underwater platforms. These systems often operate in extreme conditions, including high altitudes, deep-sea pressures, corrosive environments, or temperature extremes, where traditional optical materials would degrade. Sapphire’s resistance to abrasion, chemicals, and thermal shock ensures reliable, long-term protection for sensors analyzing air quality, radiation, salinity, or gas concentrations.

Industrial inspection

Sapphire windows are essential for protecting optical components used in industrial inspection drones, which are deployed in environments that are often hazardous, high-pressure, or difficult to access. These drones, whether aerial, ground-based, or submersible, rely on high-resolution cameras, thermal imaging systems, and LIDAR sensors for inspecting pipelines, infrastructure, offshore rigs, and confined industrial spaces.

Sapphire’s extreme hardness and resistance to corrosion and abrasion make it ideal for safeguarding these sensitive instruments during close-proximity inspections. Whether a UAV is flying through a dusty refinery or a UGV is navigating a chemical plant, sapphire windows ensure long-term optical clarity and minimal signal distortion. Their ability to withstand thermal cycling and physical impacts also reduces maintenance and downtime, supporting continuous data acquisition in mission-critical industrial environments.

Navigation and guidance systems

Unmanned systems rely heavily on precise optical sensors for real-time navigation, targeting, and situational awareness. Sapphire windows are extensively used to protect cameras, LIDAR systems, and laser-based rangefinders from physical damage without compromising image quality or sensor performance.

Their use in optical assemblies for missile seekers, UAV targeting pods, and autonomous vehicle vision systems ensures reliable function in environments exposed to vibration, thermal stress, and debris. Additionally, sapphire’s optical stability helps maintain calibration and performance in advanced photonics applications such as wavefront sensors or inertial navigation aids.

Anti-Reflective Coatings and Enhancements

To optimize transmission, sapphire windows can be coated with anti-reflective (AR) films matched to specific wavelengths. These coatings reduce Fresnel reflections, thereby improving system efficiency. For instance, broadband AR coatings support multi-spectral applications, whereas narrowband AR coatings are tailored for use with lasers or detectors. Sapphire windows may also receive protective or hydrophobic coatings to further enhance environmental durability in optical systems operating outdoors, underwater, or in cleanrooms.

The Expanding Role of Sapphire Optics

Sapphire windows deliver unmatched optical and mechanical performance for demanding environments. From aerospace and defense to biomedical engineering and industrial inspection, they provide long-lasting clarity, structural resilience, and spectral versatility. Their superiority over materials like quartz and germanium in terms of hardness, thermal resistance, and chemical inertness ensures that sapphire remains a top choice for mission-critical optical components. As technology advances, the role of sapphire in optics and photonics is set to expand even further.
