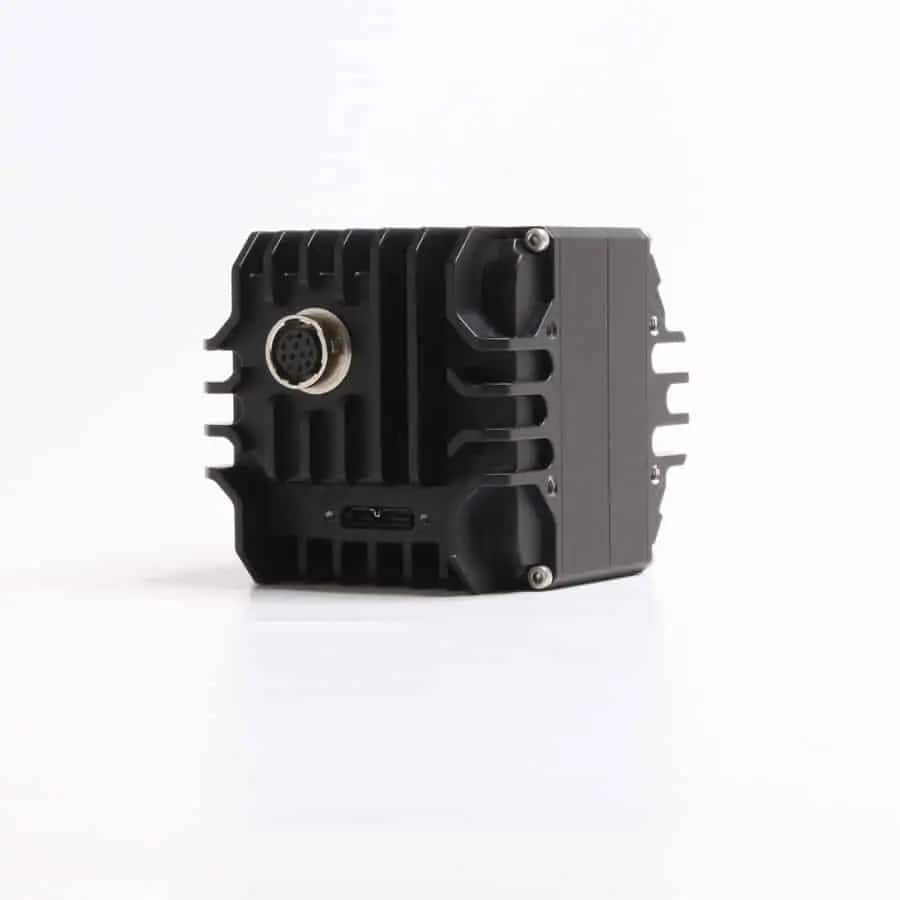

The SenS 1280 is a high-performance SXGA format SWIR camera based around a 1280x1024 InGaAs imaging sensor with 10µm pixel pitch, delivering superior image detail and clarity for surveillance, security and monitoring applications. The versatile camera features a linear response mode that enables maximum sensitivity even under challenging low-light conditions.
With a compact footprint and weighing less than 400 grams, the low-SWaP camera can be easily integrated into a variety of drone and robotic vehicle designs. It provides a number of I/O interfaces including USB 3.0, CameraLink, HD-SDI, and CoaXPress, ensuring compatibility with a wide range of systems.
The SenS 1280 is available as a standard version as well as a Smart variant that provides advanced image processing capabilities such as automatic gain control (AGC) and automatic integration time (AIT), eliminating the need for manual adjustments. Both versions feature built-in non-uniformity correction (NUC) and bad pixel replacement (BPR).
Specifications:
| SenS 1280 | SenS 1280 Smart | |
| Dimensions | 58 x 58 x 70 mm | 58 x 58 x 72 mm |
| Weight | <400g | <400g |
| Spectral Response | 0.9 to 1.7 μm | 0.9 to 1.7 μm |
| Frame Rate | Up to 60 Hz full-frame | Up to 60 Hz full-frame |
| Integration Time | 10μs to 500ms | 10μs to 500ms |
| I/O Interfaces | USB3.0, CamLink | CamLink, HD-SDI, CoaXPress |
