Sapphire Domes

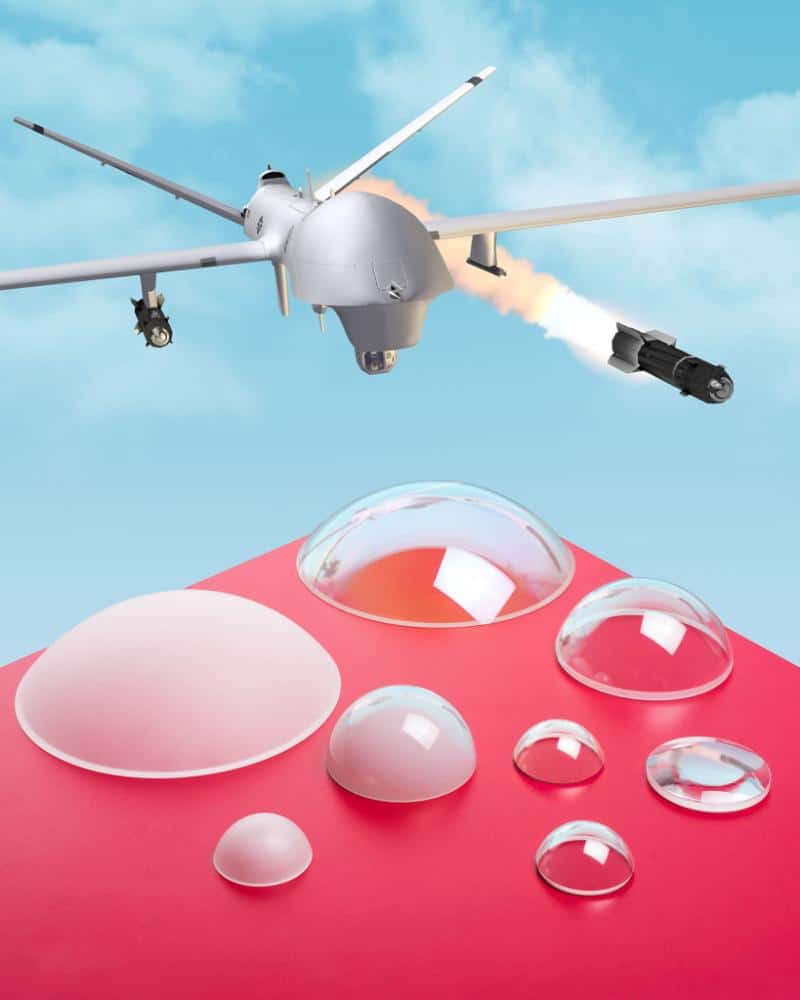

Meller Optics’ tough high-precision sapphire domes can be provided with diameters of up to 100 mm and included viewing angles of up to 180 degrees. Manufactured on a highly repeatable 5-axis spherical machining center, they feature wall thickness variation of less than 25 microns and other dimensional tolerances of down to +/-10 microns.

Domes can also be manufactured from other materials upon request, including quartz, optical glass, silicon, zinc sulfide, germanium, Spinel and Alon.

Diameter 100mm maximum +/- .025mm
Thickness Preferred 20:1 aspect ratio diameter to thickness
<25 microns wall thickness variation within an overall thickness tolerance of +/- .05mm
Included Angle 180 degrees maximum
Spherical Irregularity <2 fringes per inch
(measured at 632nm)
Surface Finish 80-50 to 20-10 per MIL-PRF-13830
(dependent upon surface irregularity)
Centering Error 0.012mm maximum
Edge Bevel Per customer specification
