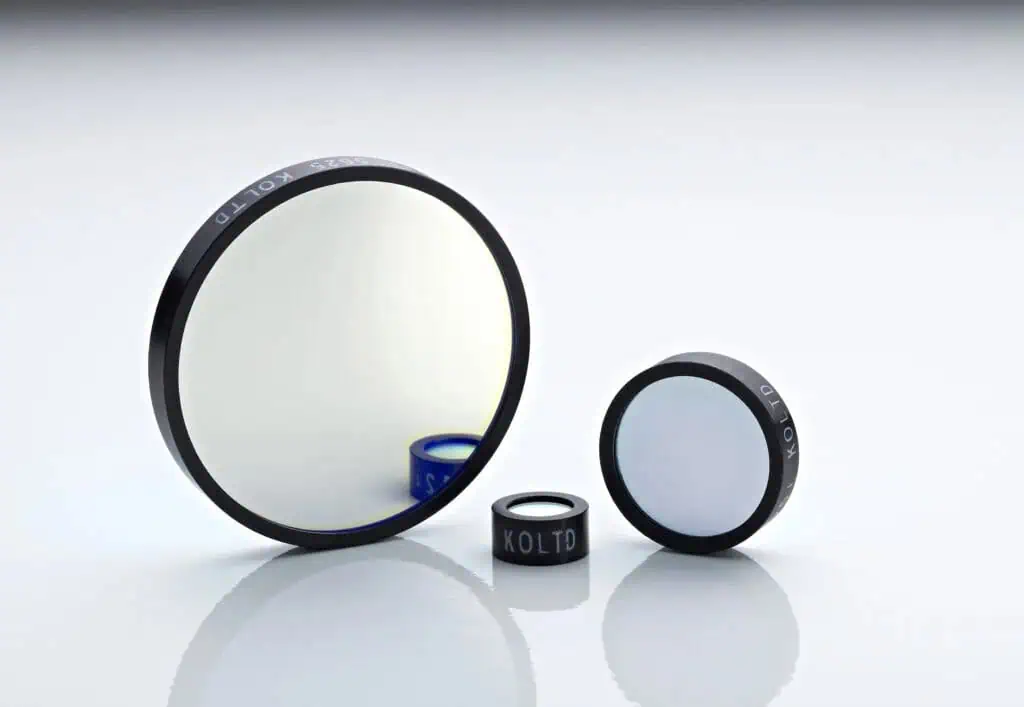

IR-Cut Filters for Drones and Unmanned Systems

Camera sensors in drones and unmanned systems are sensitive to a broad spectrum of light, including infrared wavelengths beyond human vision. While this sensitivity can be advantageous in low-light conditions, it often leads to color distortions in daylight imaging. IR-cut filters address this by blocking infrared light, allowing only visible wavelengths to reach the sensor and thereby preserving true-to-life color representation.

Typically, an IR-cut filter is positioned between the lens and the image sensor. In some systems, especially those requiring day/night functionality, the filter can be mechanically or electronically removed in low-light conditions to permit infrared light, enhancing night vision capabilities.

Materials Used in IR-Cut Filters

The effectiveness of an IR-cut filter largely depends on its material composition. Common materials include:

• Sapphire: Known for its durability and scratch resistance, sapphire is ideal for harsh environments.
• Quartz: Offers excellent thermal stability and optical clarity, suitable for high-precision applications.
• Polycarbonate: A lightweight, impact-resistant plastic, often used in cost-sensitive applications.
• Germanium: Transparent to infrared light, germanium is used in systems requiring IR transmission, such as thermal imaging.
• Dichroic glass: Utilizes interference coatings to reflect specific wavelengths, allowing precise control over light transmission.

The choice of material affects the filter’s performance, durability, and suitability for specific applications.

Applications of IR-Cut Filters in Unmanned Systems

Aerial photography and mapping

Drones equipped with IR-cut filters capture images with accurate color balance, essential for applications like photogrammetry and cartography. By eliminating infrared-induced color shifts, these filters ensure the reliability of visual data used in mapping and surveying.

Precision agriculture

In agricultural mapping, accurate color representation helps in assessing crop health and soil conditions. IR-cut filters enable drones to provide clear, true-color images, facilitating better decision-making in precision agriculture.

Environmental monitoring

For tasks like wildlife monitoring and environmental assessments, drones rely on IR-cut filters to deliver precise visual data. This accuracy is crucial for tracking changes in ecosystems and detecting environmental anomalies.

Inspection and surveillance

In infrastructure inspection, such as power line and pipeline inspection, IR-cut filters help drones capture detailed images, revealing potential issues like corrosion or structural damage. Similarly, in surveillance and reconnaissance, these filters ensure clear visuals, aiding in law enforcement and border patrol operations.

Search and rescue operations

During search and rescue missions, drones use IR-cut filters to provide clear imagery in various lighting conditions. By maintaining color fidelity, these filters enable the effective identification of individuals and assessment of terrains.

Types of IR-Cut Filters

IR-cut filters come in various types, each designed for specific needs:

• Absorptive filters: Made from materials that absorb infrared light, preventing it from reaching the sensor.
• Reflective filters: Use coatings to reflect infrared wavelengths away from the sensor.
• Hybrid filters: Combine absorptive and reflective properties for enhanced performance.

The selection depends on factors such as the desired wavelength cutoff, environmental conditions, and specific application requirements.

Integration with Multispectral Imaging

In multispectral imaging, drones capture data across various wavelengths, including visible and near-infrared. IR-cut filters play a crucial role in isolating specific bands, thereby improving the accuracy of analyses in applications such as environmental monitoring and precision agriculture.

Advancements in IR-cut Filter Technology

Recent developments have led to IR-cut filters with improved transmission efficiency and durability. Innovations in thin-film coatings and materials have improved filter performance, enabling better image quality and longer operational life in demanding unmanned applications.

By effectively blocking unwanted infrared light, IR-cut filters enhance color fidelity and image clarity across various applications, from agriculture to surveillance. As unmanned technologies continue to evolve, the role of IR-cut filters remains integral in meeting the growing demands for precise and reliable visual data.
