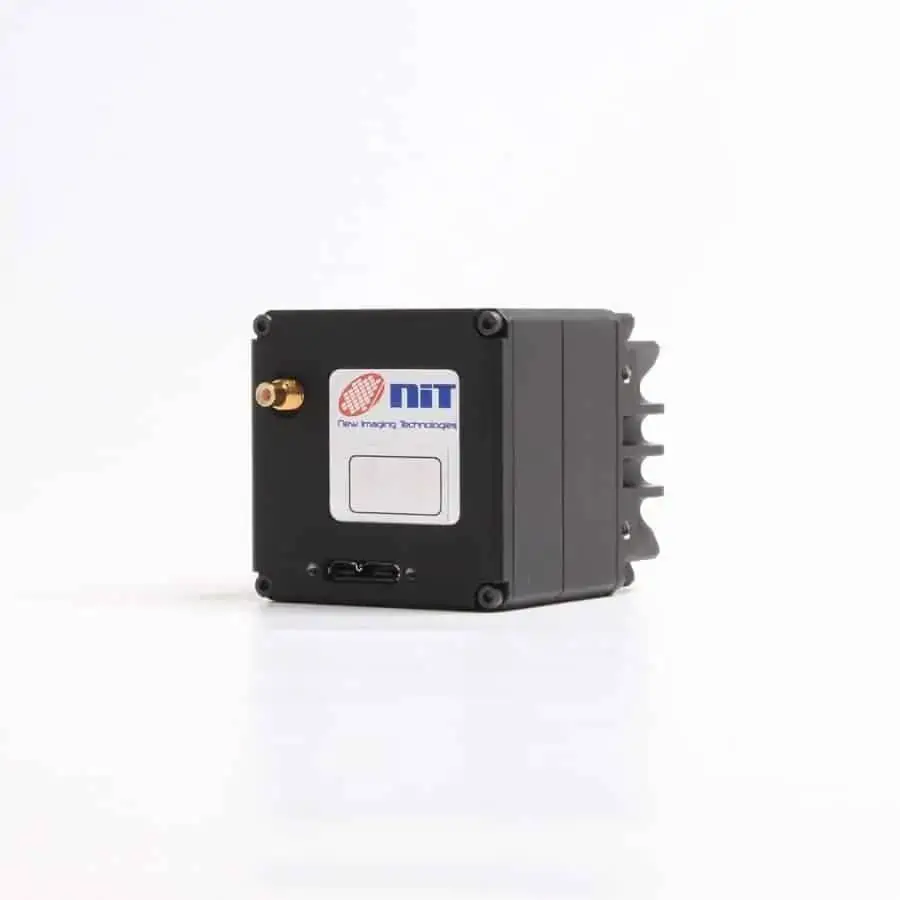

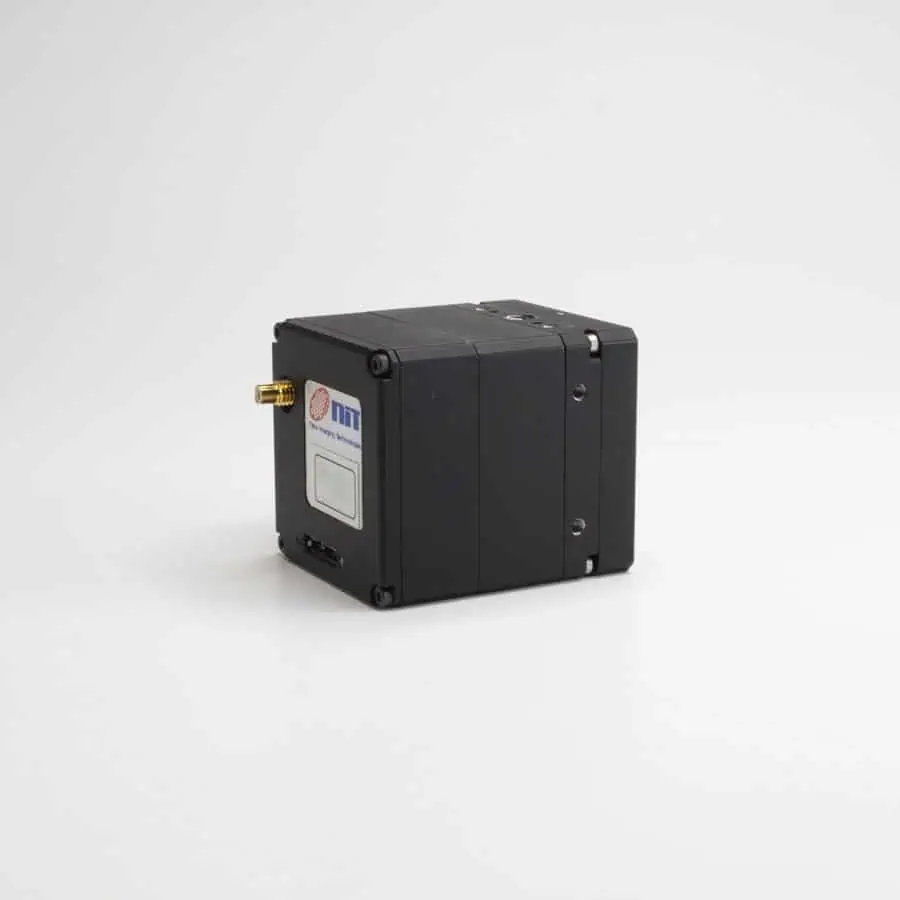

WiDy SenS SWIR Camera
The WiDy SenS is a compact SWIR camera core based around a 15μm pixel pitch InGaAs sensor and available in qVGA (320x256) and VGA (640x512) versions. The versatile camera features a unique dual-response capability that enables switching between a linear mode for maximum sensitivity in low-light conditions, and a logarithmic mode for maximum dynamic range under changing imaging conditions.
Weighing less than 215 grams, the compact camera core is ideal for SWaP-restricted drones and unmanned systems. A variety of I/O options are provided including USB3.0, CamLink, GigE, analog and SDI, and the WiDy SenS 640 is also available in an embedded form factor.
| WiDy SenS 640 | WiDy SenS 320 | |
| Dimensions | 46 x 46 x 57 mm | 46 x 46 x 57 mm |
| Weight | <215 g | <215 g |
| Spectral Response | 0.9 to 1.7 μm | 0.9 to 1.7 μm |
| Frame Rate | Up to 230 Hz | 1 Khz |
| Integration Time | 10μs to 1s | 10μs to 1s |
| I/O Interfaces | USB3.0, CamLink, GigE, Analog & SDI | USB3.0, CamLink |
