Noxant

Noxant is a leading developer of infrared (IR) optronics solutions for drones and robotics. Covering all IR bands, our high-performance cameras and camera cores are the result of decades of experience in infrared imaging technology, and we strive to ensure that we are always at the forefront of the industry, providing solutions to even the most complex of our customers’ problems.

All our products are designed, manufactured and serviced within Europe, and we provide industry-leading integration and after-sales support to all our clients.

Our Technology

Our IR cameras and cores are designed with ease of use foremost in mind, and can be integrated into a wide range of unmanned systems and robotics platforms. We make use of open standards to ensure flexible and versatile installation, and no external software is required.

Our portfolio of LWIR, MWIR and SWIR imaging products can be customized to suit your specific applications, and we continually improve and update our solutions to ensure that you can stay at the cutting edge.

Our technology is not only used as a payload, but also as a development tool for engineering. Thanks to our capabilities to accurately measure apparent temperature, NoxCam cameras provide valuable information for product design and optimisation, and also for signature assessment.

IR Imaging for Long-Range Surveillance

Our infrared imaging solutions are ideal for long-distance surveillance applications on land, in the air and at sea. The low-SWaP (size, weight and power) systems can be integrated into UAVs (unmanned aerial vehicles), UGVs (unmanned ground vehicles) and USVs (uncrewed surface vessels), providing enhanced situational awareness at all hour of the day and under all weather conditions.

IR Cameras and Cores for Monitoring & Surveying

Noxant infrared cameras and cores are also highly suited to a wide range of commercial, industrial and scientific applications. Our high-performance products deliver accurate thermographic and radiometric data for remote sensing, optical gas imaging (OGI), powerline and infrastructure inspection, and more.

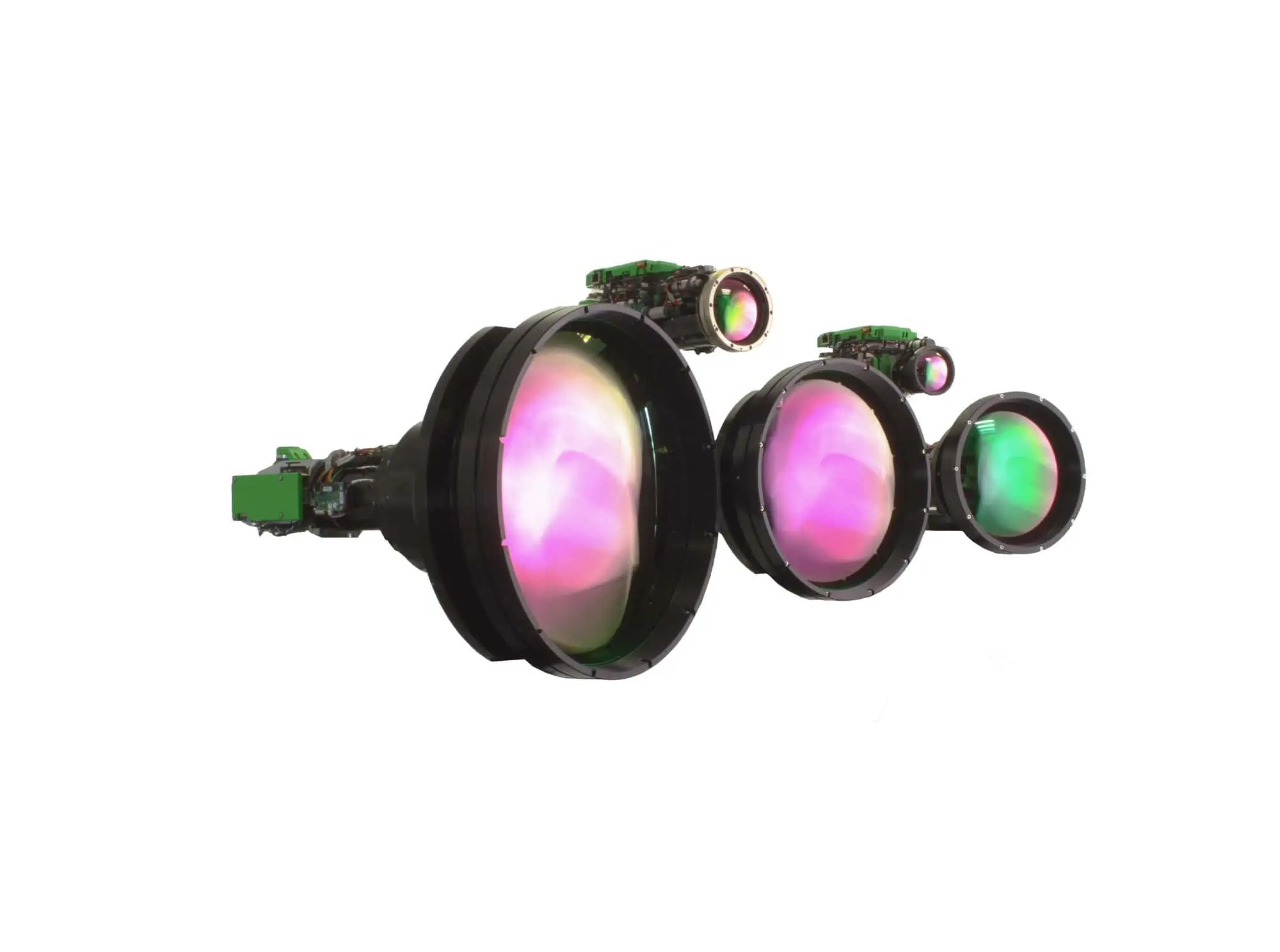

NoxCore

Infrared camera cores for surveillance & inspection

The NoxCore family of high-performance infrared camera cores provides a wide range of options to meet the needs of any surveillance or inspection application. With light weight, compact design and a reduced power footprint, they can be seamlessly integrated into drones and unmanned vehicles.

Equipped with state-of-the-art thermal detection and Stirling engine cooling technologies, NoxCore products combine unmatched performance with ease of use and powerful video processing, and provide a range of standard video and control interfaces.

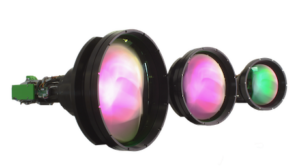

NoxCore HD
High-definition infrared camera cores with larger field of view

• MWIR 3 to 5μm
• 720p HDMI colour video output
• Matrix size 1280 x 720 pixels

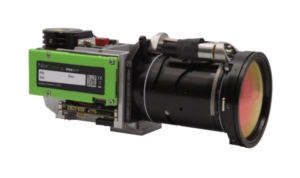

NoxCore F4
SD infrared camera cores for surveillance & security

• MWIR 3 to 5μm
• 720p HDMI colour video output
• Matrix size 640 x 512 pixels

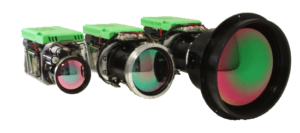

NoxCore Vision
Compact SD infrared camera cores for system integrators

• MWIR 3 to 5μm
• 720p HDMI colour video output
• Matrix size 640 x 512 pixels

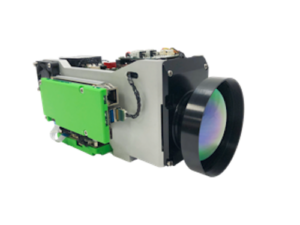

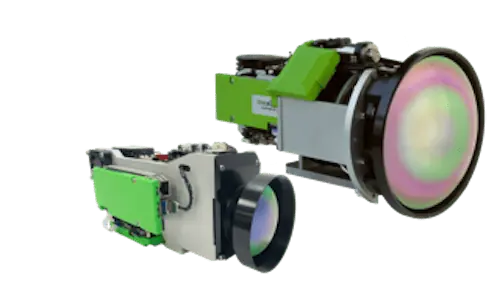

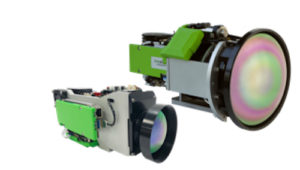

NoxCore LW
LWIR camera cores for infrastructure inspection

• LWIR 7.7 to 9μm
• 720p HDMI colour video output
• Matrix size 640 x 512 pixels

The NoxCam portfolio also includes a polarimetric model that incorporates a cooled LWIR sensor and delivers pixel-level polarimetric information in four directions coupled with sharp infrared imagery. The first-of-its-kind NoxCam-Pola camera is highly suited to applications such as oil spill detection and NDT (non-destructive testing).

All NoxCam products feature on-board raw calibrated data recording, industry-standard interfaces such as GigEVision and Genicam, and compatibility with leading analysis software including Matlab and ImageJ.

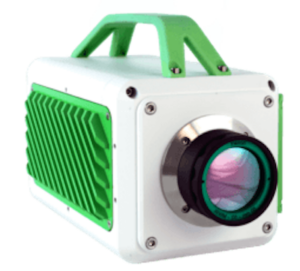

NoxCam M-HSI
MWIR radiometric infrared camera

• MWIR band 3 to 5μm, Broadband 1.5 to 5.5μm
• Image size 640×512 15μm pitch or 1280×720 10µm pitch
• Frame rate up to 355Hz (Kilohertz in sub-window mode)

NoxCam L-HSI
LWIR radiometric infrared camera

• LWIR band 7.7 to 9.3μm, VLWIR band 7.7 to 11.5μm
• Image size 640×512 15μm pitch or 320×256 30µm pitch
• Frame rate up to 230Hz (Kilohertz in sub-window mode)

NoxCam S-HSI
SWIR radiometric infrared camera

• SWIR band 0.9 to 1.7μm
• Image size 640×512 15μm pitch
• Frame rate up to 170Hz (Kilohertz in sub-window mode)

NoxCam-Pola
Polarimetric infrared camera providing real-time composite imagery

• LWIR band 7 to 10μm
• Image size 640×512 15μm pitch or 320×256 30µm pitch
• Frame rate up to 60Hz

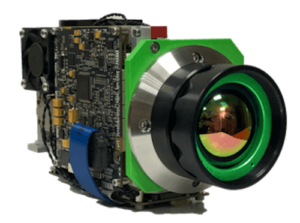

GasCore

Optical gas imaging camera cores for system integrators

Our GasCore OGI camera cores are compact, lightweight and provide unparalleled gas detection performance. The radiometrically calibrated units can be easily integrated into drone and robotics platforms, and can be controlled via serial RS-232 or Ethernet.

The MWIR and LWIR camera cores deliver 720p HDMI colour output, with options for SDI and analog, and are available with a wide range of gas detection options.
