Ares Battery

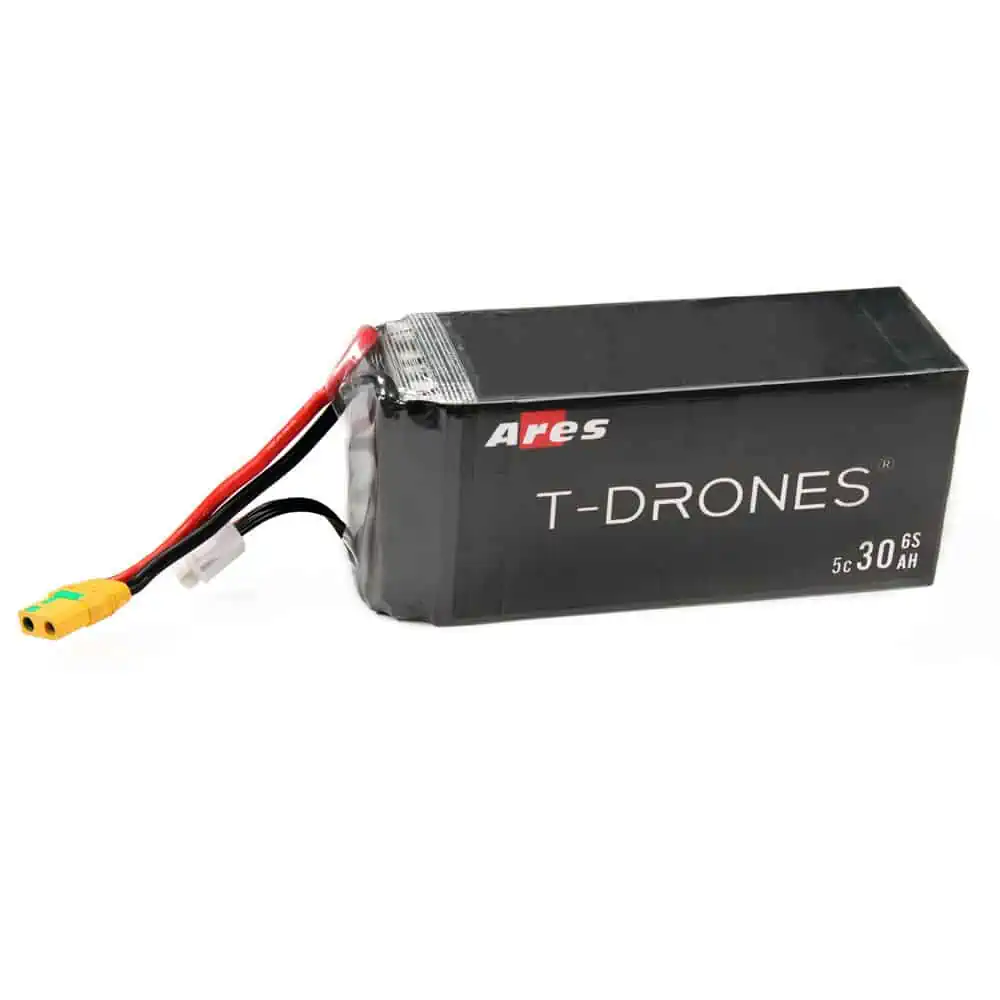

T-Drones Ares, a new solid-state Li-ion battery, offers improved reliability and performance, the battery is available in four variants, 16Ah, 22Ah, 27Ah, and 30Ah.

Characteristics of Ares include a higher energy density, longer service life, and a higher safety factor.

More convenient, the batteries are smaller in size and weight compared to traditional products.

6S16000mAh 6S22000mAh 6S27000mAh 6S30000mAh
Nominal Voltage (V) 22.2 22.2 22.2 22.2
Operating Voltage Voltage (V) 25.2 ~ 16.8 25.2 ~ 16.8 25.2 ~ 16.8 25.2 ~ 16.8
Capacity (mAh) 16000 22000 27000 30000
Size (mm, max) 195 x 77 x 52 195 x 77 x 67 213 x 91 x 65 210 x 90 x 68
Weight (g, max) 1550 1980 2380 2570
Energy Density (Wh/kg) 229 247 252 259.1
Charging Current (A, max) 32 44 54 60
Continuous Discharge (A, max) 80 110 135 150
Charging Temperature (C) 0 ~ 45 0 ~ 45 0 ~ 45 0 ~45
