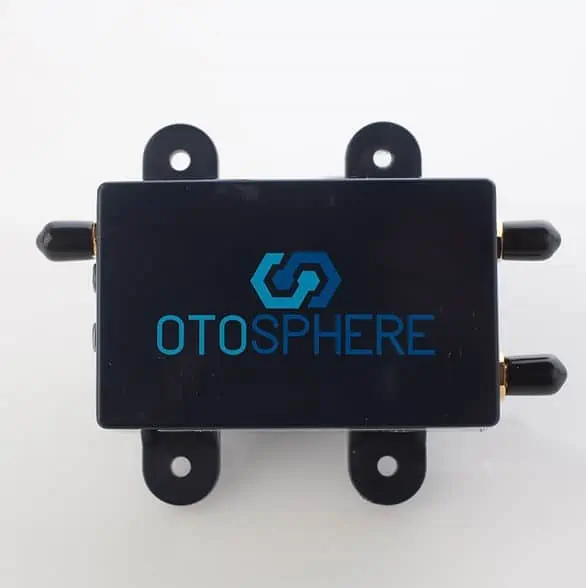

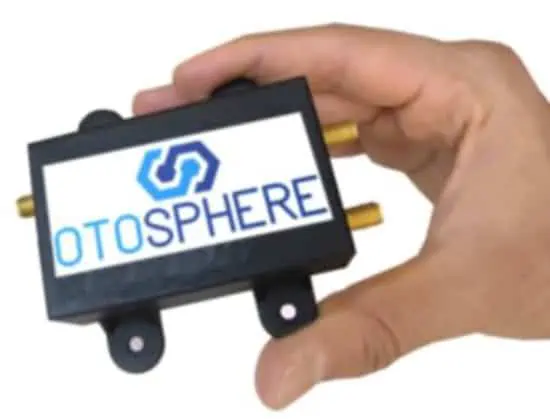

OtoSphere – Anti-Jamming Device
OtoSphere is an ITAR-free anti-jamming solution for commercial autonomous vehicles. Available in an enclosed module or OEM board form factor, the compact and lightweight device protects critical PNT signals and ensures normal operation under attack.
The easily-installed OtoSphere is compatible with all off-the-shelf GNSS receivers and antennas, and can be provided with both according to customer requirements.
An optional CommModule can be added that allows attack data to be sent to our SaaS data warehouse, enabling real-time notifications and statistical reports and making it easier to provide authorities with actionable intelligence for threat response and attacker location.
Specifications:
| Dimensions (excluding mounting lugs) | 74 x 47 x 25 mm (enclosed) | 40 x 40 mm (OEM) |
| Weight | 150g (enclosed) | 50g (OEM) |
| Power Input | 3.5 – 32 VDC |
| Protected Signal | 1575.42 MHz (GPS L1 C/A Code) |
| Additional Passthrough Signals | GPS L5 & GLONASS G1 |
| Latency | 100ns ±15ns (fixed) |
