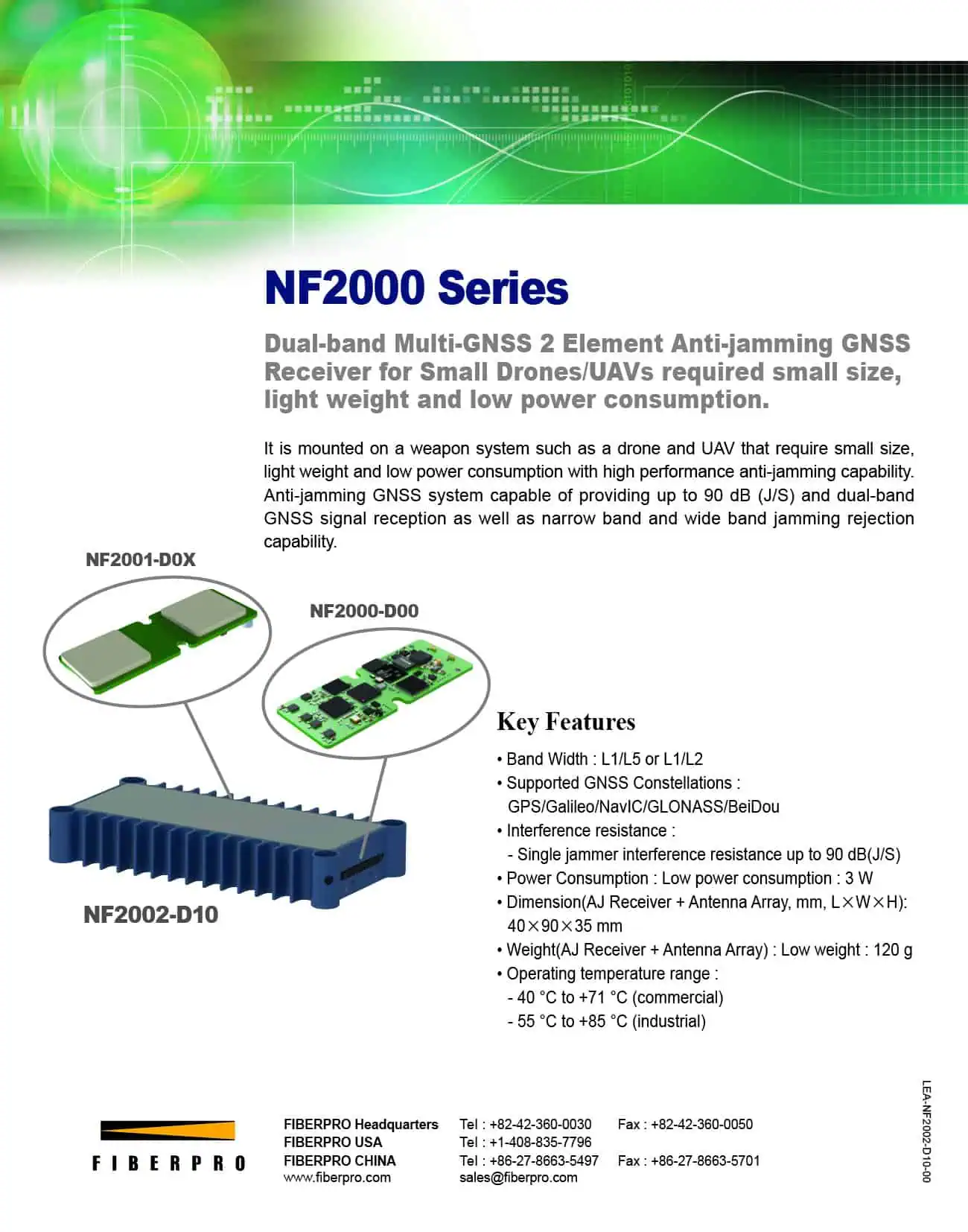

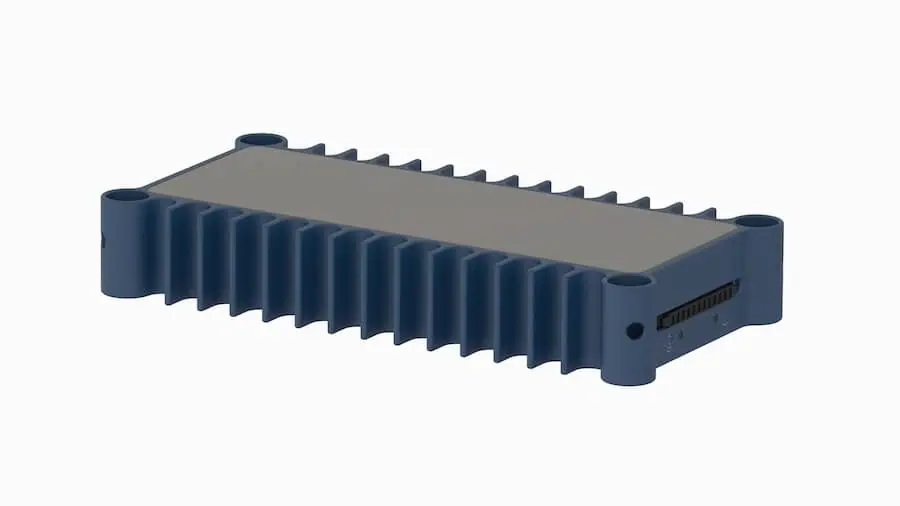

NF2002-D10 Anti-Jamming System
Fiberpro's NF2002-D10 is a low-SWaP anti-jamming system that is ideal for small drones and robotic vehicles, featuring a dual-band multi-constellation GNSS receiver and a two-element antenna array. Offering robust PNT protection, it can provide up to 90 dB of interference resistance.
Specifications:
| Dimensions (L x W x H): | 40 x 90 x 35 mm (receiver + antenna array) |
| Weight: | 120g (receiver + antenna array) |
| Power Consumption: | 3W |
| Constellations: | GPS, Galileo, GLONASS, BeiDou, NavIC |
| Frequencies: | L1/L5 or L1/L2 |
| Interference Resistance: | Single jammer up to 90 dB (J/S) |
