2 Element Anti-Jamming GNSS (NF-2002-D10) Low-SWaP dual-band anti-jamming GNSS receiver & antenna
FIBERPRO / 2 Element Anti-Jamming GNSS (NF-2002-D10)
2 Element Anti-Jamming GNSS (NF-2002-D10)

Low-SWaP dual-band anti-jamming GNSS receiver & antenna

Purpose-built for small drones, this ultra-compact module adds robust GNSS jamming protection without adding size or weight. Visit Website Contact
Saved
Save
Featured in:
2 Element Anti-Jamming GNSS (NF-2002-D10)

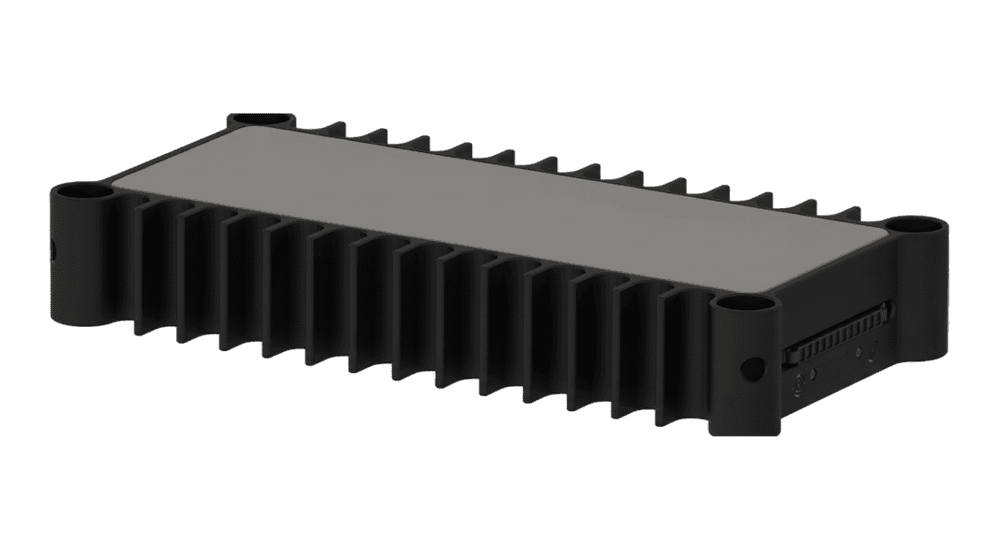

Fiberpro's NF2002-D10 is a low-SWaP anti-jamming system that is ideal for small drones and robotic vehicles, featuring a dual-band multi-constellation GNSS receiver and a two-element antenna array. Offering robust PNT protection, it can provide up to 90 dB of interference resistance.

Specifications:

Dimensions (L x W x H): 40 x 90 x 35 mm (receiver + antenna array)
Weight: 120g (receiver + antenna array)
Power Consumption: 3W
Constellations: GPS, Galileo, GLONASS, BeiDou, NavIC
Frequencies: L1/L5 or L1/L2
Interference Resistance: Single jammer up to 90 dB (J/S)
