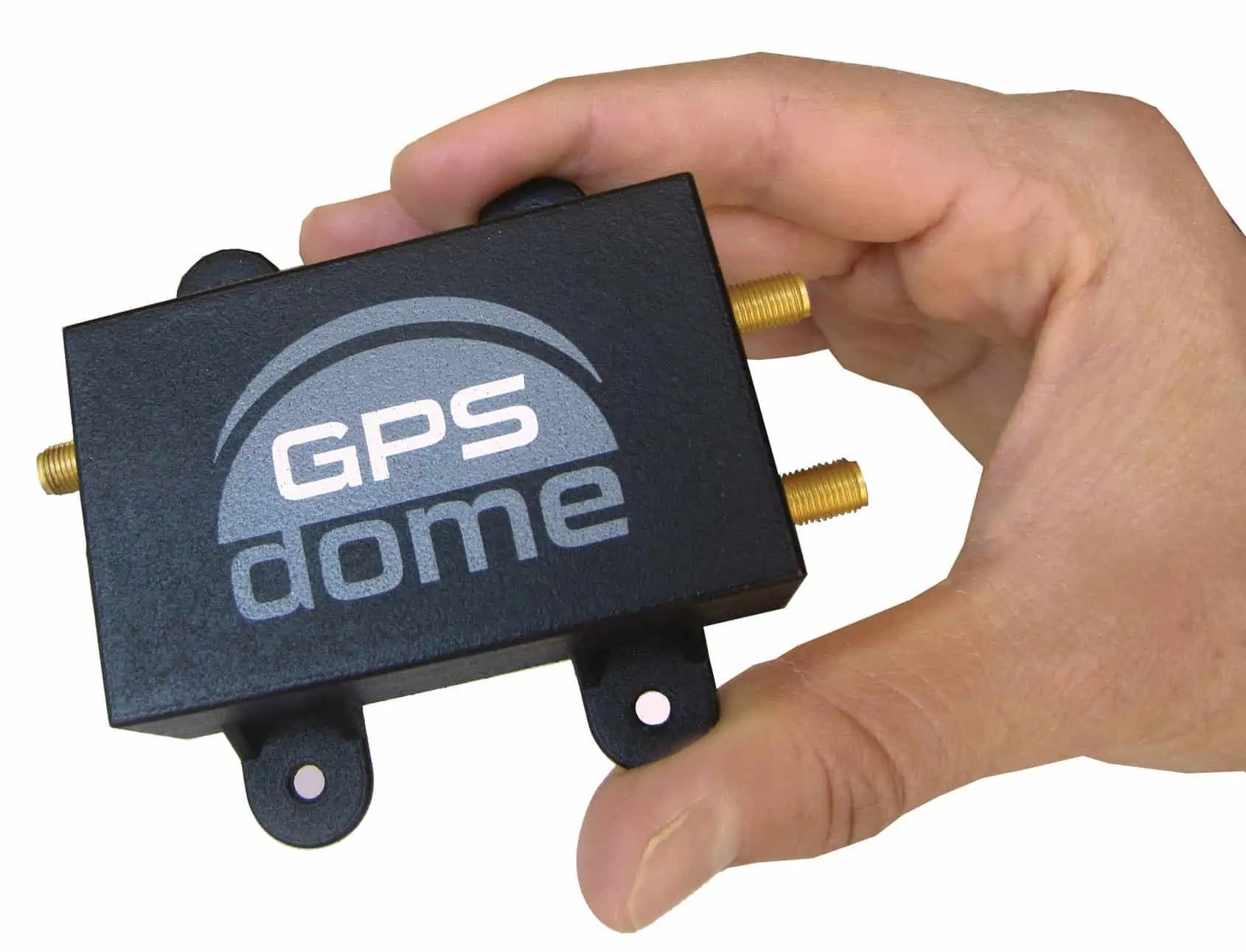

GPSdome – Anti-Jamming Device

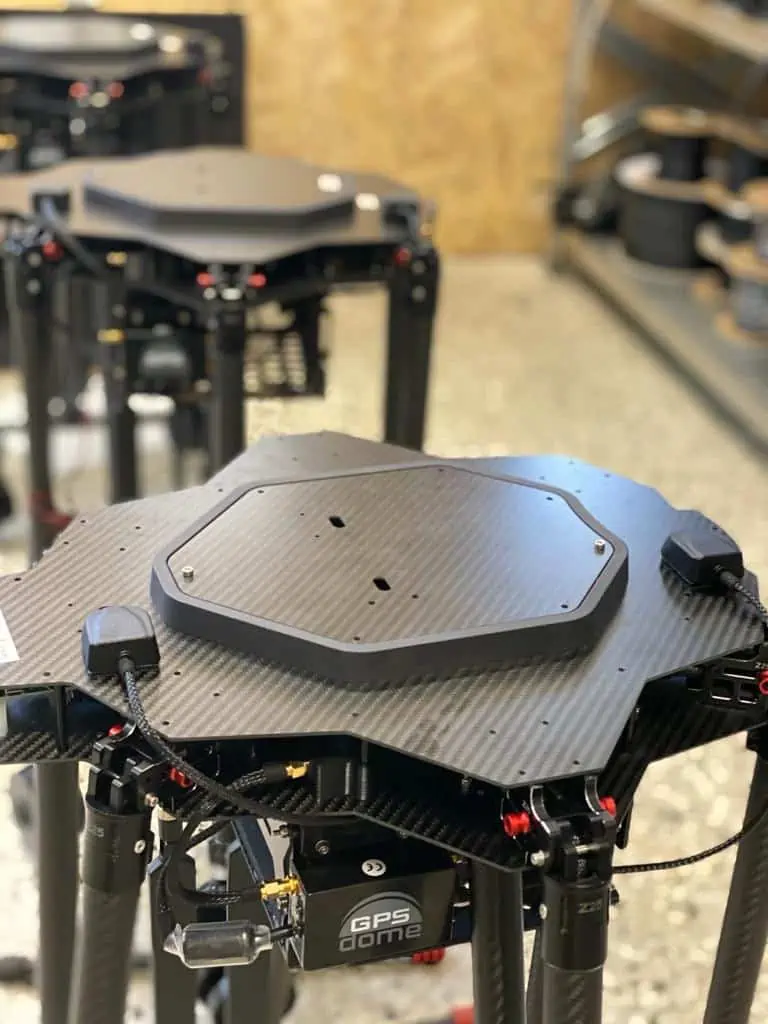

GPSdome 1 is an ITAR-free GNSS anti-jamming module designed to provide protection to a wide range of UAV platforms. With a small form factor and a weight of just 150 grams, it is ideal for SWAP (size, weight and power)-constrained drones.

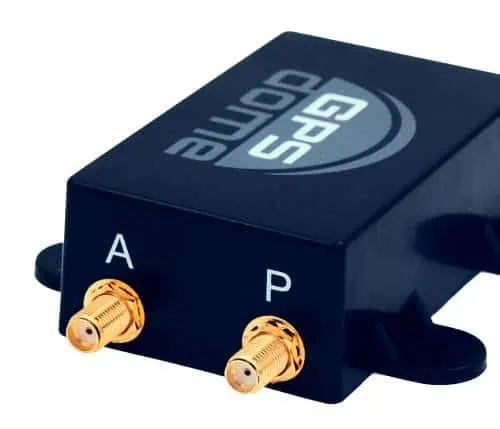

Requiring just a power connection and antenna and receiver inputs, GPSdome 1 is easily retrofitted into existing systems. The unit is compatible with all off-the-shelf GNSS receivers and antennas.
An optional CommModule can be added that allows drone attack data to be sent to our SaaS data warehouse, enabling real-time notifications and statistical reports and making it easier to provide authorities with actionable intelligence for threat response and attacker location.
Specifications:
| Dimensions (excluding mounting lugs) | 74 x 47 x 25 mm |
| Weight | 150g |
| Power Input | 3.5 – 32 VDC |
| Protected Signal | 1575.42 MHz (GPS L1 C/A Code) |
| Additional Passthrough Signals | GPS L2 & GLONASS G1 |
| Latency | 100ns ±15ns (fixed) |
