RTK correction services provide real-time GNSS corrections to user equipment in the field, enabling centimeter-level accuracy. These services eliminate the need for localized base stations by delivering corrections through centralized RTK networks using internet-based delivery protocols such as NTRIP.
Unlike setting up a personal RTK base station, which requires significant infrastructure and maintenance, RTK correction services offer an out-of-the-box solution for positioning accuracy. These services typically consist of a network of ground-based reference stations connected to a central NTRIP caster, which streams correction data to GNSS receivers in autonomous systems. Some service providers enhance this further with hybrid models, combining RTK with PPP technologies to increase reliability in remote or poorly connected areas.
Table of contents:
RTK Correction Services & Unmanned Systems

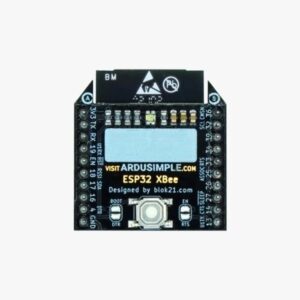

WiFi NTRIP Master for RTK Corrections by ArduSimple
Accurate real-time positioning is fundamental for unmanned systems operating without direct human control. Whether it’s a UAV flying inspection routes, a UGV navigating agricultural fields, or an autonomous surface vessel maintaining a predefined path, GNSS accuracy determines system efficiency and safety.
RTK correction services empower unmanned platforms with the precision needed for:
Operators gain rapid deployment capability, consistent accuracy across broad areas, and scalable access for multiple vehicles by subscribing to a correction service rather than setting up local infrastructure.
Core Technologies in RTK Correction Services
RTK correction services rely on several technologies to achieve high-accuracy GNSS correction:
RTK Networks
These are composed of multiple RTK base stations that work together to provide dense correction coverage, increasing accuracy and robustness.
NTRIP Service and NTRIP Casters
NTRIP is the standard internet protocol to transmit RTCM-formatted correction data from base stations to GNSS receivers. A central NTRIP caster acts as a distribution point for multiple users.
GNSS Receivers
Autonomous systems must be equipped with GNSS receivers capable of decoding RTK or PPP corrections in real time. High-end receivers support multiple GNSS constellations and correction formats for enhanced reliability.
GNSS Antennas
High-quality GNSS antennas ensure the reception of clean, multipath-resistant signals necessary for accurate RTK corrections. Antennas designed for multi-frequency, multi-constellation operation improve performance in challenging environments such as urban areas, forests, or near reflective surfaces. Some antennas include features like ground planes and built-in filters to reduce noise and enhance GNSS accuracy.
PPP and PPP-RTK
Where RTK coverage is limited, some services integrate PPP (Precise Point Positioning) or PPP-RTK. This hybrid approach uses precise satellite orbits and clocks combined with ground-based data for improved coverage and accuracy.
RTK Comparison with Other GNSS Correction Methods
Ethernet NTRIP Master for RTK Corrections by ArduSimple
RTK correction services offer a balance of accuracy, speed, and scalability that distinguishes them from other GNSS correction methods:
RTK vs DGPS
Differential GPS (DGPS) provides meter-level accuracy and is less suitable for autonomous systems that require precision. RTK significantly surpasses DGPS in both accuracy and responsiveness.
RTK vs PPP
PPP offers decimeter-level accuracy globally without base stations but has longer convergence times. RTK provides faster convergence and superior accuracy within the bounds of a correction network.
RTK vs SBAS
Satellite-Based Augmentation Systems (e.g., WAAS, EGNOS) are ideal for aviation and general navigation but lack the fine accuracy demanded by autonomous platforms. RTK correction services fill that gap with real-time, high-fidelity data.
RTK Services vs Self-Hosted RTK Base Stations
Deploying an on-site RTK base station requires technical expertise and infrastructure investment. RTK correction services remove these barriers, offering scalable, managed access to high-quality GNSS corrections.
Benefits of RTK services over self-hosted RTK:
- Ease of deployment: No hardware installation or maintenance is required—corrections are delivered via standard internet connections.
- Wider coverage: RTK networks provide regional and sometimes national coverage, ideal for systems operating in multiple locations.
- Lower total cost: Service subscriptions eliminate the upfront and ongoing costs of setting up and operating an RTK base station.
- Redundancy and uptime: Established RTK service providers often include system redundancy, uptime guarantees, and support, key for mission-critical unmanned applications.
RTK Use Cases Across Unmanned Platforms
RTK correction services are widely used in a range of unmanned and autonomous systems:
- UAVs: Drones used for mapping, surveying, precision agriculture, and infrastructure inspection rely on RTK GPS correction services to fly accurate flight paths and collect spatially precise data.
- UGVs: Unmanned ground vehicles benefit from RTK GNSS accuracy for crop monitoring, construction site navigation, and automated transport in logistics hubs.
- USVs and AUVs: Autonomous surface vessels require RTK corrections during deployment and recovery to ensure accurate navigation. Surface-based operations in hydrographic surveying also benefit from real-time corrections.
- Autonomous robotics: Indoor/outdoor robots in warehousing, manufacturing, and security operations require GNSS corrections to maintain positional accuracy in dynamic environments.
RTK Correction Service Plans & Scalability
RTK correction service providers offer various subscription models to suit different operational needs. Plans often vary by:
- Geographic coverage (local, national, global)
- Correction formats supported (RTCM 3.x, CMR, etc.)
- Integration with PPP or hybrid PPP-RTK options
- Data access methods (NTRIP, radio, LTE)
- Number of devices or vehicles supported per plan
These flexible models allow developers and operators of autonomous systems to scale access as projects expand, whether for prototyping, small fleet testing, or large-scale commercial deployments.
Future Trends in RTK GNSS Correction Services
As demand for autonomy increases across industries, RTK correction services are evolving to provide even broader access and lower latency. Innovations include:
- Global RTK: Expanding RTK networks to cover entire continents or global regions
- Edge-integrated corrections: Using edge computing to distribute and apply corrections locally
- Improved PPP-RTK models: Reducing convergence times while maintaining accuracy
- Integration with 5G: Leveraging low-latency networks to deliver real-time GNSS corrections more reliably
With these advancements, RTK correction services will continue to be a foundational component in the expanding unmanned ecosystem.
RTK Correction Services: Delivering Precision for Autonomy
For any unmanned system where precision matters, RTK correction services are essential. By outsourcing the delivery of GNSS corrections, developers and operators can focus on system performance rather than infrastructure management. Whether it’s UAV navigation, UGV pathfinding, or autonomous marine positioning, RTK correction services ensure consistent, high-accuracy GNSS data to power the next generation of autonomy.
