Tyto Robotics is a leading developer of professional test equipment for UAVs (unmanned aerial vehicles) and drones. Our drone motor and propeller test stands, along with our state-of-the-art wind tunnel testing technology, allow unmanned aircraft manufacturers to create highly optimized and efficient drone platforms.

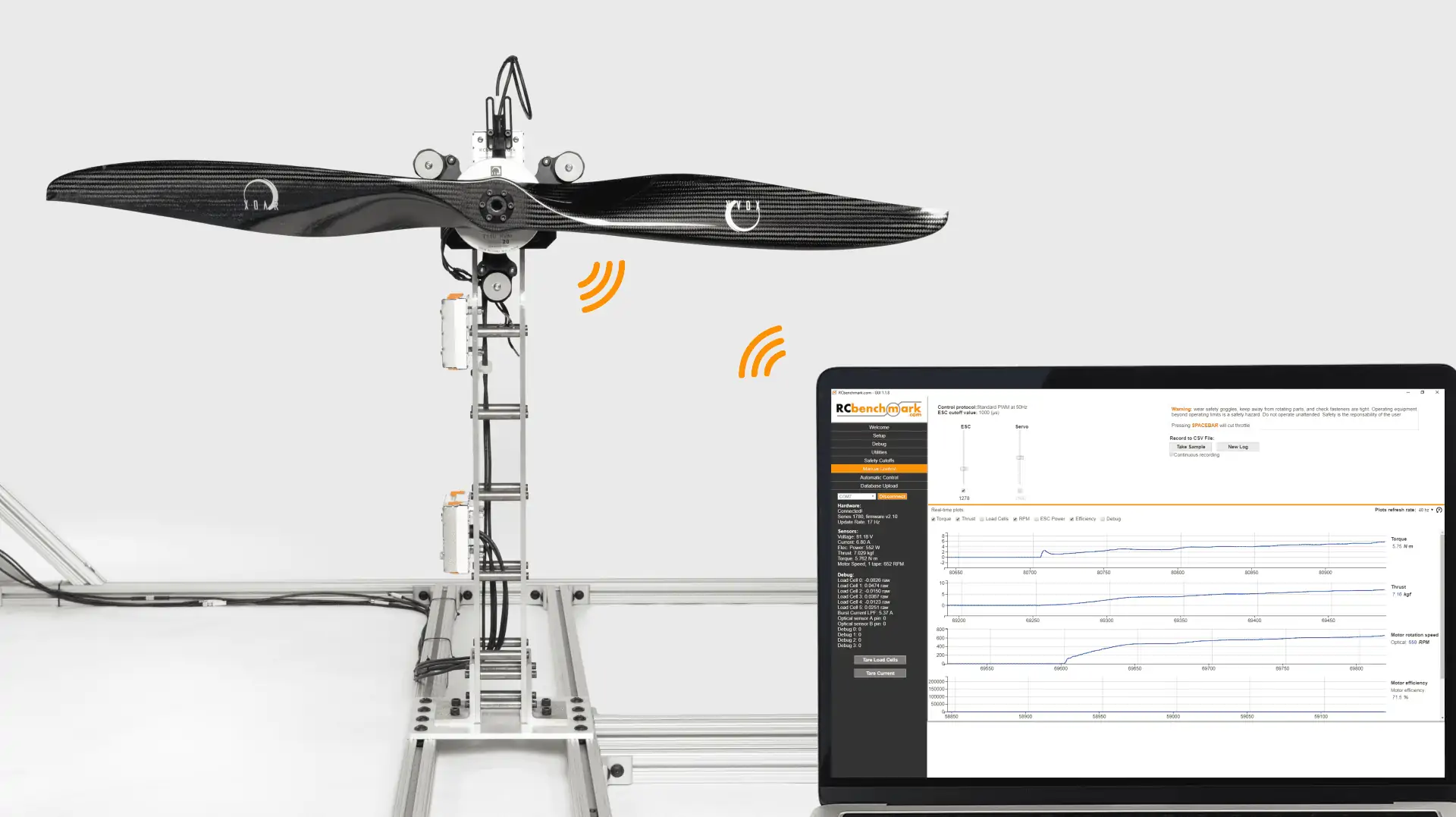

All our drone test stands are bundled with our advanced RCbenchmark data acquisition software, allowing you to easily and intuitively control the stand, log data, and automate testing.

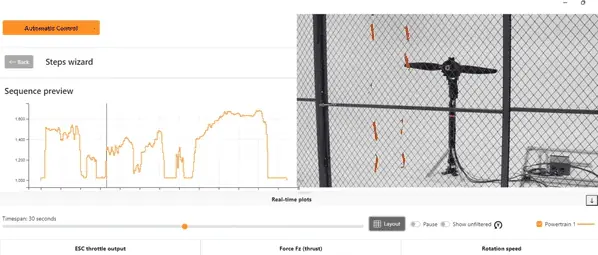

The software provides the ability to manually control ECS throttle with a slider, and to change the blade pitches of your propellers. Data can be plotted on-screen in real time, and exported to .CSV files for further processing.
Powerful scripting capabilities allow you to run any kind of automated test, including ramped endurance tests, pass/fail quality control, and RPM data capture.

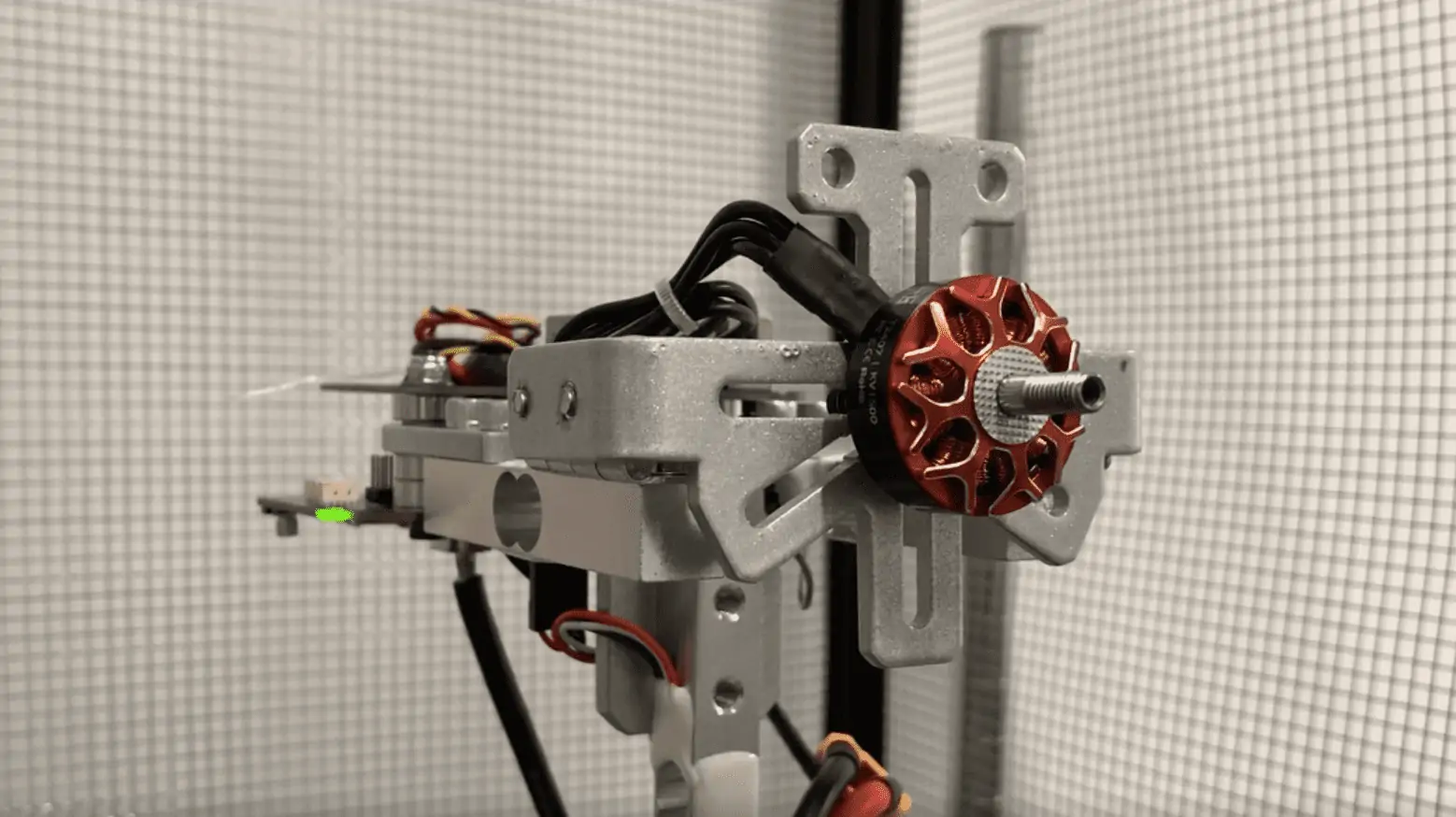

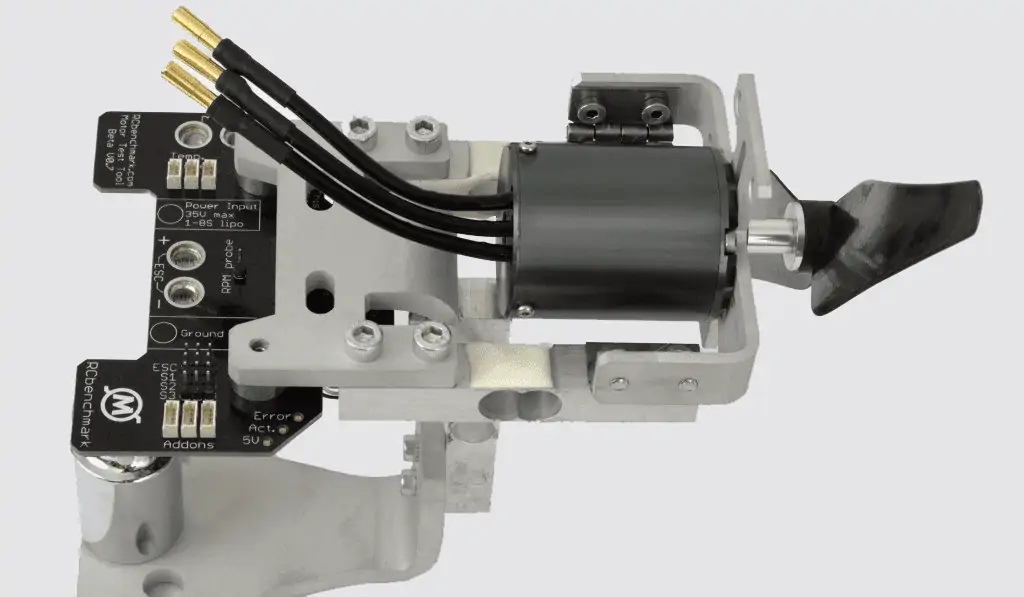

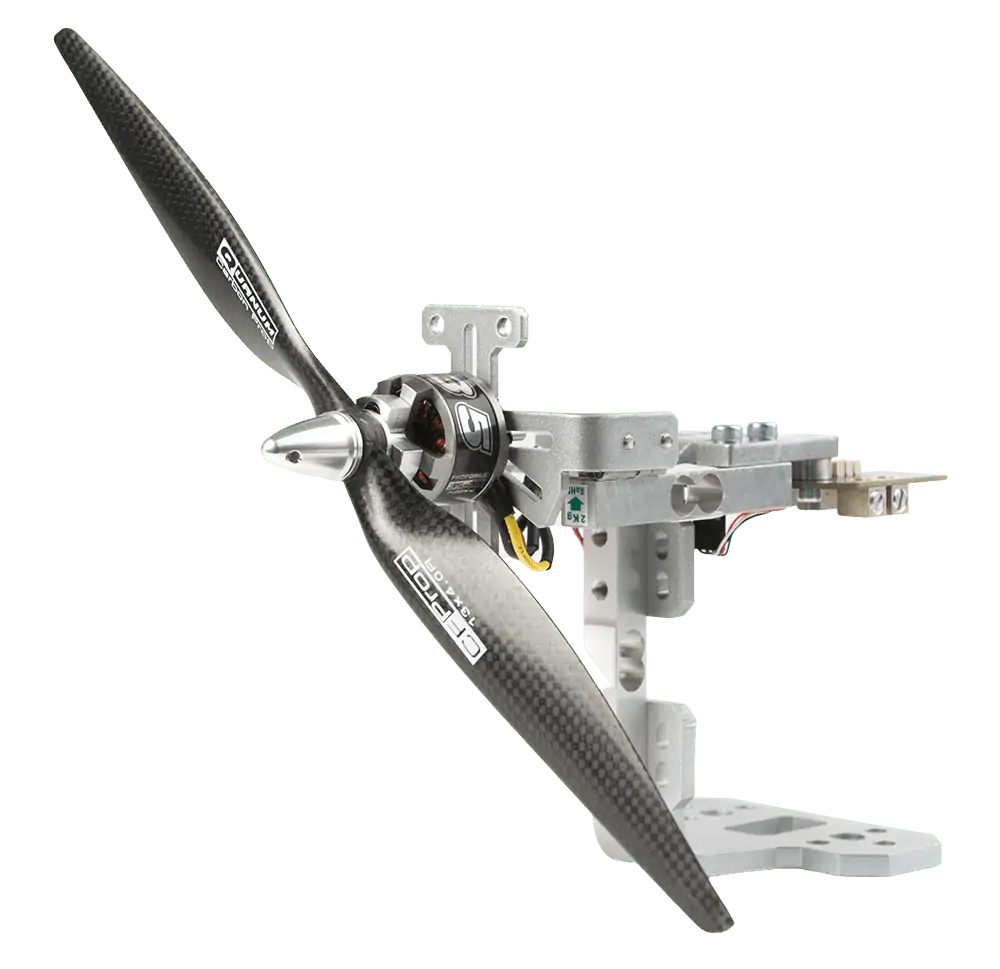

Series 1585 Drone Test Stand
Professional propulsion testing for small- and medium-sized drones

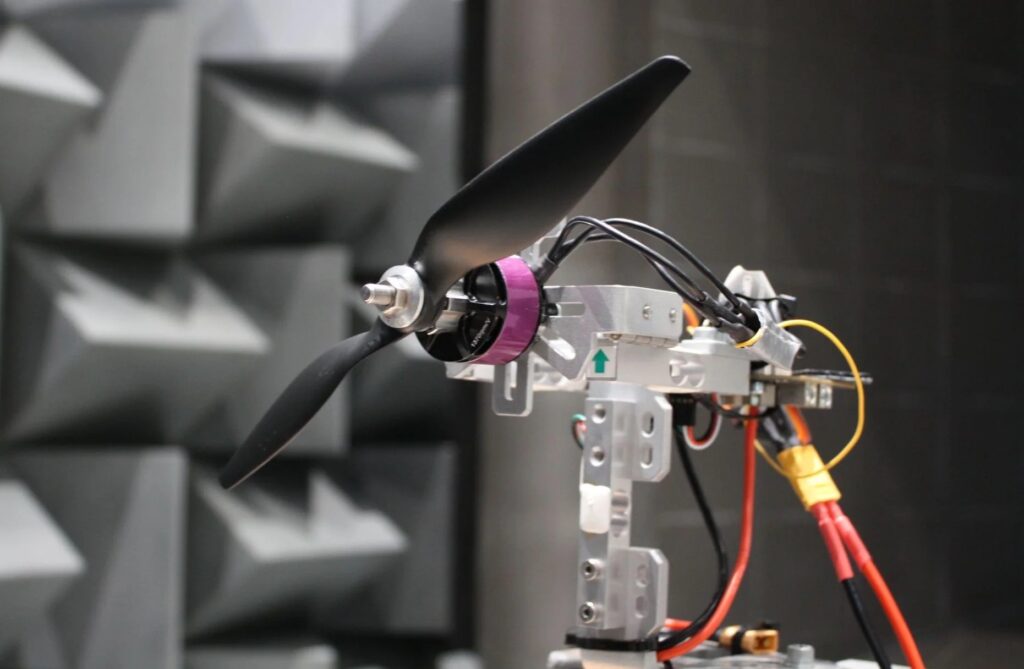

The Series 1585 is a professional test stand that allows you to measure and characterize anything you need to know about your drone’s propulsion system, including thrust, torque, voltage, current, motor rotation speed, vibration, and efficiency.
With enhanced dynamic response, greater power capacity, and increased electrical noise immunity, it allows you to optimize flight time, payload and reliability for quadcopter, multirotor and fixed-wing drone designs.

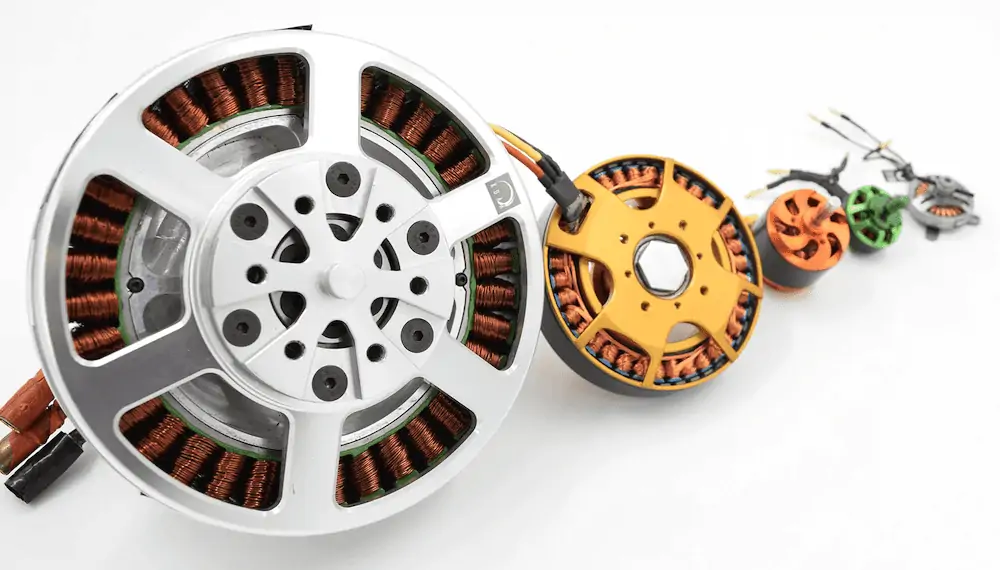

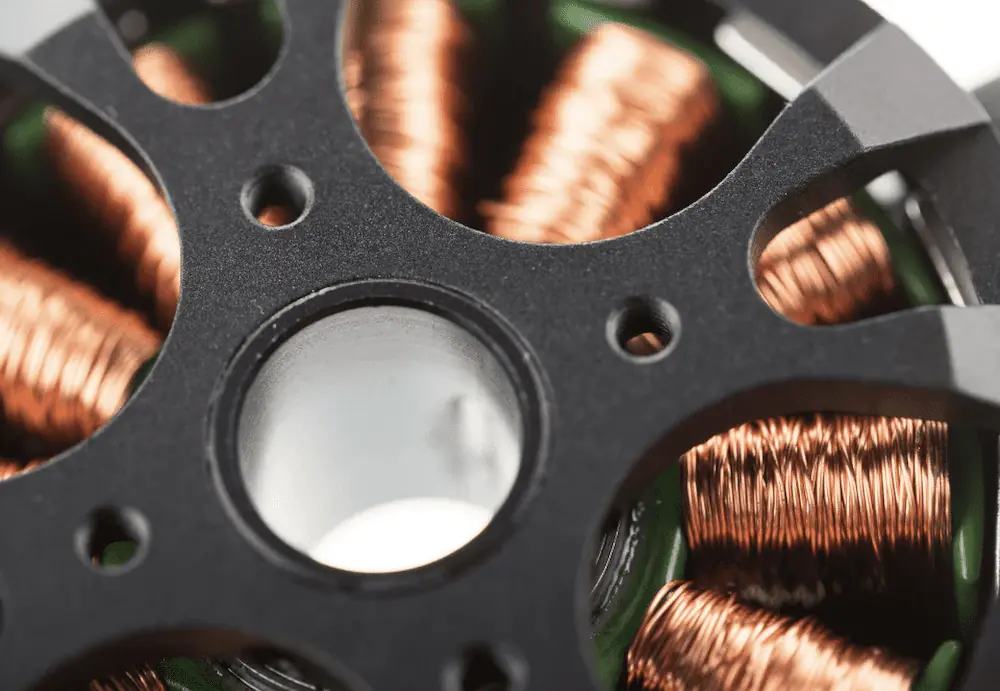

The turnkey solution provides everything you need to begin testing right out of the box. It includes a built-in precision ohmmeter for motor winding resistance measurement, and features expansion ports for additional sensors such as temperature, airspeed and optical RPM probes. The included motor mounting plate allows you to test any small- to medium-sized brushless motors.
Specifications:
Max Thrust | 5 kgf |
Max Torque | 2 Nm |
Max Voltage | 50V |
Max Continuous Current | 55A |
Max Force Measurement rate | Up to 80 Hz |
More information: Series 1585 Drone Test Stand

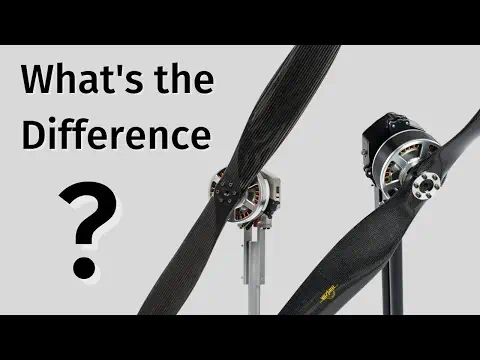

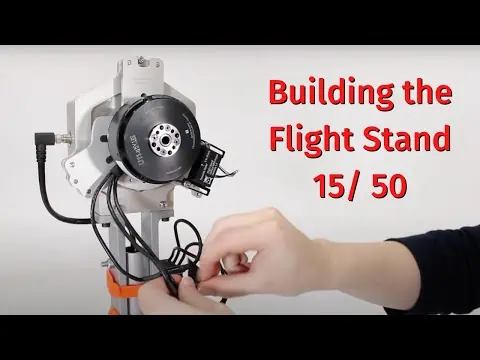

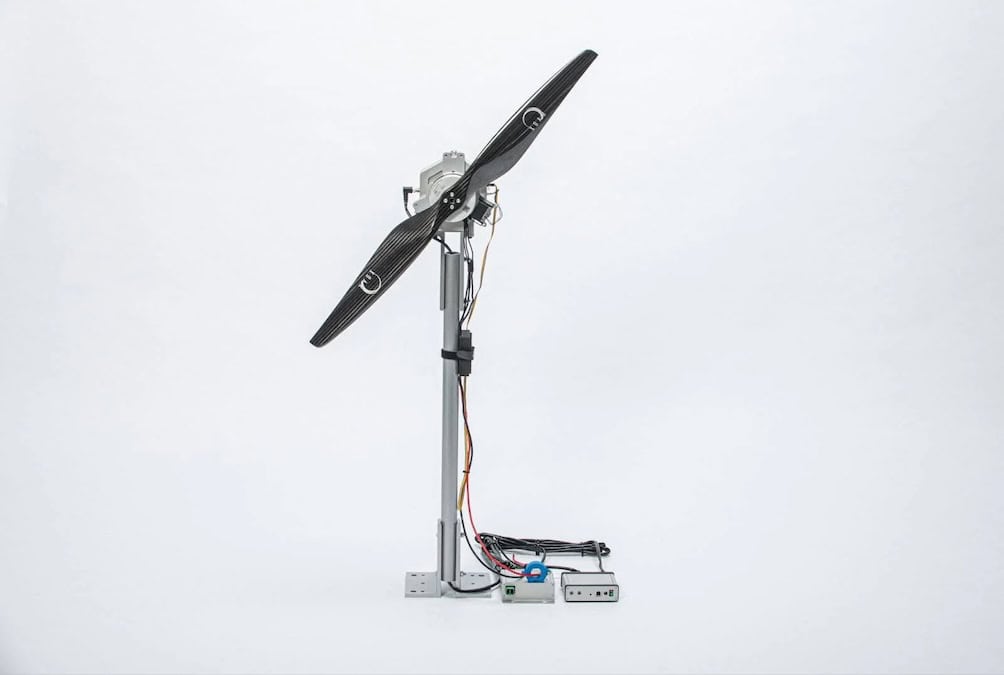

Flight Stand 15
Thrust and torque testing for small- to medium-sized UAVs

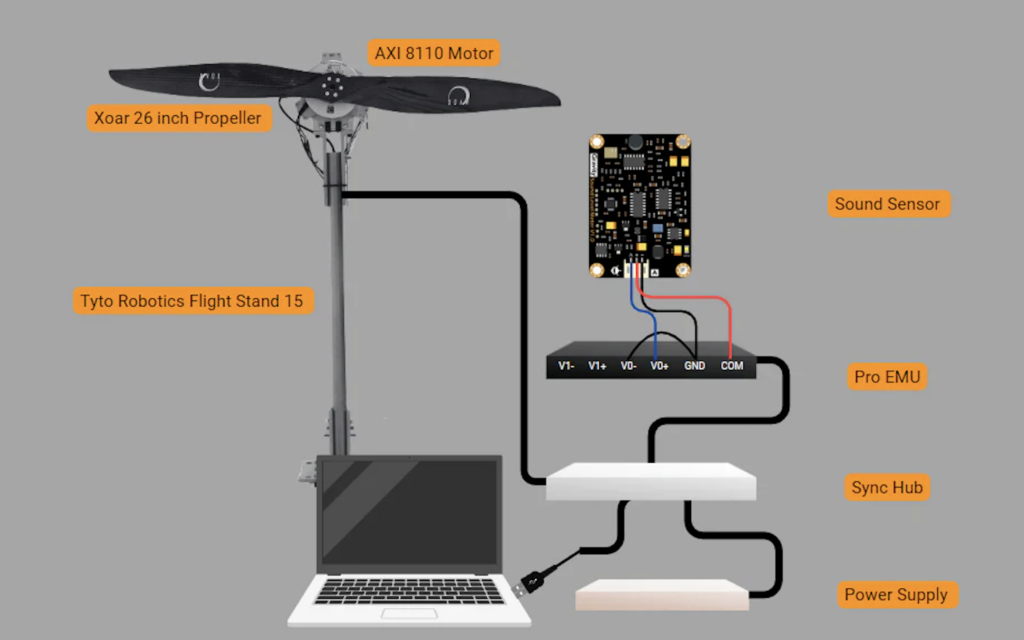

The Flight Stand 15 is a professional test stand for propulsion systems of small and medium-sized drones, allowing you to measure up to 15 kgf of thrust and 8 Nm of torque, as well as a variety of other parameters including RPM, current, voltage, temperature, propeller efficiency and motor efficiency.

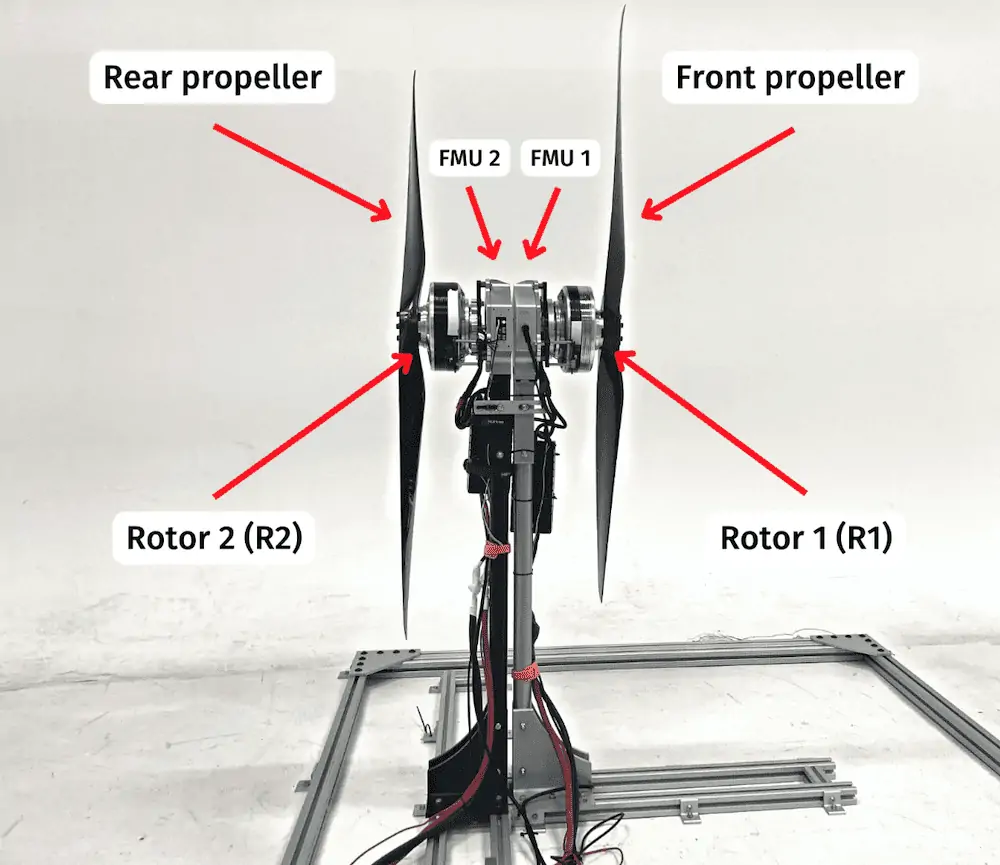

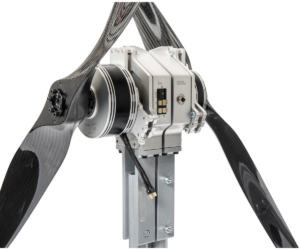

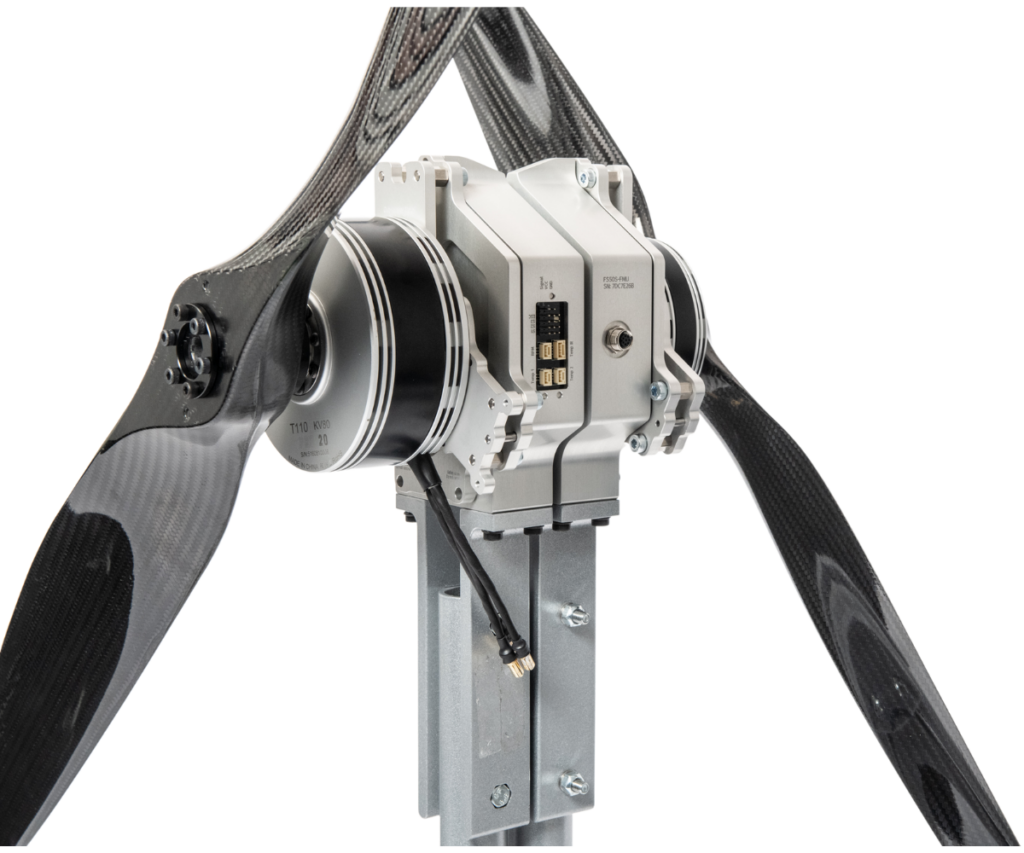

In addition to single motors, the stand allows realistic testing of dual-motor powertrains in back-to-back, face-to-face, or offset configurations. Flight controller data can be uploaded to the test software, allowing you to recreate throttle input in real time.
The Flight Stand 15 is available in Standard or Pro versions, with the Pro providing dynamic testing over a wider range of values with higher accuracy. All of our test stands are rigorously calibrated to ASTM standards in order to ensure maximum measurement precision.
Specifications:
Standard | Pro | |
Thrust | 150 N ± 1.5 N | 150 N ± 0.5% |
Torque | 8 Nm ± 0.1 Nm | 8 Nm ± 0.75% |
Rotation speed | 30,000 RPM | 30,000 RPM |
Voltage | 180 V | 180 V |
Current | 150 A | 150 A |
Prop diameter | 16 – 40″ | 12 – 40″ |
Sampling rate | 50 Hz | 1,000 Hz |
Finish colour | Silver | Black |
More information: Flight Stand 15

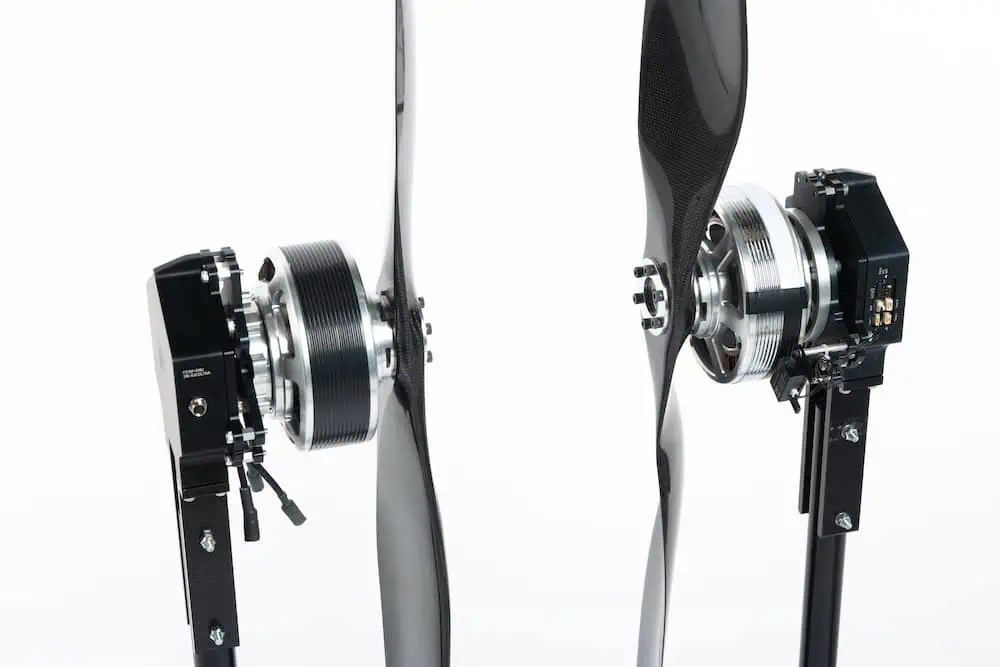

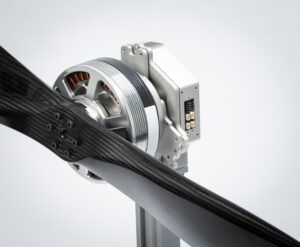

Flight Stand 50
Thrust and torque testing for medium- to large-sized UAVs
The Flight Stand 50 is a professional test stand for propulsion systems of medium- to large-sized drones, allowing you to measure up to 50 kgf of thrust and 30 Nm of torque, as well as a variety of other parameters including RPM, current, voltage, temperature, propeller efficiency and motor efficiency.
In addition to single motors, the stand allows realistic testing of dual-motor powertrains in back-to-back, face-to-face, or offset configurations. Flight controller data can be uploaded to the test software, allowing you to recreate throttle input in real time.
The Flight Stand 50 is available in Standard or Pro versions, with the Pro providing dynamic testing over a wider range of values with higher accuracy. All of our test stands are rigorously calibrated to ASTM standards in order to ensure maximum measurement precision.
Specifications:
Standard | Pro | |
Thrust | 500 N +/- 5 N | 500 N +/- 0.5% |
Torque | 30 Nm +/- 0.38 Nm | 30 Nm +/- 0.75% |
Rotation speed | 30,000 RPM | 30,000 RPM |
Voltage | 180 V | 180 V |
Current | 300 A | 300 A |
Prop diameter | 26 – 50″ | 20 – 50″ |
Sampling rate | 50 Hz | 1,000 Hz |
Finish colour | Silver | Black |
More information: Flight Stand 50

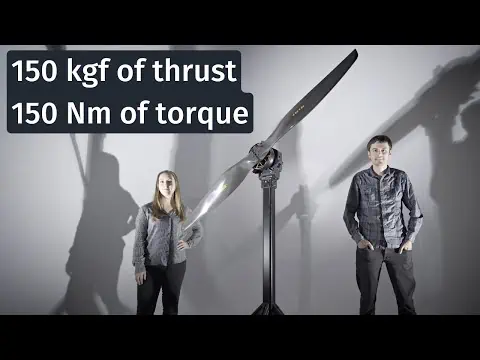

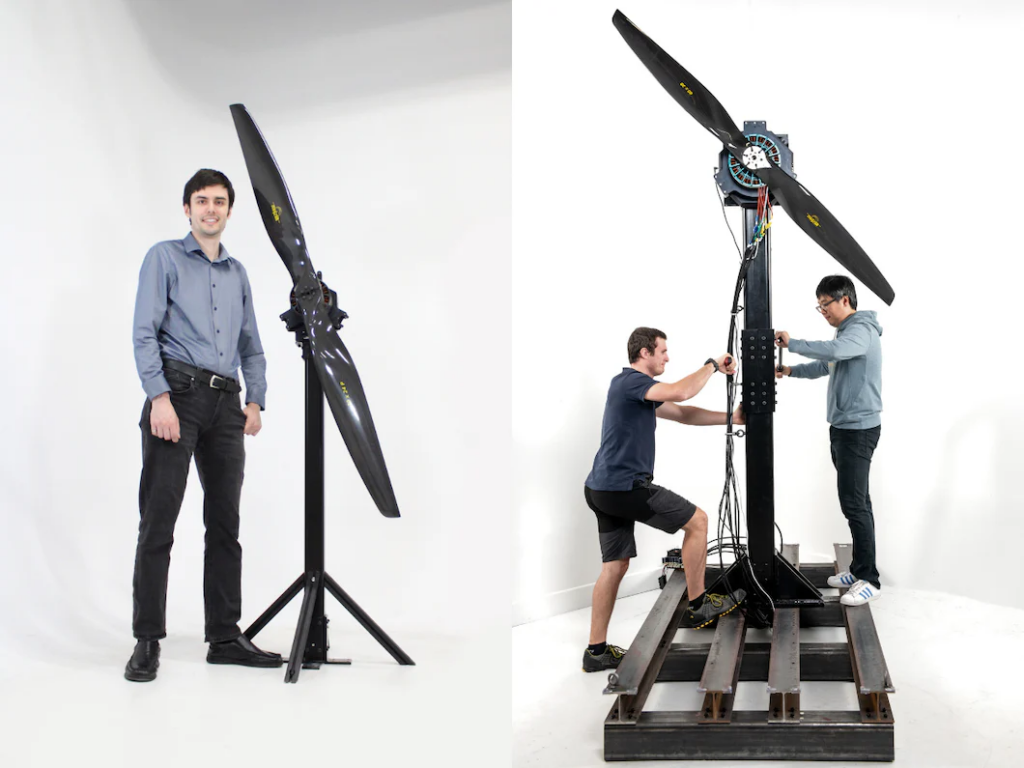

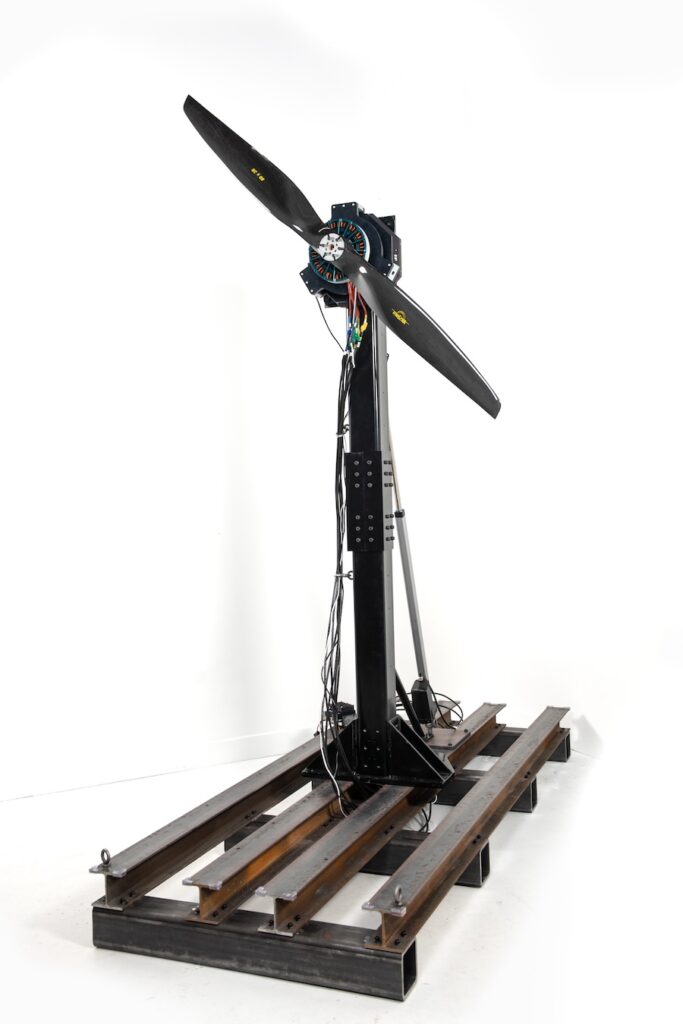

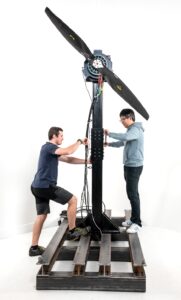

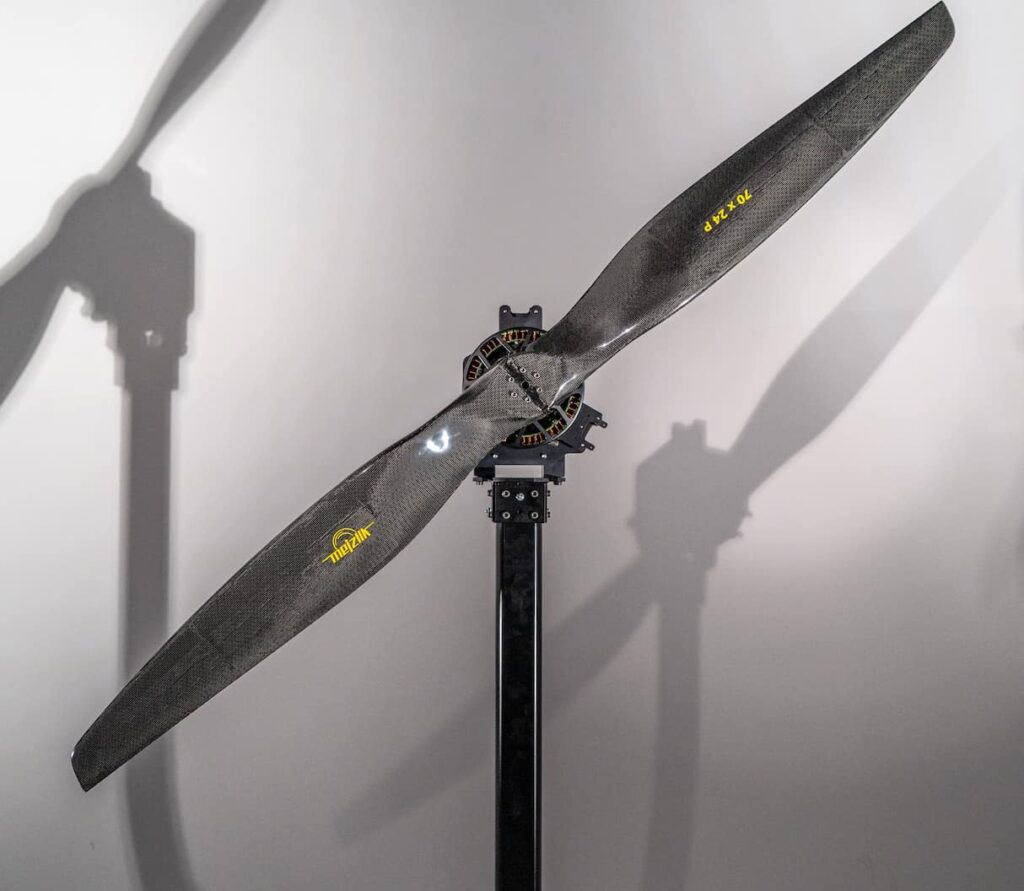

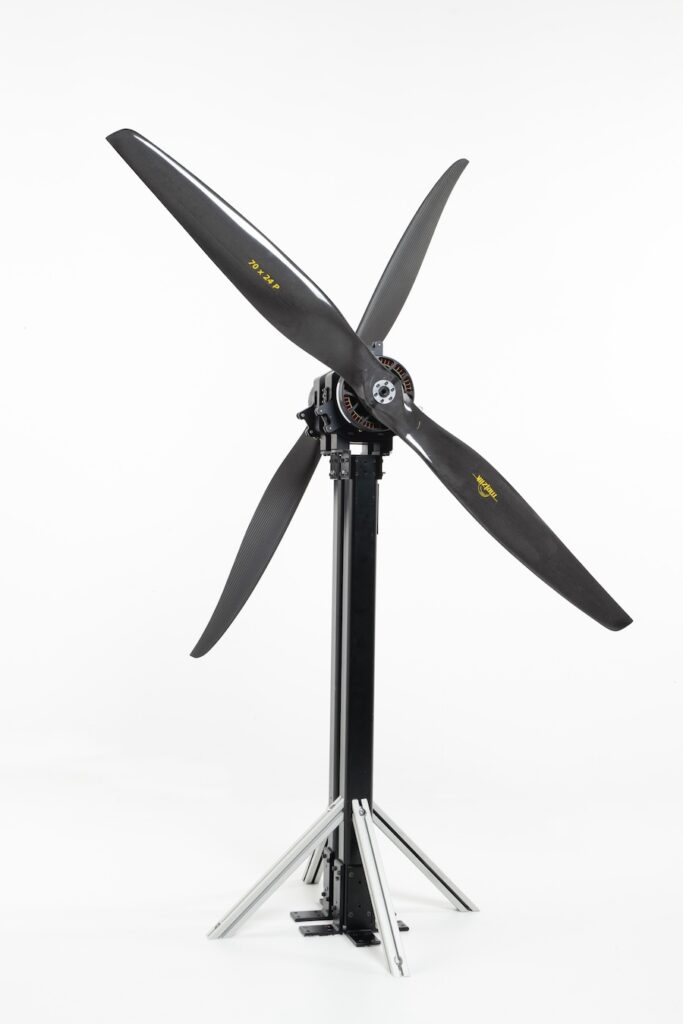

Flight Stand 150
Propeller & motor testing for large drones & eVTOL aircraft
The Flight Stand 150 is the largest COTS drone test stand currently on the market, and is designed to meet the requirements of developers of very large drones and eVTOL aircraft. Users can precisely characterize and evaluate the performance of UAV motors and propellers, measuring up to 150 kgf of thrust and 150 Nm of torque.
The professional test stand is available in Standard or Pro variants. The Standard version is ideal for static testing, while the Pro allows real-time dynamic testing with higher accuracy and a 1 kHz sampling rate. All our stands are rigorously calibrated to ASTM standards in order to ensure maximum measurement precision.
Specifications:
Thrust | 1500 N |
Torque | 150 Nm |
Voltage | 180 V |
Current | 500 A |
Angular speed | 100k RPM |
More information: Flight Stand 150

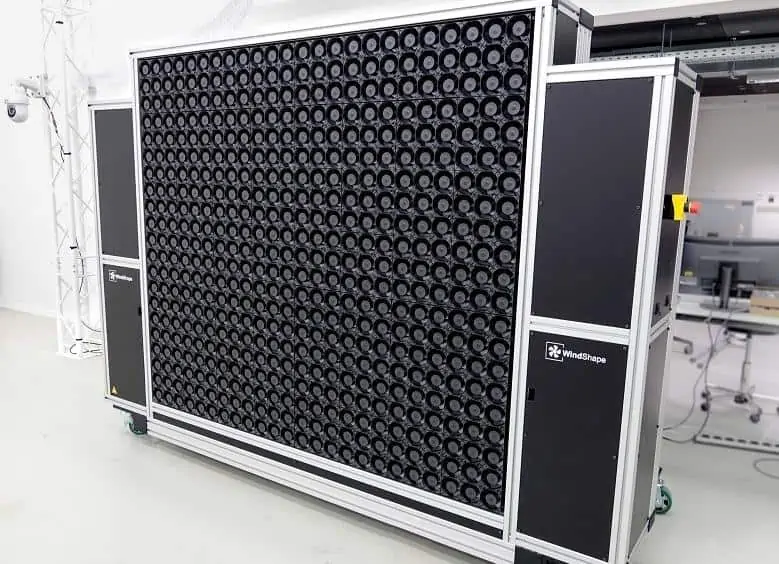

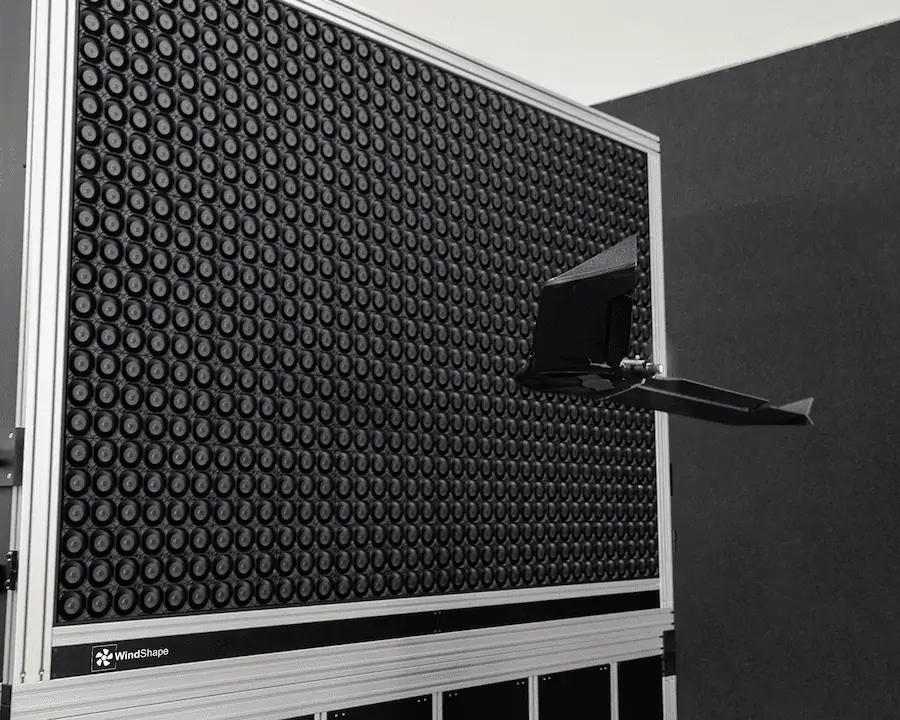

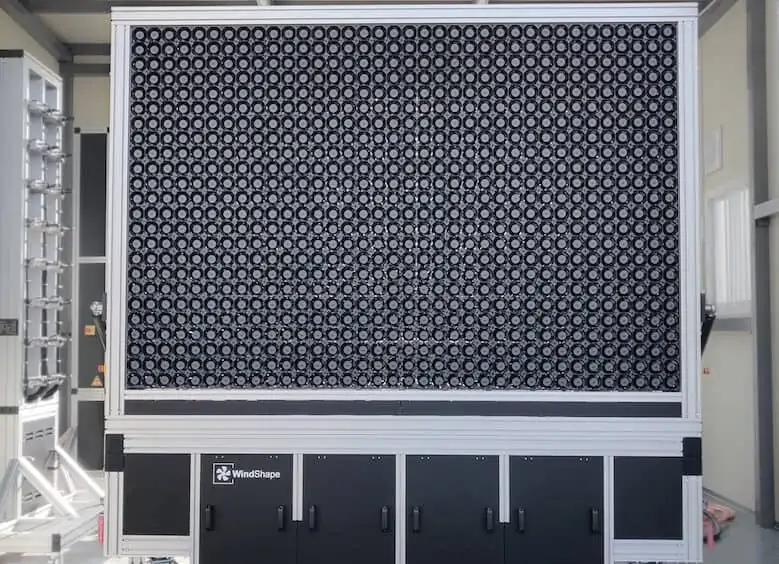

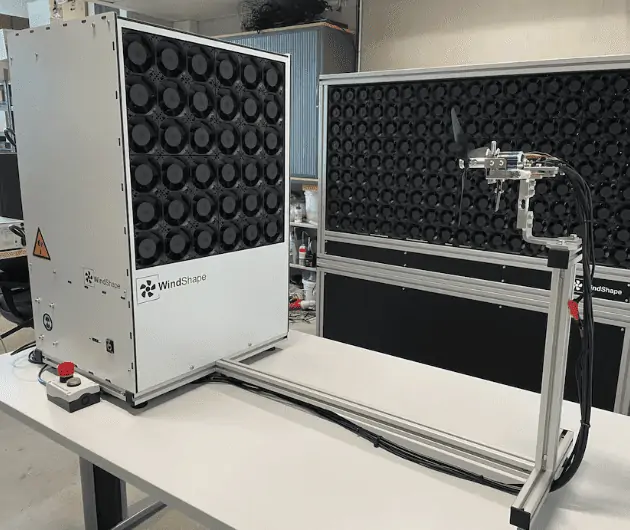

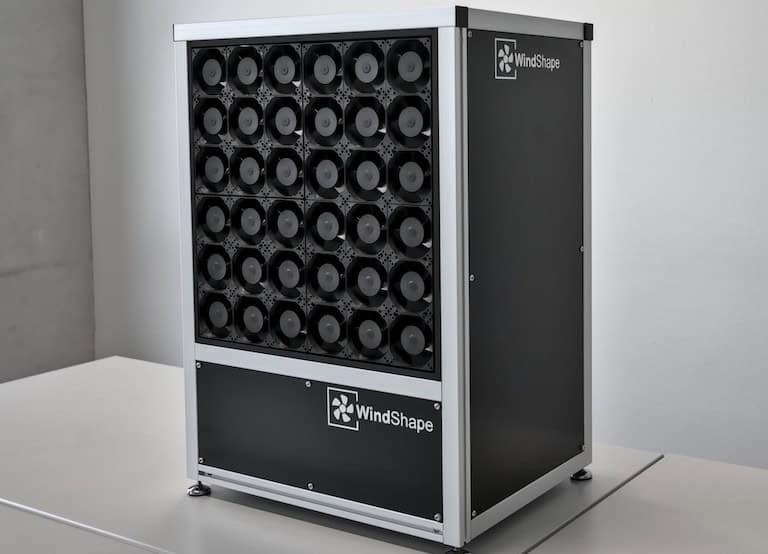

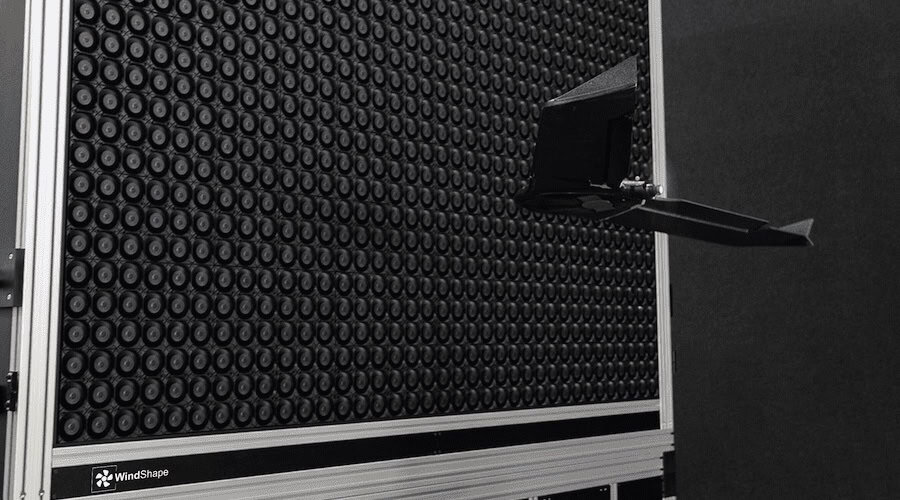

Windshapers – Wind Tunnel Testing for Drones
Wind tunnel models for aircraft and UAV characterization

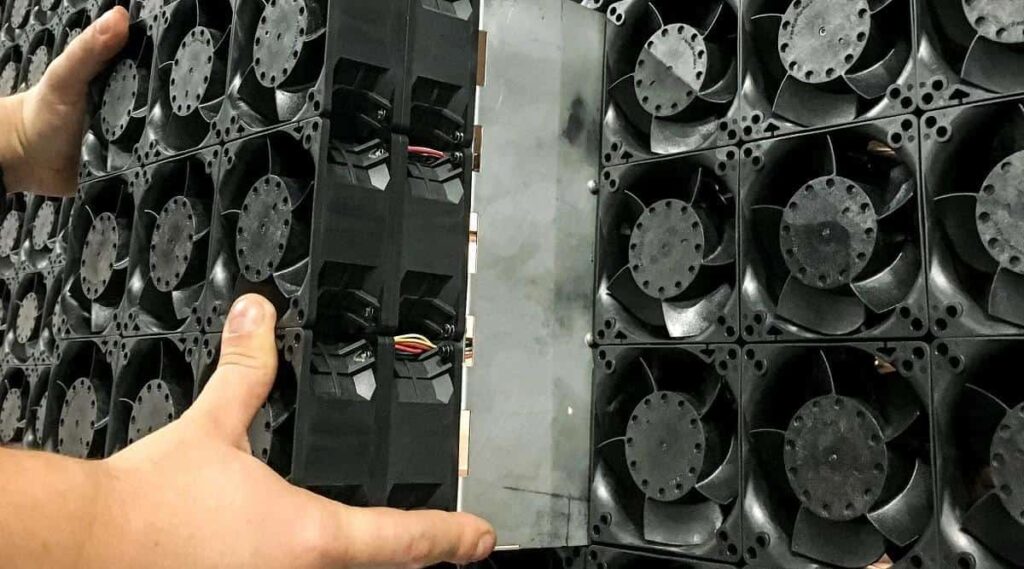

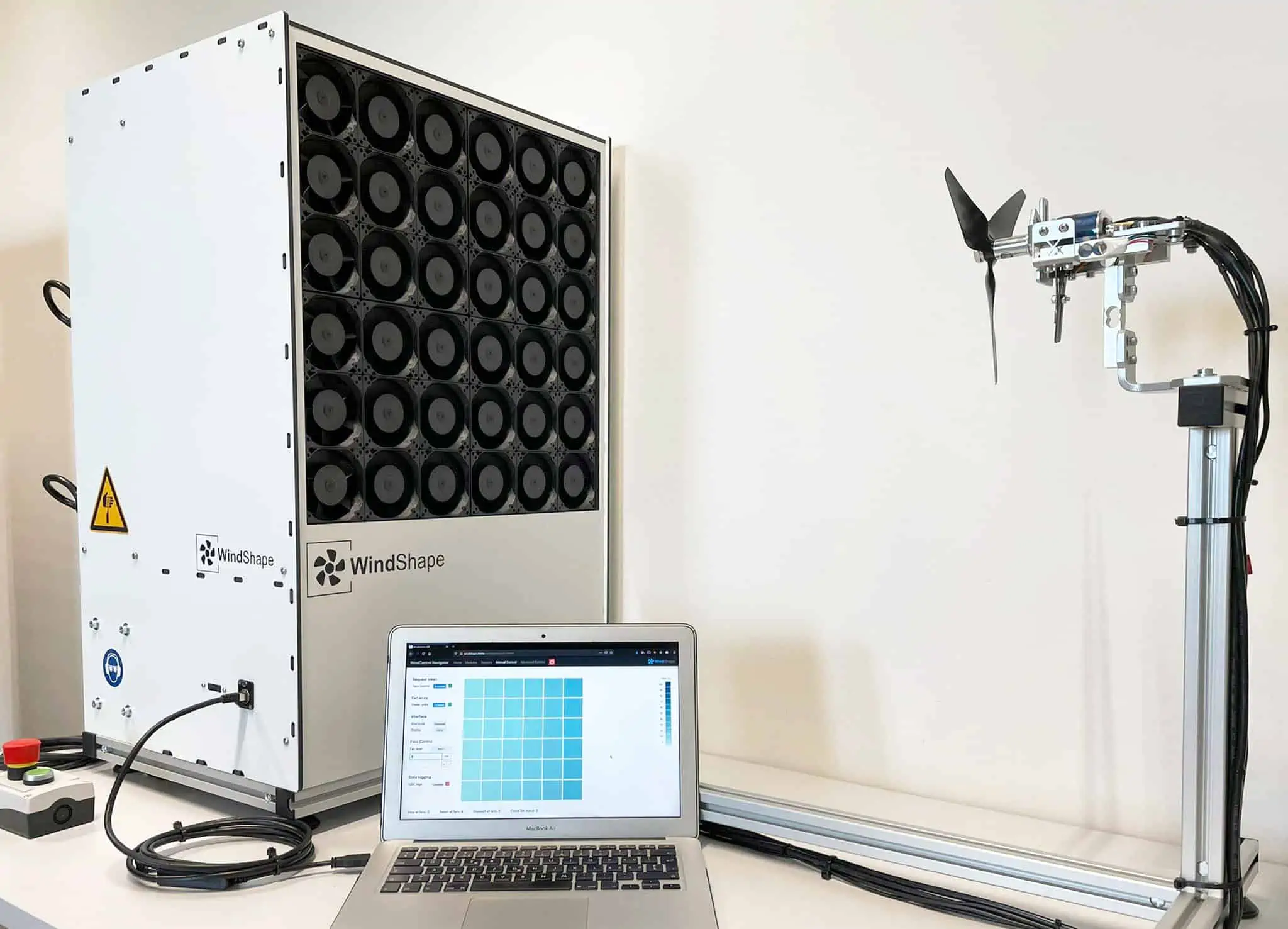

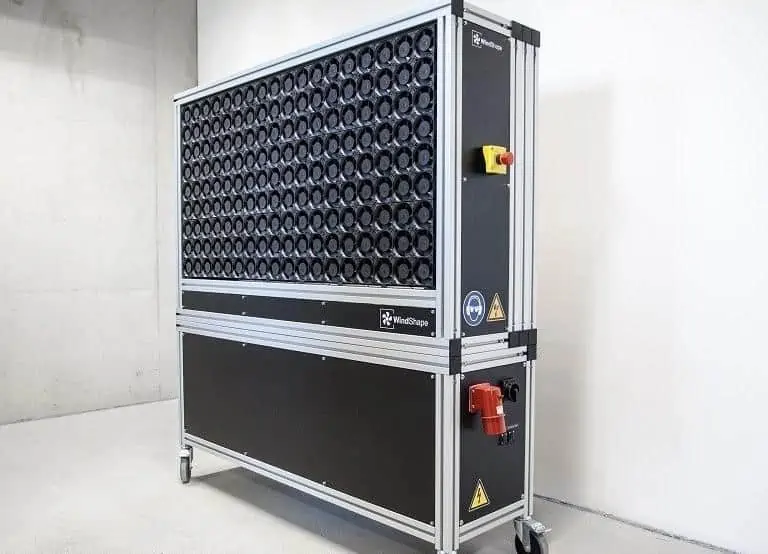

Our Windshapers are modular, scalable open air wind generators that are fully customizable to meet your testing needs. Based on blocks of nine fans measuring 10 by 10 inches, Windshapers allow you to easily perform free flight tests in your own lab.
The included software allows you to control each fan individually, simulating conditions found in the real world. Additional test capabilities can be added including weather effects, a motion capture system, or tilting mechanisms.
More information: Windshapers – wind testing and wind tunnel modeling
