Balancing drone propellers is a critical step in maximizing UAV performance, reliability, and operational lifespan. Tyto Robotics outlines the importance of proper propeller balancing and explores two key techniques: static and dynamic balancing.
Unbalanced propellers generate excessive vibration, which can reduce thrust efficiency, increase noise, and accelerate wear on bearings, sensors, and other components.
Propellers can be balanced using one of three methods: static, dynamic, or aerodynamic. Static and dynamic techniques involve correcting mass distribution, either while the propeller is stationary (static) or in motion (dynamic). Aerodynamic balancing, often referred to as tracking, focuses on equalizing thrust output between blades by adjusting physical characteristics such as blade pitch or alignment.
This article focuses on static and dynamic balancing, which should be completed before any aerodynamic adjustments.
Why Propeller Balancing Matters
Imbalanced propellers are a primary source of vibration in UAV systems. These vibrations can lead to increased wear on bearings and flight controllers, reduced flight stability, and elevated noise levels. Properly balanced propellers significantly reduce these issues, resulting in smoother operation, more accurate flight control, and longer system lifespan.
While many commercial UAVs are shipped with rotors balanced to ISO standards, custom-built or large-scale drones may require manual balancing to avoid performance degradation.
Static Balancing: A Cost-Effective Method for Small UAVs
Static balancing is a simple, low-cost technique commonly used in small or hobby UAV applications. It involves placing the propeller on a stand and adjusting it until both blades are evenly weighted.
How It Works

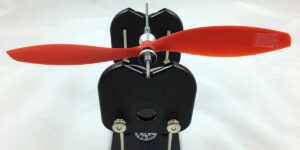

Using tape to balance a drone propeller statically.
The propeller is mounted on a low-friction balancer, often magnetically supported, allowing it to rotate freely. If one blade consistently drops, it indicates an imbalance. Material is then added to or removed from the propeller to achieve equilibrium.
A balanced propeller will remain stationary in any position without rotating.
Methods for Adjusting Balance
To Add Weight: Use materials such as nail polish, glue, tape, paint, or small screws.
To Remove Weight: Carefully sand the underside, trim the blade tips or trailing edge, or drill out small amounts of material.
Advantages:
- Low Cost: Equipment is affordable and accessible.
- Easy to Use: Suitable for beginners and hobbyists.
- Fast Process: Once set up, balancing can be done quickly.
Limitations:
- Lower Precision: Static balancing does not produce a measurable balance grade.
- Manual Process: Results can vary depending on operator skill and propeller design, particularly with foldable blades.
Dynamic Balancing: High Precision for Commercial UAVs
Dynamic balancing is widely used in professional UAV development due to its ability to evaluate and correct imbalances under real operating conditions.
How It Works
The motor and propeller are mounted on a test stand equipped with vibration and RPM sensors. The Tyto Robotics Flight Stand, for example, includes integrated tools for ISO-compliant propeller balancing. Data collected during operation is analyzed by software, which provides detailed instructions for correcting the imbalance.
Balancing Steps
- Mount the Propeller: Attach the propeller and motor to the stand and connect the sensors.
Dynamic propeller balancing using tape corrections.
- Input Rotor Data: Enter parameters such as rotor mass, target RPM, and desired balance grade.
- Initial Test Spin: Run the propeller to collect baseline vibration data.
- Calibration Step: Add a temporary weight, such as tape or glue, as directed by the software.
- Apply Correction: Follow the software’s guidance to add or remove material at specific locations to reach the target balance grade, typically below G 6.3.
- Verification Spin: Conduct a final test to confirm that the balance meets the desired standard. Further adjustments may be recommended if necessary.
Advantages:
- High Accuracy: Provides precise, repeatable results based on real-time operating data.

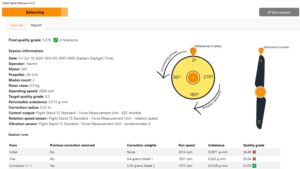

Flight Stand software dynamic propeller balancing GUI.
- Standards-Based: Supports industry specifications such as ISO 21940-11:2016.
- Time Efficient: Modern systems can complete balancing in under five minutes per propeller.
Limitations:
- Higher Cost: Requires more advanced and expensive equipment.
- Technical Knowledge: Operators need to understand key parameters such as target RPM and G values to ensure accurate results.
Conclusion
Both static and dynamic balancing techniques play a crucial role in UAV development and maintenance. Static balancing is a cost-effective, easy-to-use method suitable for smaller drones and hobbyist projects.
Dynamic balancing, while more complex and resource-intensive, offers the precision and compliance required in commercial and industrial UAV applications. Selecting the appropriate method ensures improved flight performance, reduced wear, and greater reliability throughout the UAV’s operational life.
