Drone Test Stands for Motor & Propeller Testing, Wind Generators for Free-Flight & Drone Resistance Tests
Flight Test Stand 15 Thrust test stand for small and medium sized UAVs
Flight Test Stand 15

Thrust test stand for small and medium sized UAVs

Visit Website Send Message
Saved
Save

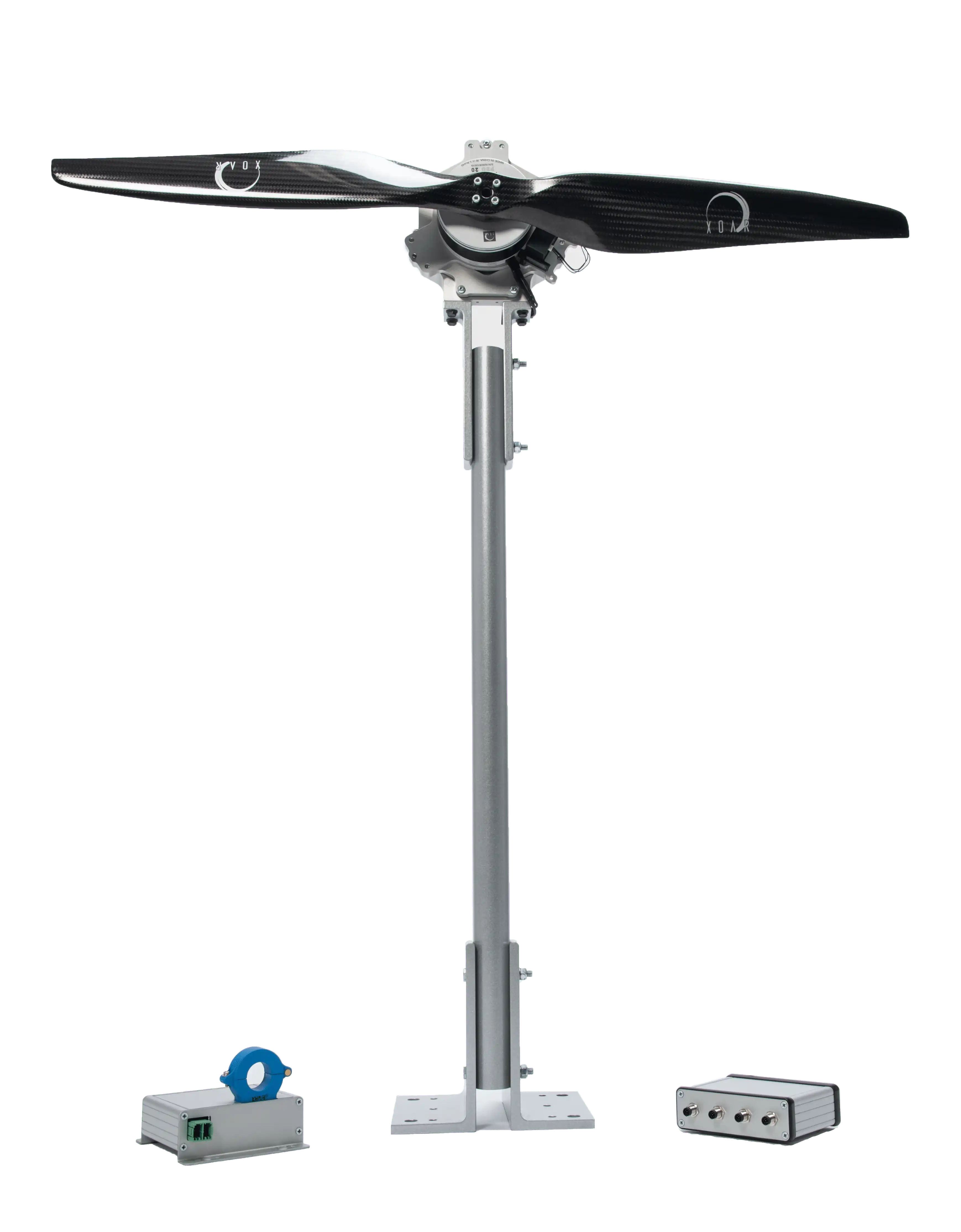

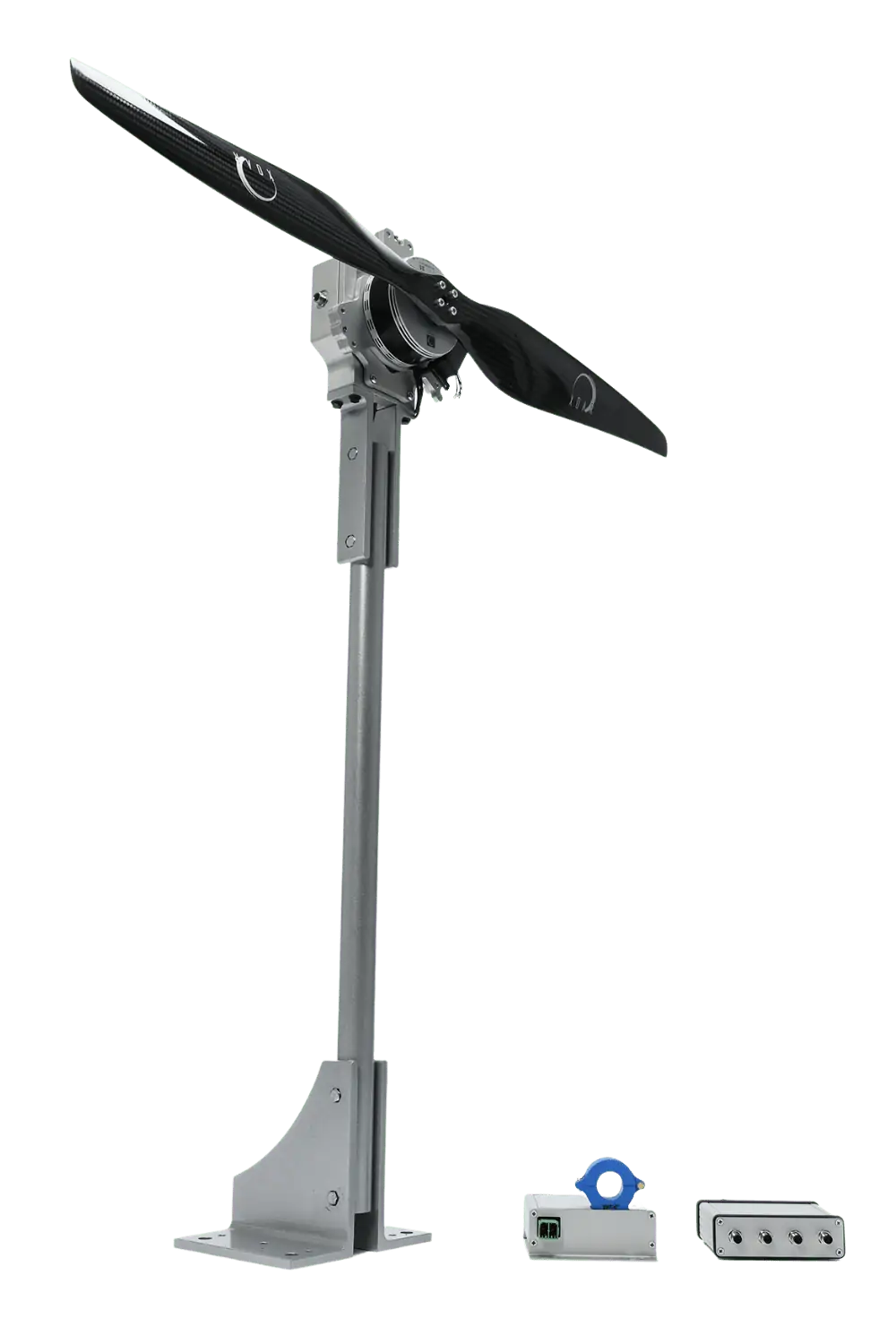

Flight Test Stand 15

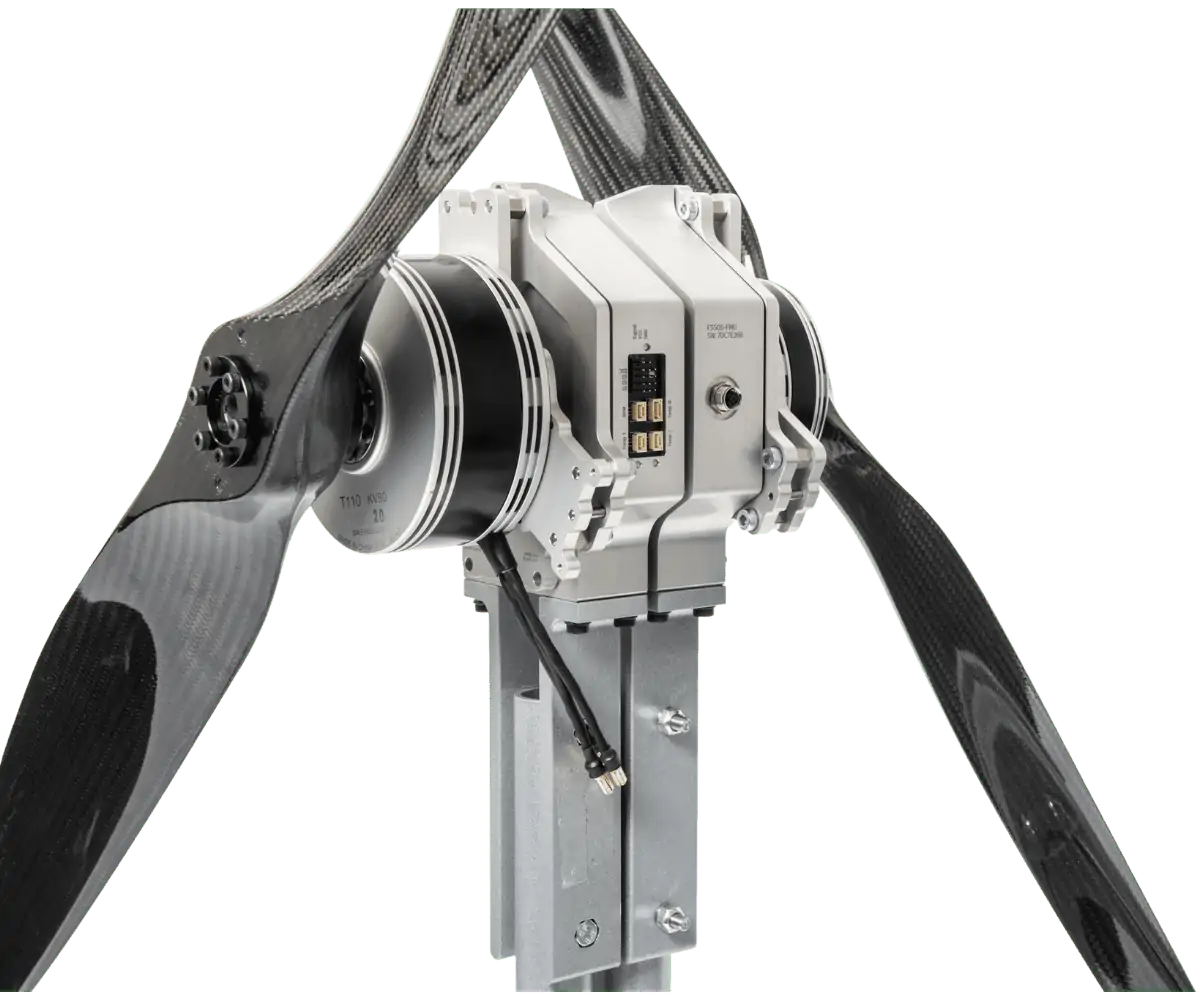

A new generation of propulsion testing, with improved speed, accuracy and capabilities. Compare motor-propeller combinations in single motor or dual motor configurations. Measure up to 15 kgf of thrust and 8 Nm of torque. Real-time dynamic testing with a sampling rate up to 1,000 Hz.

Standard Pro
Thrust 150 N ± 1.5 N 150 N ± 0.3 N
Torque 8 Nm ± 0.1 Nm 8 Nm ± 0.016 Nm
Rotation speed 30,000 RPM 30,000 RPM
Voltage 180 V 180 V
Current 150 A 150 A
Prop diameter 16 - 40" 12 - 40"
Sampling rate 50 Hz 1,000 Hz
Finish colour Silver Black
