Flight Test Stand 50 Thrust test stand for medium and large UAVs
Flight Test Stand 50

Thrust test stand for medium and large UAVs

Visit Website Send Message
Saved
Save

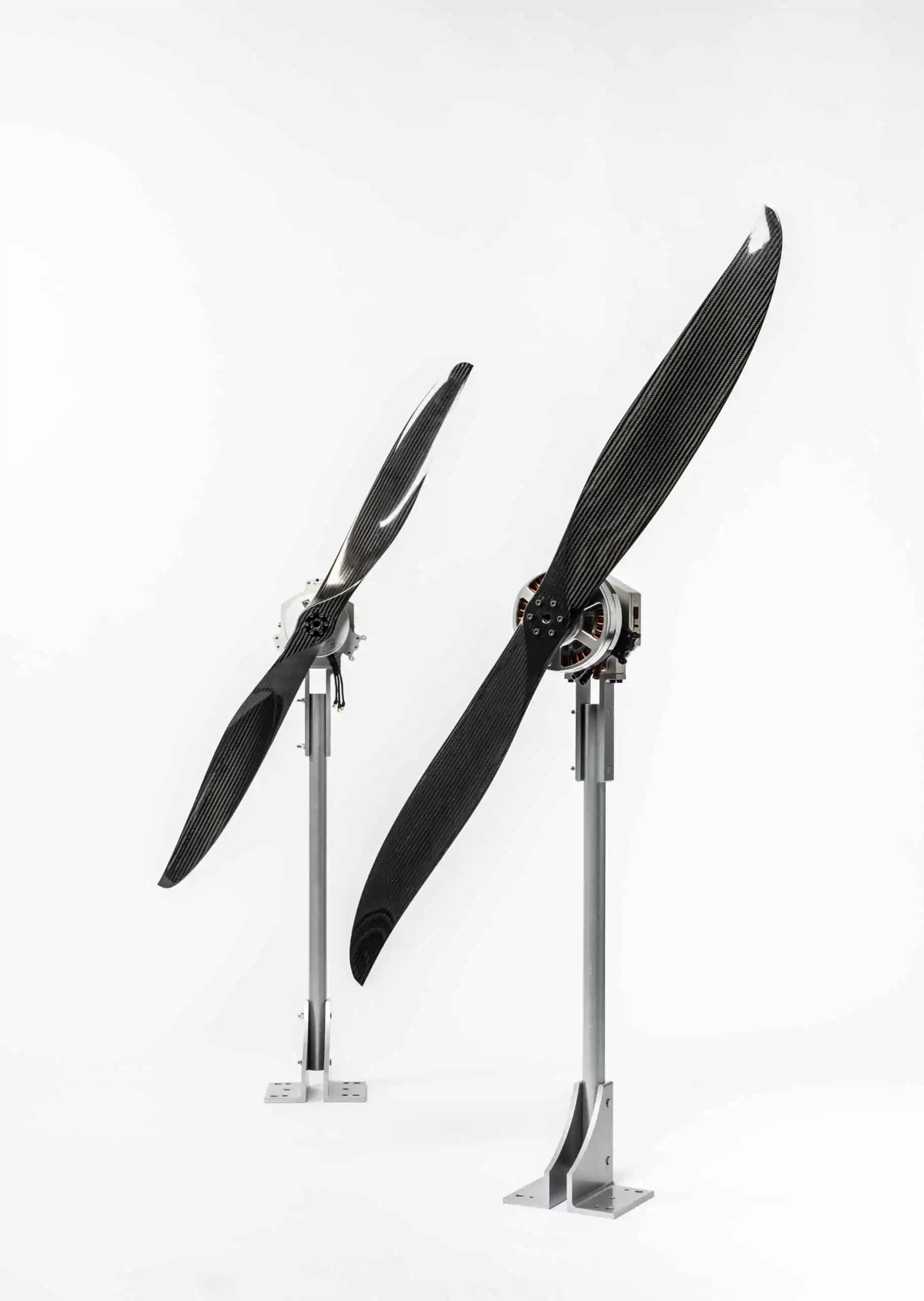

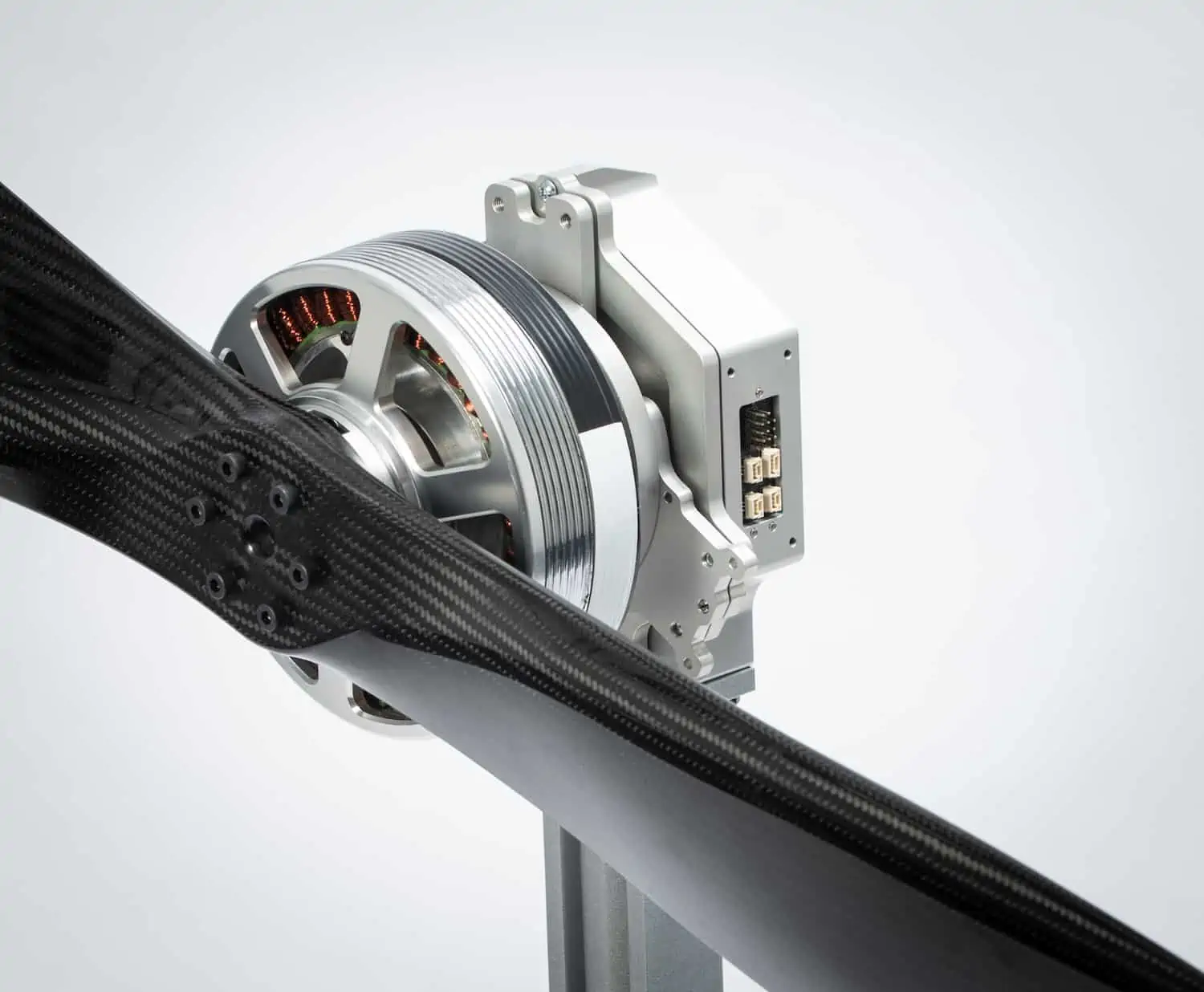

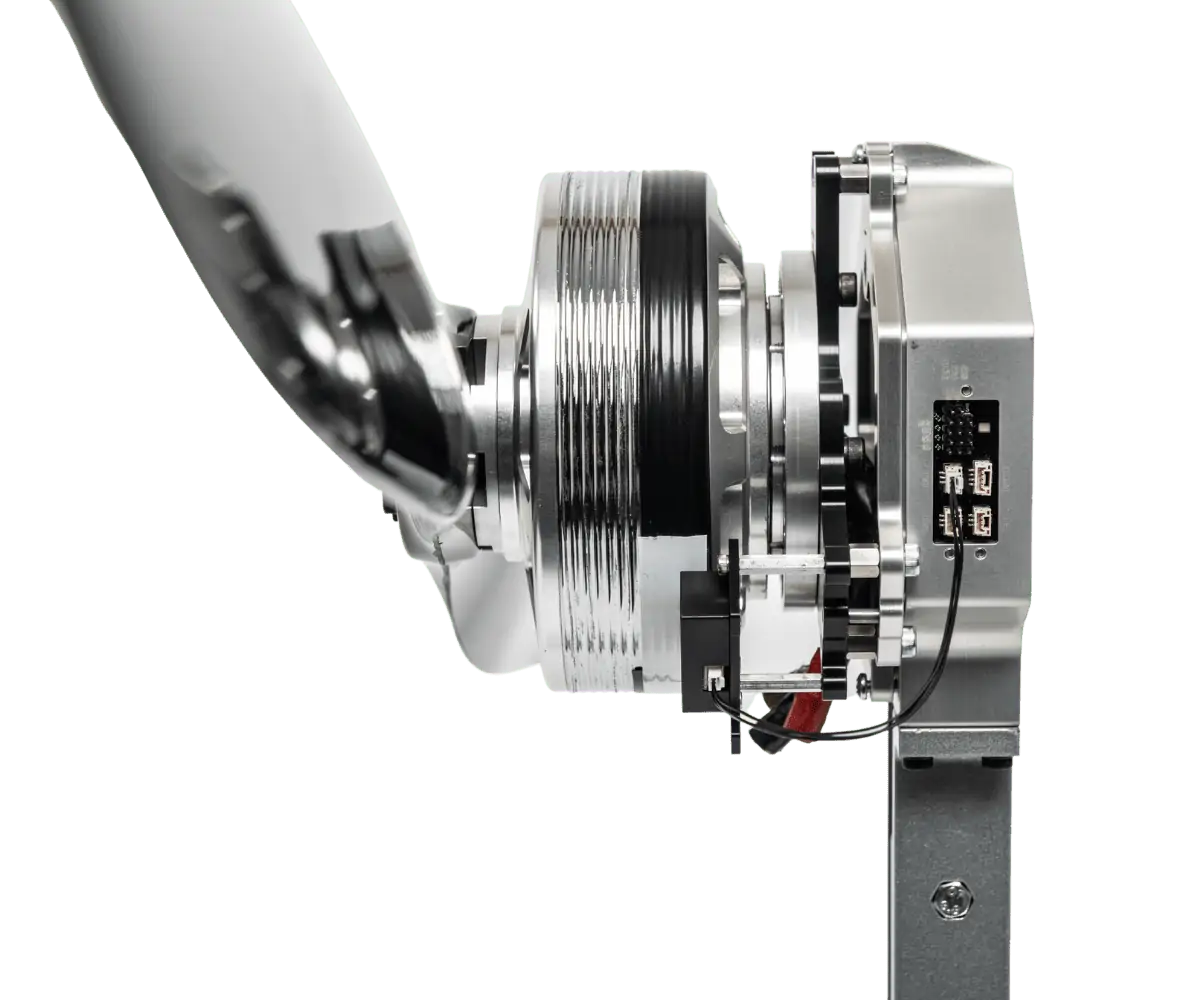

Flight Test Stand 50

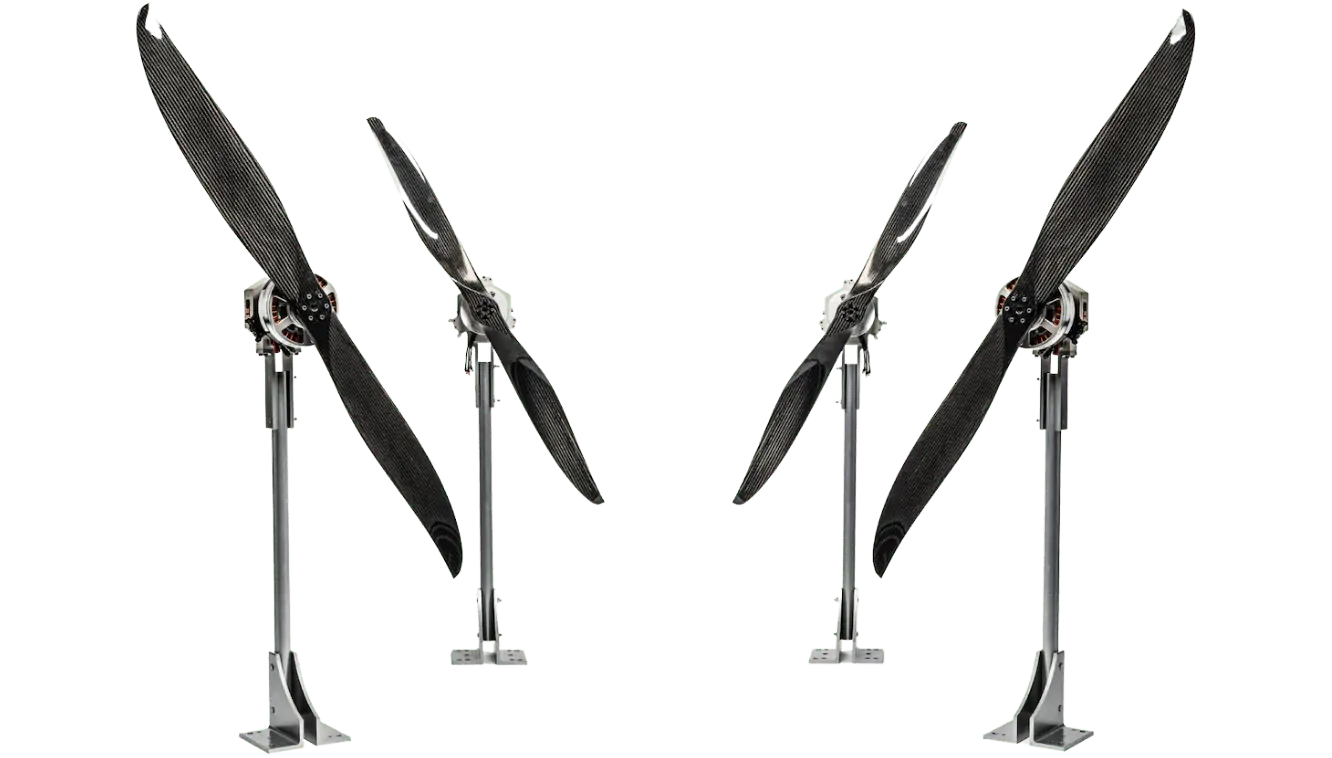

A new generation of propulsion testing, with improved speed, accuracy and capabilities. Compare motor-propeller combinations in single motor or dual motor configurations. Measure up to 50 kgf of thrust and 30 Nm of torque. Test in single motor or dual motor mode.

Standard Pro
Thrust 500 N +/- 5 N 500 N +/- 1 N
Torque 30 Nm +/- 0.38 Nm 30 Nm +/- 0.06 Nm
Rotation speed 30,000 RPM 30,000 RPM
Voltage 180 V 180 V
Current 300 A 300 A
Prop diameter 26 - 50" 26 - 50"
Sampling rate 50 Hz 1,000 Hz
Finish colour Silver Black
