ASARTECH

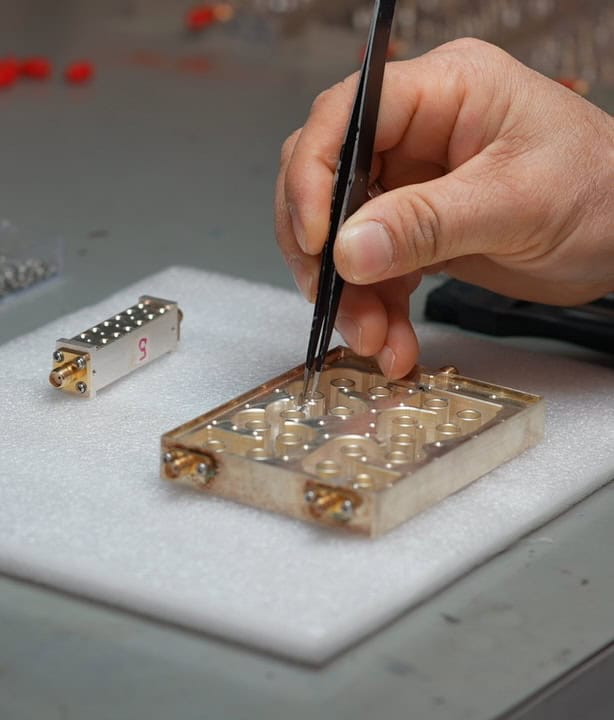

Asartech is a leading developer of RF and microwave components for demanding UAV and unmanned systems communications and datalink applications. Combining in-house research and development with extensive design and systems integration expertise, the company provides a broad portfolio of solutions for the toughest operational requirements.

Asartech also works with customers to develop solutions tailored to their specific requirements, offering a full suite of engineering services encompassing testing, verification, documentation, configuration management and in-service support throughout the system lifecycle. The company maintains ISO 9001, ISO 14001, ISO 27001 and ISO 45001 certifications and is an approved NATO Support and Procurement Agency supplier.

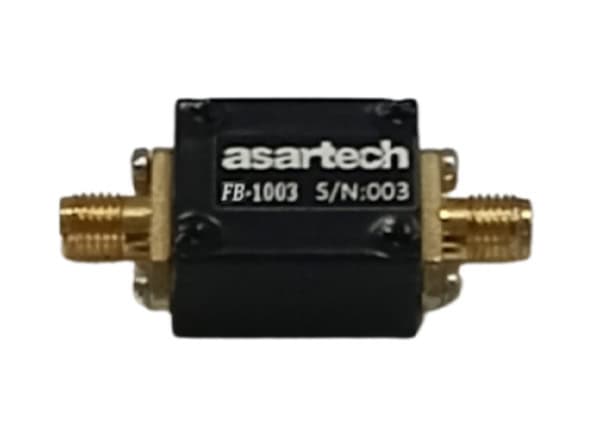

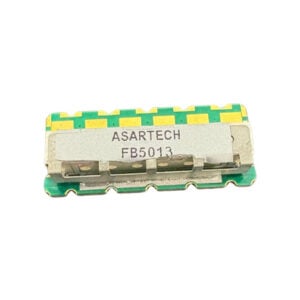

Bandpass Filters

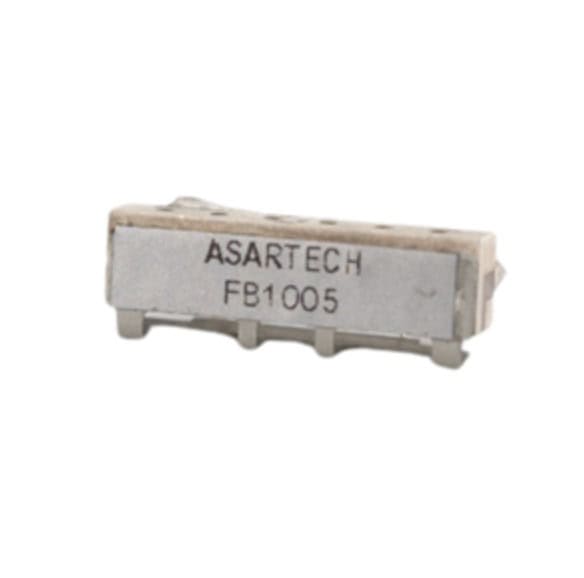

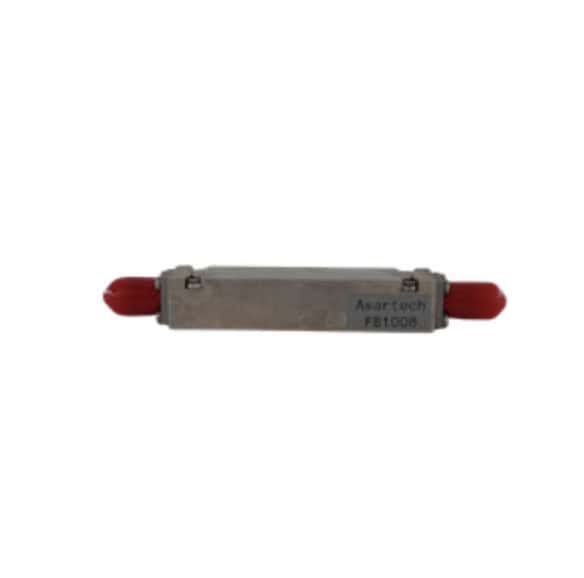

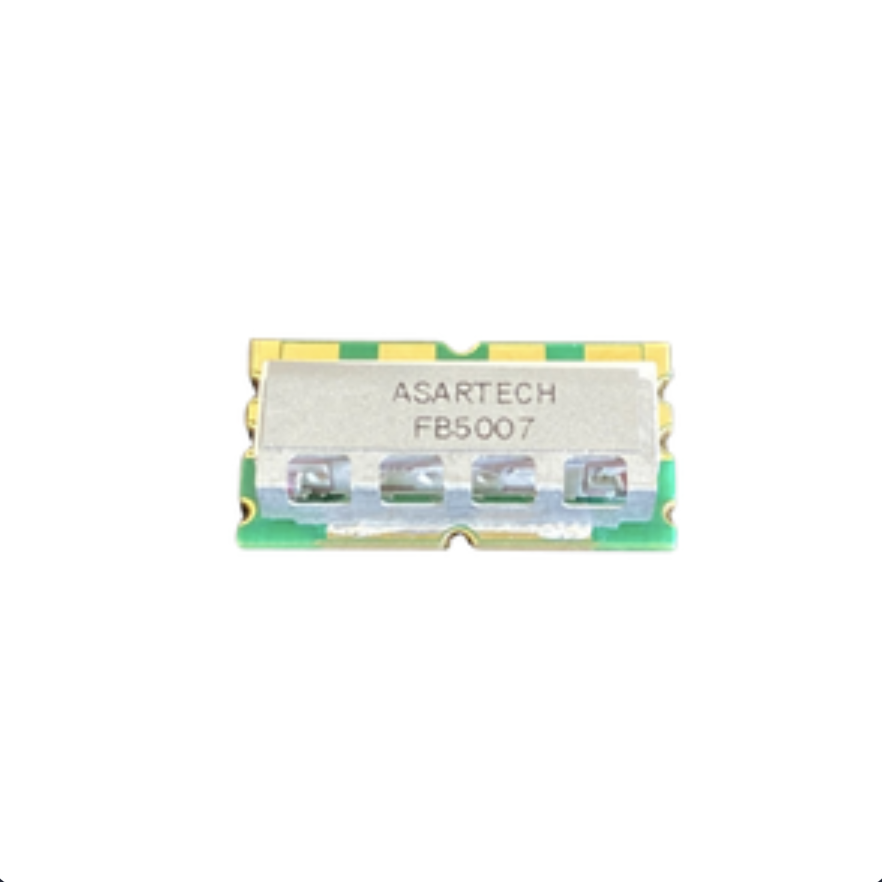

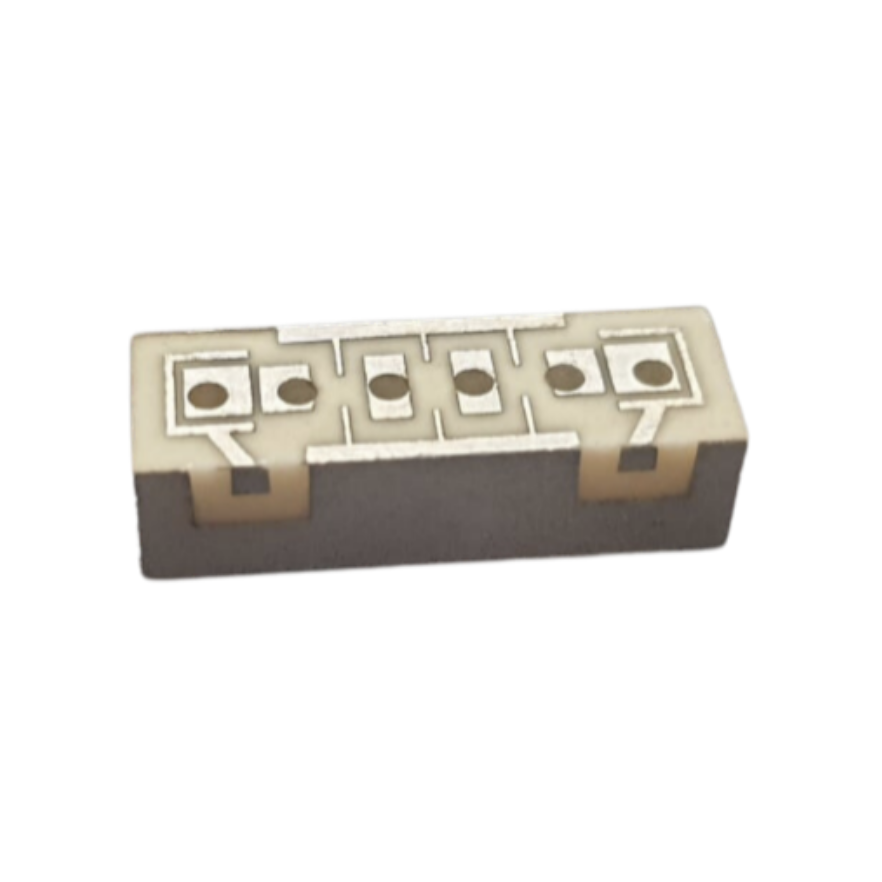

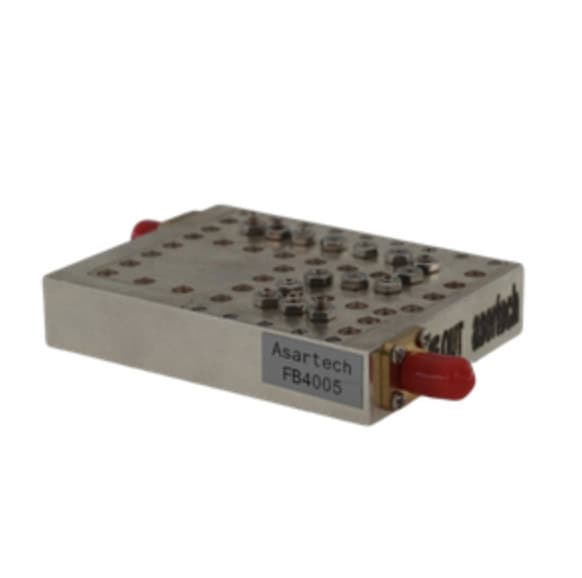

Asartech’s bandpass filter portfolio provides selective filtering for RF front ends, radar and electronic warfare systems. The range encompasses compact ceramic surface-mount components, machined cavity filters and lumped-element designs, providing options for PCB integration and connectorized assemblies. Low-loss microwave filters are available for receiver preselection, with narrowband solutions for reference signals and an IF filter bank offering selectable bandwidths.

• Center frequencies from 240 MHz to 16 GHz
• Selectable IF bandwidths of 0.3, 5, 10 and 20 MHz
• Microwave filter 3 dB bandwidths up to 4.2 GHz
• Passive filter maximum insertion-loss specifications from 0.3 to 4 dB

Featured Products:

View all: Bandpass Filters

Multiplexers & Diplexers

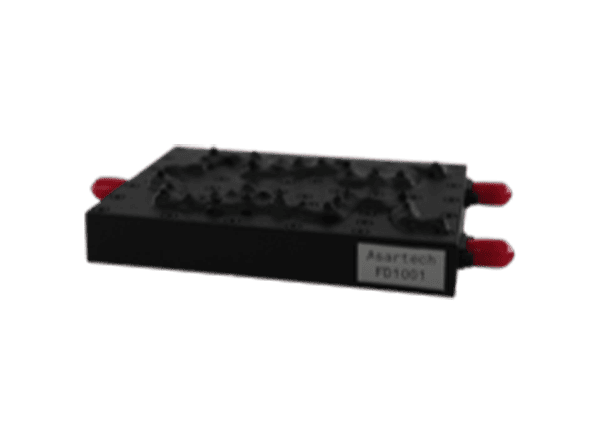

Asartech’s diplexers separate and combine signals in different frequency bands through a common RF connection. The portfolio includes cavity bandpass designs for L/S-band and C-band communications, as well as a highpass/lowpass configuration for wideband communications and electronic warfare.

Low insertion loss and high isolation make these components ideal for applications requiring separation between operating bands. The units incorporate three SMA female connections and are available with different channel bandwidths and power-handling capabilities.

• CW power handling from 20 to 50 W
• Bandpass diplexer insertion loss of 1 dB maximum per channel
• Specified interband isolation of 60–80 dB minimum, depending on model and frequency

Featured Products:

View all: Multiplexers & Diplexers

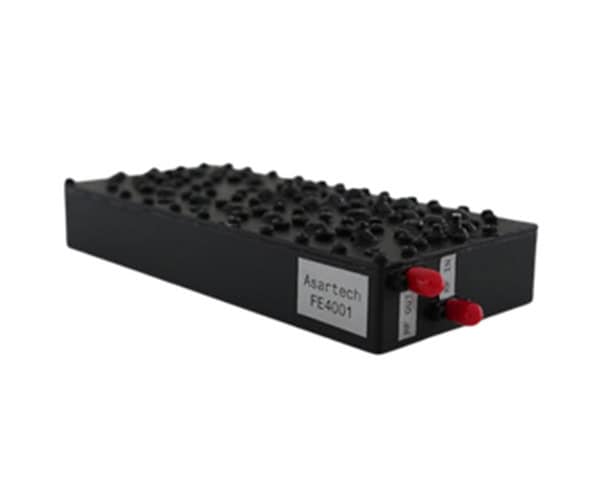

Extractors

Asartech’s extractor technology combines multiple L-band passbands with rejection of unwanted signals between the operating bands. Developed for LINK16 and TACAN frequencies, the filtering design suppresses signals in the IFF bands and provides sharp transitions between passbands and rejection regions. A machined enclosure and SMA female connections provide a connectorized solution for communications assemblies requiring selective multiband filtering.

• Passbands of 960–1010, 1050–1072 and 1110–1215 MHz
• Maximum passband insertion loss of 2 dB
• Minimum rejection of 60 dB at 1030 and 1090 MHz
• Minimum passband return loss of 16 dB

Featured Product:

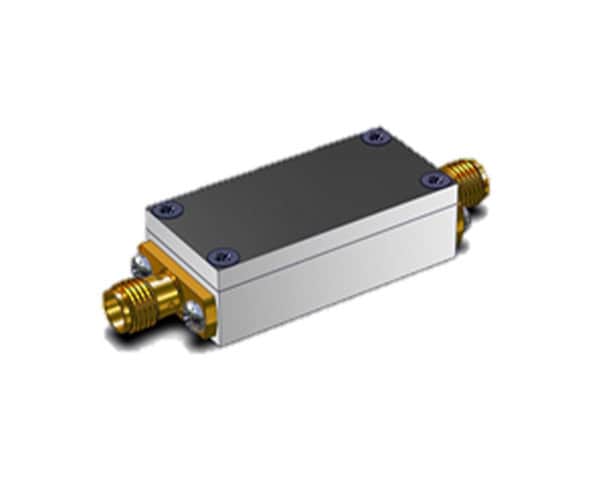

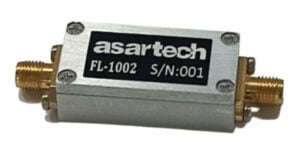

Highpass & Lowpass Filters

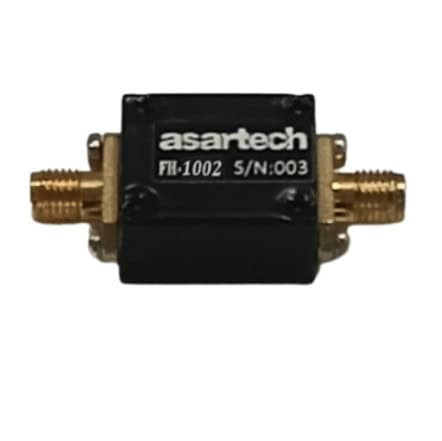

Asartech’s highpass and lowpass filters provide frequency-selective filtering for receiver and transmitter electronics. The range includes lumped-element designs for anti-alias filtering ahead of high-speed analog-to-digital converters, as well as a distributed-element lowpass filter for suppressing harmonics from 2.4 GHz power-amplifier drivers. Compact aluminum housings and SMA connections make the filters suitable for integration into connectorized RF assemblies.

• Lowpass passbands from DC to 400, 1200 or 2850 MHz
• Highpass passband of 1200–3000 MHz
• Maximum passband insertion loss of 1.0–1.2 dB, depending on model

Dividers, Couplers & Combiners

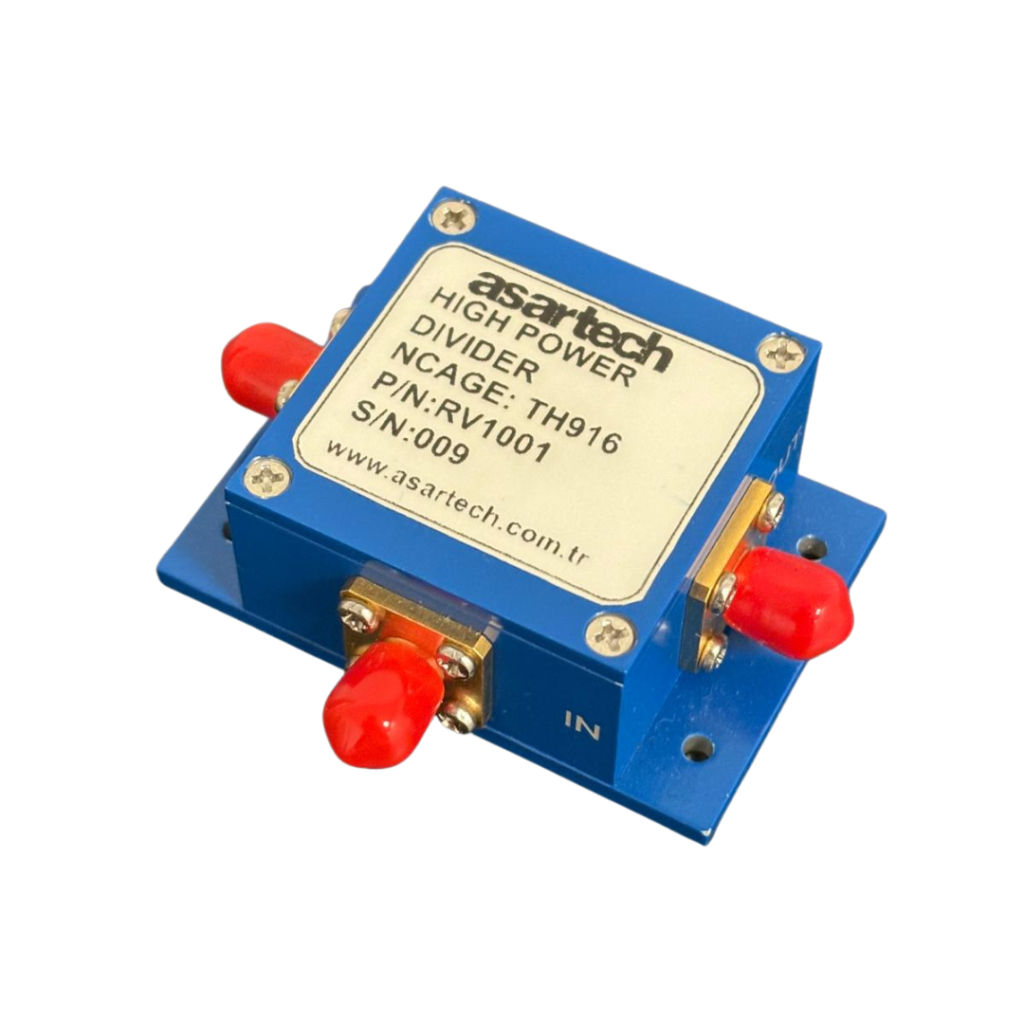

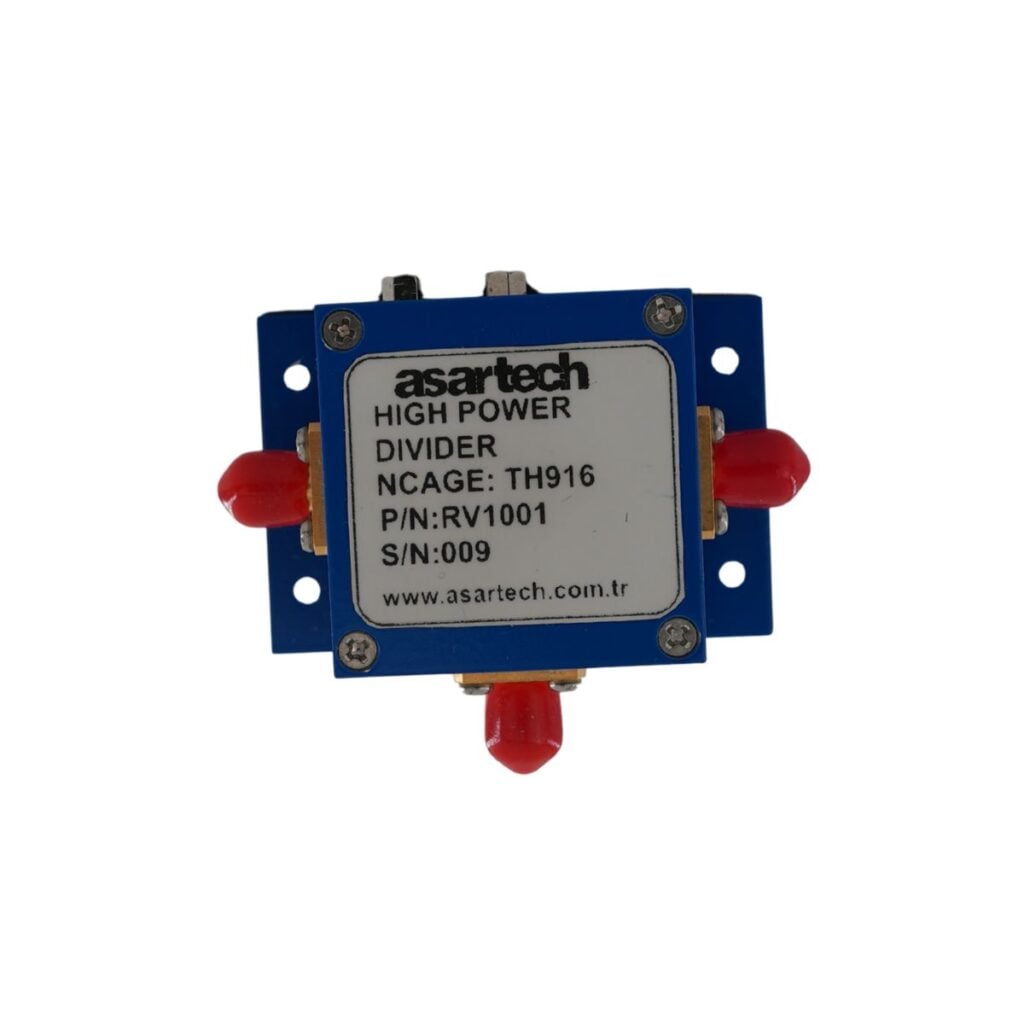

Asartech’s RF power divider provides two matched outputs with a 90-degree phase difference. Designed for GNSS applications, the compact hybrid divider covers frequencies used by GPS, GLONASS, BeiDou and Galileo. Its ruggedized housing is designed for operation under high temperature, vibration and shock, with SMA female connectors on all ports.

• Frequency range of 1164–1610 MHz
• Maximum RF power handling of 25 W
• Maximum insertion loss of 0.4 dB
• Amplitude balance of 0.4 dB between outputs

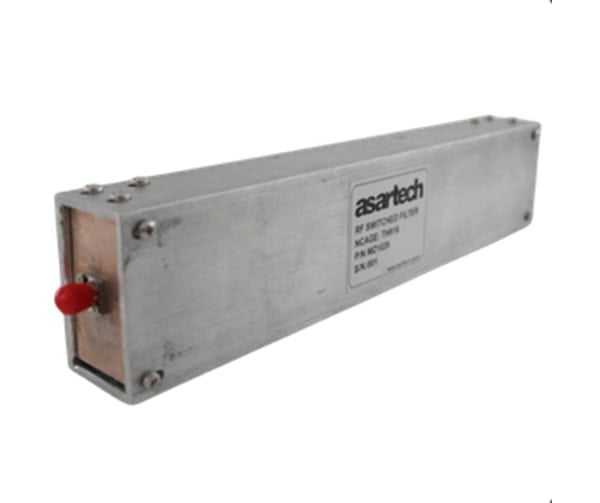

Switched Filters & Switches

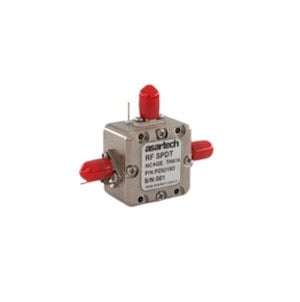

Asartech offers RF switches, switched filter banks and switch matrices for communications, electronic warfare and test equipment. The range encompasses broadband electronic switches and ruggedized electromechanical antenna switching, with configurations for selecting RF paths and filter bands. Options include single-pole, two-throw and four-throw switches, alongside integrated matrices with remote control and temperature monitoring.

• Broadband switch frequency coverage extending to 20 GHz

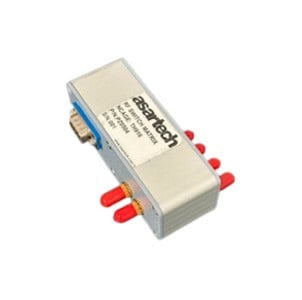

• Switched filter banks and RF switch matrices covering 6–12 GHz
• Antenna switching over 30–512 MHz at up to 50 W

Featured Product:

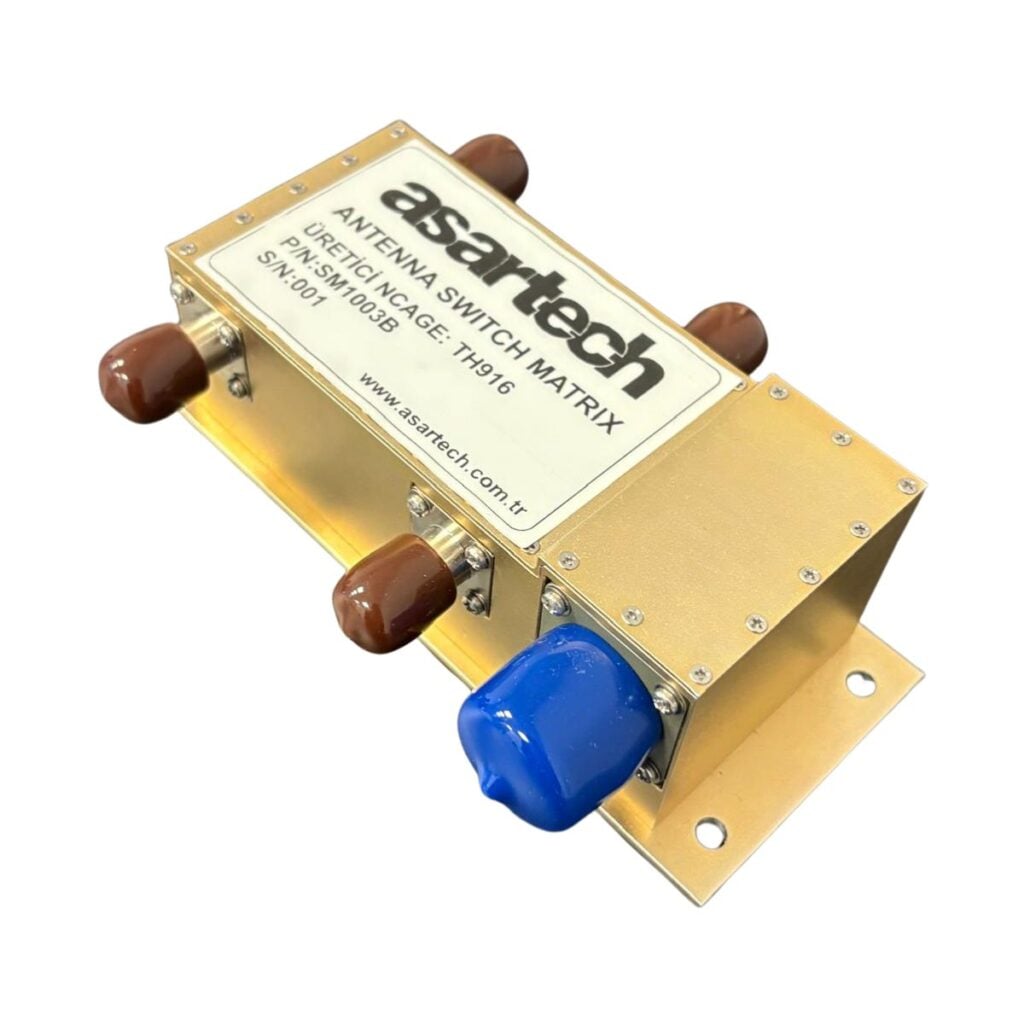

SM1003B Antenna Switch Matrix

The SM1003B is a high-power electromechanical switching unit that manages connections between two radios and two antennas. It offers manual and automatic operation, with three selectable modes controlled through discrete logic signals. Operating over 30–512 MHz, the unit handles RF power up to 50 W and is housed in a compact ruggedized enclosure.

View more: Switched Filters & Switches

Amplifiers

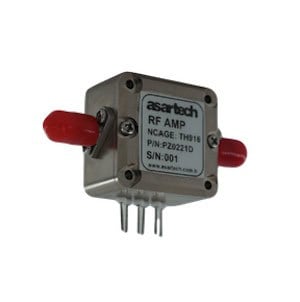

Asartech’s amplifier portfolio provides a broad range of options for microwave radios, satellite communications, radar receivers and electronic warfare equipment. Products include broadband RF gain blocks, power amplifiers and multichannel IF amplification.

Compact RF amplifiers are available for signal amplification and mixer drive, with higher-output designs for transmitter stages. Separate IF amplification capability combines multiple channels with adjustable attenuation for receiver gain control.

• RF amplifier bands spanning 0.5–20 GHz across different models
• RF gain values from 9.4 to 31 dB, depending on model and frequency

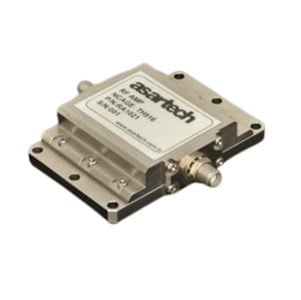

• Power-amplifier output up to 2 W

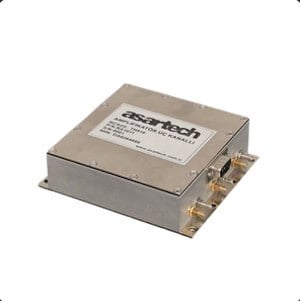

• Three-channel IF operation over 20–35 MHz

Featured Product:

View all: Amplifiers

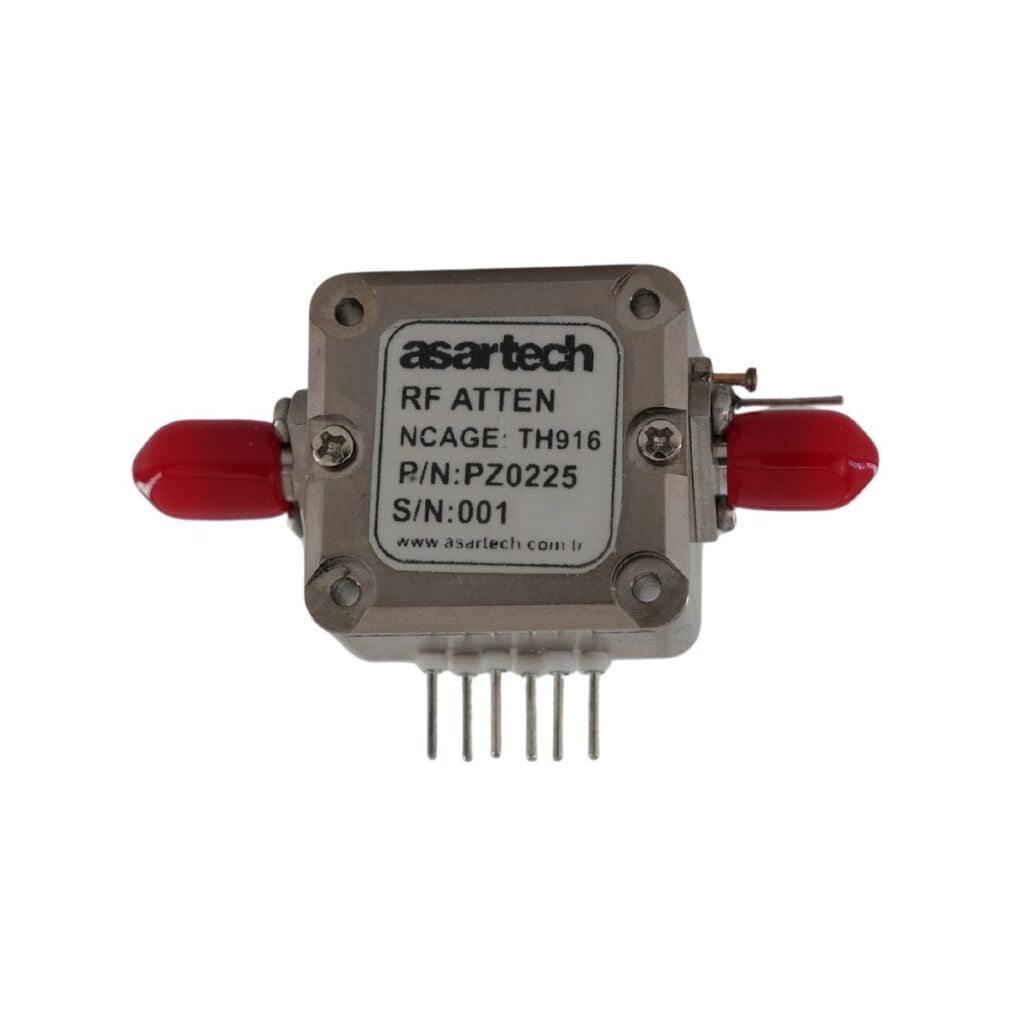

Attenuators

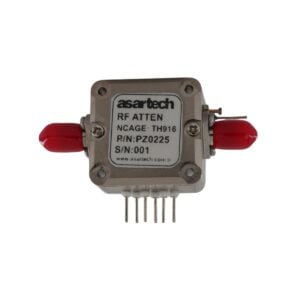

Asartech’s digital RF attenuators provide precise signal-level adjustment across broad frequency ranges. The six-bit designs offer a common attenuation range and step size, with different frequency coverage and accuracy specifications to suit the application. Digital control allows the attenuation setting to be selected electronically, with small increments for fine adjustment.

• Frequency ranges of DC–13 GHz and 0.1–6 GHz
• Attenuation control from 0 to 31.5 dB
• Step size of 0.5 dB

Frequency Synthesizers & Signal Generators

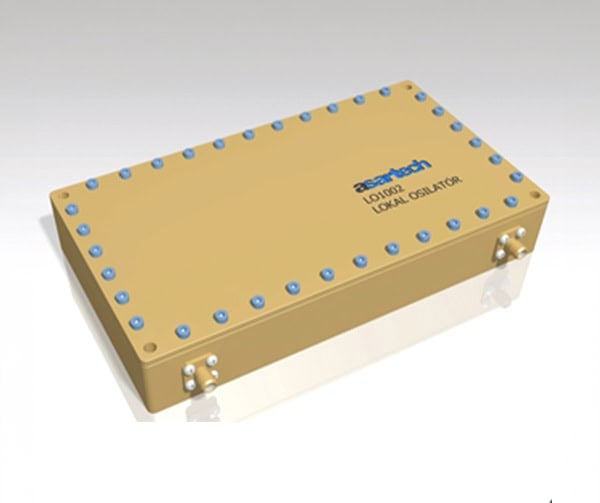

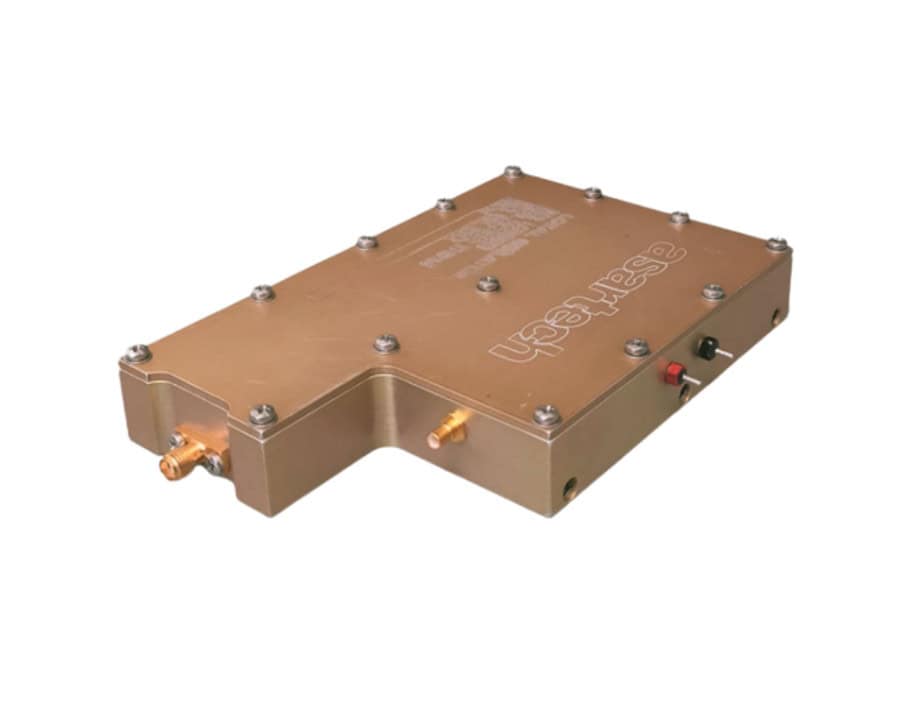

Asartech develops frequency synthesizers and local oscillators for radar, communications and test systems. The portfolio includes wideband programmable sources, low-phase-noise oscillators and dual-channel configurations. Fast frequency selection provides options for frequency-agile equipment, with designs incorporating external reference inputs and remote control. Local oscillators are available for transceivers and frequency converters, including configurations with separate fixed and variable outputs.

• Wideband synthesizer outputs covering 10 MHz–20 GHz

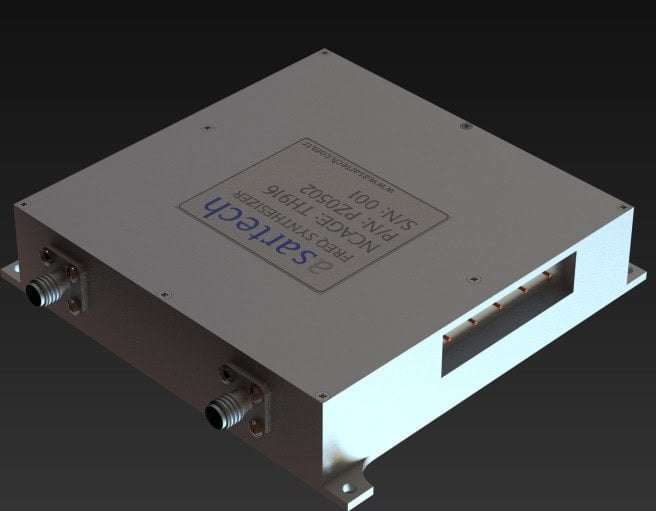

• High-frequency synthesizer output covering 26–30 GHz
• C-band oscillator output covering 5–6 GHz
• Single- and dual-channel configurations

Featured Product:

View all: Frequency Synthesizers & Signal Generators

Signal Conditioners

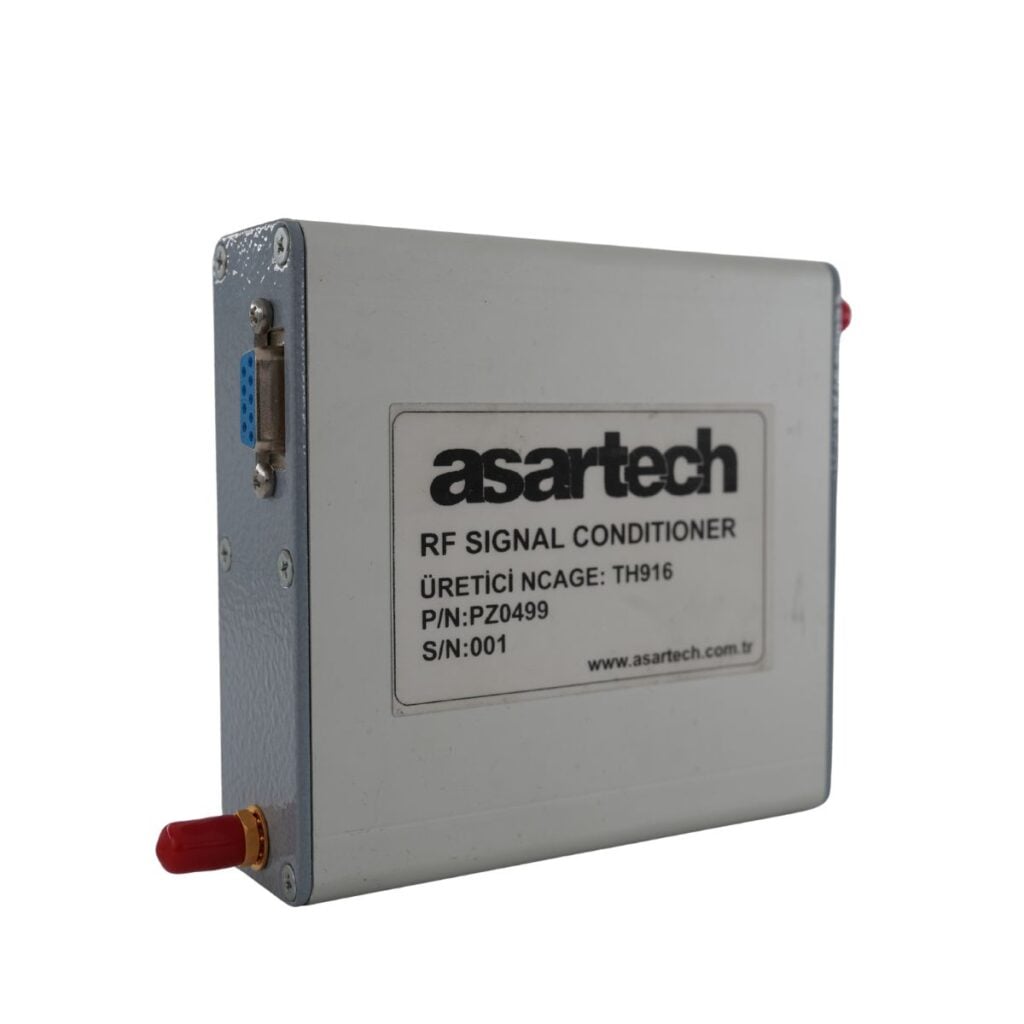

Asartech’s signal conditioners combine RF amplification and digitally controlled attenuation within a single module. The range includes different amplifier and attenuator arrangements, with options for single- and dual-path operation. An RS-485 interface enables attenuation control and monitoring of module temperature and amplifier current consumption.

Designed for microwave radios, satellite communications and electronic warfare equipment, these modules provide integrated signal-level adjustment across two distinct operating bands.

• Frequency ranges of 1.2–1.8 GHz and 6–12 GHz
• Maximum adjustable attenuation from 31.5 to 110 dB across different models
• Selected channel gains up to 29 dB

View all: Signal Conditioners

Power Management

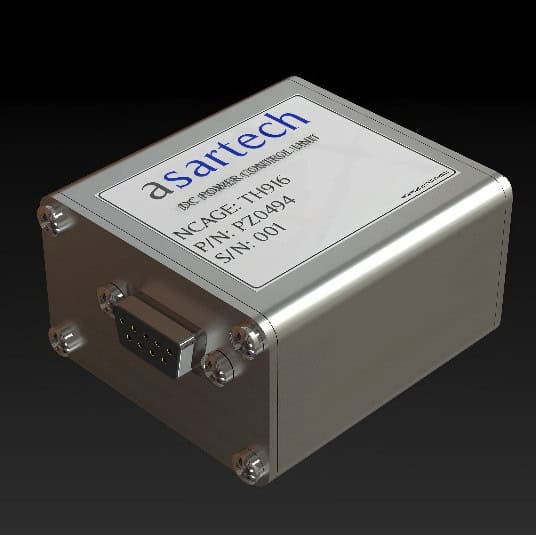

Asartech’s power management module includes a compact electronic fuse for protecting and controlling DC supplies. The device features an adjustable current limit along with fault reporting for thermal shutdown, undervoltage lockout and overvoltage protection.

• Operating voltage range of 4.5–18 V
• Adjustable current limit from 0.4 to 1.6 A
• Current-limit accuracy of ±2% at room temperature
