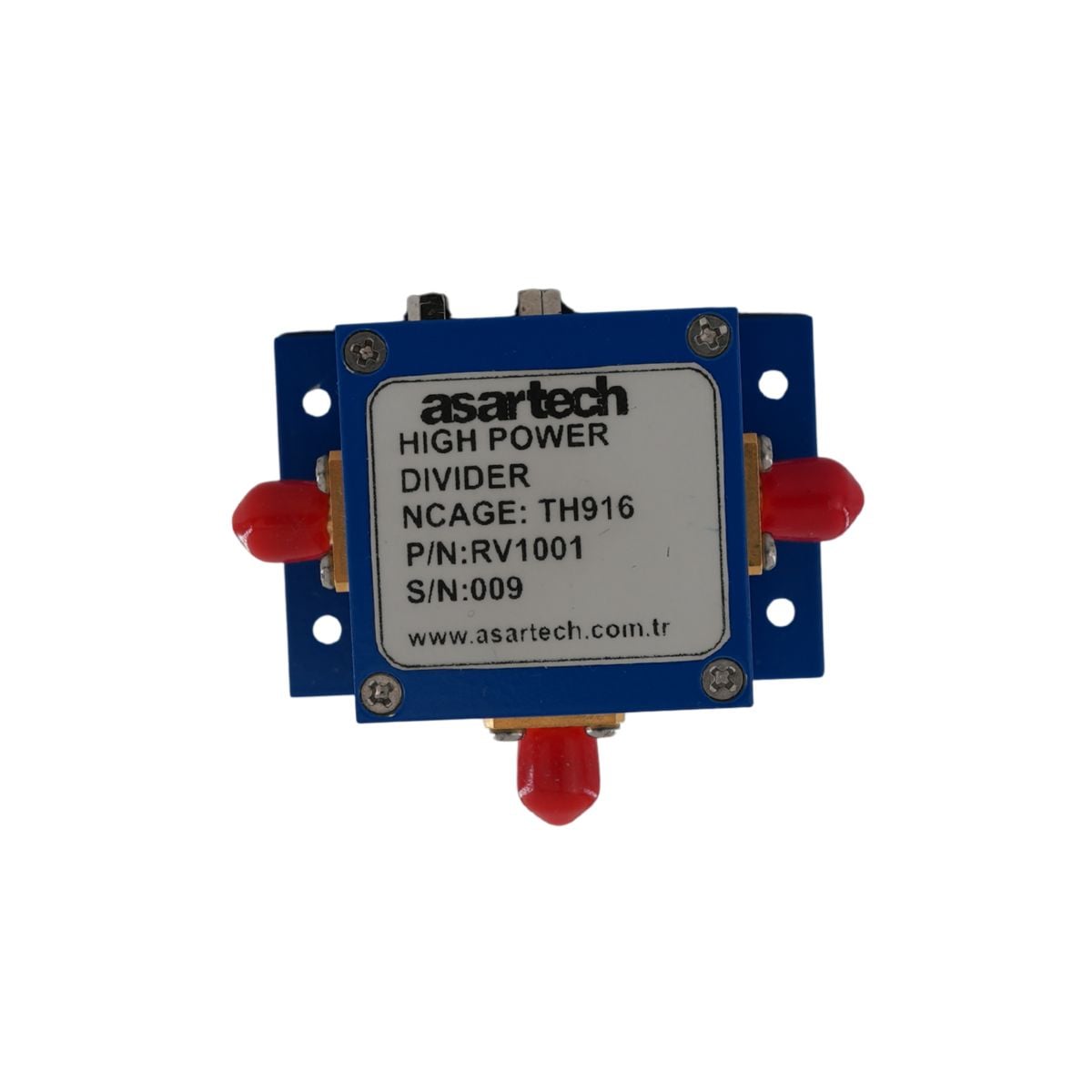

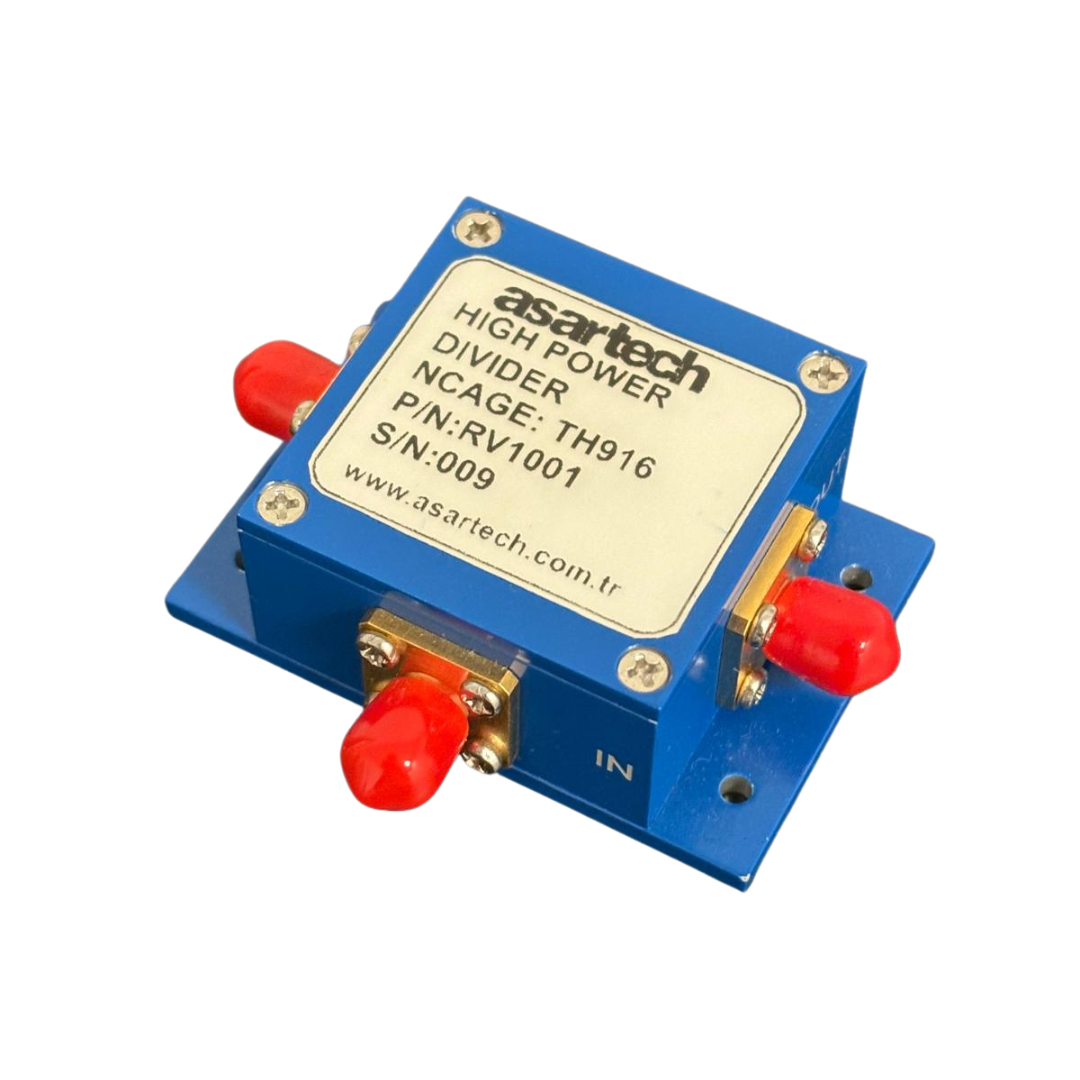

RV1001 GNSS Hybrid Power Divider
The Asartech RV1001 is a hybrid power divider designed for GNSS applications. It divides RF power between two matched outputs and introduces a 90-degree phase shift between them, covering frequencies used by GPS, GLONASS, BeiDou and Galileo.
The divider combines low insertion loss with a ruggedized housing designed for demanding vibration and shock conditions. SMA female connectors are provided on all ports, with RF power handling up to 25 W.
Specifications:
| Dimensions | 31.75 × 31.75 × 14.7 mm |
| Frequency range | 1164–1610 MHz |
| Outputs | 2 |
| Output phase difference | 90° |
| Insertion loss | 0.4 dB maximum |
| Return loss | 15 dB minimum, all ports |
| Amplitude balance | 0.4 dB between outputs |
| RF power handling | 25 W maximum |
| Impedance | 50 Ω |
