Broadband RF Amplifiers

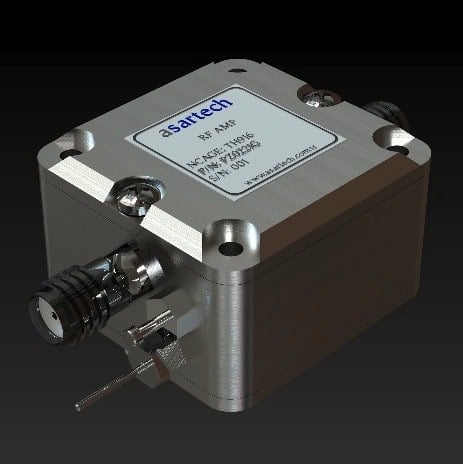

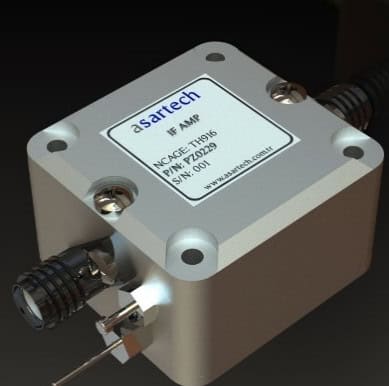

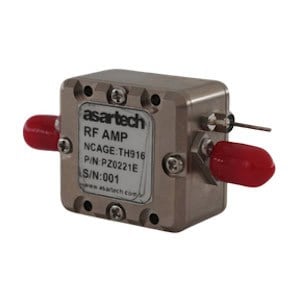

Asartech’s broadband RF amplifier modules provide gain across four operating bands, with options for radio signal chains, gain blocks and local-oscillator drive. PZ0221D, PZ0221E and PZ0221G cover different microwave ranges, and PZ0229 provides a lower-frequency option extending down to 0.5 GHz.
PZ0221D and PZ0221G are suitable for applications including point-to-point radios and mixer LO drive. PZ0229 combines RF gain with a 1.8 dB noise figure at 1900 MHz. All four modules operate from a 6–7.5 V supply, with current requirements varying by model.
Specifications:
| Product | Frequency range | Gain at stated frequencies | Supply voltage | Supply current |
| PZ0221D | 6–12 GHz | 10.5 dB at 6 GHz; 13.5 dB at 9 GHz; 13 dB at 12 GHz | 6–7.5 V | 90 mA |
| PZ0221E | 6–18 GHz | 9.4 dB at 6 GHz; 10 dB at 12 GHz; 10.2 dB at 18 GHz | 6–7.5 V | 22 mA |
| PZ0221G | 4–20 GHz | 13 dB at 4 GHz; 14.5 dB at 12 GHz; 14 dB at 20 GHz | 6–7.5 V | 45 mA |
| PZ0229 | 0.5–4 GHz | 15.2 dB at 0.5 GHz; 14.4 dB at 2.7 GHz; 14.2 dB at 4 GHz | 6–7.5 V | 85 mA |
