Cavity Diplexers

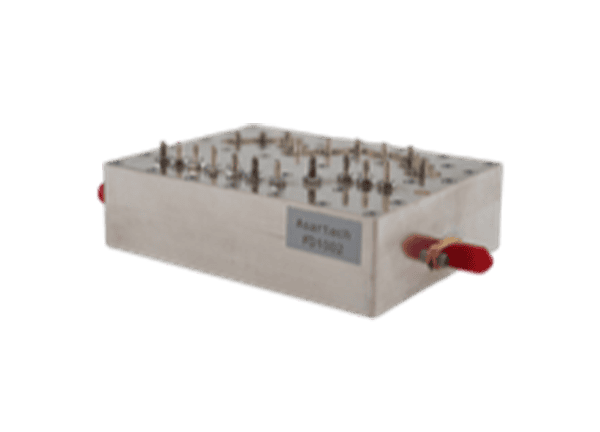

Asartech’s FD1001 and FD1002 cavity diplexers combine two low-loss bandpass channels with a common RF connection. FD1001 is designed for C-band communications, and FD1002 provides separate L-band and S-band paths.
Both units handle up to 20 W CW and provide a maximum insertion loss of 1 dB on either channel. Three SMA female connections provide the common port and separate receive and transmit paths, with each model offering a different frequency combination and enclosure size.
Specifications:
