PCB Assembly Services for Unmanned Systems and Aerospace Applications
PCB assembly in unmanned systems involves a combination of surface mount technology (SMT), through-hole assembly, and advanced soldering methods such as reflow and wave soldering. These processes support custom, quick-turn, and low-volume production runs for everything from prototype PCB assembly to full-scale aerospace electronics manufacturing. Integrated inspection and testing protocols like automated optical inspection (AOI) and X-ray imaging further ensure functional integrity.
Overview of PCB Assembly

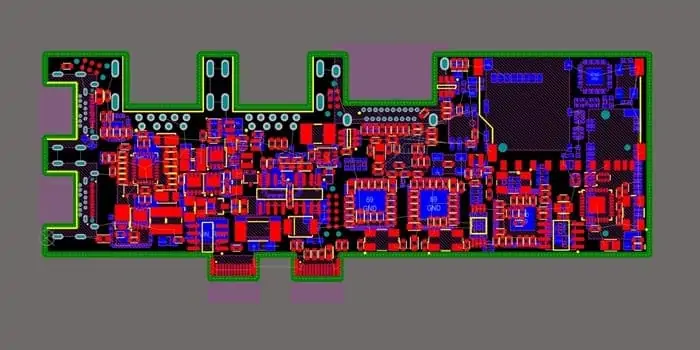

PCB assembly involves placing and soldering electronic components onto a manufactured PCB. The procedure includes applying solder paste, placing surface mount (SMD) or through-hole components, soldering using methods such as reflow or wave soldering, and performing rigorous inspection and cleaning. This process transforms a bare board into a functioning circuit critical for embedded electronics in unmanned platforms.

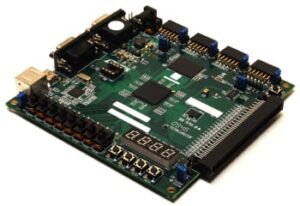

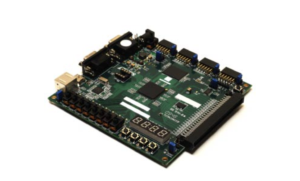

PCB Prototyping by San Francisco Circuits.
In unmanned systems, PCBs are responsible for navigation control, sensor integration, communication systems, and power management. The reliability and precision of PCB assemblies directly impact system performance and operational safety.
Applications in Unmanned Systems
PCB assemblies are deployed across a range of unmanned platforms, including:
- Unmanned Aerial Vehicles (UAVs): Flight control units, GPS systems, telemetry modules
- Unmanned Ground Vehicles (UGVs): Motor controllers/ESC, robotic arm circuits, LiDAR interfaces
- Autonomous Underwater Vehicles (AUVs): Sonar modules, pressure sensors, waterproof communication systems
- Unmanned Surface Vessels (USVs): Power distribution boards, remote steering control systems
These assemblies must withstand vibration, extreme temperatures, moisture, and electromagnetic interference, especially in aerospace and marine applications.
Types of PCB Assembly Services
Unmanned systems require various PCB assembly service types based on the design complexity, component mix, and production scale:
- Surface Mount Assembly (SMT): Ideal for compact, high-density layouts; uses solder paste printing and reflow soldering
- Through-Hole PCB Assembly: Suitable for durable mechanical connections and high-power applications
- Hand Soldering: Used in prototyping, repair, or custom low-volume runs
- Selective Soldering: Offers precision for mixed-technology boards
- Prototype PCB Assembly: Enables rapid testing and iteration for R&D programs
- Flexible and Multilayer PCB Assembly: Supports intricate form factors in UAVs and AUVs
Conformal coating, such as parylene or acrylic, is often applied to protect circuit boards from environmental exposure. PCB cleaning processes are used to remove flux residues and contaminants. Adhesives may also be used to reinforce components or provide strain relief on assemblies subjected to vibration and mechanical loading in unmanned systems.
Manufacturing Standards and Inspection
Electronics manufacturing for unmanned systems adheres to rigorous standards:
- IPC-A-610 and IPC-J-STD-001: Define workmanship and soldering quality
- MIL-STD-275 and MIL-PRF-31032: Govern military-grade PCB fabrication
- AS9100: Required for aerospace electronics manufacturing
Inspection processes include automated optical inspection (AOI), in-circuit testing (ICT), and X-ray inspection to detect hidden defects. Functional testing is performed post-assembly to validate electrical performance under operational conditions.
Comparison of PCB Assembly Methods
| Method | Best for | Soldering type | Component type |
| SMT assembly | High-density, compact designs | Reflow soldering | SMD components |
| Through-hole assembly | Durable, high-power applications | Wave/selective solder | Through-hole |
| Hand soldering | Prototypes and repair work | Manual soldering | Mixed |
| Quick turn PCB assembly | Fast prototyping or low-volume runs | Varies | Mixed |
Choosing between SMT and through-hole depends on application requirements like vibration resistance, spatial constraints, and electrical load.
Additional Capabilities
Modern PCB assembly services for unmanned systems often include:
- Electronic Components Sourcing: Integration with supply chains for passive and active components
- Turnkey PCB Assembly: End-to-end service from design to testing
- PCB Design and Assembly Integration: Facilitates concurrent engineering
- Low Volume and Custom PCB Assembly: Supports pilot programs and one-off designs
Copper clad laminates and advanced solder paste formulations are selected to match the system’s thermal and mechanical performance needs.
Industries and Specialized Applications
Aerospace PCB assembly demands the highest reliability for avionics, telemetry, and guidance systems. Marine and defense applications require PCB conformal coating to protect against saltwater and humidity. Ground vehicle electronics demand ruggedized connectors and secure solder joints to withstand terrain shock and dust.
Suppliers specializing in electronics assembly services for unmanned systems often offer tailored solutions, including:
- Quick Turn PCB Assembly Services for development cycles
- Custom PCB Assembly for niche platforms
- Electronics Assembly Companies with IPC-certified staff
- Surface Mount PCB Assembly for UAV control boards
With increasing autonomy, electronics integration becomes more complex, making PCB design, manufacturing, and assembly a cornerstone of next-generation unmanned platforms.
