Omnetics Connector Corporation offers a broad range of Micro-D connectors engineered for aerospace and unmanned systems where dependable electrical performance is critical.

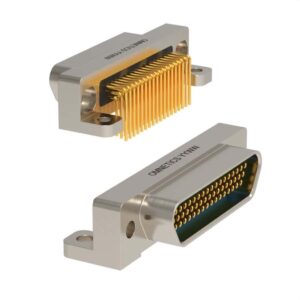

Micro-D Connectors
Built to meet or exceed MIL-DTL-83513, the company’s Micro-D family supports applications including avionics, sensor systems, communication modules, flight controls, navigation systems, and power systems across UAV platforms.
Designed for size and weight constrained UAVs, the Micro-D family combines a compact, high-density design with low weight while maintaining reliable performance in demanding operating environments. Gold-plated Flex Pin contacts withstand more than 2,000 mating cycles while providing excellent resistance to shock and vibration, making the connectors well suited to mission critical unmanned applications.
High-Reliability Micro-D Connectors
Available with 9 to 51 contacts, Omnetics’ Micro-D connectors support a wide range of termination options to accommodate diverse electrical and mechanical design requirements.
Configurations include pre-wired, horizontal, vertical and card-edge surface mount, flex circuit mount, straight and right-angle through-hole, solder cup, jumper, and saver variants. Selected connectors can also be manufactured for operating environments up to 260°C.
Surface Mount Micro-D Connectors
Horizontal Surface Mount (H0) and Vertical Surface Mount (VV) Micro-D connectors provide compact, high-density interconnect solutions for UAV electronics where board space is at a premium. These configurations help designers maximize available space while supporting reliable performance in systems exposed to shock and vibration.
Discrete Wired Micro-D Connectors
The Discrete Wired (WD) series offers a pre-wired Micro-D connector option for applications requiring simplified installation. Discrete Wired variants are also available with optional over-molding while maintaining the compact footprint of the Micro-D design.
Beyond these featured configurations, the Micro-D portfolio includes a broad selection of connector types, including Power Micro-D, Solder Cup, Flex Circuit Mount, Straight and Right Angle Through-Hole, Vertical Board Mount, Narrow Right Angle, Jumper, and Saver variants to address a wide range of aerospace and unmanned vehicle requirements.
For additional information on the complete range of Omnetics Micro-D connectors and available configurations, visit the company’s Micro-D product page.
