Micro-D Connectors

Built to meet or exceed MIL-DTL-83513, our rugged Micro-D connectors are perfect for aerospace and Unmanned Vehicle Systems, where high-reliability is critical.

The gold-plated flex pins withstand more than 2000 mating cycles, while giving the connector an extremely high tolerance to shock and vibration.

This compact design can be configured with 9 to 51 contacts. Termination styles include pre-wired, Surface Mount (Horizontal, Vertical or Edge), Flex Circuit Mount, Thru-Hole (Straight or Right Angle), solder cup and jumper.

We offer Discrete Wired variants with optional over-molding, and the Saver and Jumper variants. Our connectors can be manufactured for environments up to 260°C.

Micro-D Connector Types

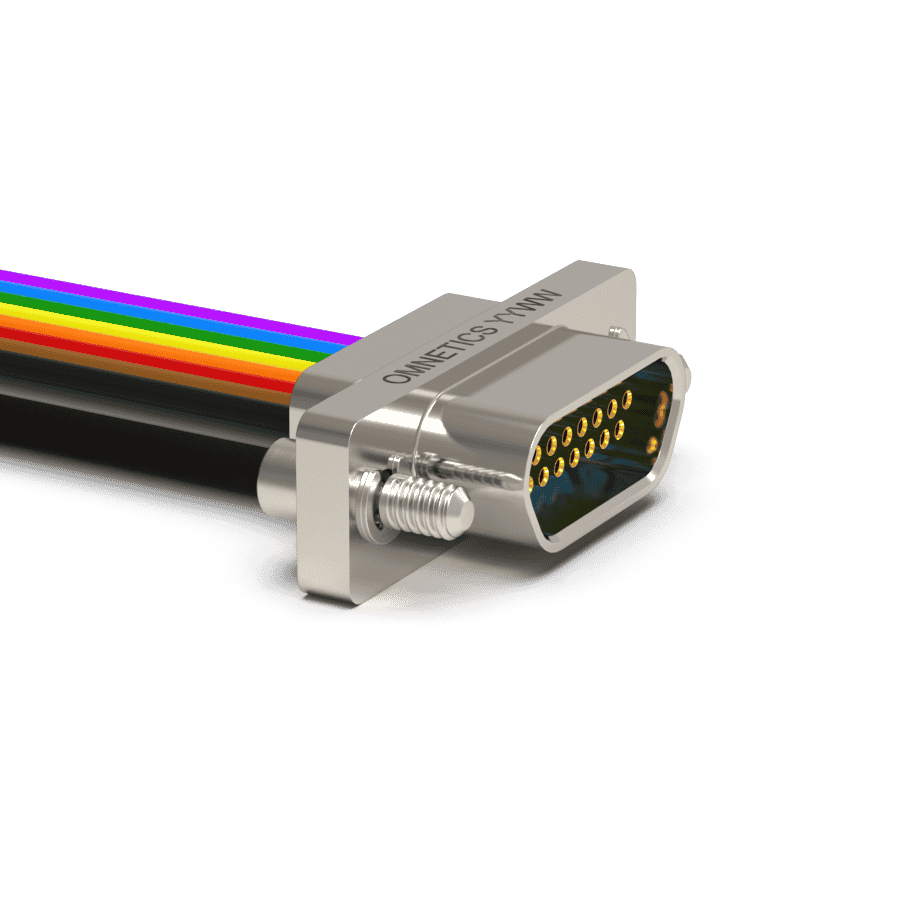

  • Discrete Wired (WD)
  • Soldercup (SS)
  • Power Micro-D

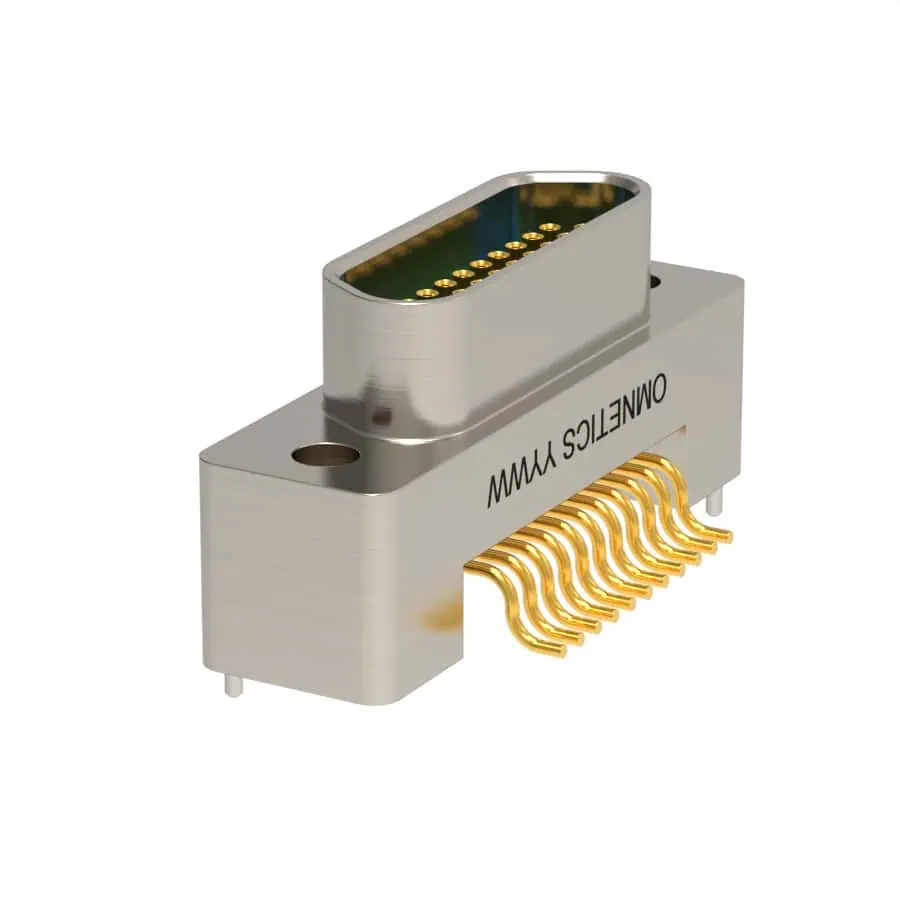

  • Horizontal Surface Mount (H0)
  • Vertical Surface Mount (VV)
  • Card Edge Surface Mount (C0)
  • Flex Circuit Mount (FF)
  • Straight Thru-Hole Mount (DD)
  • Right Angle Thru-Hole (H2)
  • Vertical Board Mount .075 (SV7)
  • Narrow Right Angle. 100 (SR1)
  • Jumpers (WXY)
  • Savers (Z)
