Pulse jet engines, renowned for their simplicity and efficiency, are a unique type of jet propulsion system with no moving parts. Sometimes referred to as wave engines, these devices generate thrust through intermittent combustion, offering a lightweight yet powerful solution for airborne unmanned systems. Valveless pulse jets, in particular, stand out for their streamlined design and reliability. With advancements in jet engine technology, pulse jets continue to offer innovative opportunities for propulsion in both specialized and large-scale projects.
Pulse jet engines are a robust propulsion solution for unmanned aerial vehicles (UAVs), providing high thrust-to-weight ratios through a simplified design with minimal moving parts.
These engines leverage the principles of acoustic resonance and rapid combustion cycles to generate continuous thrust, making them particularly suited for applications requiring high-speed, efficient propulsion with reduced mechanical complexity.
Pulse jet engines operate by utilizing repeated combustion cycles within a specially designed combustion chamber. Air and fuel are mixed, ignited, and combusted, producing hot gases that are expelled at high velocity through the engine’s exhaust. This process generates thrust based on Newton’s Third Law of Motion.
A defining feature of pulse jet engines is their reliance on acoustic resonance within the chamber, which ensures a rhythmic influx of air for each combustion pulse. Unlike turbine engines, pulse jets do not require intricate mechanical compressors or turbines, resulting in fewer moving parts and simplified maintenance.
The basic design includes variations such as valved and valveless pulse jets. Valveless pulse jets rely on carefully engineered geometry to regulate airflow and combustion, reducing the potential for mechanical failure and increasing operational longevity. This design principle is particularly advantageous for UAVs deployed in remote or high-risk environments where maintenance opportunities are limited.
Advantages of Pulse Jet Engines in UAV Applications
Pulse jet engine design offers a range of benefits that make them an attractive choice for UAV propulsion:
Minimal Moving Parts
The lack of mechanical components such as compressors and turbines ensures higher reliability and reduced wear over time.
Lightweight Design
Their straightforward architecture results in a lower overall weight, crucial for optimizing UAV payload capacities and endurance.
High Thrust Output
Despite their simplicity, pulse jet engines generate substantial thrust, making them ideal for high-speed UAVs such as target drones, surveillance platforms, or rapid-response systems.
Ease of Manufacturing
The relative simplicity of a pulse jet engine allows for cost-effective production, enabling rapid prototyping and large-scale deployment.

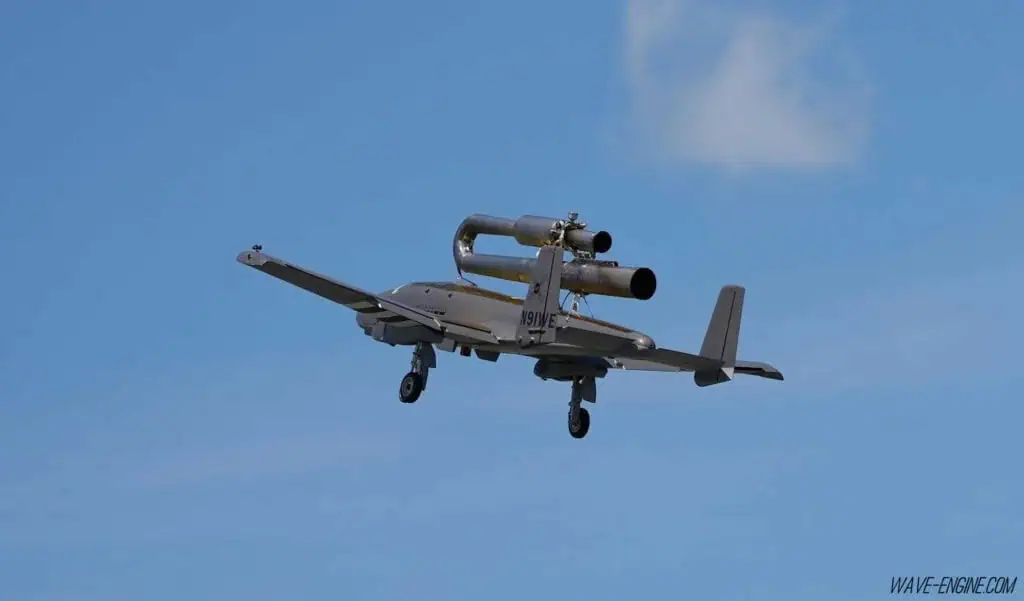

Pulse jet engine UAV by Wave Engine
Valveless Pulse Jet and Wave Jet Engines
Valveless Pulse Jet Engines
The valveless pulse jet, a subtype of pulse jet engines, eliminates the mechanical reed valves found in traditional designs, replacing them with an advanced aerodynamic configuration. The airflow is controlled by the geometry of the engine. The pressure drop created after exhaust gases exit the engine is used to suck in fresh air and begin the next combustion cycle. This innovation minimizes maintenance requirements and reduces the risks associated with mechanical failure since reeds are a significant source of mechanical wear and tear and thus are a common failure point.
Wave Engines
The wave jet engine, another derivative of pulse jet technology, employs wave dynamics for enhanced efficiency and power output. These engines exploit the shockwaves generated during combustion to amplify thrust while maintaining the low-complexity benefits of traditional pulse jets. Such advancements make wave jet engines a compelling option for UAV missions demanding high-speed maneuverability and operational reliability.
Pulse Detonation Engines
Pulse detonation engines (PDEs) are a more complex form of pulse jet engine that uses detonations of the air-fuel mixture at supersonic speeds to expel the exhaust gases quicker and more efficiently. The main technical challenges faced by designers of these engines involve dealing with the higher stresses and temperatures created by the detonations.
Engineering Challenges and Innovations
While pulse jet engines offer simplicity, their design and integration into UAVs present several engineering challenges. For instance, achieving optimal acoustic resonance is crucial to maintain consistent combustion cycles and prevent inefficiencies. This requires precise engineering of the combustion chamber geometry and careful calibration of fuel and air delivery systems.
Additionally, the noise signature of pulse jet engines is a significant factor in military UAV operations where stealth is critical. Engineers are exploring advanced muffling technologies and materials to mitigate acoustic output without compromising performance. Innovations in materials science are also enhancing the durability of components exposed to high-temperature combustion cycles, further improving the reliability of pulse jet-powered UAVs.
Applications of Pulse Jet Engines in UAVs
Pulse jet engines are widely used in UAVs across various domains, including:
Target Drones: Their high-speed capabilities and cost-effective production make them ideal for military training and testing scenarios.
Surveillance UAVs: The lightweight nature of pulse jets enables longer flight durations and enhanced payload capacities.
Experimental Platforms: Due to their straightforward design, pulse jets are a popular choice for experimental UAV systems aimed at testing new flight dynamics or propulsion concepts.
Pulsejet engines are capable of producing high thrusts and high speeds, but many designs are less fuel-efficient compared to other types of engine. This makes them more suited to short-range applications where speed is the overriding requirement. They are also relatively noisy, making them unsuitable for many commercial applications or those that require a high level of stealth.
