BlueView 2D Forward-Looking Sonars
BlueView 2D multibeam imaging sonars produce video-like acoustic images in low- and zero-visibility water. The range includes different frequencies, viewing geometries, imaging ranges, and depth ratings. Imaging range and depth rating describe separate operating limits.

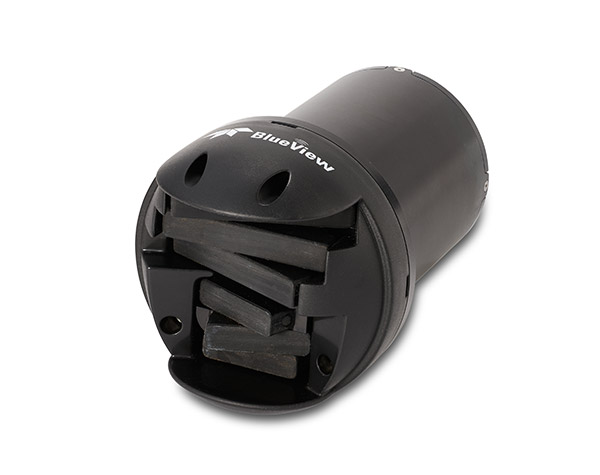

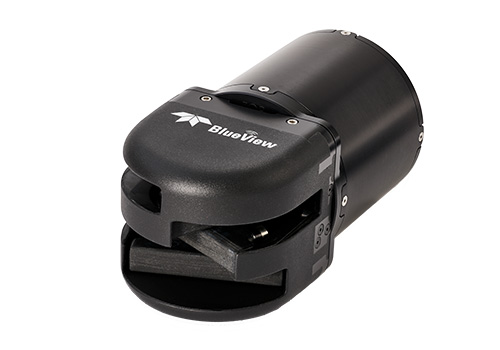

- BlueView M900 S Mk2: 900 kHz model with a 100 m maximum range and 1,000 m depth rating; offers a 130° field of view.
- BlueView M900 D Mk2: 900 kHz, 100 m maximum-range variant rated to 6,000 m.

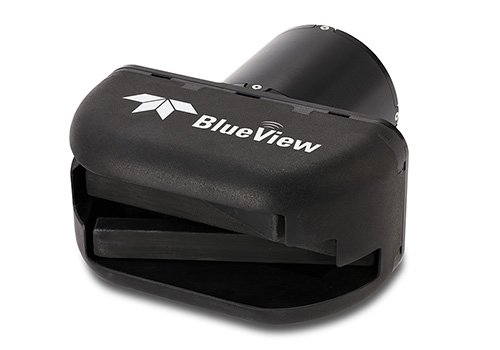

- BlueView M450 S Mk2: 450 kHz, 300 m maximum-range model rated to 1,000 m.
- BlueView M450 D6-Mk2: 450 kHz, 300 m maximum-range model rated to 6,000 m.

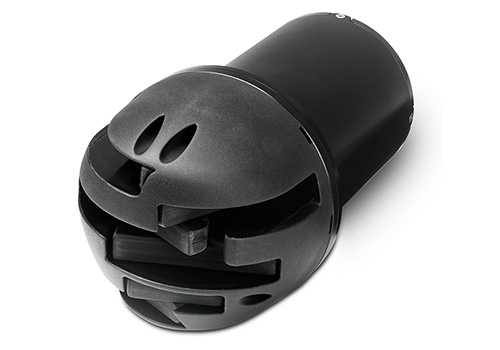

- BlueView M900-2250-130 S Mk2: Dual-frequency 900/2,250 kHz model with respective maximum ranges of 100/10 m, a 130° field of view, and 1,000 m depth rating.
- BlueView M900-2250-130 D6-Mk2: Dual-frequency 900/2,250 kHz model with respective maximum ranges of 100/10 m, rated to 6,000 m.
- BlueView M900-2250-S 130/45-Mk2: Dual-frequency 900/2,250 kHz model with 130° and 45° viewing options, maximum ranges of 100/10 m, and 1,000 m depth rating.
