Revector is a leading developer of cell site simulators and  mobile phone surveillance solutions for security, intelligence and public safety applications.

We have incorporated our field-proven IMSI number tracking technology into compact, lightweight payloads for UAVs (unmanned aerial vehicles) and drones, providing the ability to support a wide range of critical missions in challenging environments and hard-to-reach areas.

IMSI Number Tracking

Cell phone surveillance and detection

imsi locatorIMSI (International Mobile Subscriber Identity) numbers are unique to each mobile device, providing a means to identify every user within a mobile network. Our unique IMSI catching technology allows authorities to efficiently find and track all broadcasting mobile targets in range, pinpointing the actual location of the device to within a few metres.

Our Revector Detector systems use state-of-the-art software to detect the broadcasting IMSIs within range, locking onto them with a silent call and then narrowing down the location with a sophisticated directional finder.

When the Wi-Fi functionality is switched on, a mobile device is constantly seeking and interacting with new Wi-Fi networks – leaving a digital trace. Revector’s Wi-Fi catchers can be used to identify historic suspicious activity around buildings, locations, or specific places of high interest for criminal or terrorists activity.

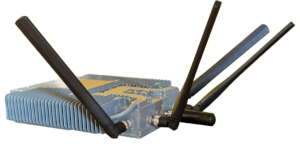

Revector Detector IMSI Catcher Drone Payload

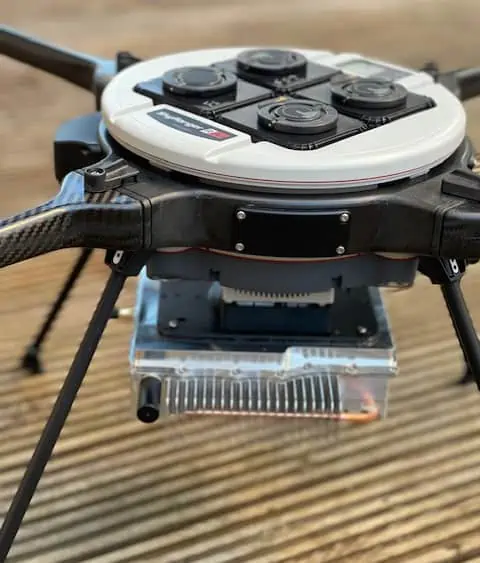

cell phone detection device

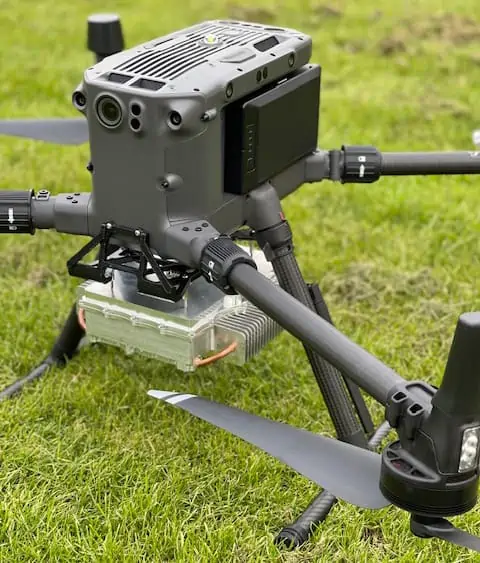

IMSI Catcher drone

Our Revector Detector IMSI Catcher drone payload provides detection, tracking and control of 2G, 3G and 4G mobile phones. Based around a dual SDR (software-defined radio), it extracts and records all IMSI, IMEI and TSMI data from devices in range, providing GPS location and timestamp.

The low-SWaP unit establishes a new mobile phone cell site, encouraging all GSM, UTMS and LTE devices in the area to connect.

Once a target device is connected, the Revector Detector provides a range of capabilities, including:

  • Forcing 4G devices down to 2G/3G
  • GPS location extraction
  • Target battery draining
  • Selective jamming (Denial of Service)
  • SMS sending to target.

Machined from one piece of superior grade aluminium, the clamshell housing is designed for maximum heat dissipation, durability, and robustness.

IMSI Number Tracking

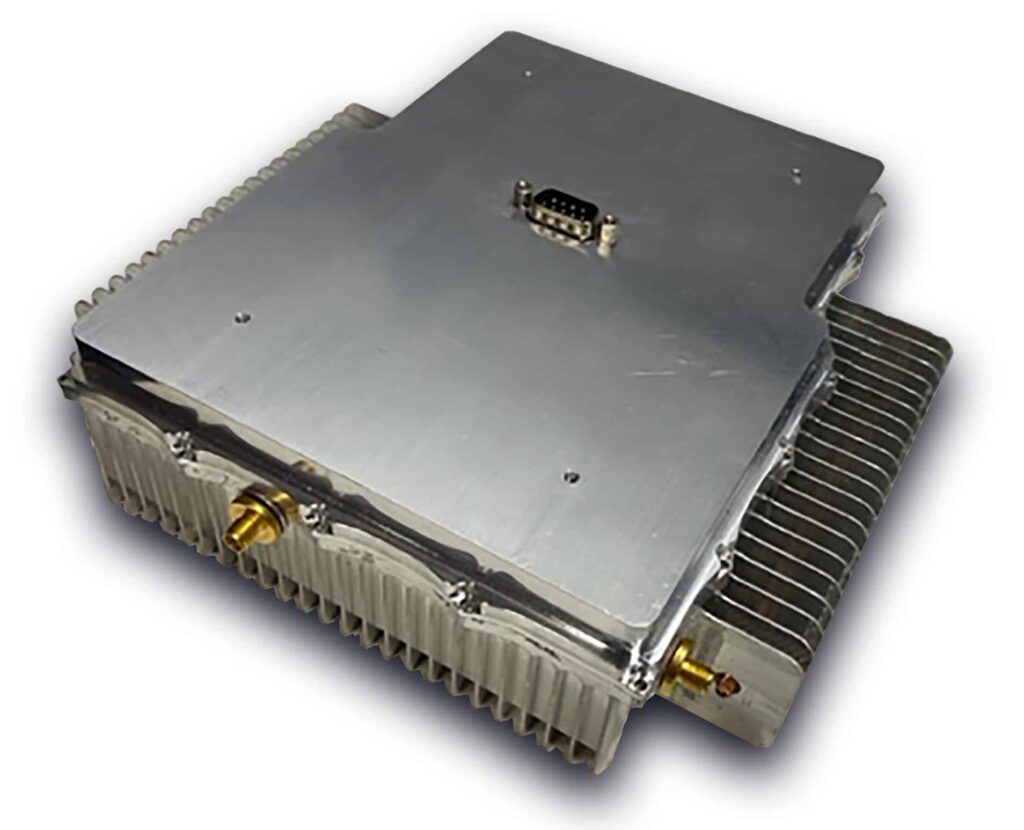

Revector Detector IMSI tracking device

Specifications:

Dimensions: 200 x 195 x 53 mm
Weight: 1.2 Kg
Power Supply: 12 VDC
RF Output Power: Up to 3W per channel
2G: 3W
3G: 1W
4G: 0.75W
Radio Operating Frequency: 400 MHz – 3GHz
Receiver Sensitivity: ←120 dBm

Applications

cell phone surveillance for ports and airports

Aviation & Maritime Security
Our IMSI catching technology allows security teams at ports and airports to gather intelligence, prevent criminal activity, and maintain public safety.

mobile phone surveillance for Critical Infrastructure

Critical Infrastructure & Government Buildings
Revector IMSI number tracking and surveillance technology can prevent threats to a wide variety of infrastructure and facilities, including embassies, ministry buildings, power stations and oil refineries.

IMSI Tracker for border control

Border Control
UAVs equipped with our IMSI tracker payloads are ideal for monitoring long stretches of land and maritime borders, helping to combat piracy, smuggling, and movement of criminals.

IMSI catching for counter-terrorism

Law Enforcement & Counter-Terrorism
The Revector Detector solution can be used by police, SWAT teams, and counter-terrorism personnel to support criminal investigations, surveillance, criminal raids and other critical operations.

cell phone detection device for search and rescue

Search and Rescue & Disaster Management
Revector’s IMSI Catcher device can be used by SAR teams and first responders to locate mobile phones during critical scenarios and in hostile terrain, providing an essential rescue capability when accuracy and time are of the essence.
