Leonardo DRS

Cutting-Edge Electro-Optical & Infrared Imaging Gimbals for Advanced UAV ISR & Targeting

2345 Crystal Drive, Suite 1000, Arlington, Virginia 22202 United States of America Regional Offices
Visit Website Contact

Leonardo DRS is a leading provider of cutting-edge defense technologies for UAVs (unmanned aerial vehicles) and unmanned systems. Proven in service with the US DoD, International MoD and Industry customers, the company’s products have been deployed on thousands of platforms around the world.

Advanced EO/IR gimbals for superior UAV ISR & targeting

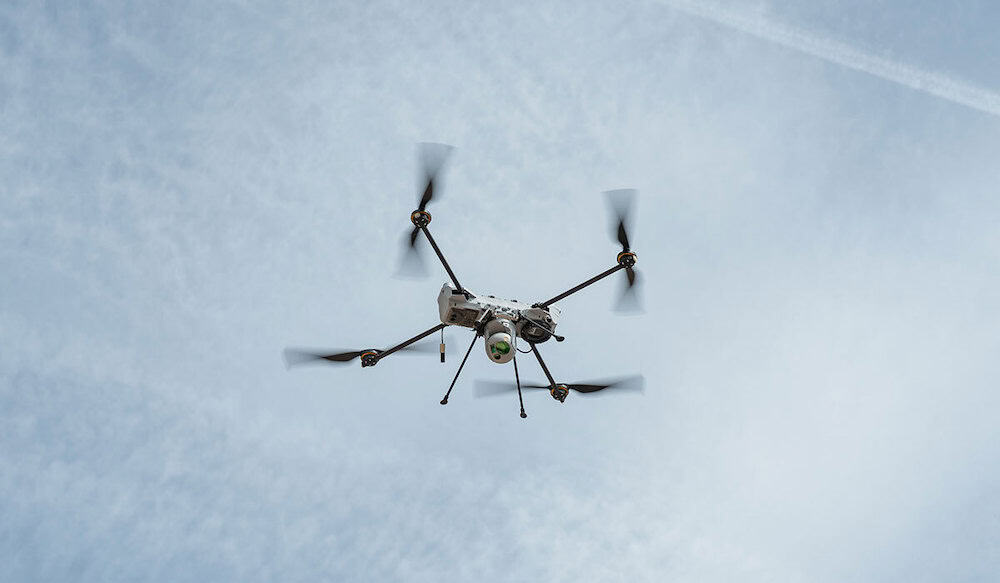

STAG5 Mounted to Drone Leonardo DRS

Leonardo DRS’ advanced sensing solutions are designed to give the warfighter a tactical advantage on the modern battlefield. Utilizing state-of-the-art electro-optical and infrared imaging technologies, and stabilization, the STAG range of stabilized gimbals provides small UAS with best-in-class Intelligence, Surveillance, Reconnaissance and Targeting (ISR&T) capabilities, ensuring superior situational awareness and decision-making.

The open-architecture design and common platform base allow for interoperability across multiple platforms and installations, and deliver the same precision pointing and controls across the entire product range. The STAG gimbals also support STANAG-compliant laser designation in both the STAG-5 and STAG-8 gimbal families.

STAG-5

SWaP-optimized ISR & targeting gimbals for Group 1-3 UAS

The STAG-5 family of two-axis stabilized gimbals is optimized for use on Group 1-3 UAS, supporting a wide variety of UAV’s and missions, including fixed wing, multirotor, helicopter, Common Launch Tube UAV and both ISR and targeting applications. Featuring highly stabilized, proven reliable performance in a low-SWaP form factor, powerful onboard HD image processing and an integrated GPS-aided INS for precise geopointing and geolocation. The family of gimbals includes six different off-the-shelf models covering day, day/night and day/night/targeting missions. The inherent modularity and flexibility of the STAG-5 design provides an easy path forward for the addition of new custom variants.

Leonardo DRS STAG5 ISR targeting gimbals

All gimbals support Ethernet control and output dual HD-capable H.264 video streams with MISB metadata.

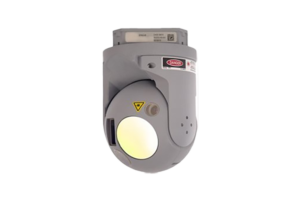

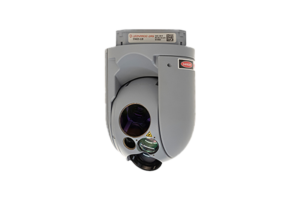

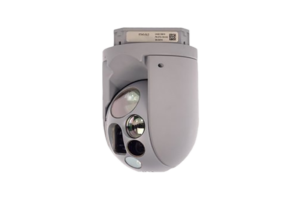

Leonardo DRS STAG5-SLD ISR & targeting gimbalSTAG5-SLD Leonardo DRS STAG5-LLD ISR & targeting gimbalSTAG5-LLD Leonardo DRS STAG5-M ISR & targeting gimbalSTAG5-M
5.5 x 8” D x H (6” Common Launch Tube compatible) 5.5 x 8” D x H (6” Common Launch Tube compatible) 5.5 x 8” D x H (6” Common Launch Tube compatible)
4.7 lbs 5.3 lbs 5 lbs
SWIR 640×480 see-spot camera HD 10µm uncooled LWIR camera MWIR 640×480 camera with 8x optical zoom
720p color camera 1280×1024 low-light/see-spot camera 720p color camera
STANAG 3733 compliant laser designator 720p color camera Optional second camera
Coded target designator STANAG 3733 compliant laser designator Optional NVG-compatible IR pointer
Laser rangefinder Optional laser rangefinder
IR illuminator

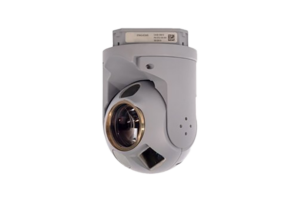

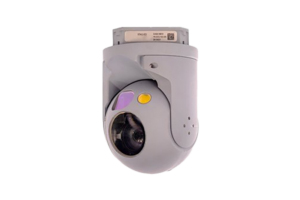

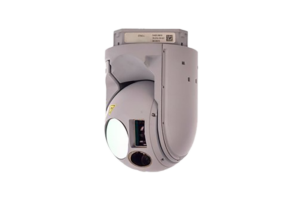

Leonardo DRS STAG5-L ISR gimbalSTAG5-L Leonardo DRS STAG5-EOXR ISR gimbalSTAG5-EOXR Leonardo DRS STAG5-EO ISR gimbalSTAG5-EO
5.5 x 8” D x H (6” Common Launch Tube compatible) 5.5 x 8” D x H (6” Common Launch Tube compatible) 5.5 x 8” D x H (6” Common Launch Tube compatible)
4.2 lbs 4.6 lbs 4.4 lbs
HD 10µm uncooled LWIR camera 720p color camera with continuous zoom 1080p continuous zoom color camera
720p color camera Laser rangefinder Optional second camera
Optional NVG-compatible IR pointer Optional NVG-compatible IR pointer
Optional laser rangefinder Optional laser rangefinder

More information: STAG-5 ISR & targeting gimbals for Group 1-3 UAS

Direct Inquiries Contact: [email protected]

STAG-8

High-performance tactical gimbals for Group 2-3 UAS

The high-performance STAG-8 tactical gimbal family is a scaled up version of the successful STAG-5 modular design, providing superior performance in a modular SWaP-optimized and MOSA-oriented design directly applicable to Group 2-3 UAS. With best-in-class gyro stabilization, the product range offers a number of options, based around Leonardo DRS’ HexaBlu® cooled 6-micron MWIR camera core detector.

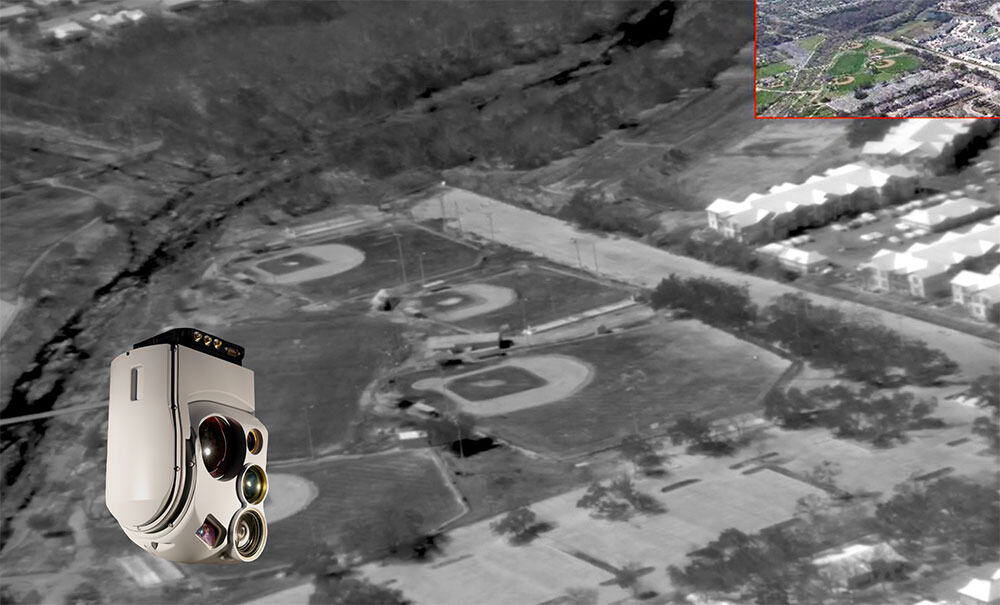

Leonardo DRS STAG8 tactical gimbals

Featuring an on-board edge computing module for advanced image processing, the STAG-8 family is capable of multi-mode target tracking, and utilizes an integrated GPS-aided INS for precise geolocation. The gimbals support Ethernet control and output dual HD-capable H.264 video streams with MISB metadata. The targeting version of the STAG-8 includes a STANAG 3733 50mJ Laser Target Designator.

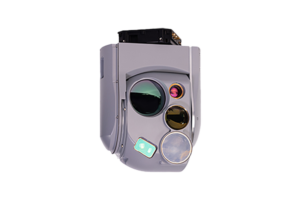

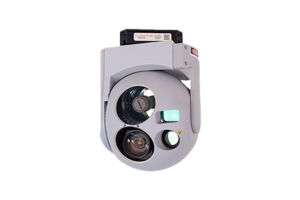

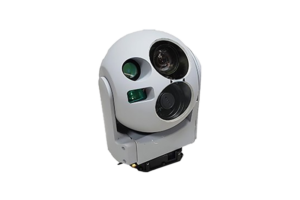

Leonardo DRS STAG8-MLD tactical gimbalSTAG8-MLD Leonardo DRS STAG8-M tactical gimbalSTAG8-M Leonardo DRS STAG8-EO tactical gimbalSTAG8-EO
7.75 x 11” D x H 7.75 x 11” D x H 7.75 x 11” D x H
<12 lbs <12 lbs <12 lbs
1080p global shutter EO camera auto focus with additional 4x digital zoom 1080p global shutter EO camera auto focus with additional 4x digital zoom 1080p global shutter EO camera auto focus with additional 4x digital zoom
640×480 SWIR see-spot camera with 4x digital zoom 1280×960 MWIR continuous zoom camera with additional 4x digital zoom 720p global shutter spotter camera
1280×960 MWIR continuous zoom camera with additional 4x digital zoom Optional laser rangefinder with up to 5km range Optional laser rangefinder with up to 5km range
Laser rangefinder with up to 5km range Optional NVG laser pointer Optional NVG laser pointer
STANAG 3733 compliant laser designator

More information: STAG-8 tactical gimbals for Group 2-3 UAS

Direct Inquiries Contact: [email protected]

STAG-4

Compact ISR & targeting gimbals for small tactical multirotor UAS

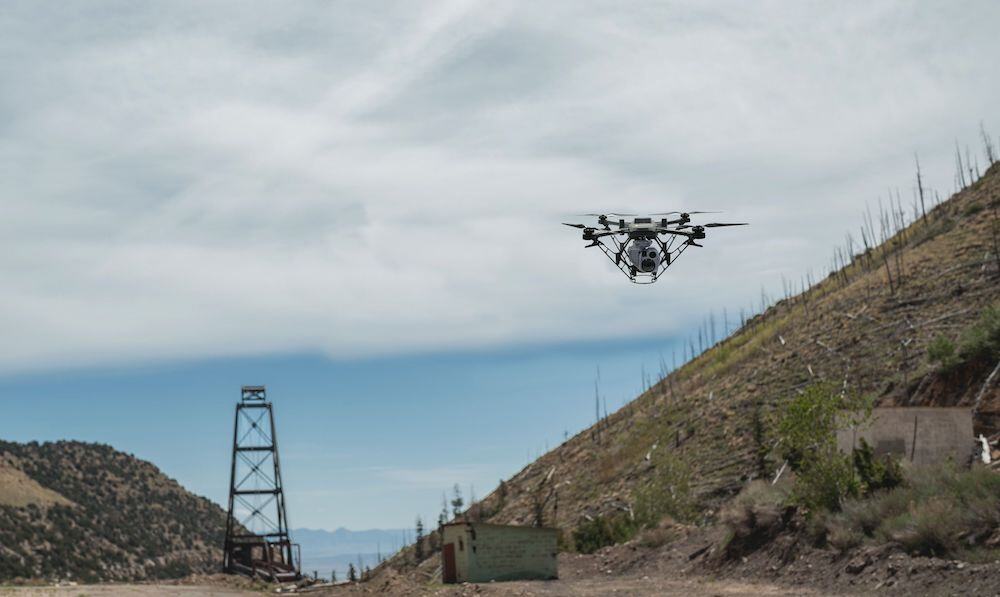

STAG4L SUAS Tactical Agile Gimbal

The STAG-4 gimbals are a family of best in-class highly stabilized imaging systems optimized for a variety of intelligence, surveillance, reconnaissance and targeting missions requiring high performance in a SWaP optimized form factor.

Built on an open architecture MOSA platform, the STAG-4 family supports Ethernet control with STANAG 4586 compliance, multi mode target tracking and dual HD H.264 video streams with MISB metadata, delivering reliable ISR and targeting capability for small tactical UAS platforms.

Currently the smallest member of the STAG-4 family, the STAG4-L is designed for small tethered and untethered multirotor UAS supporting tactical ISR, counter mine operations and situational awareness missions.

The two-axis stabilized system provides precise pointing and tracking in a SWaP optimized form factor, integrating HD electro optical and LWIR imaging with onboard HD image processing and an integrated GPS/INS for accurate geopointing and geolocation.

Leonardo DRS STAG4-L ISR Tactical GimbalSTAG4-L
4.0 lbs
HD 10µm uncooled LWIR camera
Laser rangefinder

More information: STAG-4 ISR & targeting gimbals

Direct Inquiries Contact: [email protected]

Products

STAG-8

High-performance tactical gimbals for Group 2-3 UAS

STAG-5

SWaP-optimized ISR & targeting gimbals for Group 1-3 UAS

STAG-4

Compact ISR & targeting gimbals for small tactical UAS

Articles

Latest

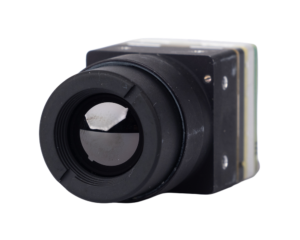

Leonardo DRS Launches LWIR Thermal Camera Module at SOF Week 2026
