Leonardo DRS' STAG-5 family of two-axis stabilized gimbals is optimized for use on Group 1-3 UAS, supporting Common Launch Tube UAV and other ISR and targeting applications requiring reliable performance in a low-SWaP form factor.
Featuring powerful onboard HD image processing and an integrated GPS-aided INS for precise geopointing and geolocation, the gimbals support Ethernet control and output dual HD-capable H.264 video streams with MISB metadata.
The STAG-5 family includes six different off-the-shelf models, and Leonardo DRS can work with clients to create custom variants to suit specific mission requirements. The open-architecture design and common platform base allow for interoperability and deliver the same precision pointing and controls across the entire product range.
Specifications:

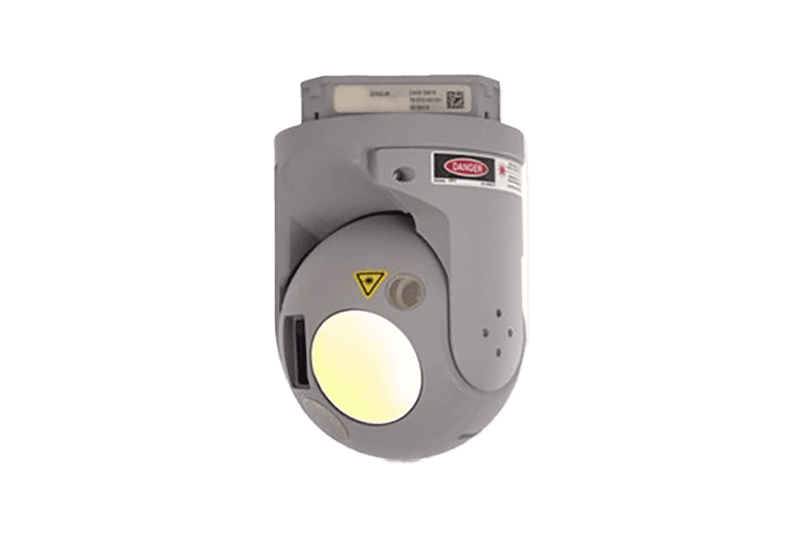

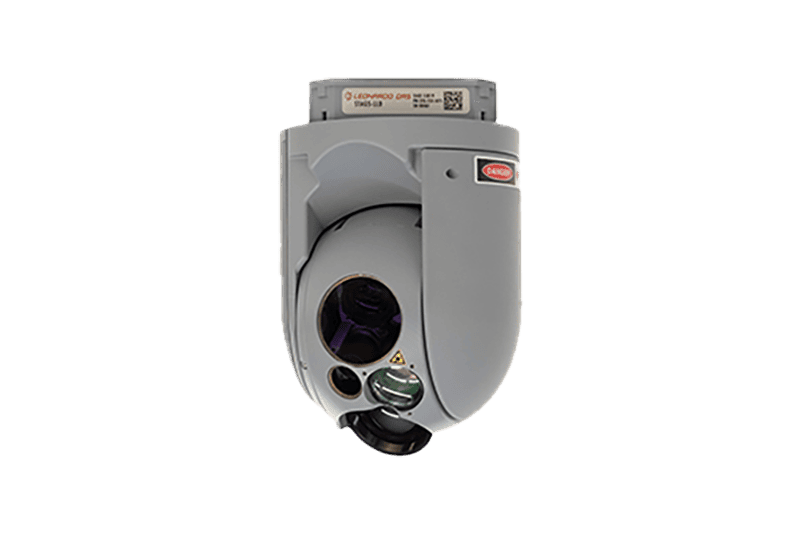

| STAG5-SLD | STAG5-LLD | STAG5-M | |
| Dimensions (D x H): | 5.5 x 8” D x H (6” Common Launch Tube compatible) | 5.5 x 8” D x H (6” Common Launch Tube compatible) | 5.5 x 8” D x H (6” Common Launch Tube compatible) |
| Weight: | 4.7 lbs | 5.3 lbs | 5 lbs |
| Power: | 18 – 32V, 24W typical | 18 – 32V, 24W typical | 18 – 32V, 24W typical |
| Day Camera: | 720p color camera | 1280x1024 low-light/see-spot camera 720p color camera |
720p color camera |
| Thermal Camera: | SWIR 640x480 see-spot camera | HD 10µm uncooled LWIR camera | MWIR 640x480 camera with 8x optical zoom |
| Other Payloads: | STANAG 3733 compliant laser designator Coded target designator Laser rangefinder IR illuminator |
STANAG 3733 compliant laser designator | Optional second camera Optional NVG-compatible IR pointer Optional laser rangefinder |

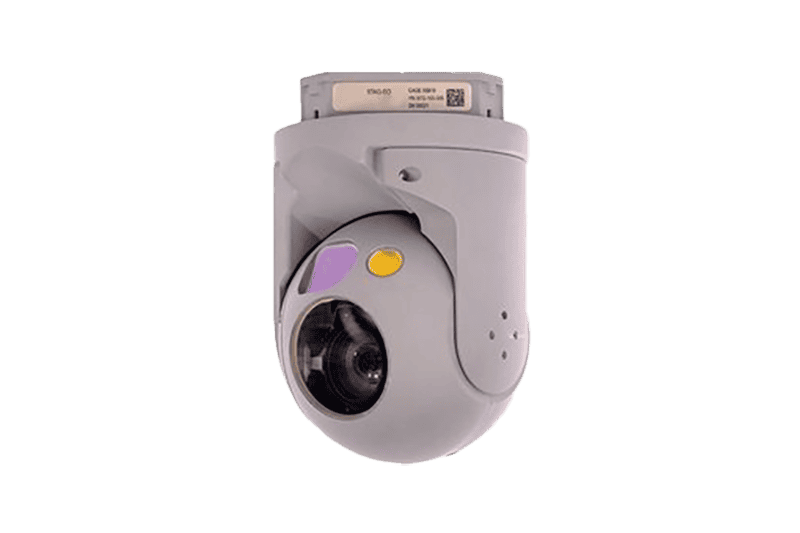

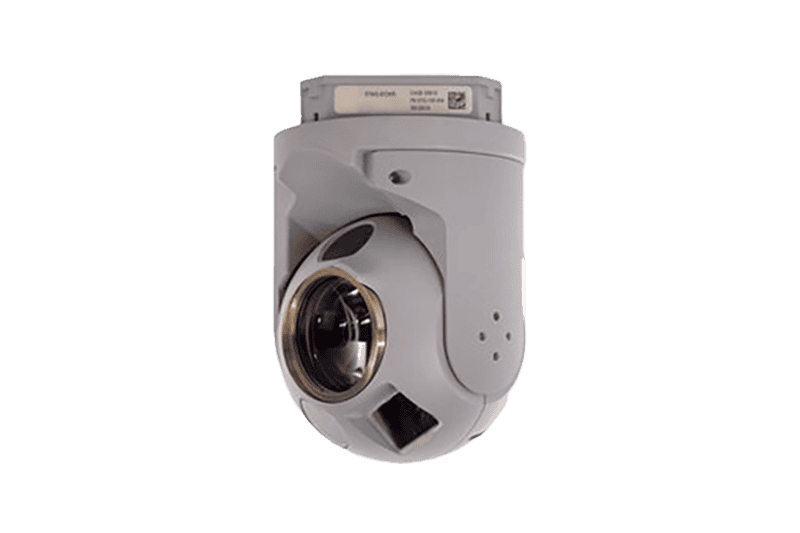

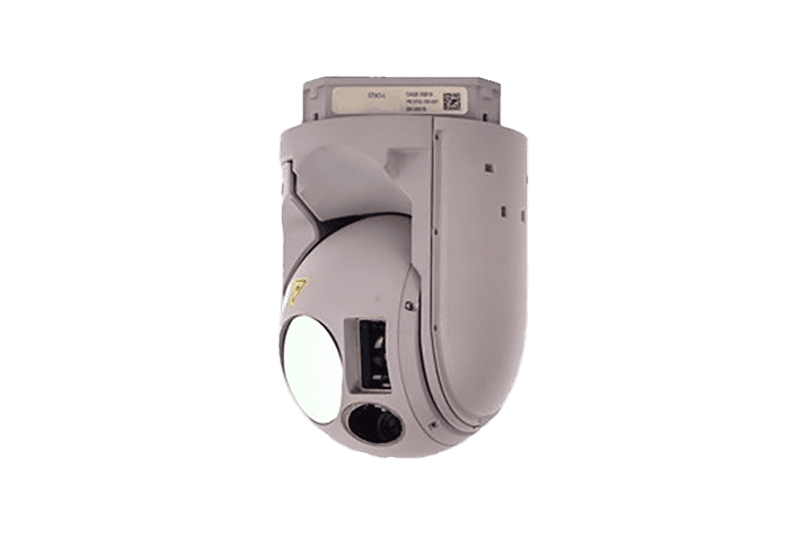

| STAG5-L | STAG5-EOXR | STAG5-EO | |
| Dimensions (D x H): | 5.5 x 8” D x H (6” Common Launch Tube compatible) | 5.5 x 8” D x H (6” Common Launch Tube compatible) | 5.5 x 8” D x H (6” Common Launch Tube compatible) |
| Weight: | 4.2 lbs | 4.6 lbs | 4.4 lbs |
| Power: | 18 – 32V, 24W typical | 18 – 32V, 24W typical | 18 – 32V, 24W typical |
| Day Camera: | 720p color camera | 720p color camera with continuous zoom | 1080p continuous zoom color camera Optional second camera |
| Thermal Camera: | HD 10µm uncooled LWIR camera | ||
| Other Payloads: | Optional NVG-compatible IR pointer Optional laser rangefinder |
Laser rangefinder | Optional NVG-compatible IR pointer Optional laser rangefinder |
