HD Air Studio has released the following article detailing the creation of a custom weatherproof drone gimbal for the Sony UMC-R10C industrial camera.
It’s been a couple of years since Sony launched UMC-R10C to the market and also a couple of years since HD Air Studio developed its first drone gimbal for this industrial camera, but still Sony UMC-R10C integrated into a precision UAV gimbal remains popular among drone mapping and autonomous inspection providers.

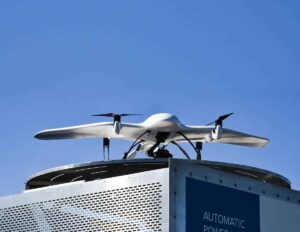

We’ve developed Sony UMC-R10C drone gimbal, as a 2-axis drone gimbal and a 3-axis drone gimbal, for KVS Technologies Team, who was looking for a ready-to-use gimbal for inspecting power grids. KVS Technologies provides power companies with a safe and efficient way to monitor the conditions of their overhead power lines.
Not only image stabilization, but also serial communication
Sony UMC-R10C drone gimbal developed by HD Air Studio offers vast integration possibilities. Unlimited continuous rotation in the pan axis with the built-in slipring connector allows for serial communication and power supply.
Sony UMC-R10C drone gimbal, just like all HD Air Studio gimbals can be combined with powerful data processing software. Users of our gimbals communicate with the gimbal’s on-board computer, autopilot and perform commands defined by the gimbal operator or some automated tasks (e.g. to change settings, control gimbal, retrieve real-time data, execute various actions, etc.).
Creating a drone gimbal for all weathers

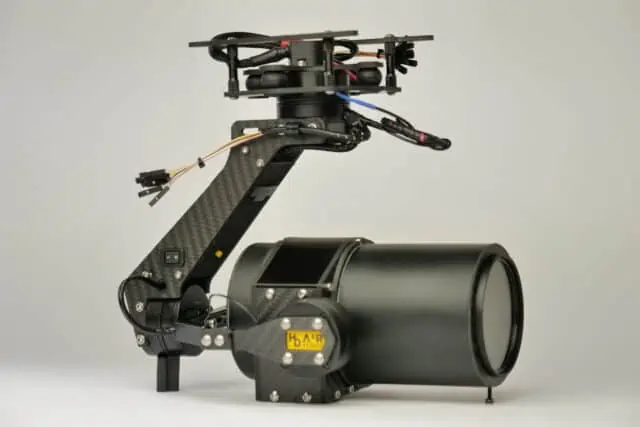

As autonomous drone inspections of various assets are frequently conducted in difficult weather conditions, KVS Technologies needed a camera stabilizer that was not only mechanically resilient but also weather-proof. For this purpose, HD Air Studio created a waterproof camera enclosure – a special sealing protecting the very camera that is integrated with the gimbal.
HD Air Studio can design weather sealing/enclosure that are seamlessly fitted to the custom gimbal. Our enclosures are compliant with even IP65 ingress protection code (protection against low pressure water jets from any direction, as well as condensation and water spray), as defined by the international protection marking EN 60529.
